Seat Position Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: RH manual seat shown, other seats similar.
1. Remove the screw.
  Torque

  : 0.9 Nm
2. Disconnect the electrical connector.
3. Remove the seat position sensor.

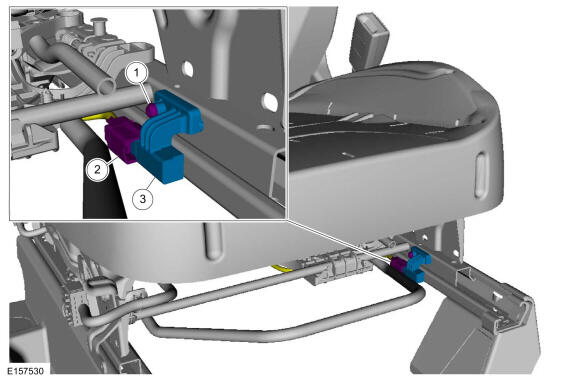

GFD815831

Courtesy of FORD MOTOR COMPANY
