Home >> Ford >> 2024 >> Edge ST-Line >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Electrical Wiring Diagram Introduction >> Introduction

OEM Electrical Wiring Diagram Introduction: Introduction

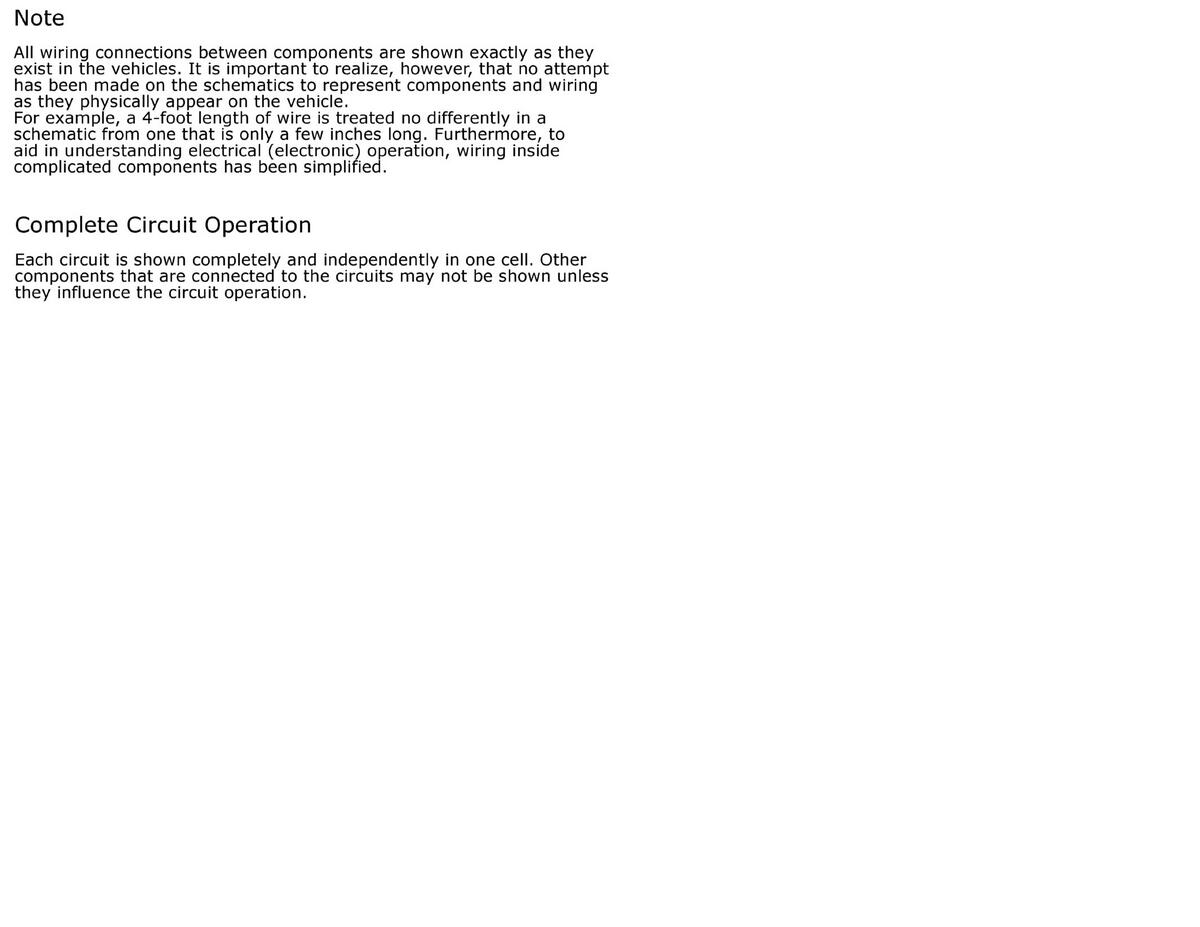

GFDWR221156Courtesy of FORD MOTOR COMPANY

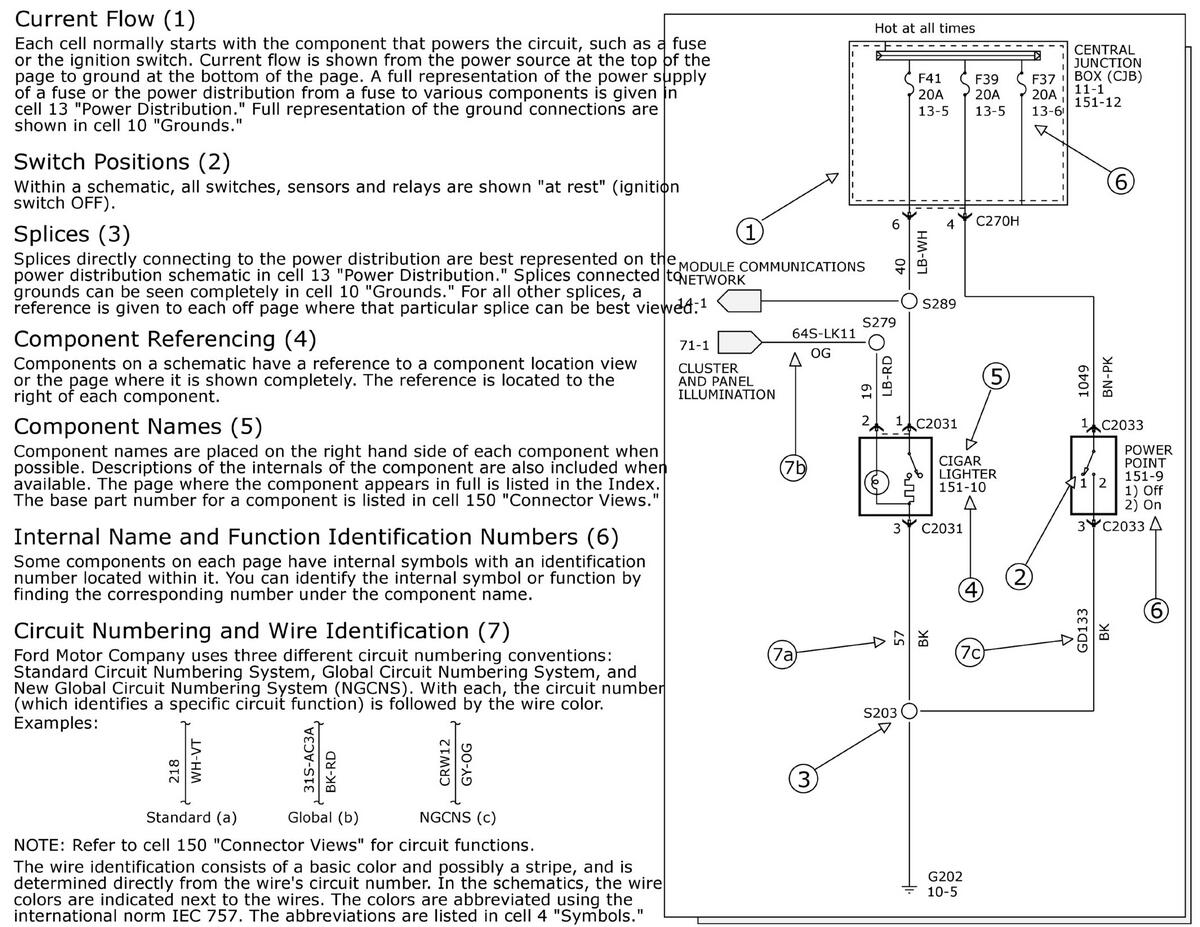

GFDWR221157Courtesy of FORD MOTOR COMPANY

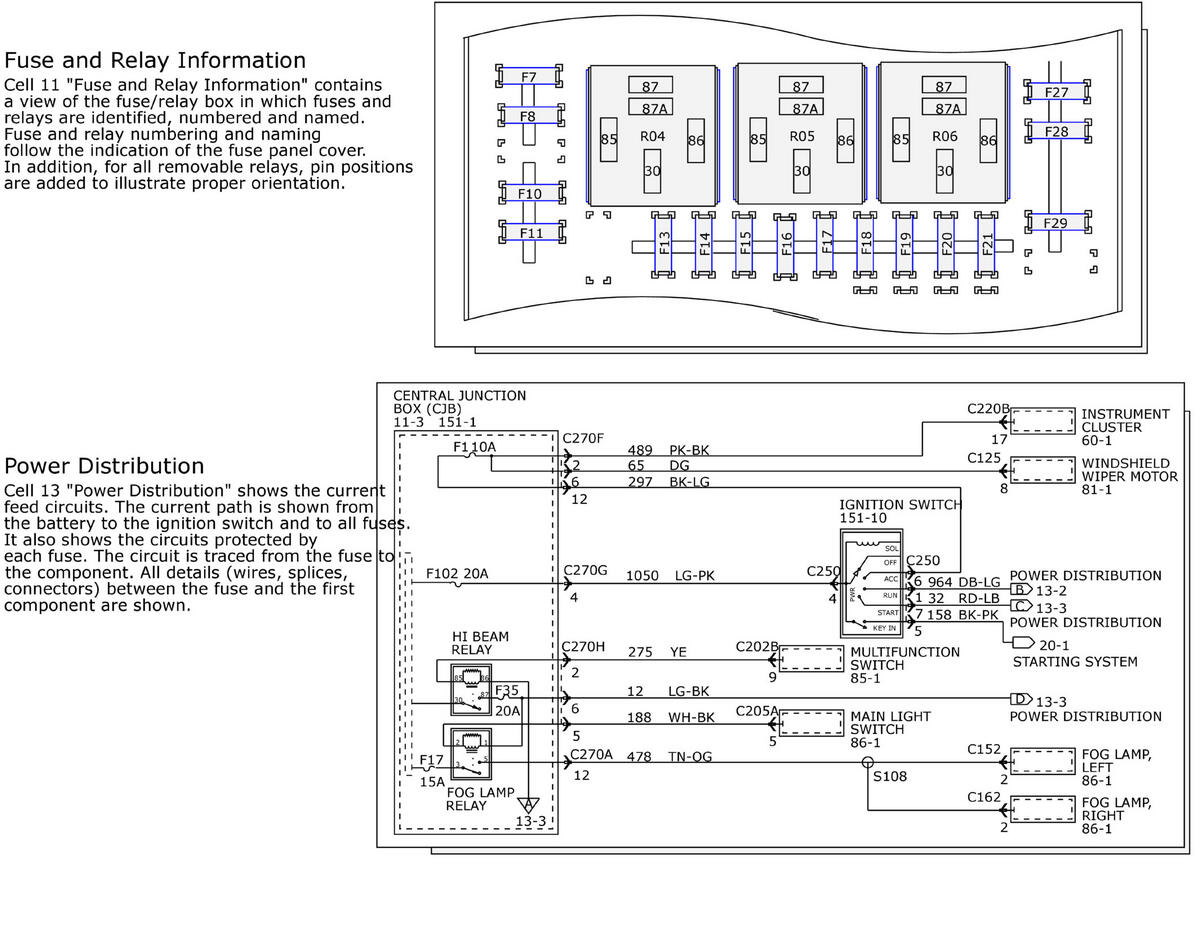

GFDWR221158Courtesy of FORD MOTOR COMPANY

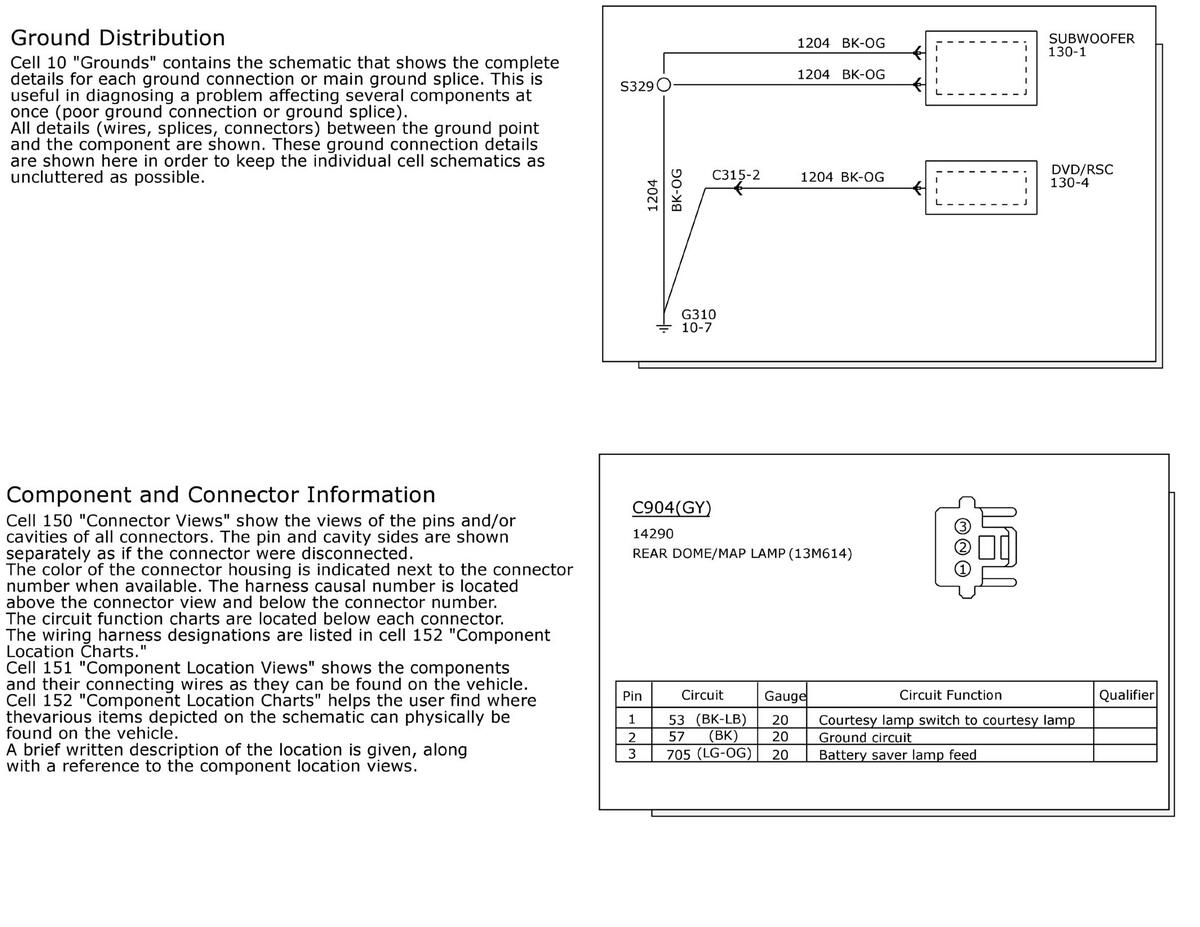

GFDWR221159Courtesy of FORD MOTOR COMPANY

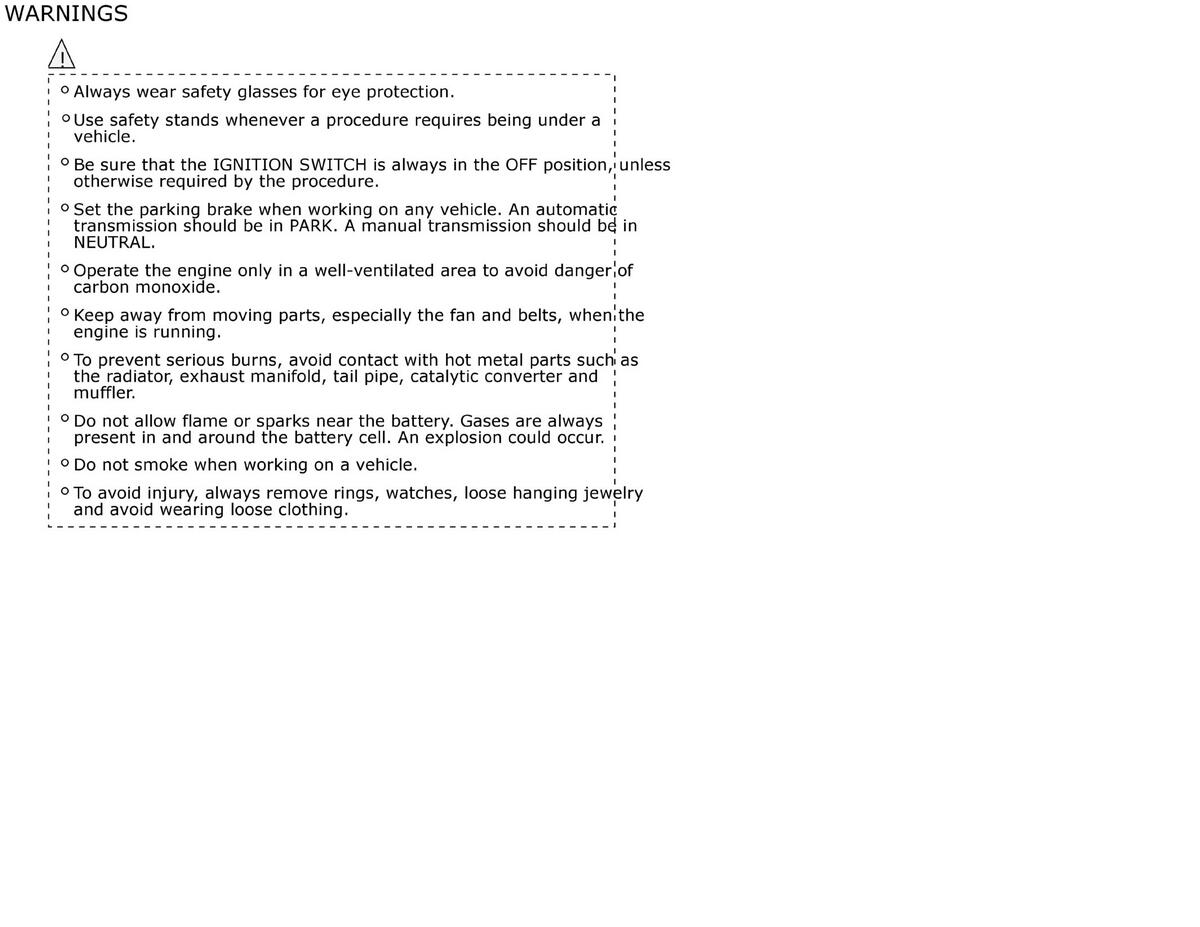

GFDWR221160Courtesy of FORD MOTOR COMPANY
