Power Distribution

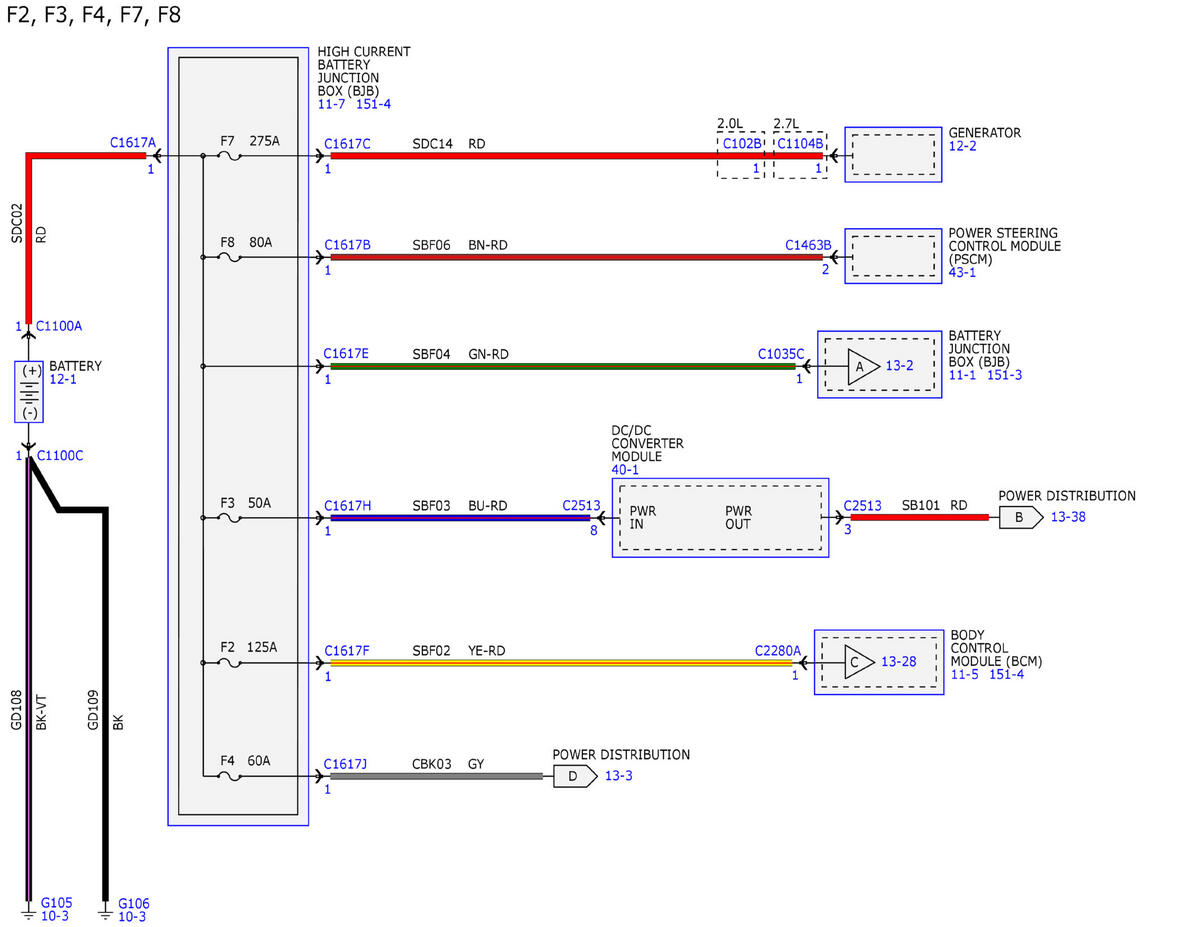

Fig 1: Power Distribution Wiring Diagram (1 Of 47)

GFDWR221359

Courtesy of FORD MOTOR COMPANY

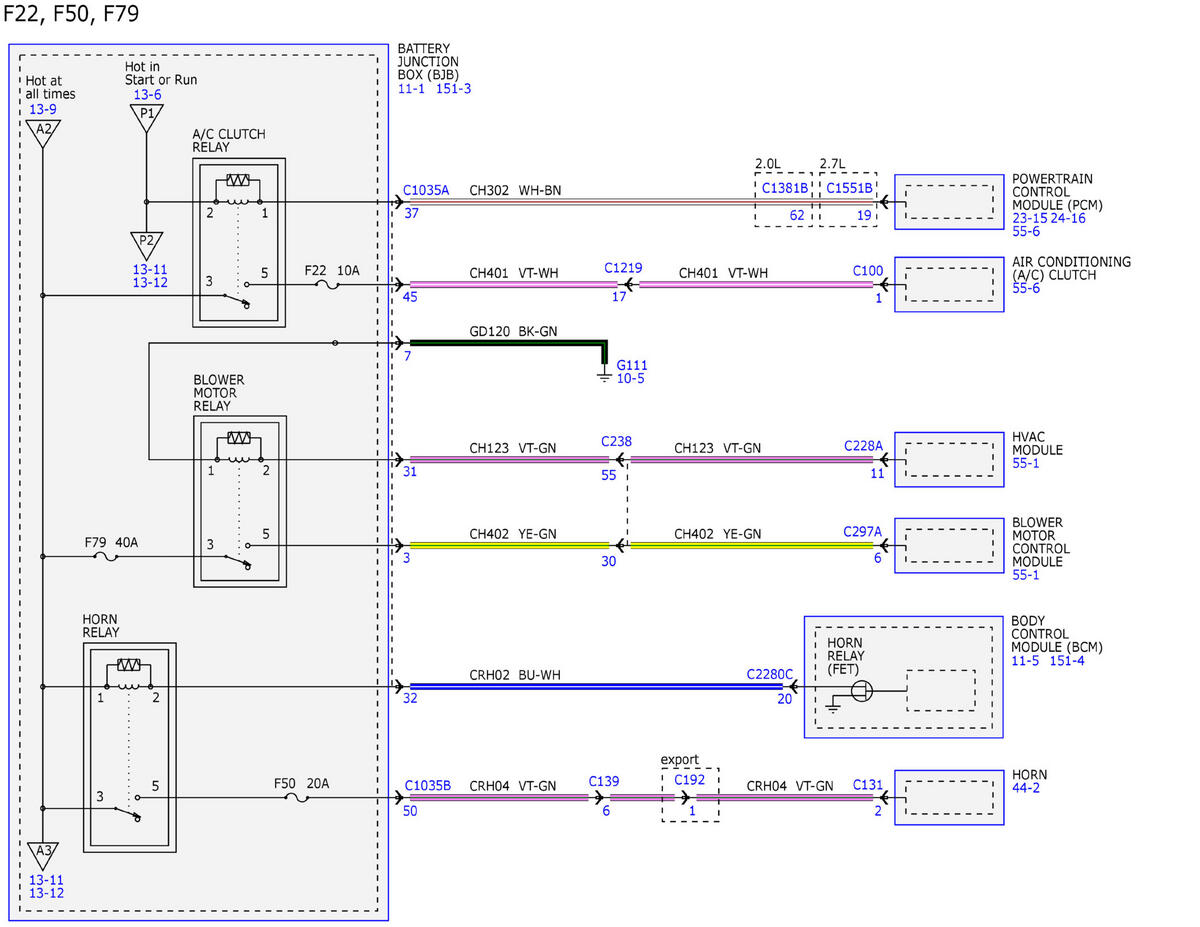

Fig 2: Power Distribution Wiring Diagram (2 Of 47)

GFDWR221360

Courtesy of FORD MOTOR COMPANY

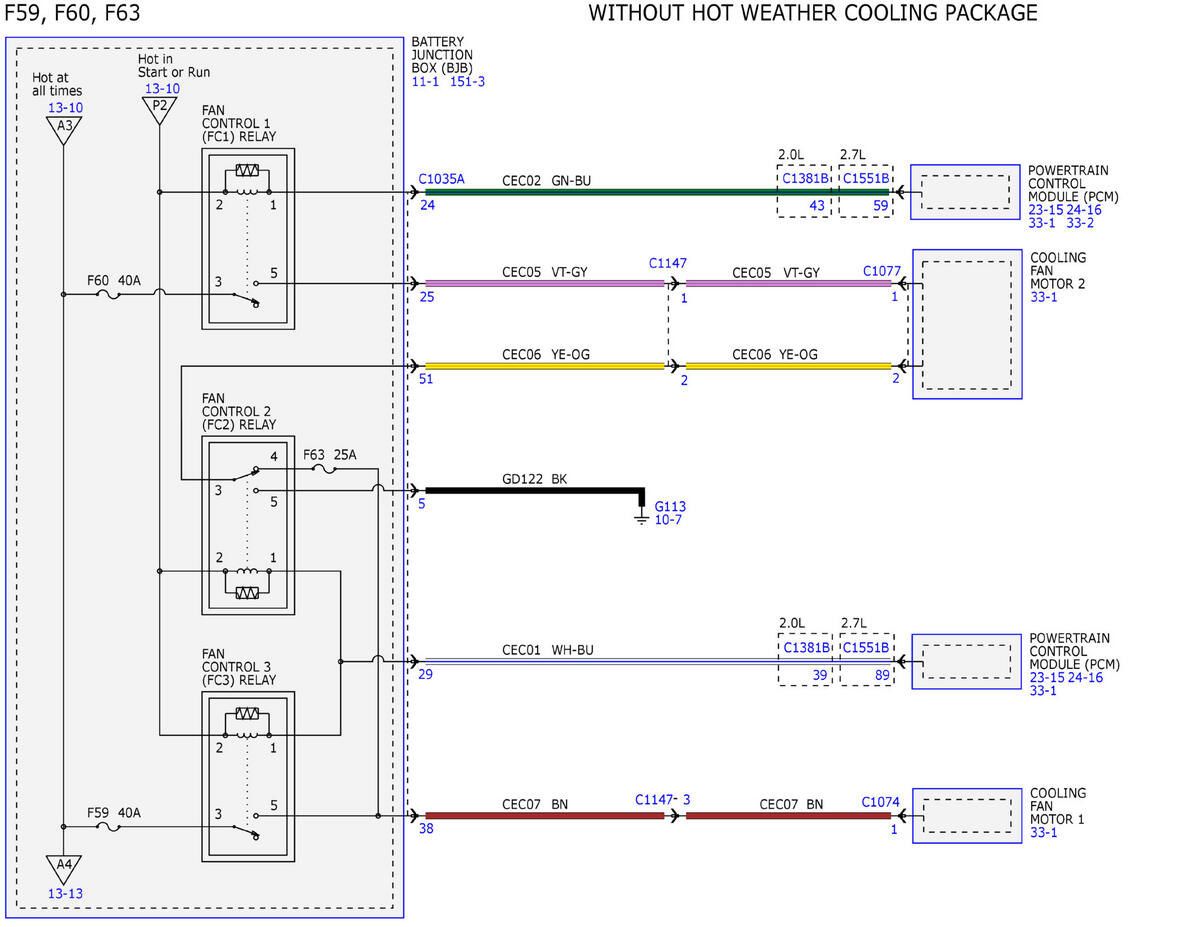

Fig 3: Power Distribution Wiring Diagram (3 Of 47)

GFDWR221361

Courtesy of FORD MOTOR COMPANY

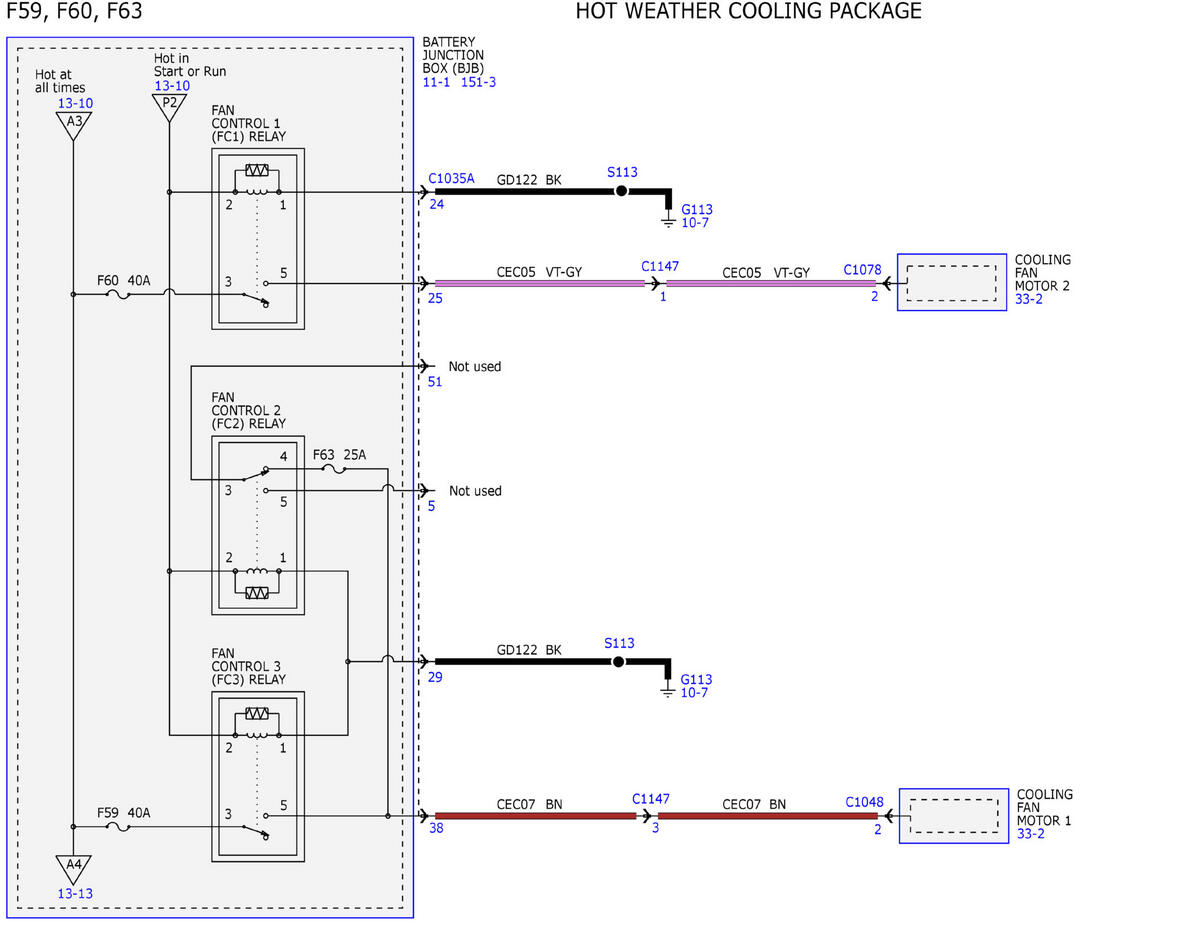

Fig 4: Power Distribution Wiring Diagram (4 Of 47)

GFDWR221362

Courtesy of FORD MOTOR COMPANY

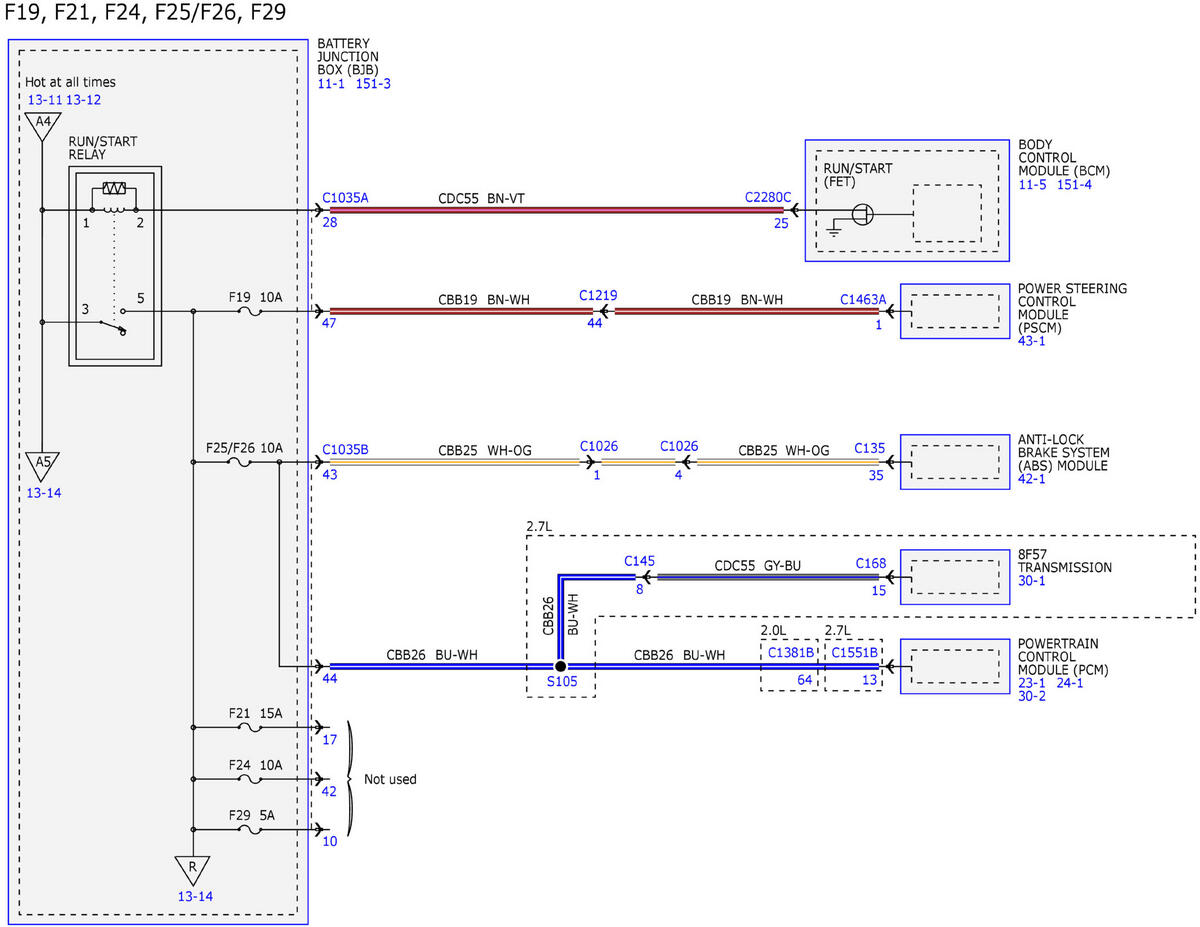

Fig 5: Power Distribution Wiring Diagram (5 Of 47)

GFDWR221363

Courtesy of FORD MOTOR COMPANY

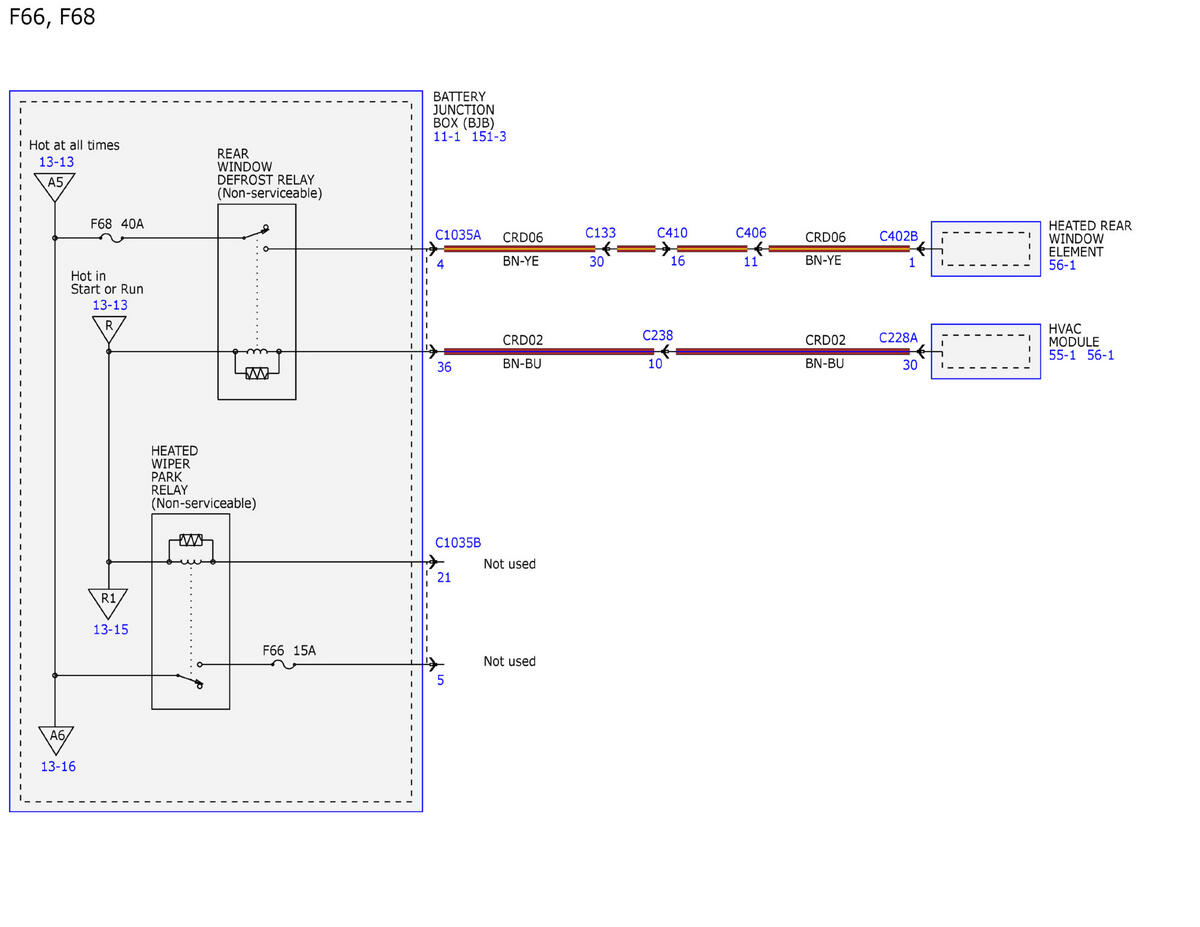

Fig 6: Power Distribution Wiring Diagram (6 Of 47)

GFDWR221364

Courtesy of FORD MOTOR COMPANY

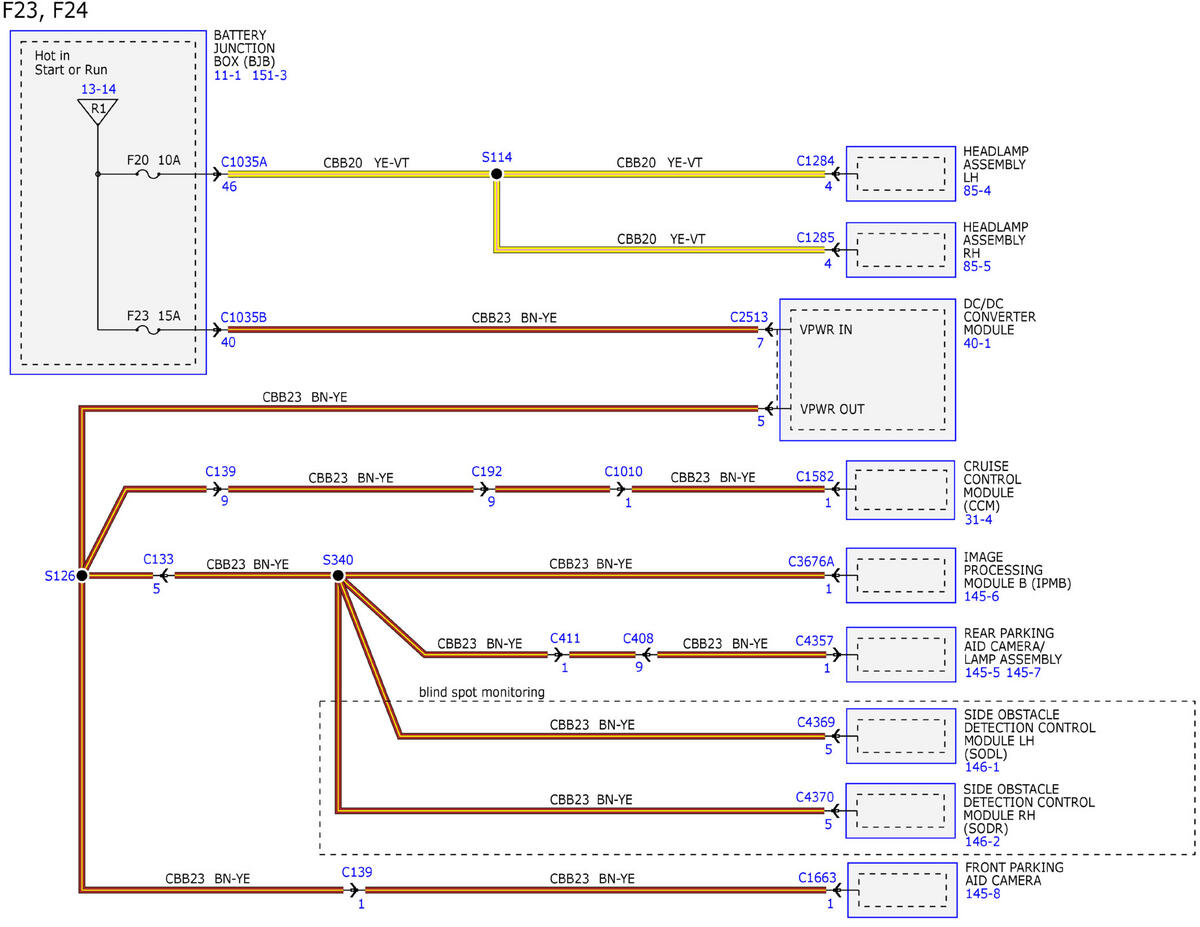

Fig 7: Power Distribution Wiring Diagram (7 Of 47)

GFDWR221365

Courtesy of FORD MOTOR COMPANY

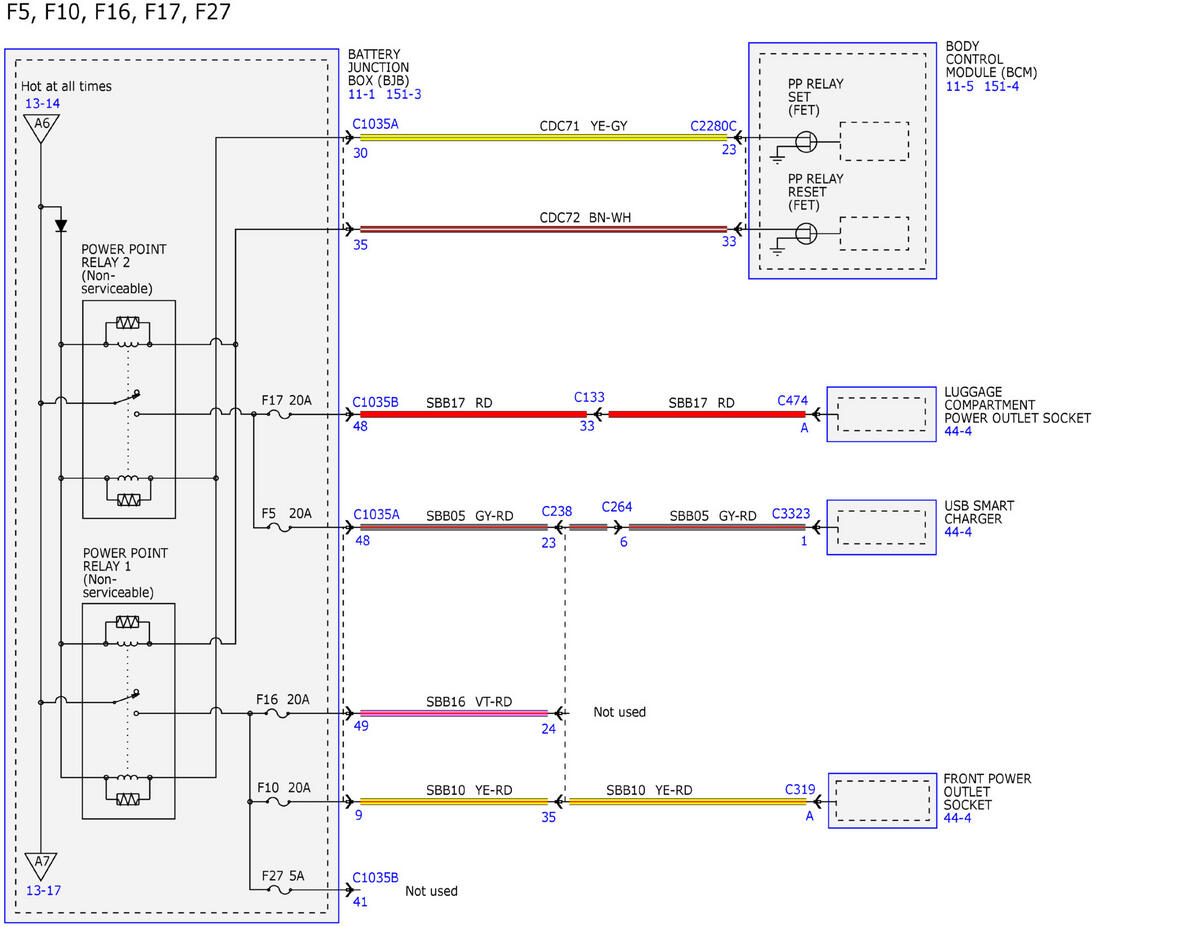

Fig 8: Power Distribution Wiring Diagram (8 Of 47)

GFDWR221366

Courtesy of FORD MOTOR COMPANY

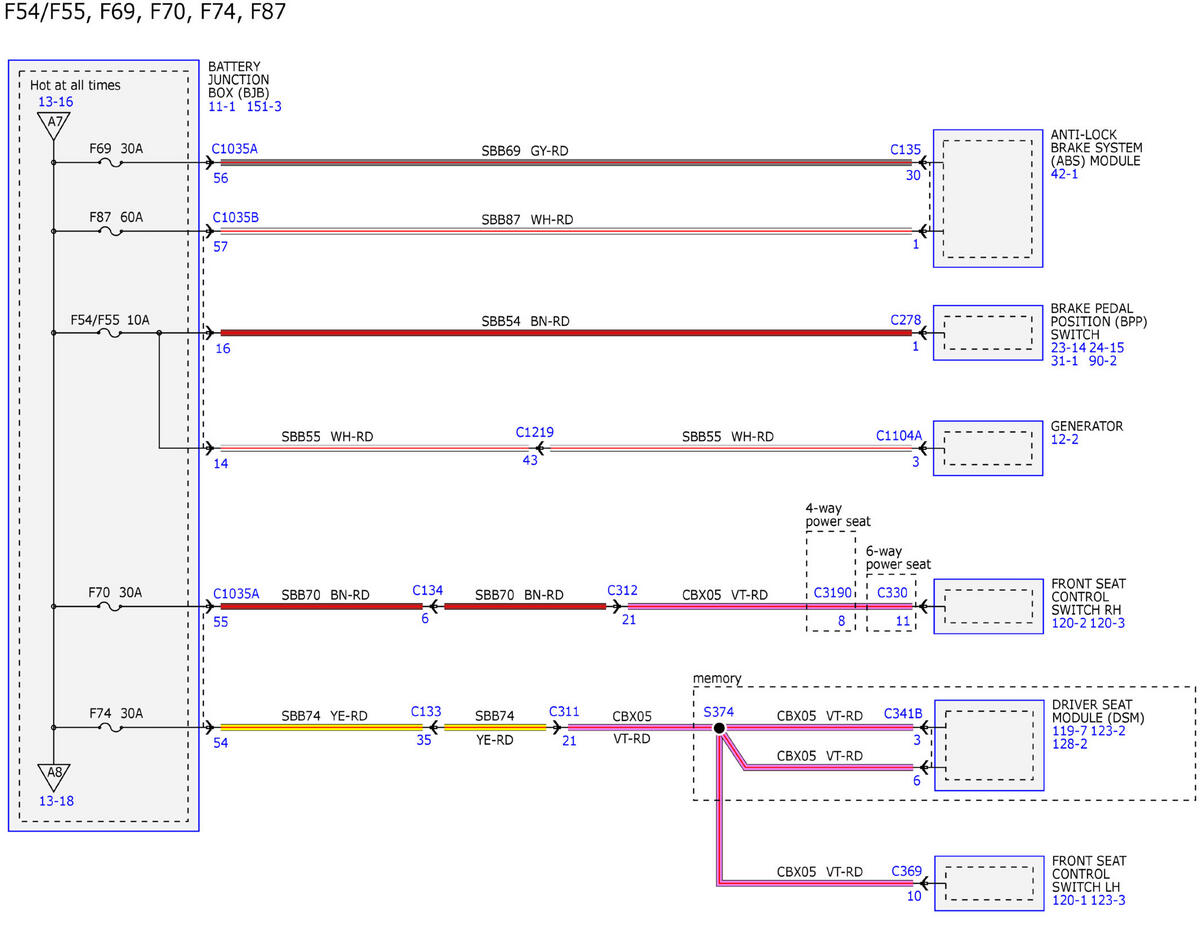

Fig 9: Power Distribution Wiring Diagram (9 Of 47)

GFDWR221367

Courtesy of FORD MOTOR COMPANY

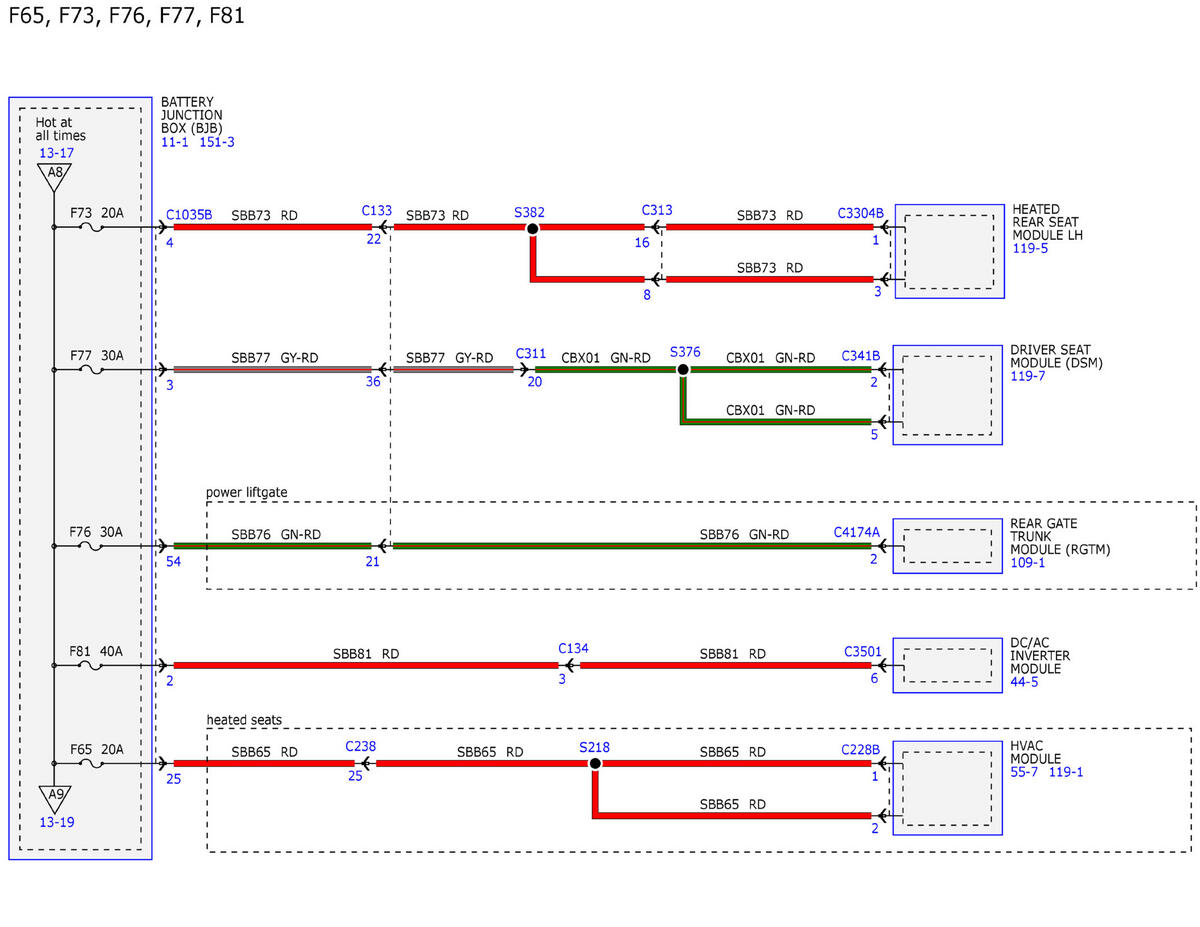

Fig 10: Power Distribution Wiring Diagram (10 Of 47)

GFDWR221368

Courtesy of FORD MOTOR COMPANY

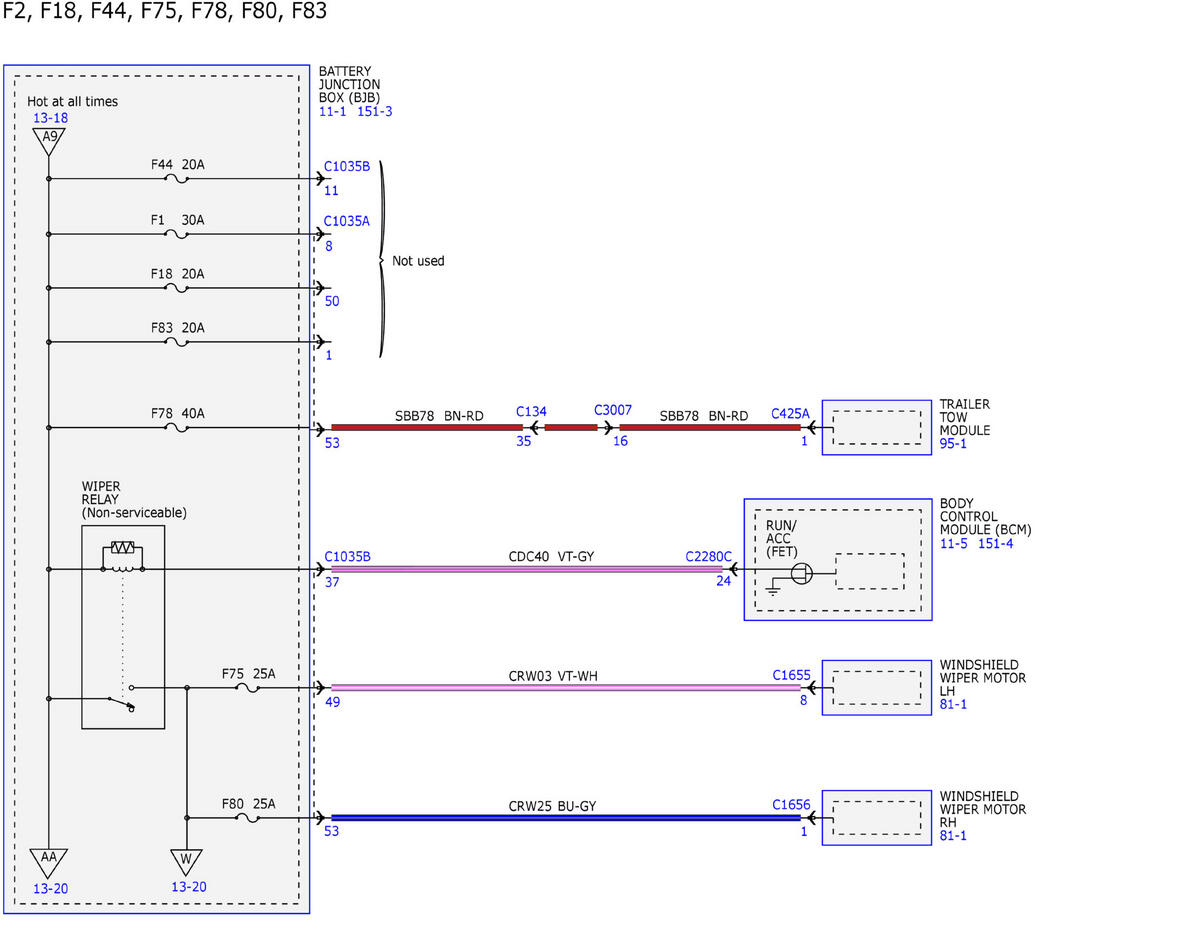

Fig 11: Power Distribution Wiring Diagram (11 Of 47)

GFDWR221369

Courtesy of FORD MOTOR COMPANY

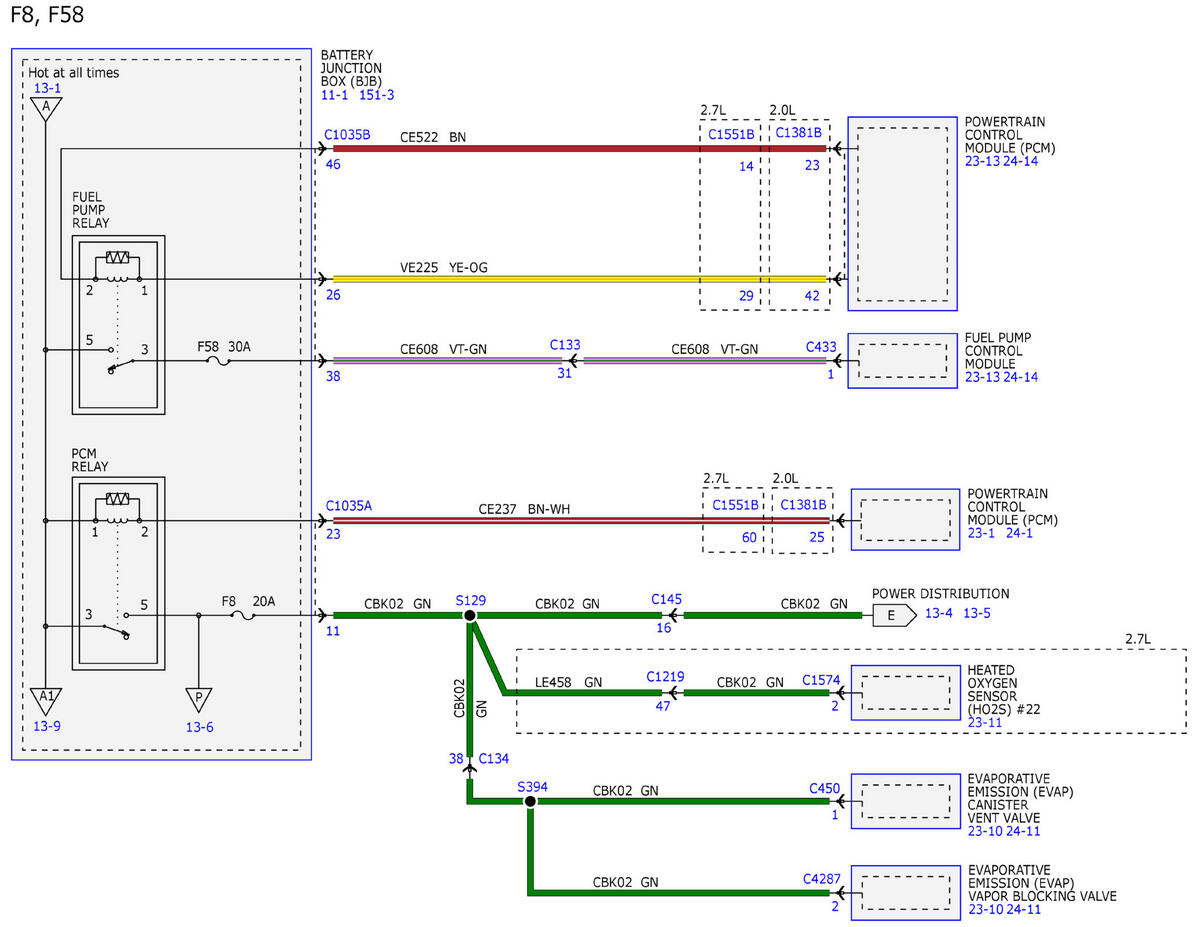

Fig 12: Power Distribution Wiring Diagram (12 Of 47)

GFDWR221370

Courtesy of FORD MOTOR COMPANY

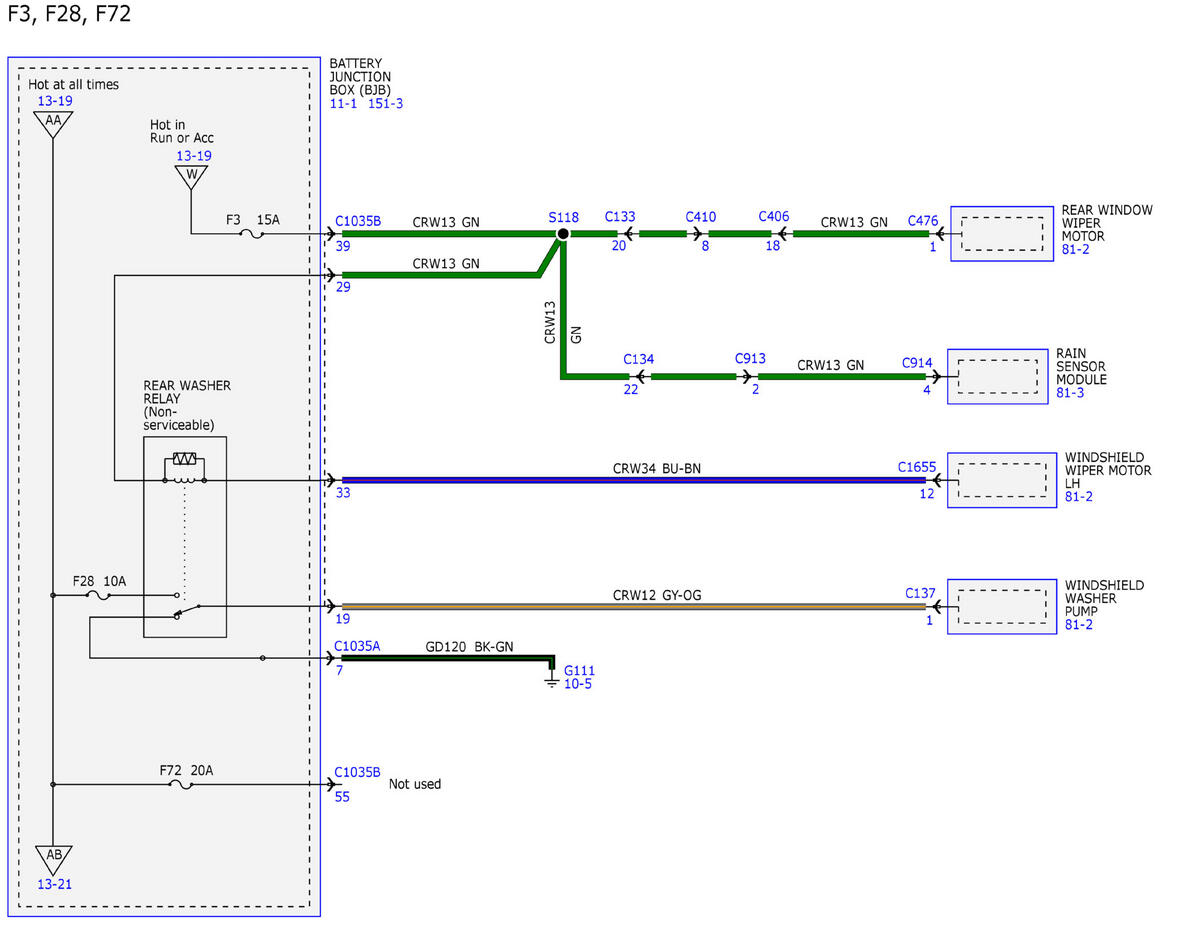

Fig 13: Power Distribution Wiring Diagram (13 Of 47)

GFDWR221371

Courtesy of FORD MOTOR COMPANY

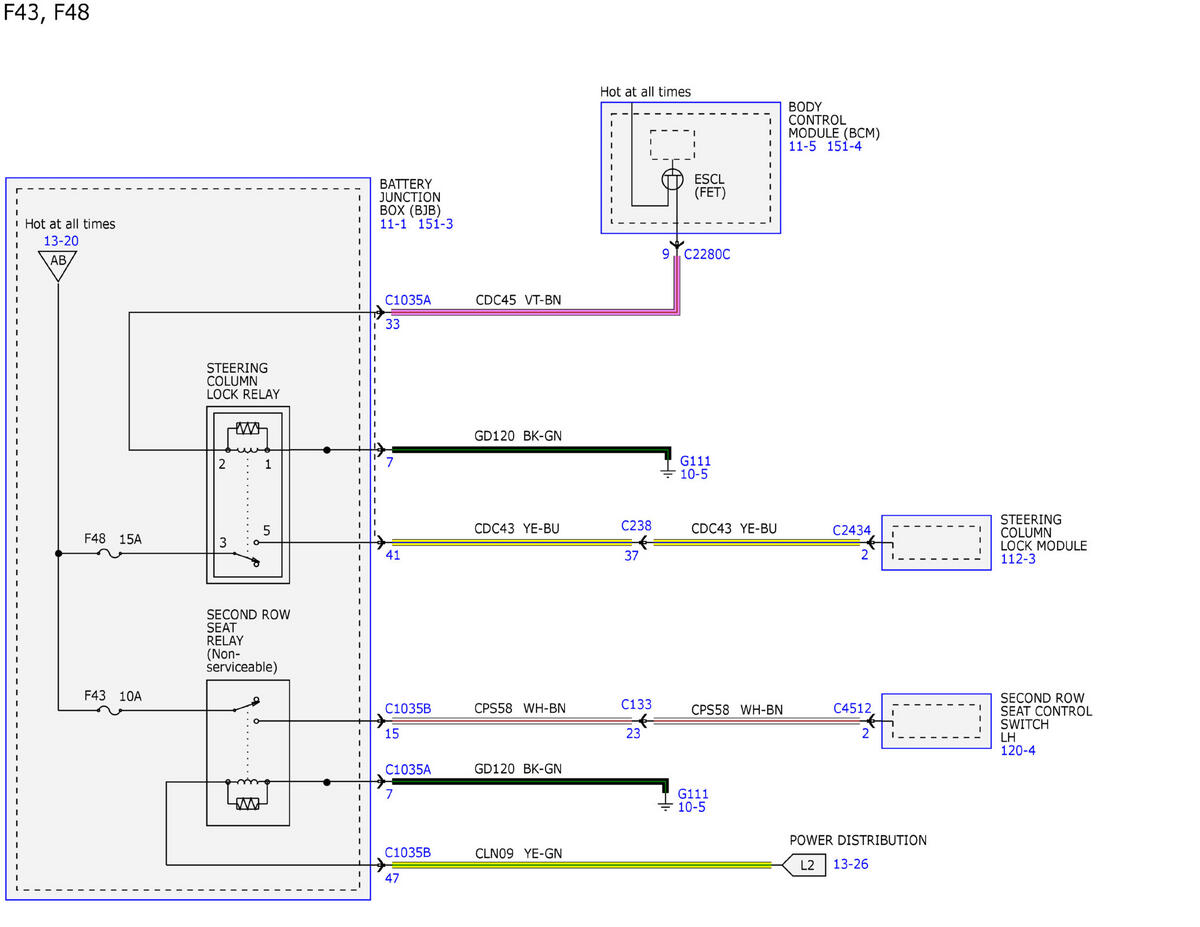

Fig 14: Power Distribution Wiring Diagram (14 Of 47)

GFDWR221372

Courtesy of FORD MOTOR COMPANY

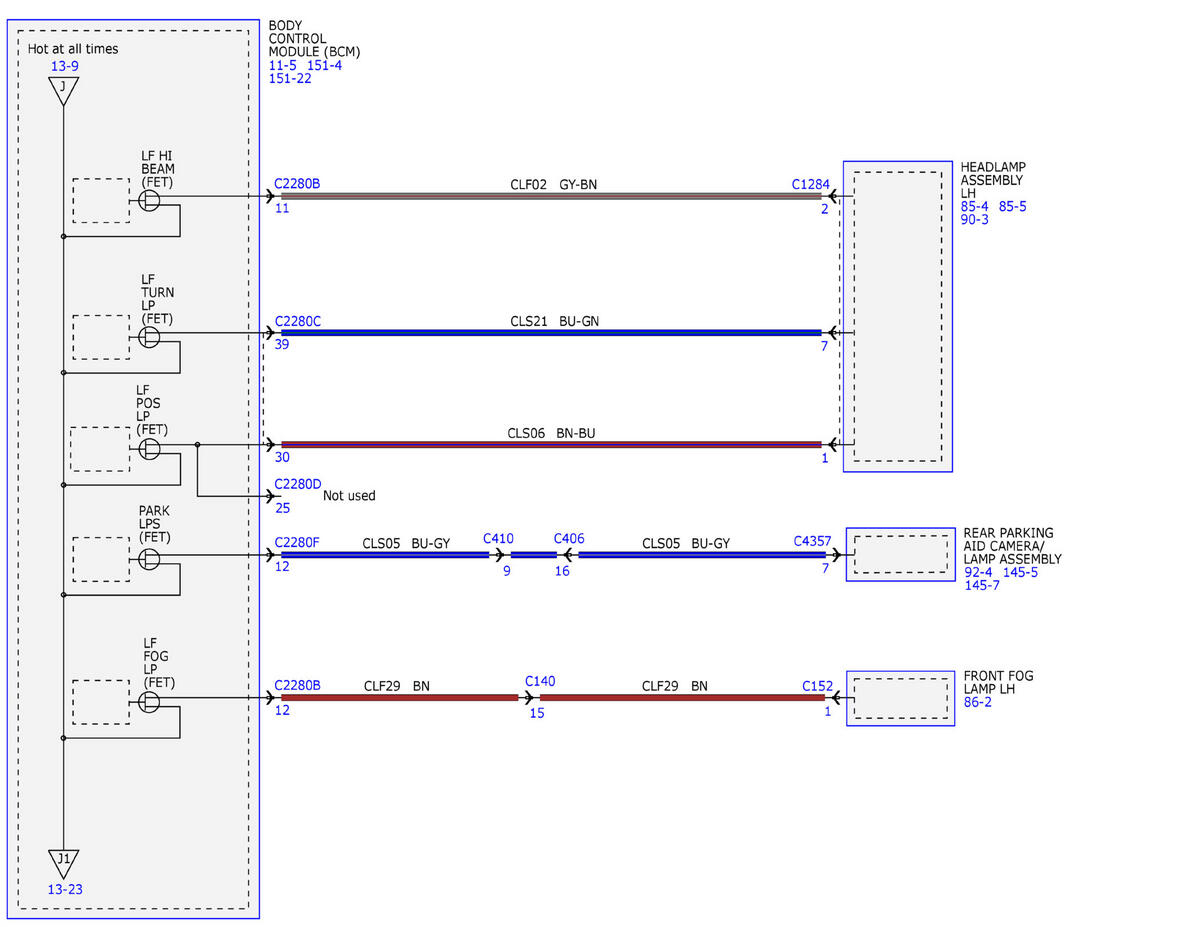

Fig 15: Power Distribution Wiring Diagram (15 Of 47)

GFDWR221373

Courtesy of FORD MOTOR COMPANY

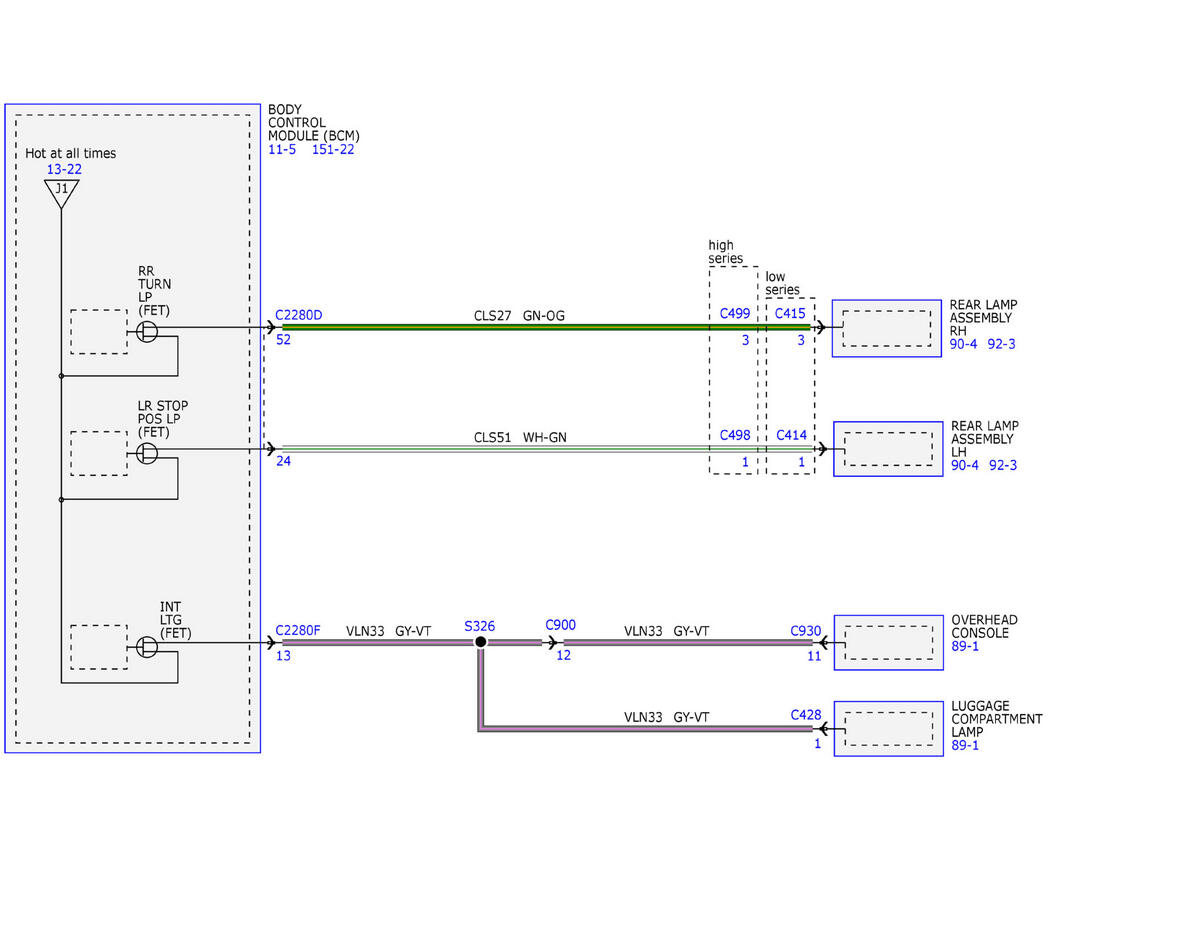

Fig 16: Power Distribution Wiring Diagram (16 Of 47)

GFDWR221374

Courtesy of FORD MOTOR COMPANY

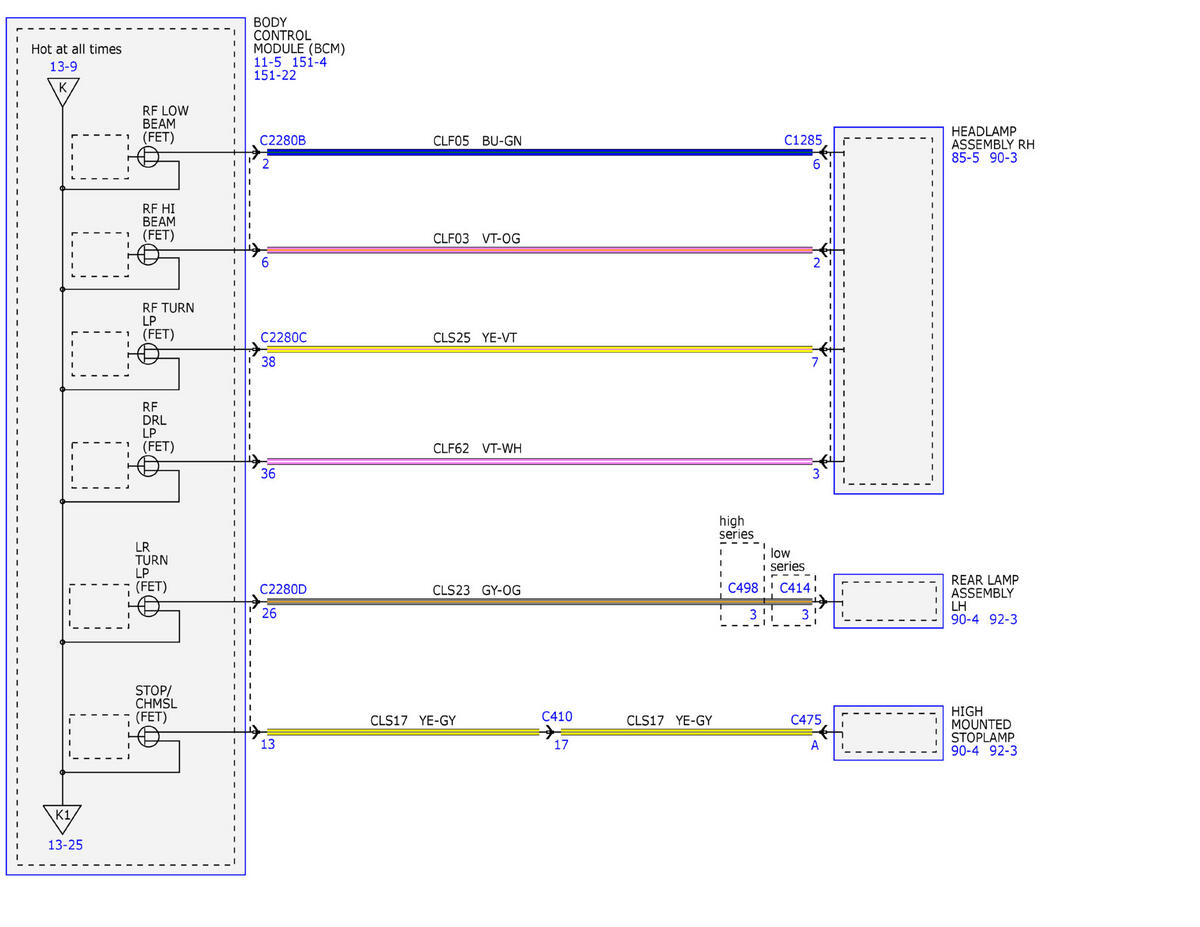

Fig 17: Power Distribution Wiring Diagram (17 Of 47)

GFDWR221375

Courtesy of FORD MOTOR COMPANY

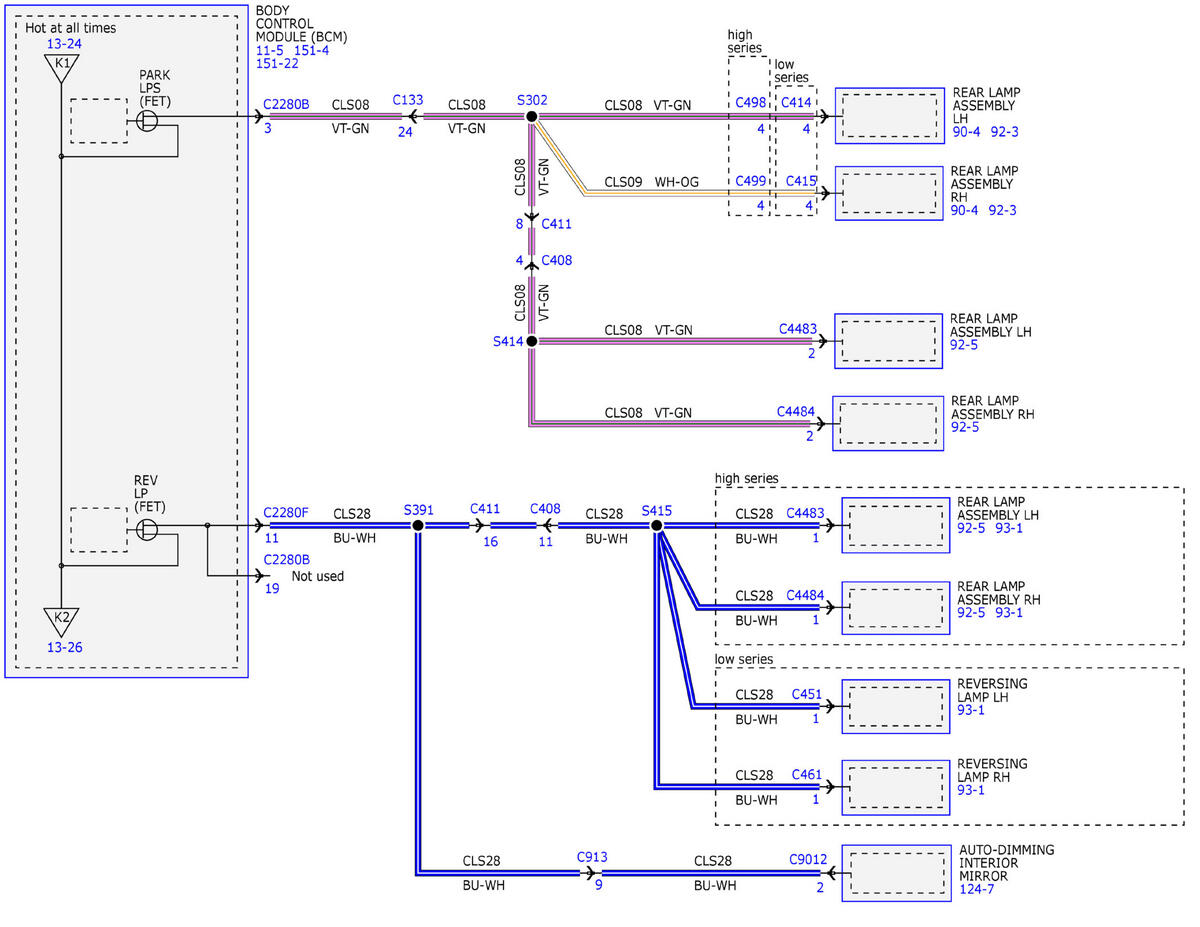

Fig 18: Power Distribution Wiring Diagram (18 Of 47)

GFDWR221376

Courtesy of FORD MOTOR COMPANY

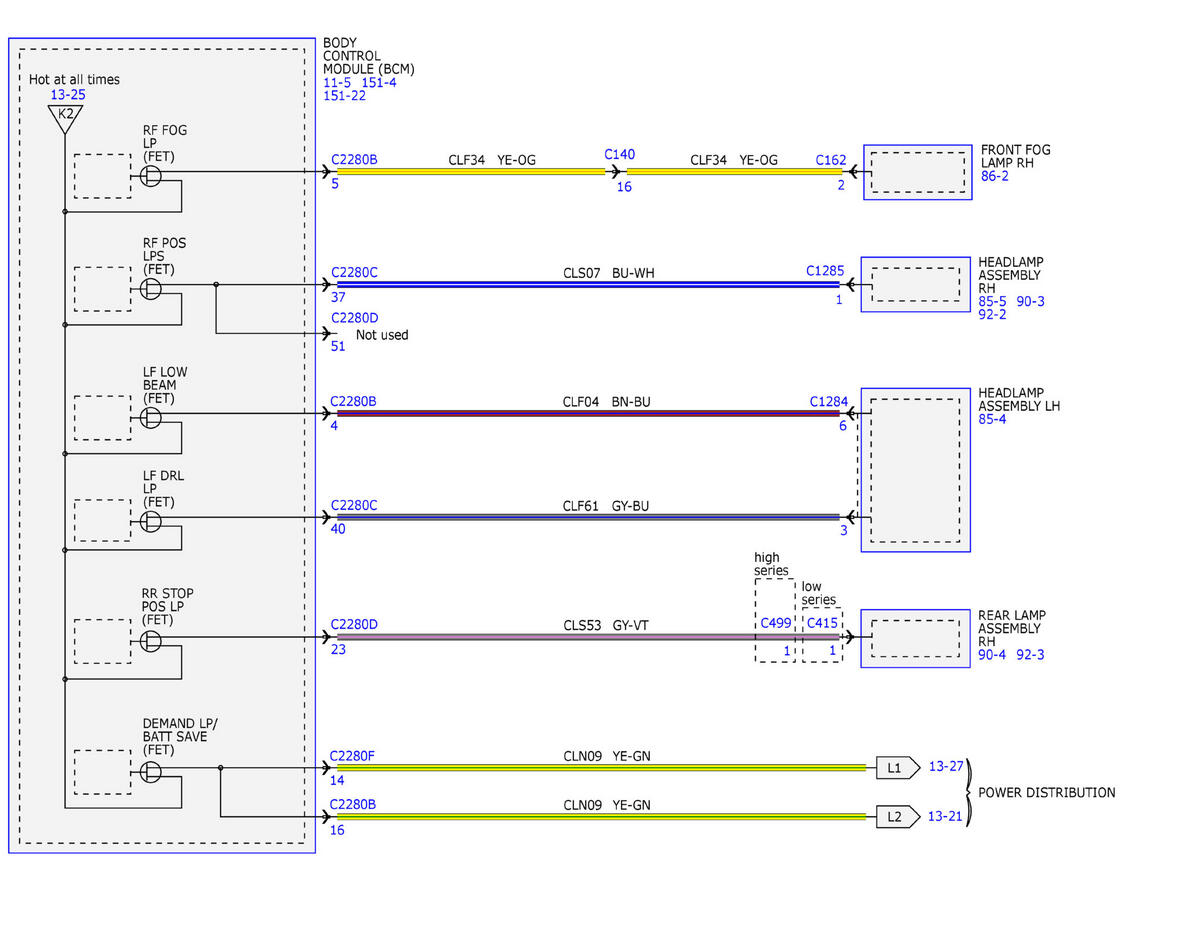

Fig 19: Power Distribution Wiring Diagram (19 Of 47)

GFDWR221377

Courtesy of FORD MOTOR COMPANY

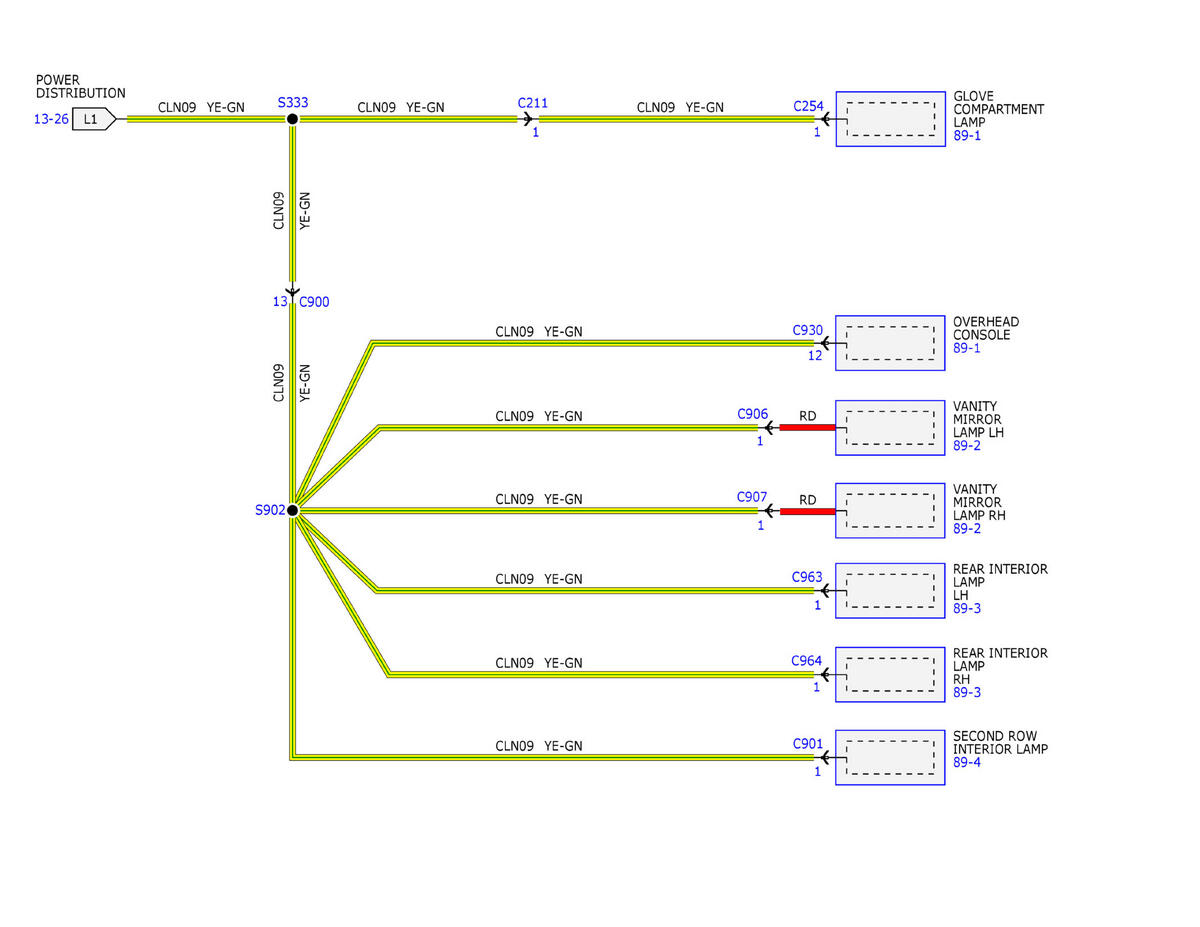

Fig 20: Power Distribution Wiring Diagram (20 Of 47)

GFDWR221378

Courtesy of FORD MOTOR COMPANY

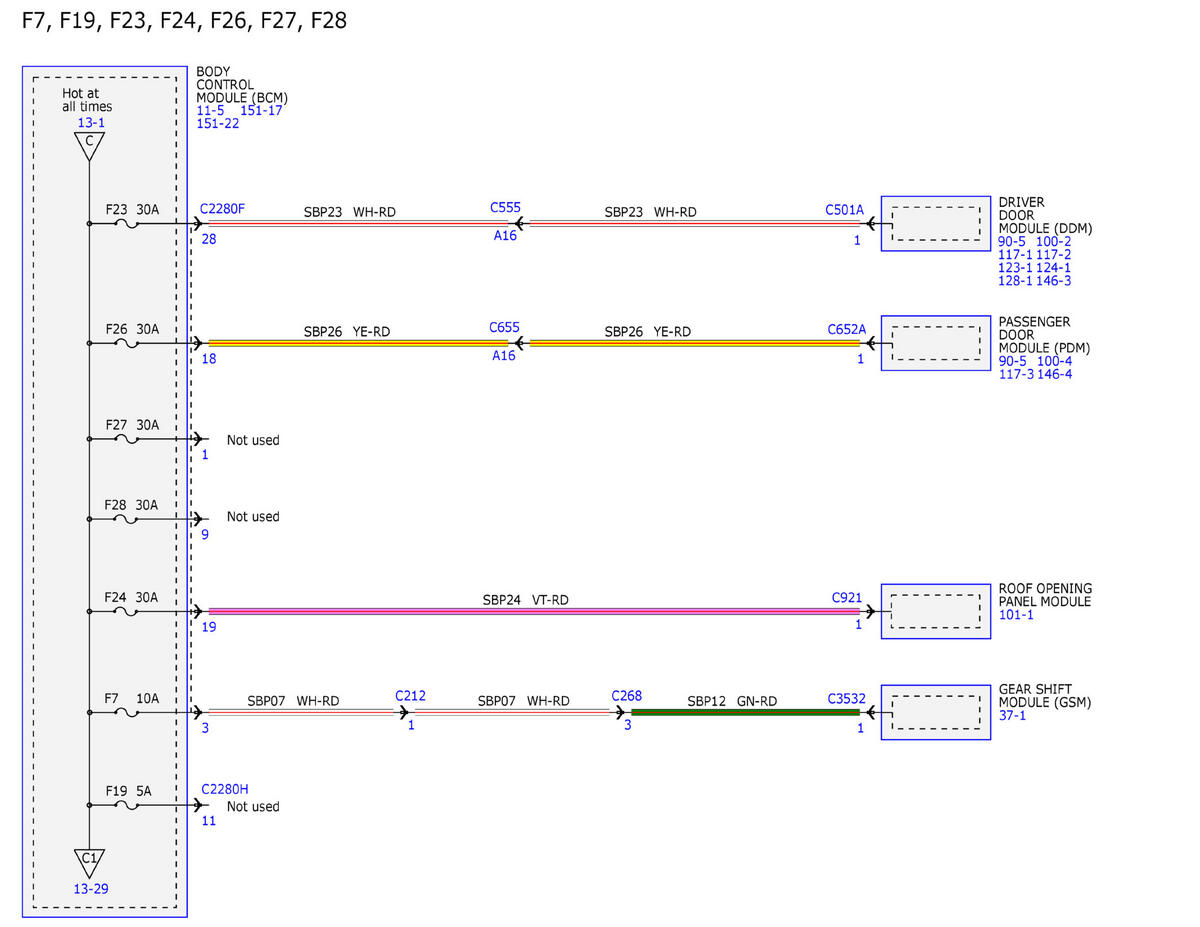

Fig 21: Power Distribution Wiring Diagram (21 Of 47)

GFDWR221379

Courtesy of FORD MOTOR COMPANY

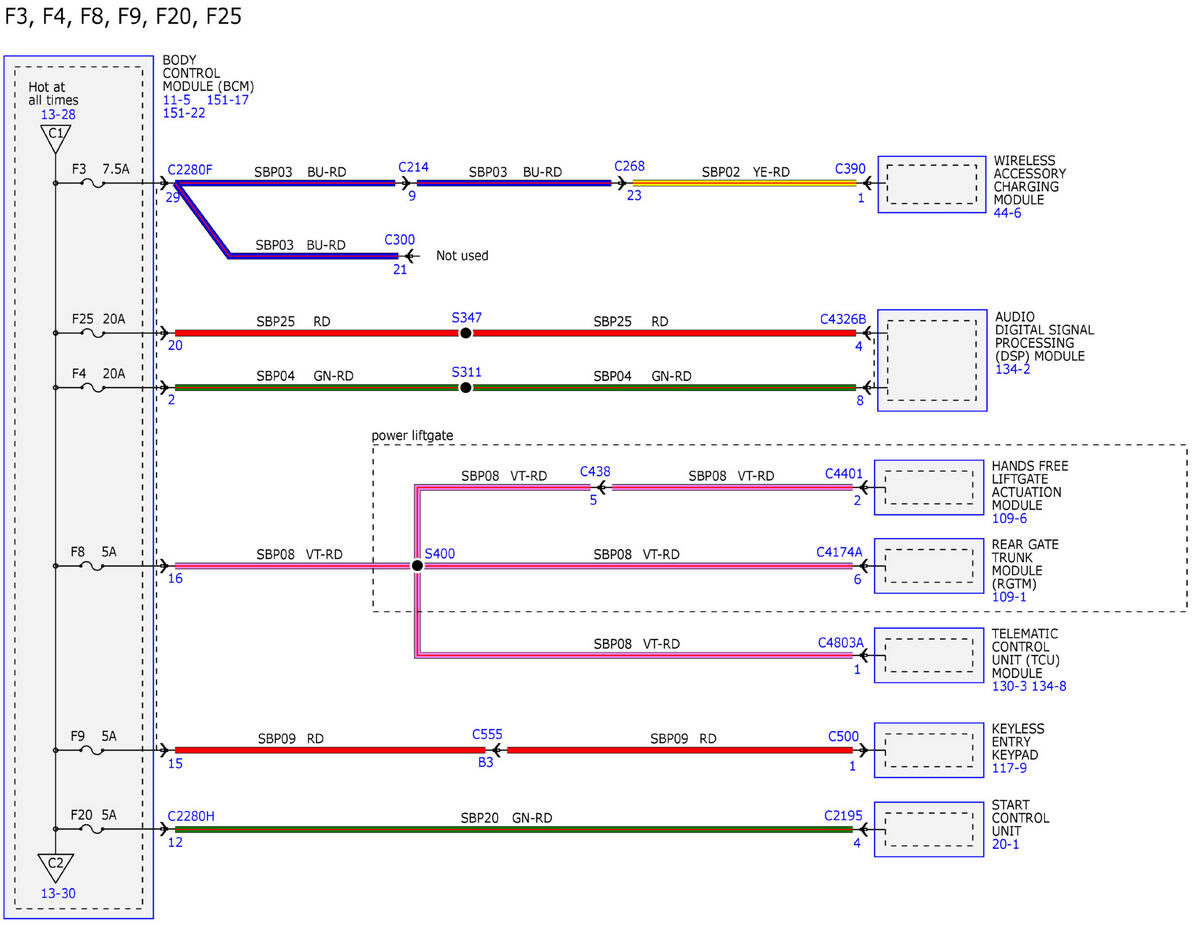

Fig 22: Power Distribution Wiring Diagram (22 Of 47)

GFDWR221380

Courtesy of FORD MOTOR COMPANY

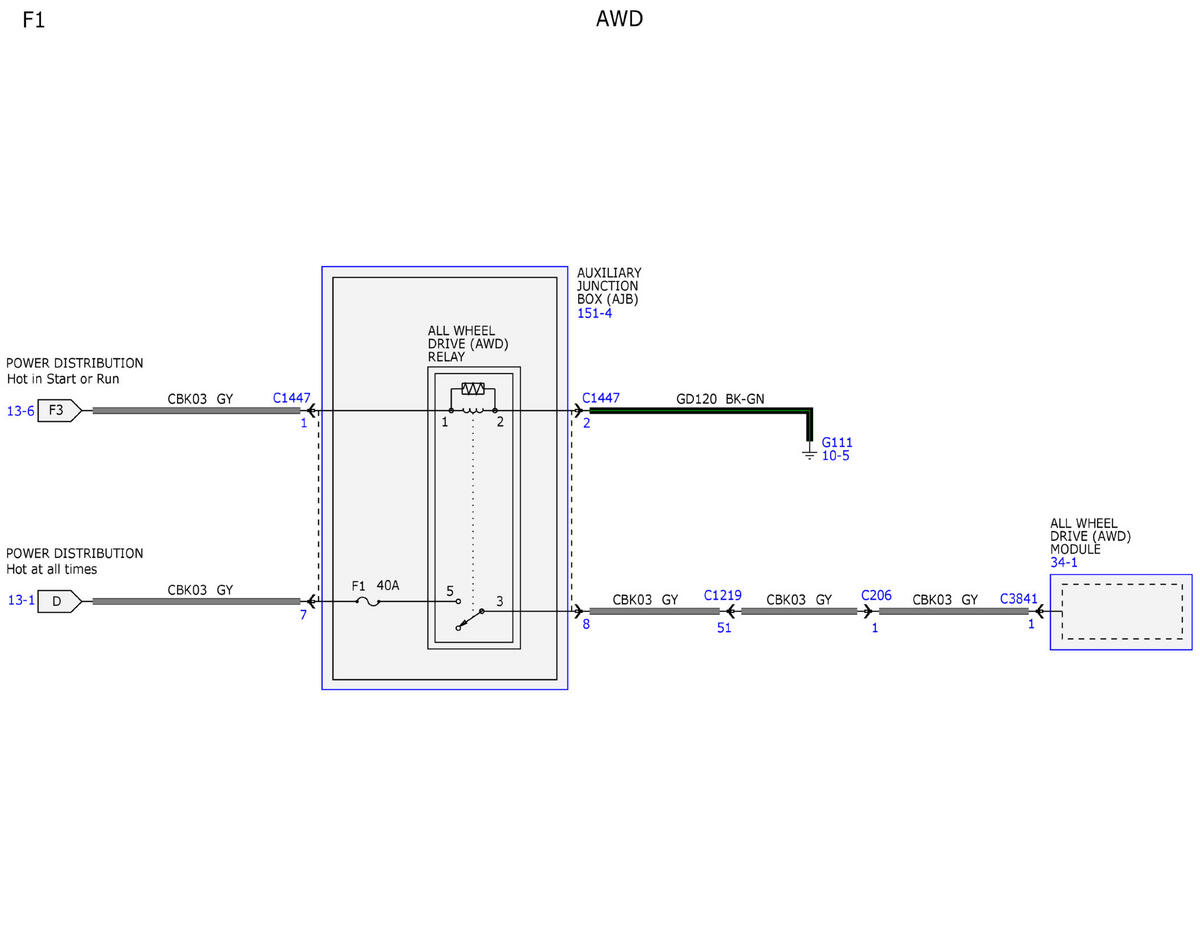

Fig 23: Power Distribution Wiring Diagram (23 Of 47)

GFDWR221381

Courtesy of FORD MOTOR COMPANY

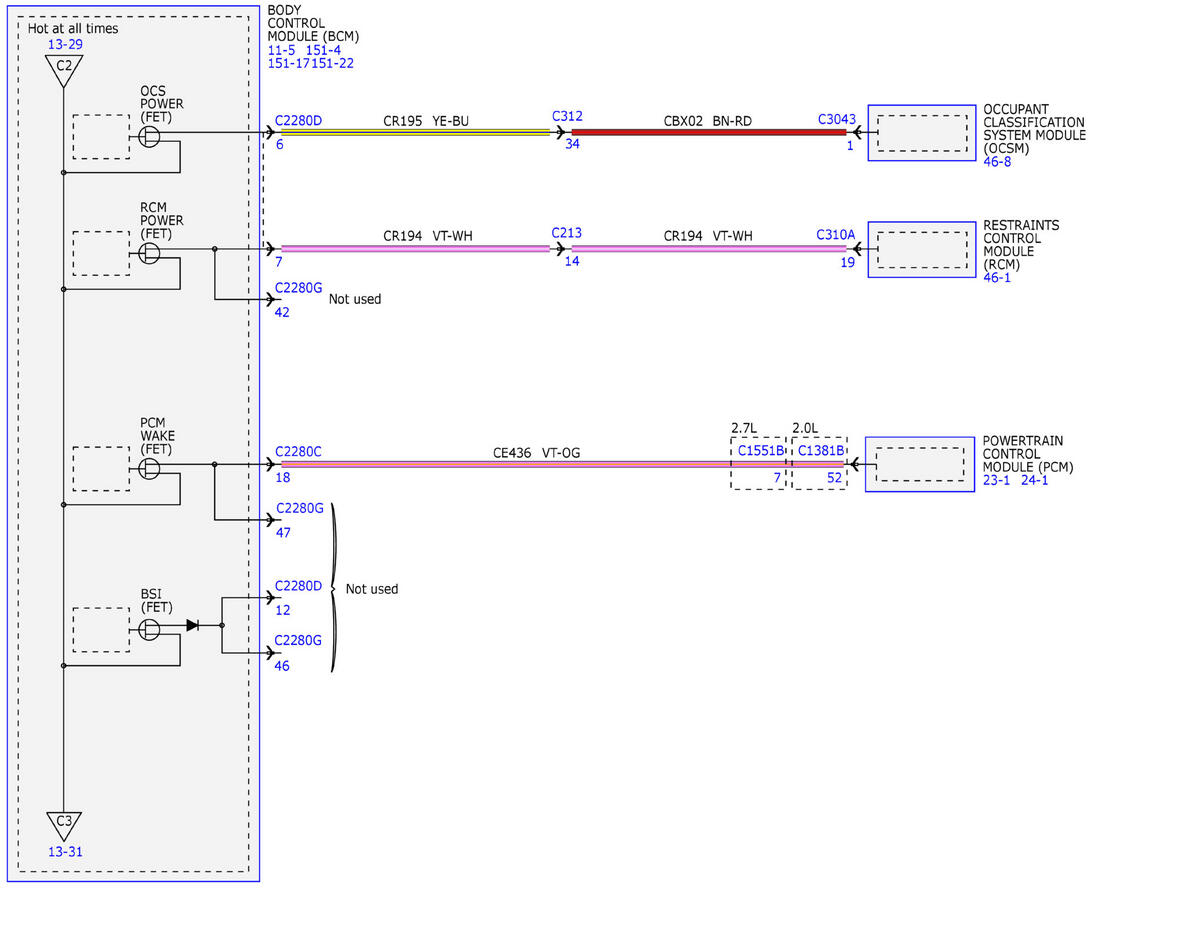

Fig 24: Power Distribution Wiring Diagram (24 Of 47)

GFDWR221382

Courtesy of FORD MOTOR COMPANY

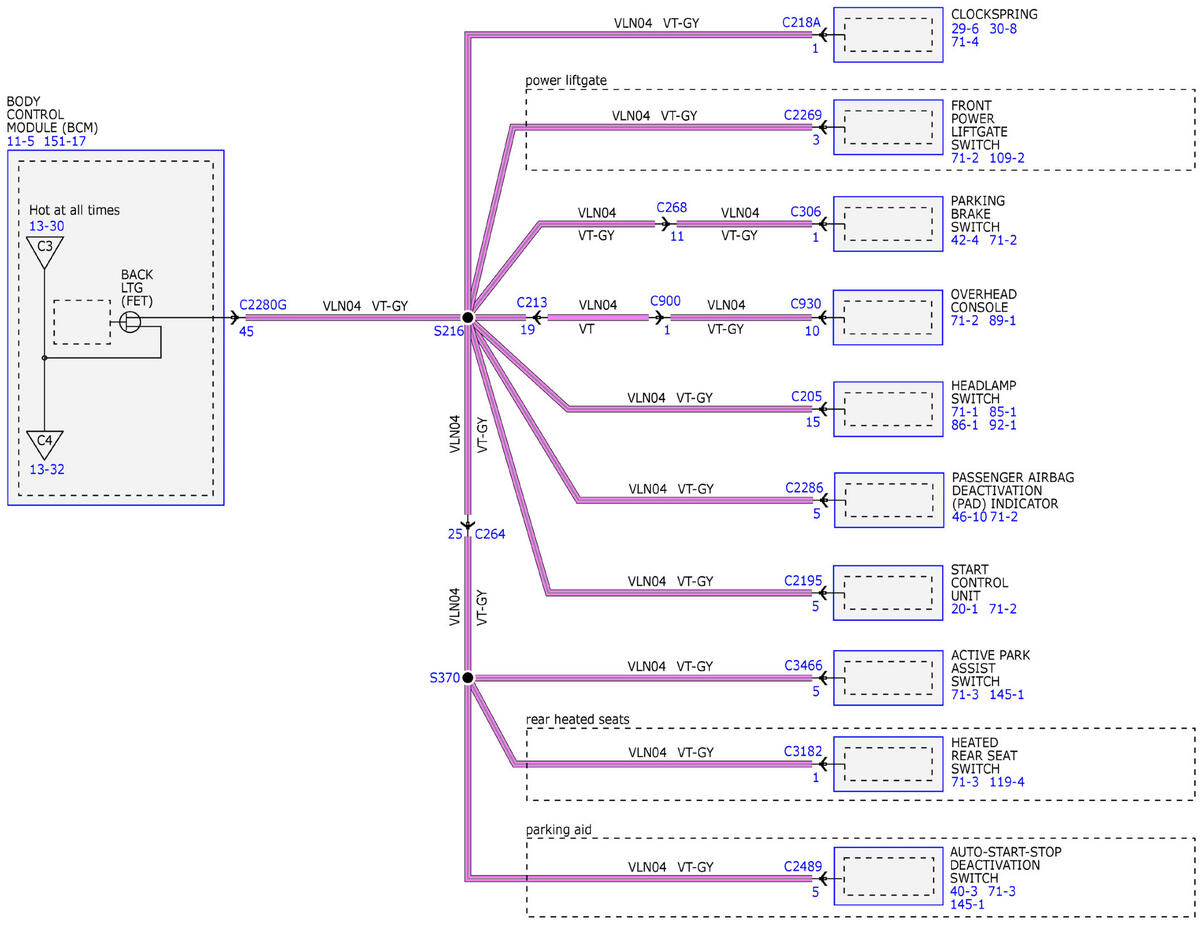

Fig 25: Power Distribution Wiring Diagram (25 Of 47)

GFDWR221383

Courtesy of FORD MOTOR COMPANY

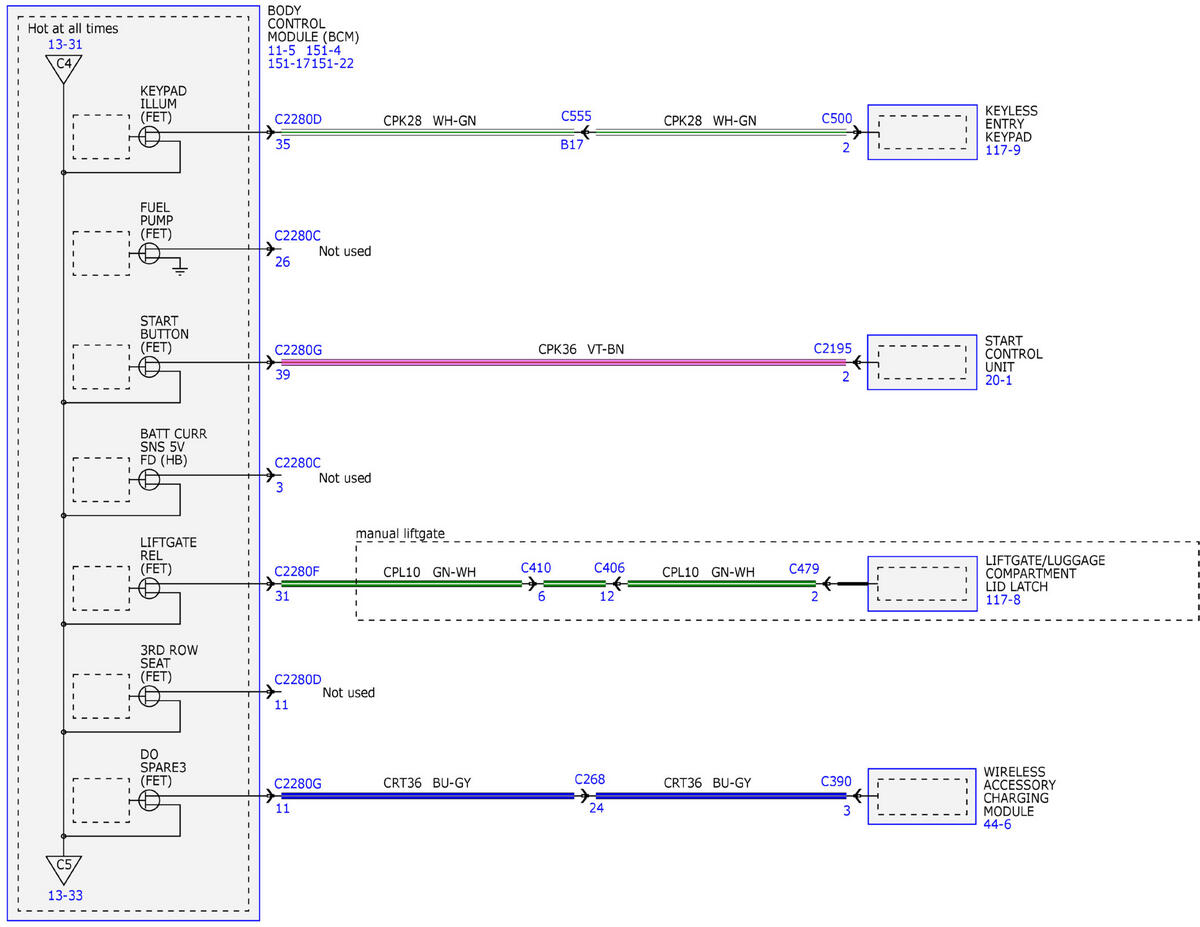

Fig 26: Power Distribution Wiring Diagram (26 Of 47)

GFDWR221384

Courtesy of FORD MOTOR COMPANY

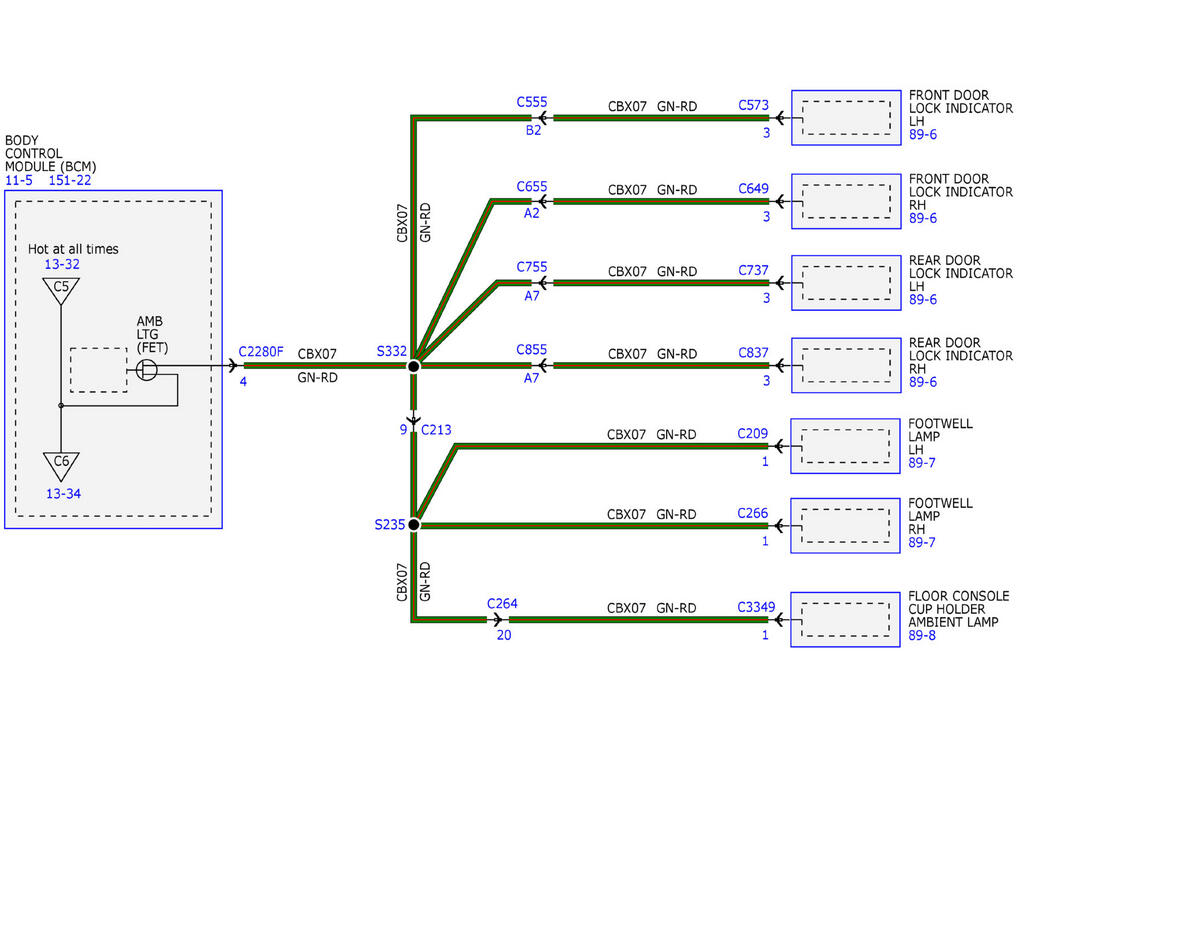

Fig 27: Power Distribution Wiring Diagram (27 Of 47)

GFDWR221385

Courtesy of FORD MOTOR COMPANY

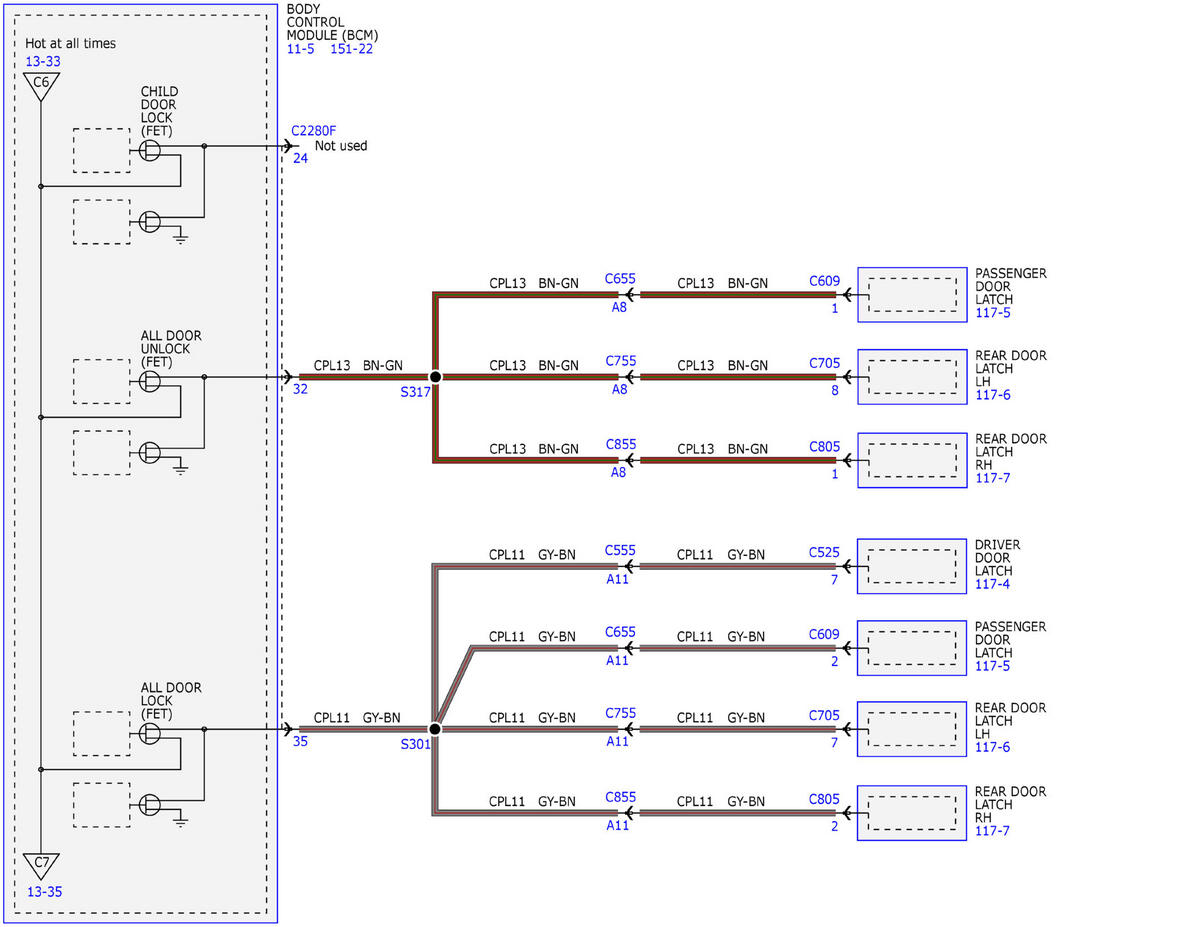

Fig 28: Power Distribution Wiring Diagram (28 Of 47)

GFDWR221386

Courtesy of FORD MOTOR COMPANY

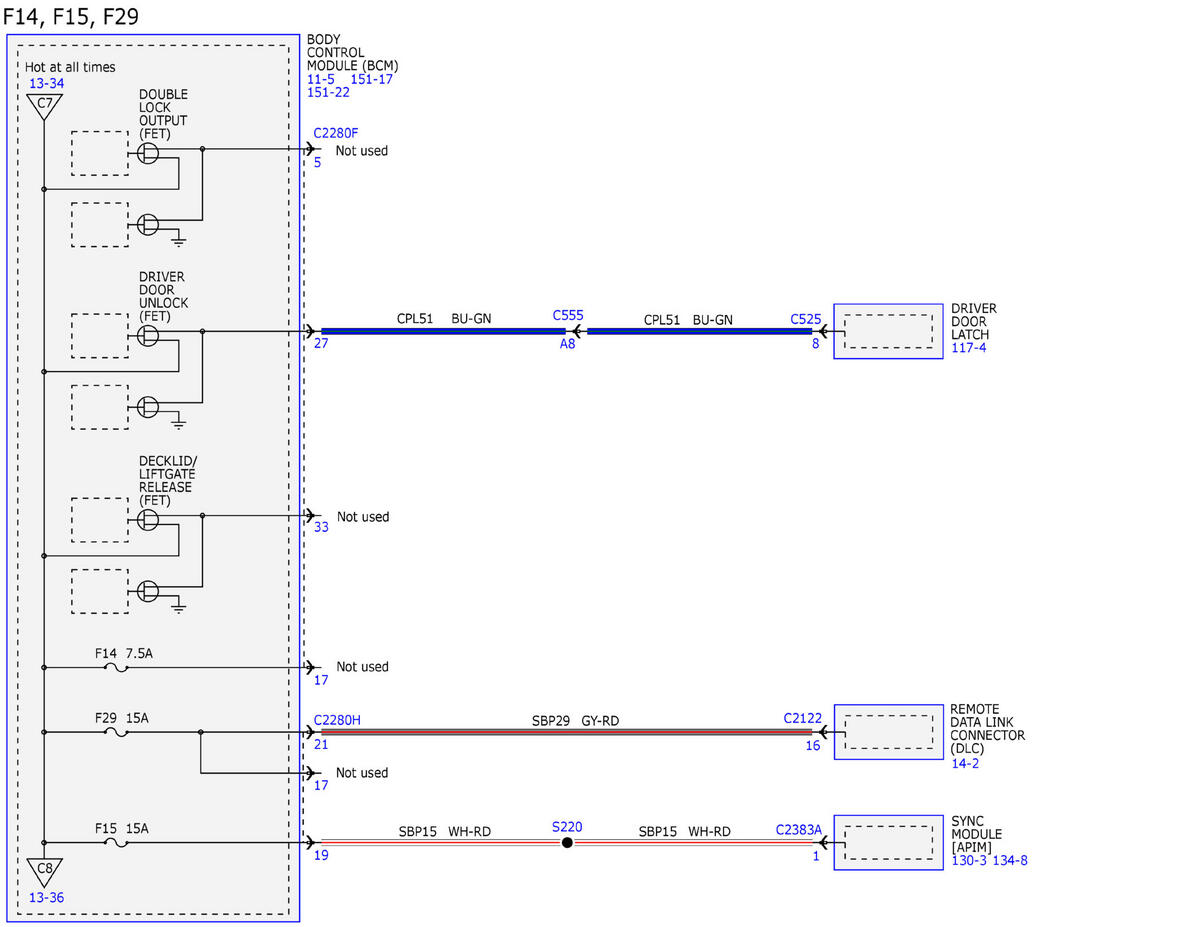

Fig 29: Power Distribution Wiring Diagram (29 Of 47)

GFDWR221387

Courtesy of FORD MOTOR COMPANY

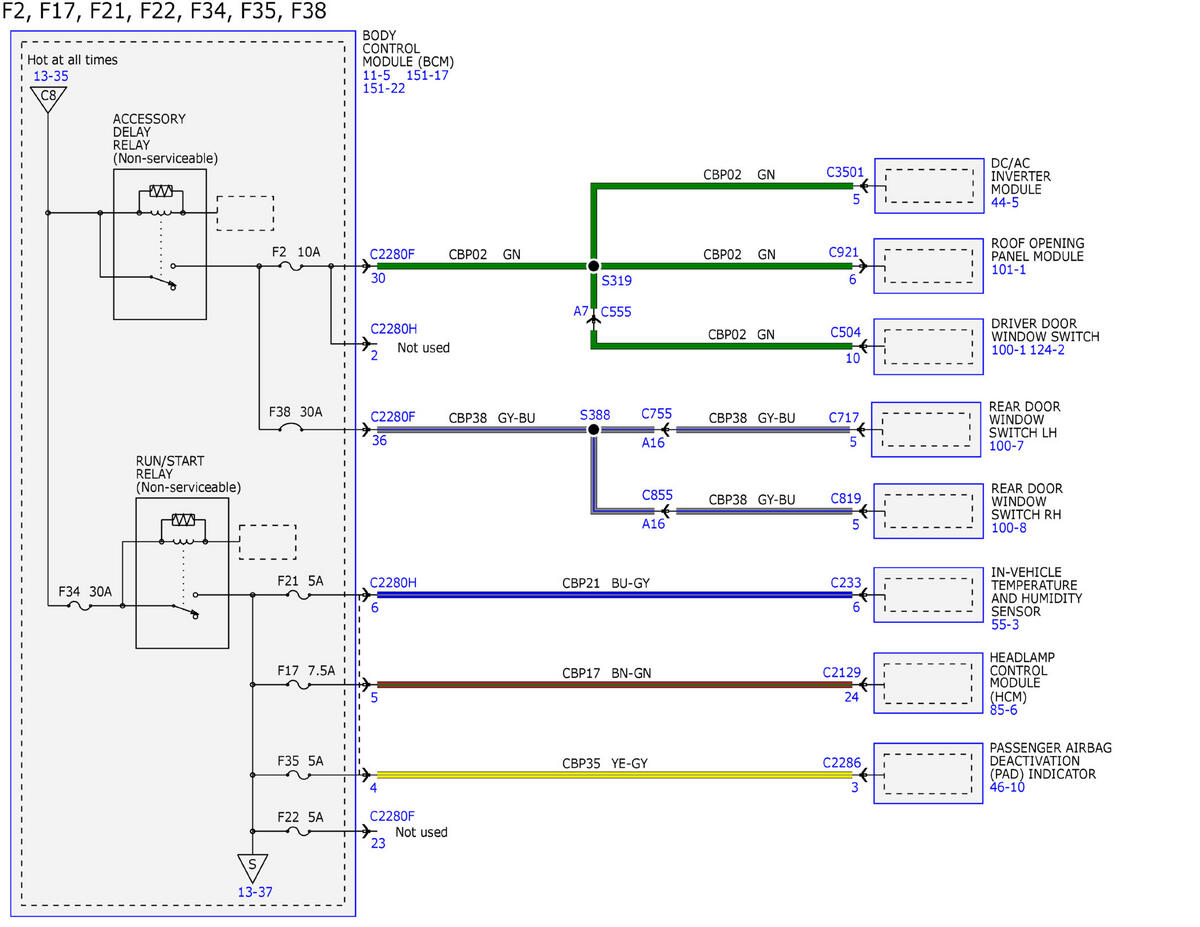

Fig 30: Power Distribution Wiring Diagram (30 Of 47)

GFDWR221388

Courtesy of FORD MOTOR COMPANY

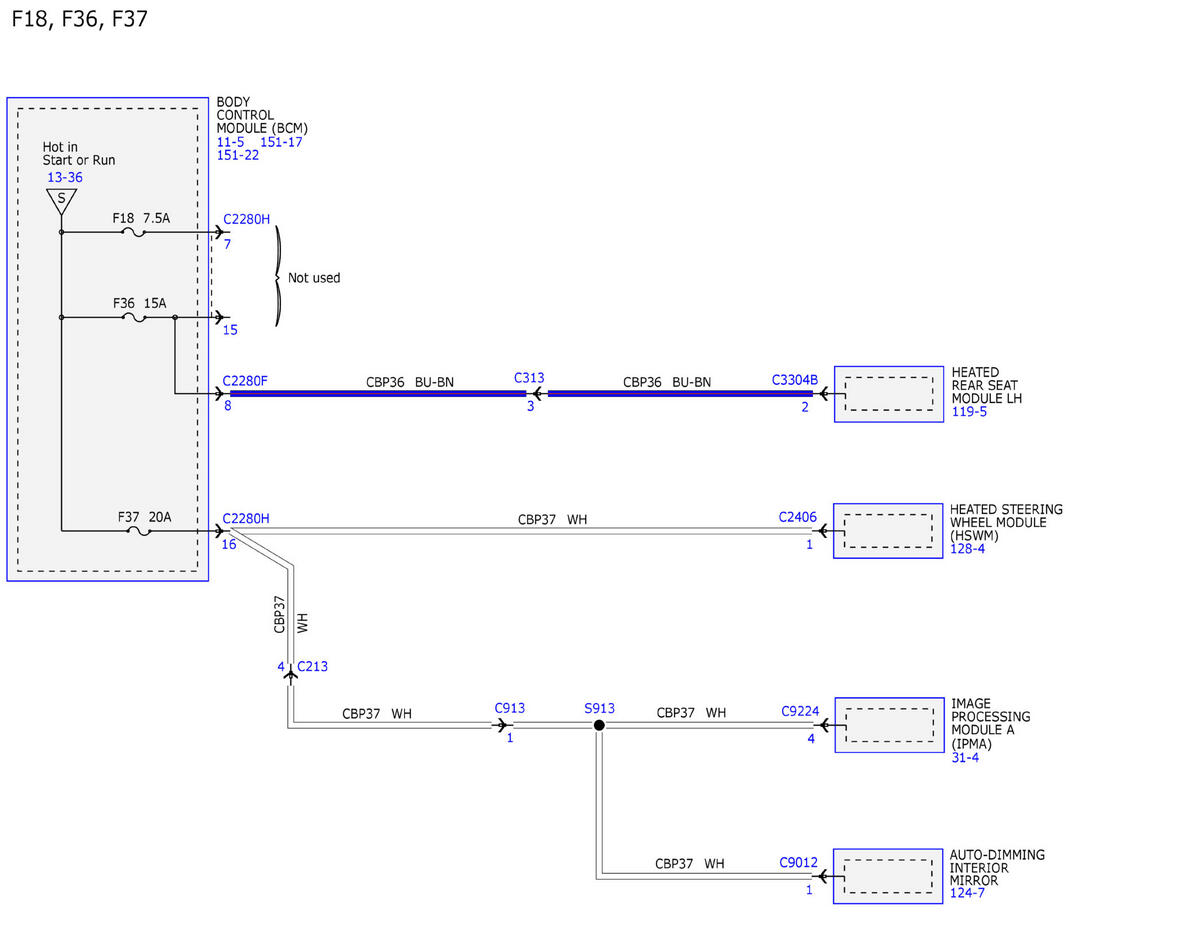

Fig 31: Power Distribution Wiring Diagram (31 Of 47)

GFDWR221389

Courtesy of FORD MOTOR COMPANY

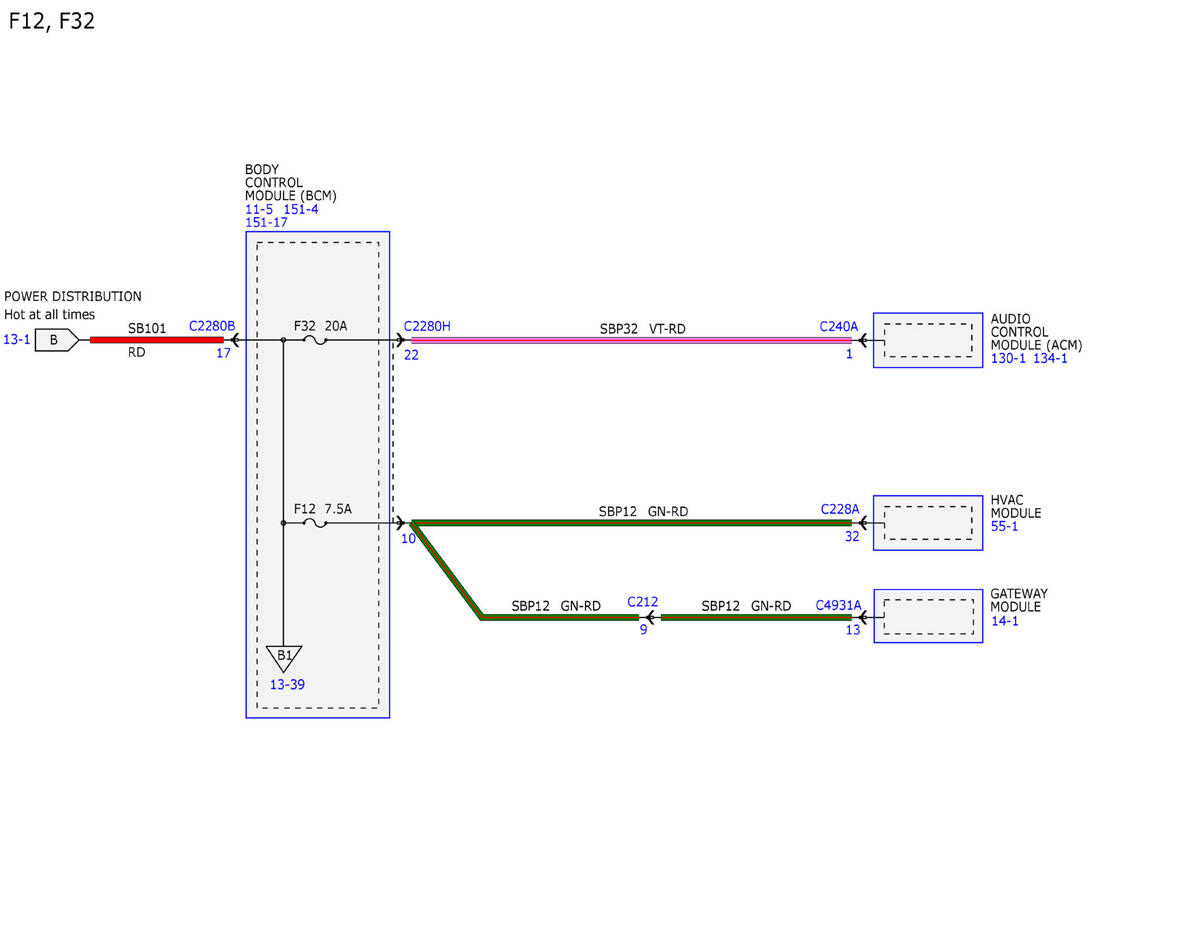

Fig 32: Power Distribution Wiring Diagram (32 Of 47)

GFDWR221390

Courtesy of FORD MOTOR COMPANY

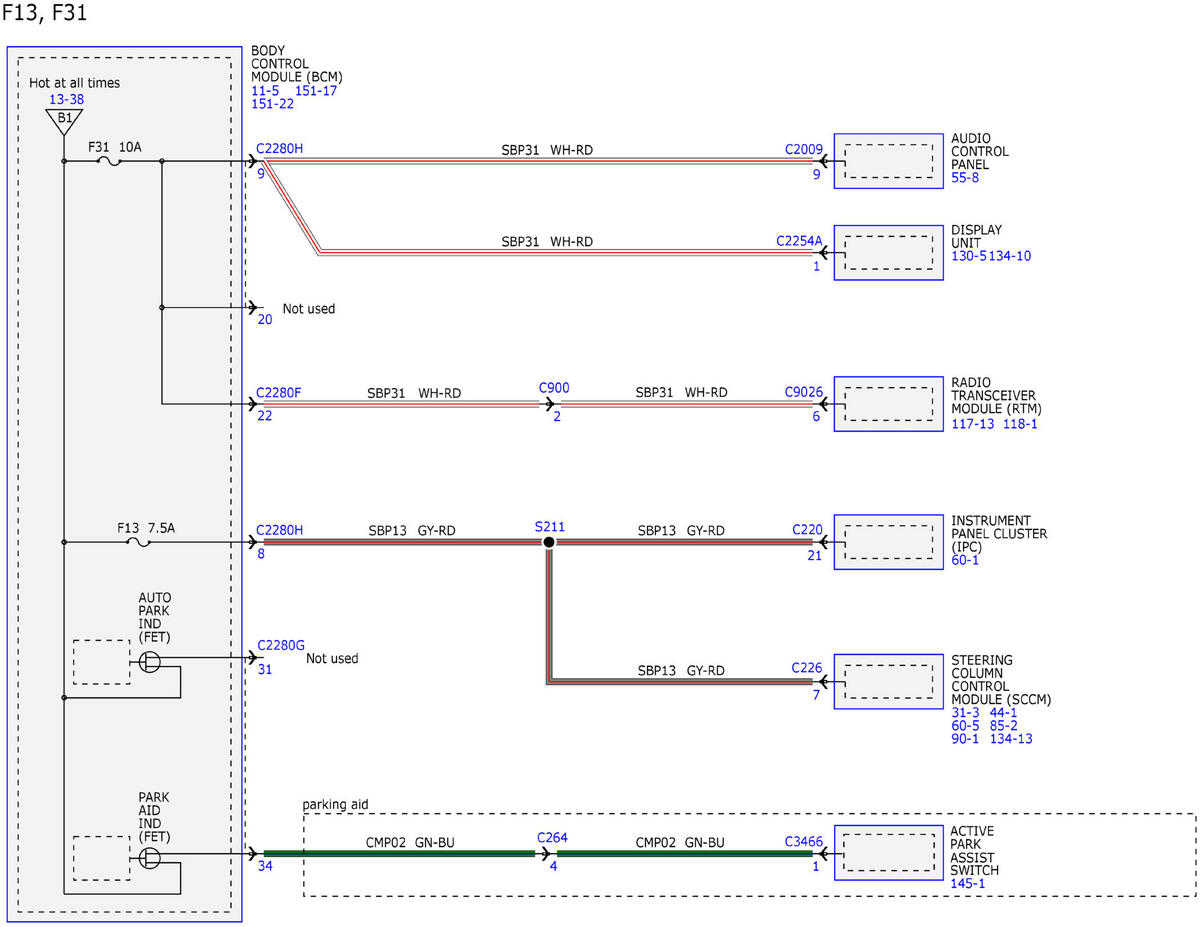

Fig 33: Power Distribution Wiring Diagram (33 Of 47)

GFDWR221391

Courtesy of FORD MOTOR COMPANY

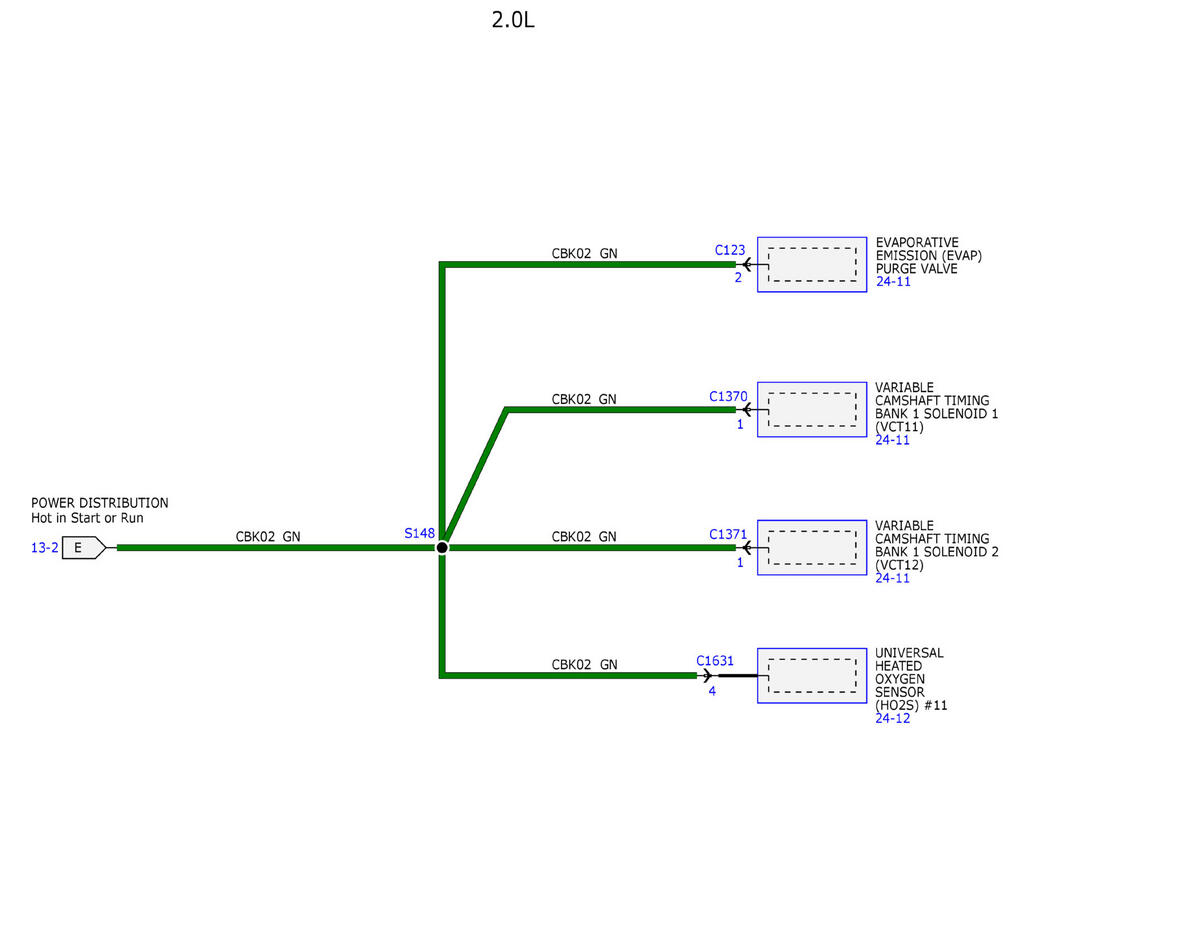

Fig 34: Power Distribution Wiring Diagram (34 Of 47)

GFDWR221392

Courtesy of FORD MOTOR COMPANY

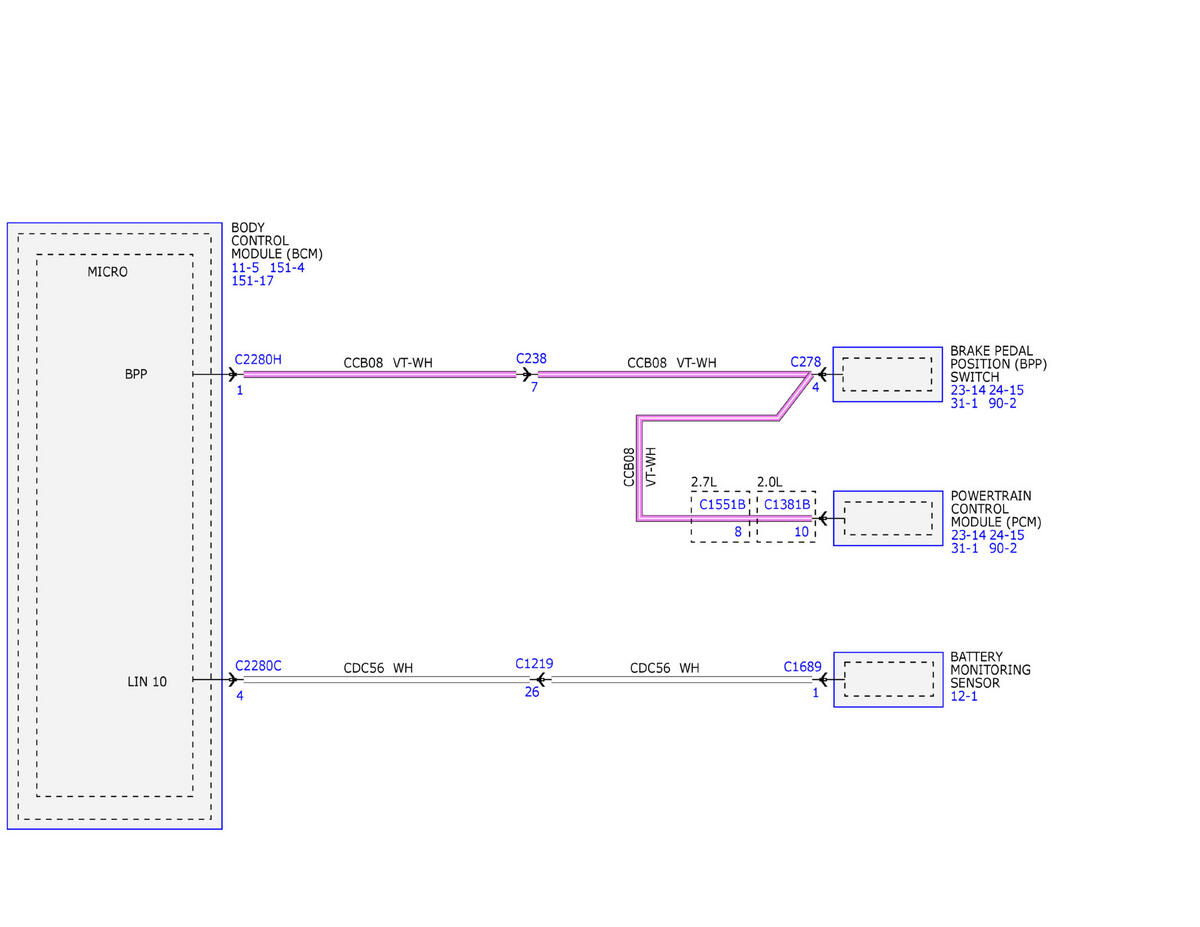

Fig 35: Power Distribution Wiring Diagram (35 Of 47)

GFDWR221393

Courtesy of FORD MOTOR COMPANY

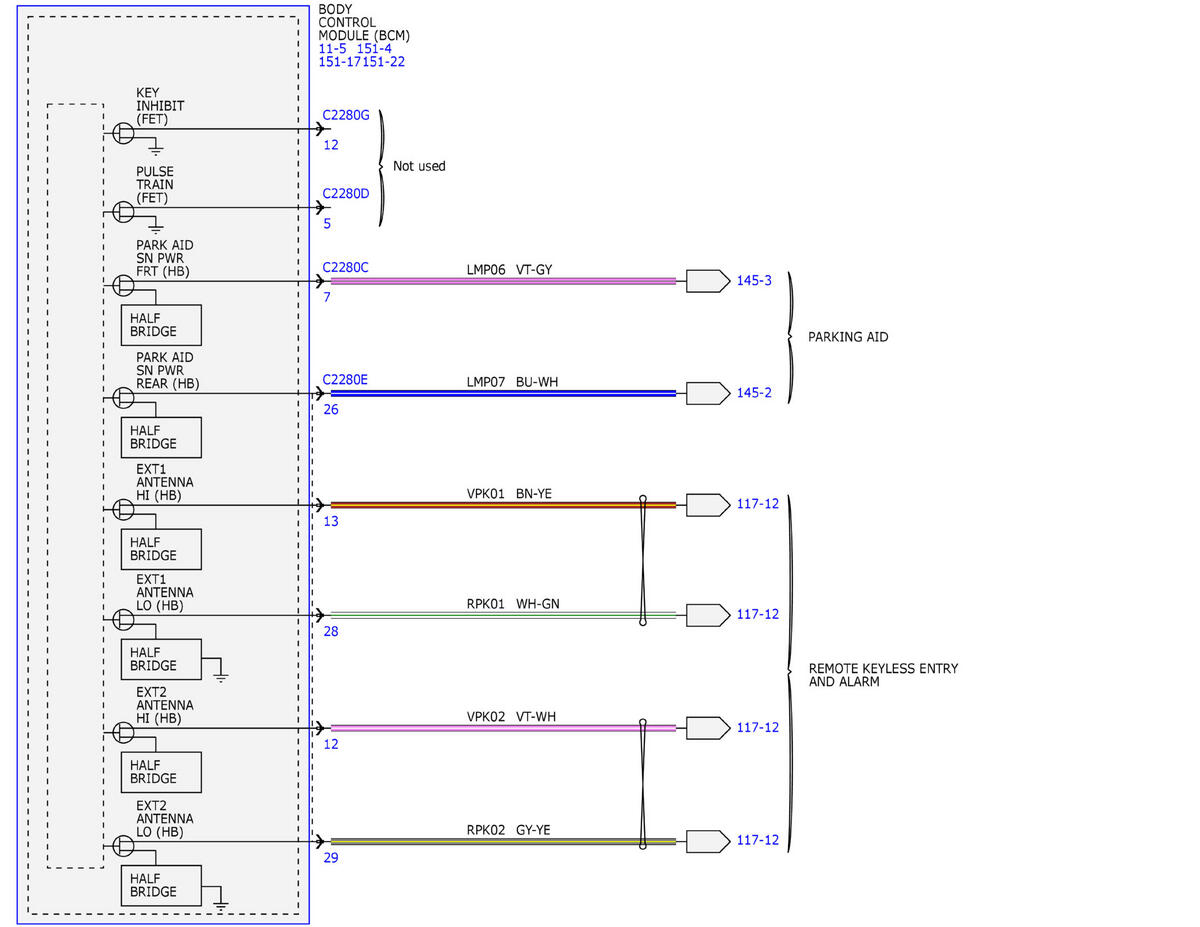

Fig 36: Power Distribution Wiring Diagram (36 Of 47)

GFDWR221394

Courtesy of FORD MOTOR COMPANY

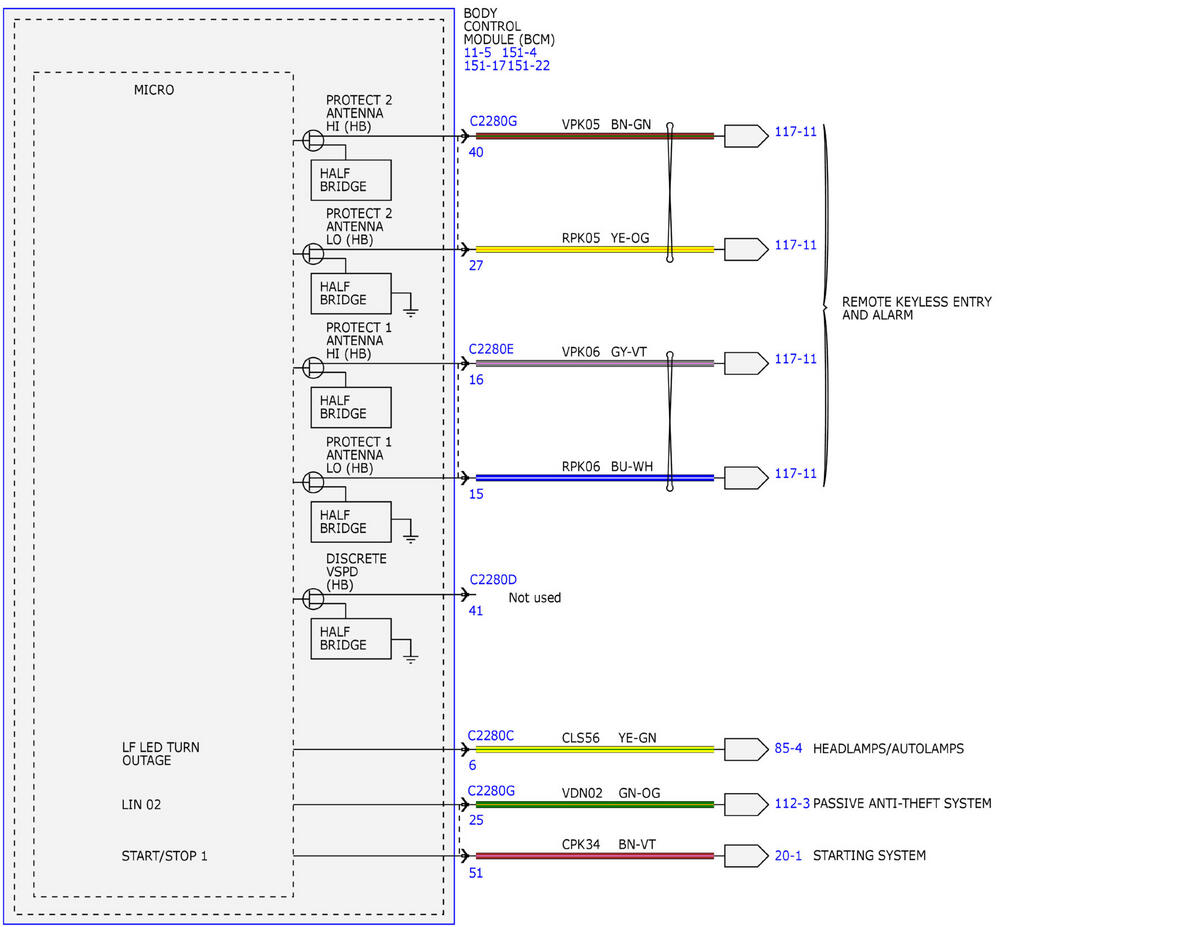

Fig 37: Power Distribution Wiring Diagram (37 Of 47)

GFDWR221395

Courtesy of FORD MOTOR COMPANY

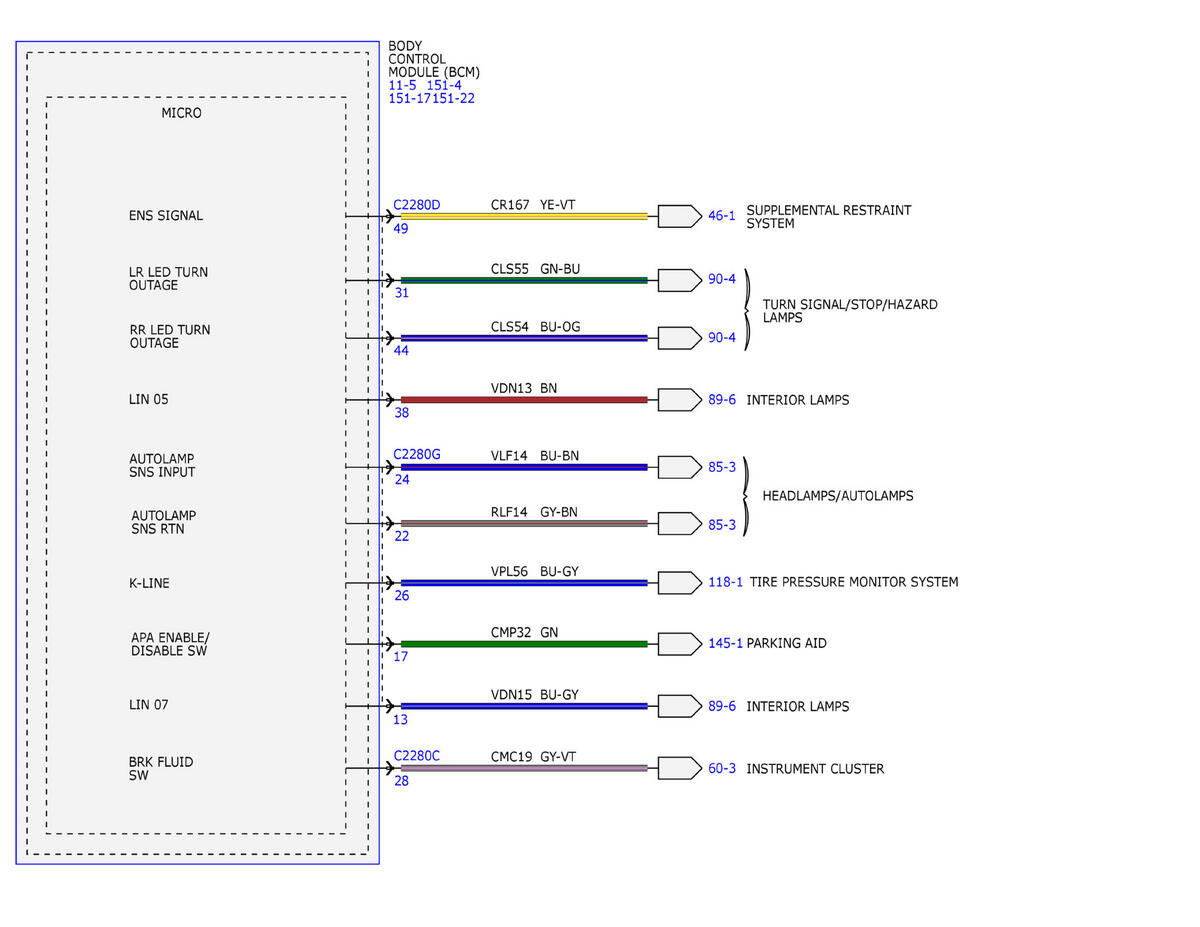

Fig 38: Power Distribution Wiring Diagram (38 Of 47)

GFDWR221396

Courtesy of FORD MOTOR COMPANY

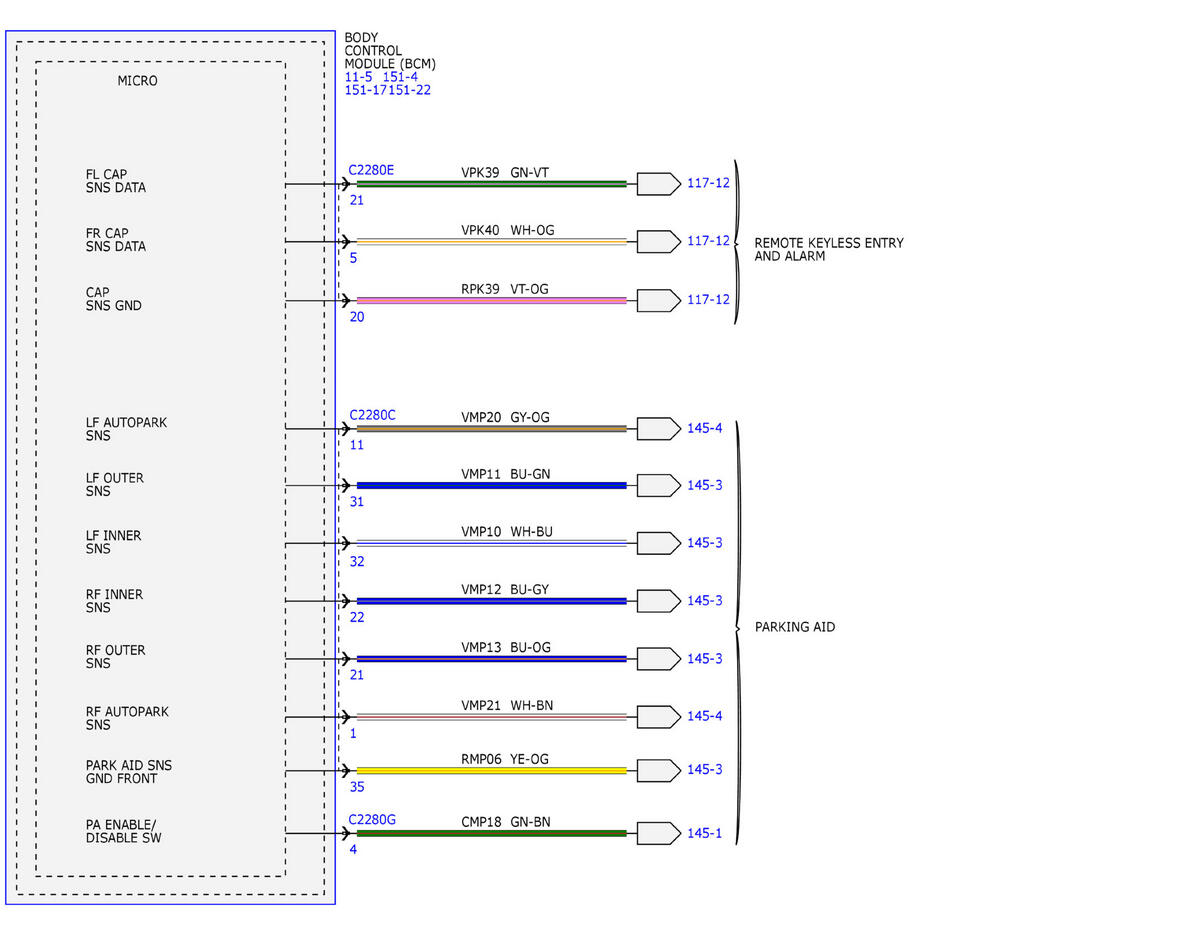

Fig 39: Power Distribution Wiring Diagram (39 Of 47)

GFDWR221397

Courtesy of FORD MOTOR COMPANY

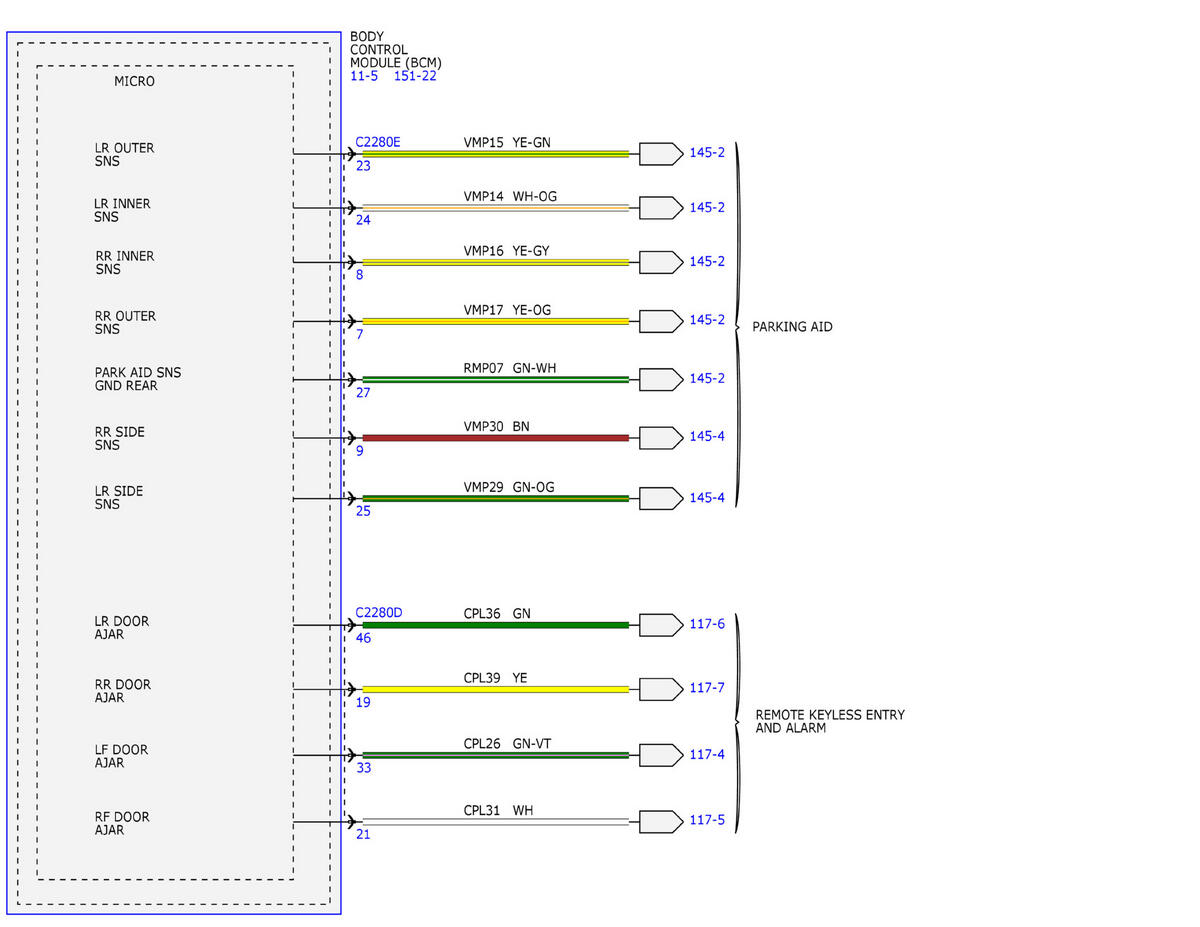

Fig 40: Power Distribution Wiring Diagram (40 Of 47)

GFDWR221398

Courtesy of FORD MOTOR COMPANY

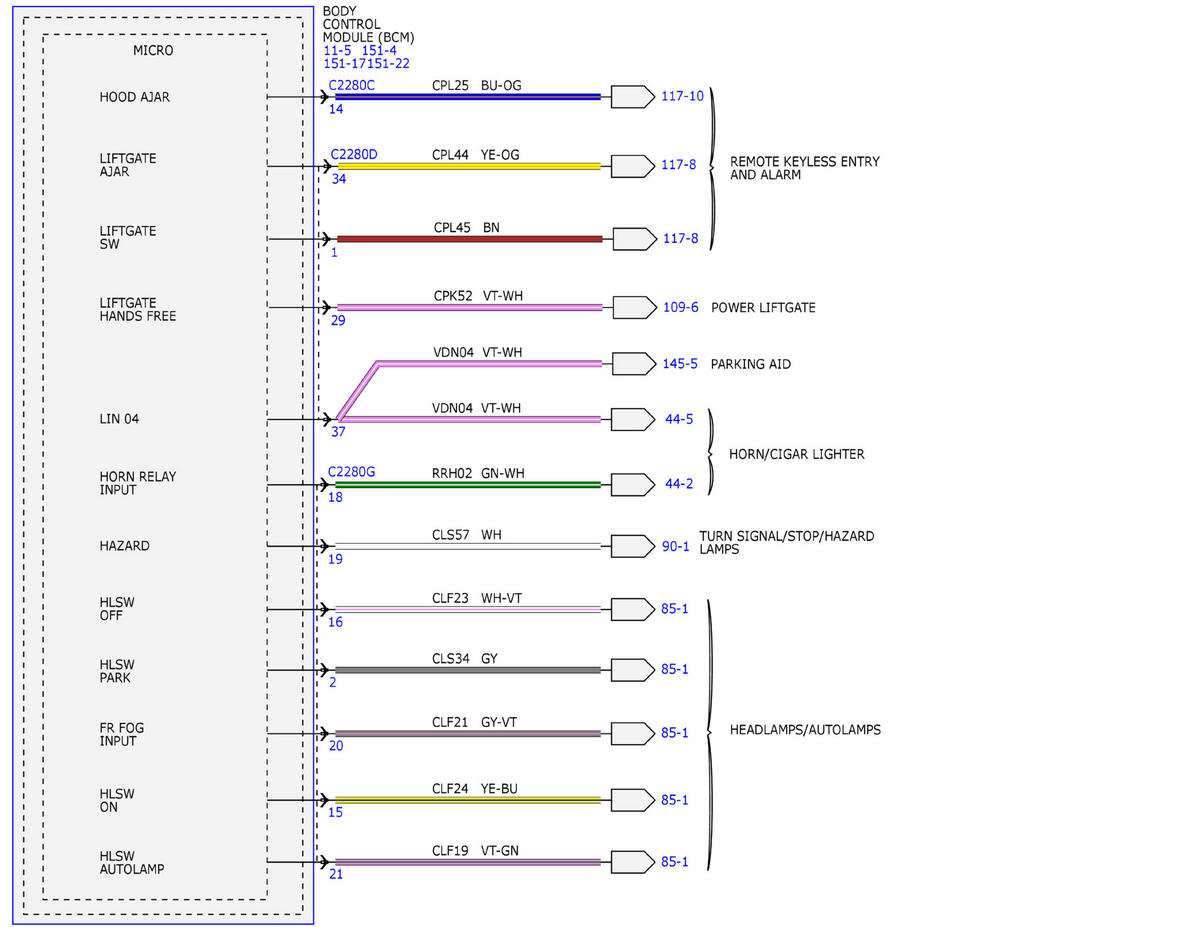

Fig 41: Power Distribution Wiring Diagram (41 Of 47)

GFDWR221399

Courtesy of FORD MOTOR COMPANY

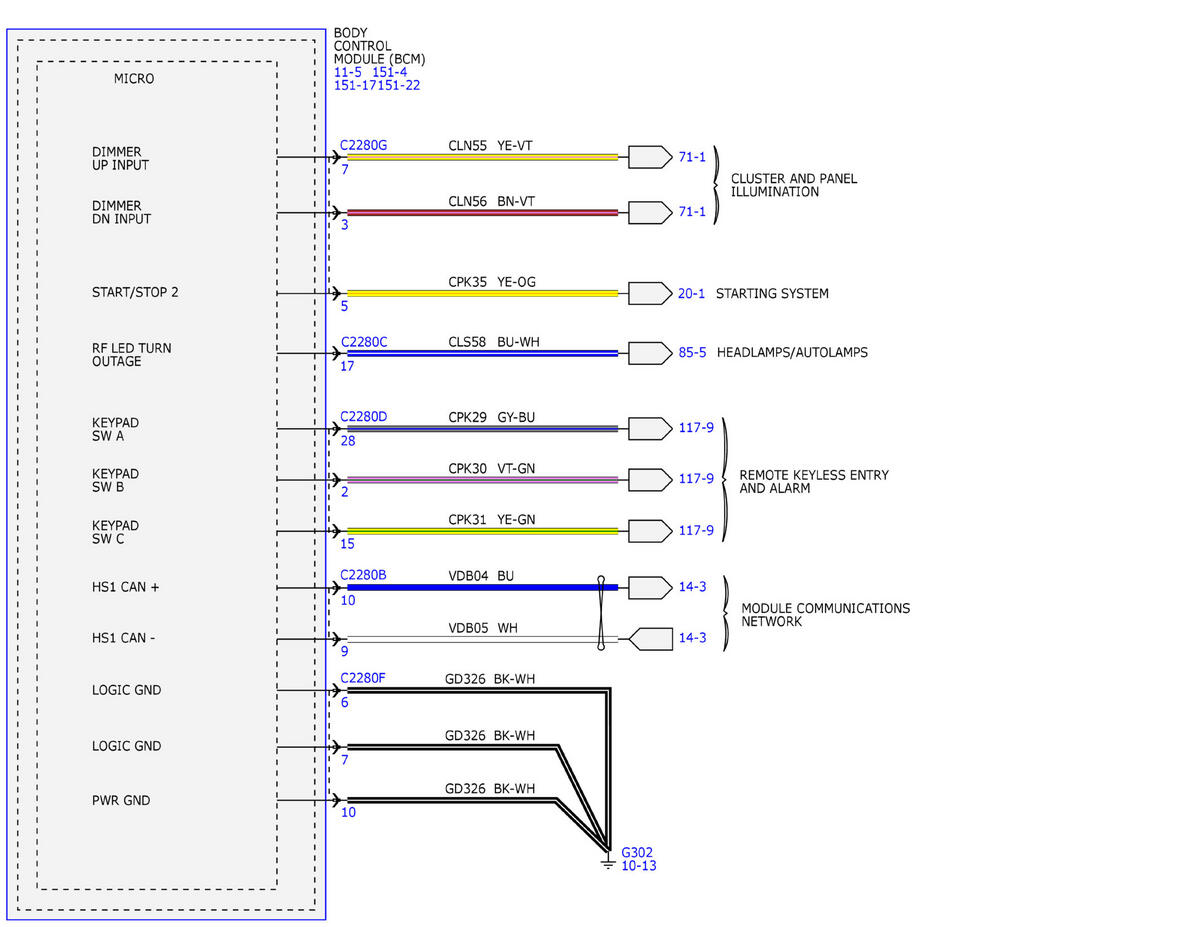

Fig 42: Power Distribution Wiring Diagram (42 Of 47)

GFDWR221400

Courtesy of FORD MOTOR COMPANY

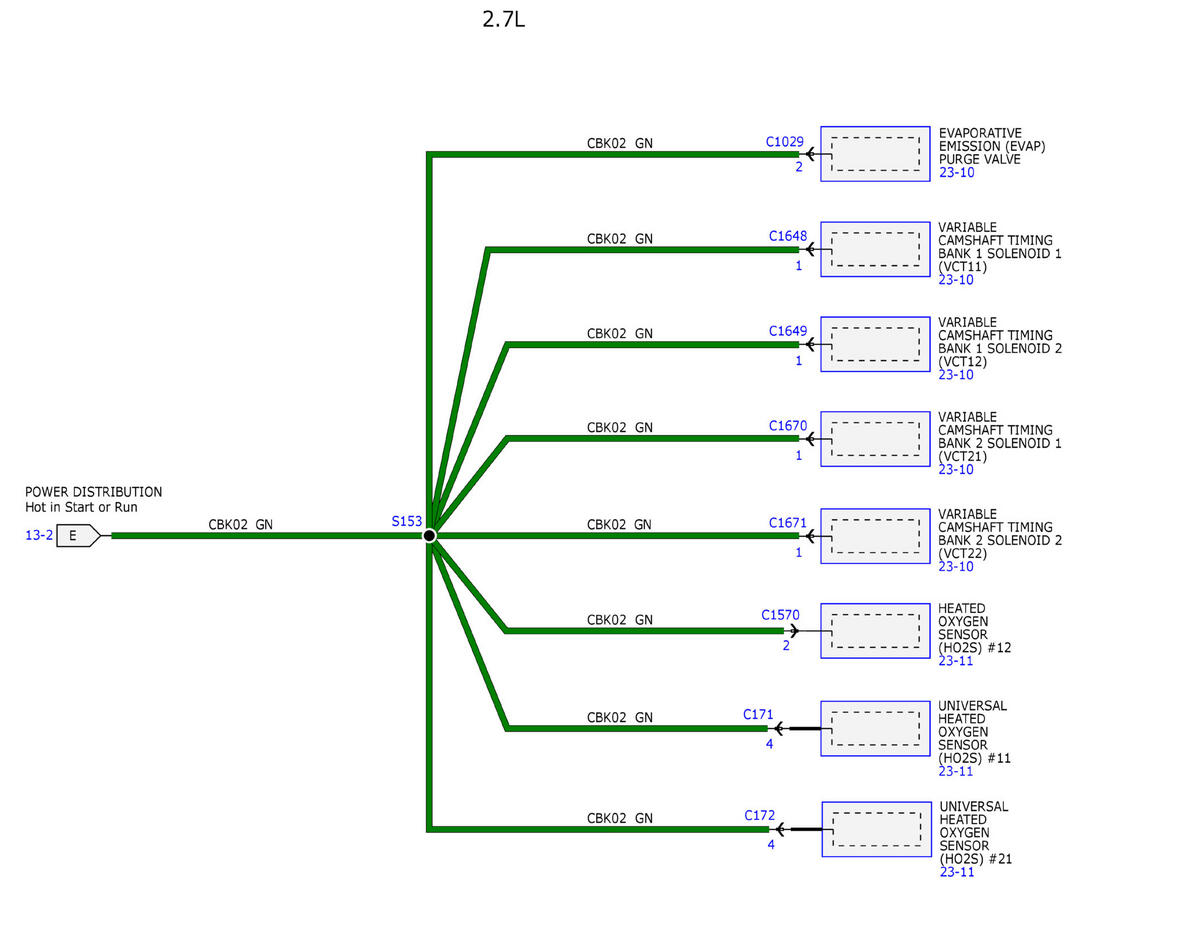

Fig 43: Power Distribution Wiring Diagram (43 Of 47)

GFDWR221401

Courtesy of FORD MOTOR COMPANY

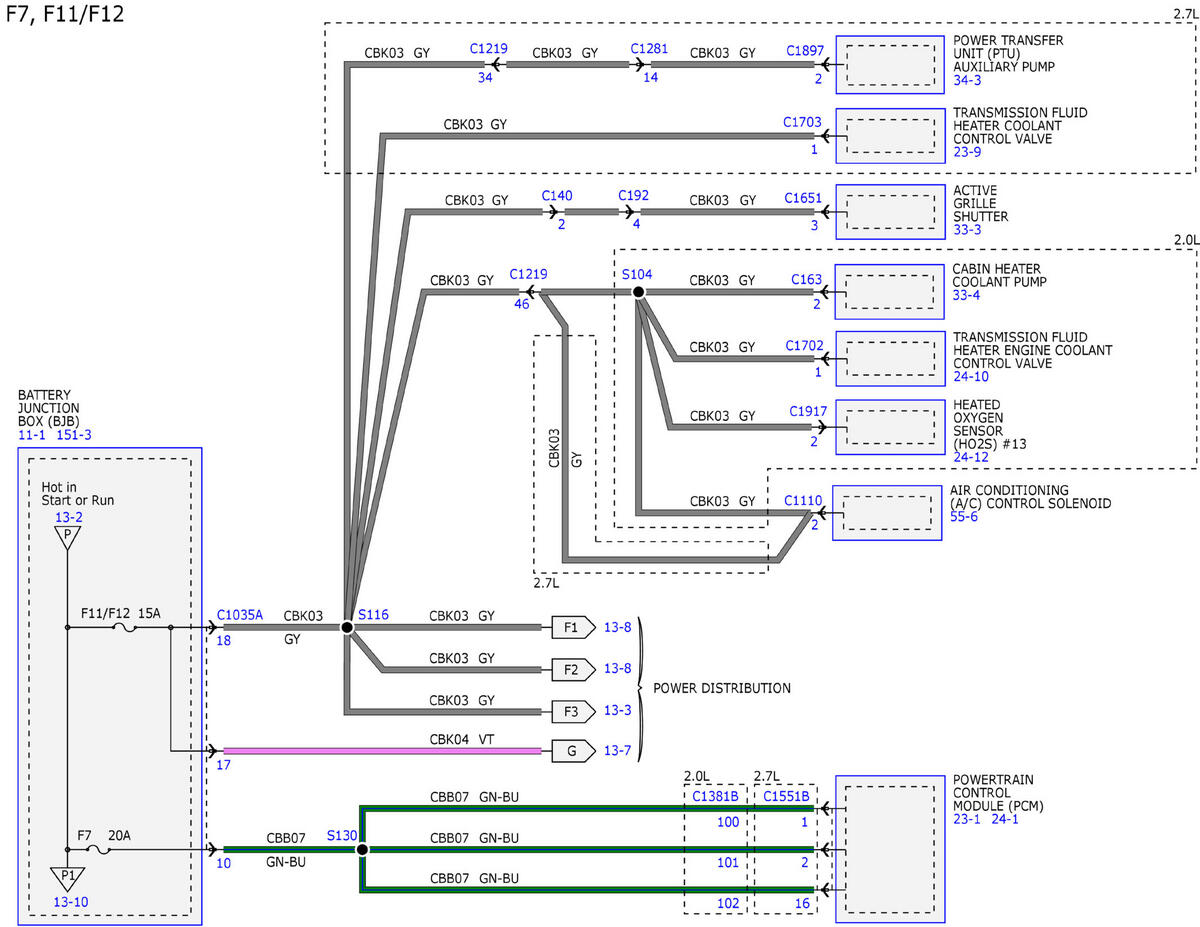

Fig 44: Power Distribution Wiring Diagram (44 Of 47)

GFDWR221402

Courtesy of FORD MOTOR COMPANY

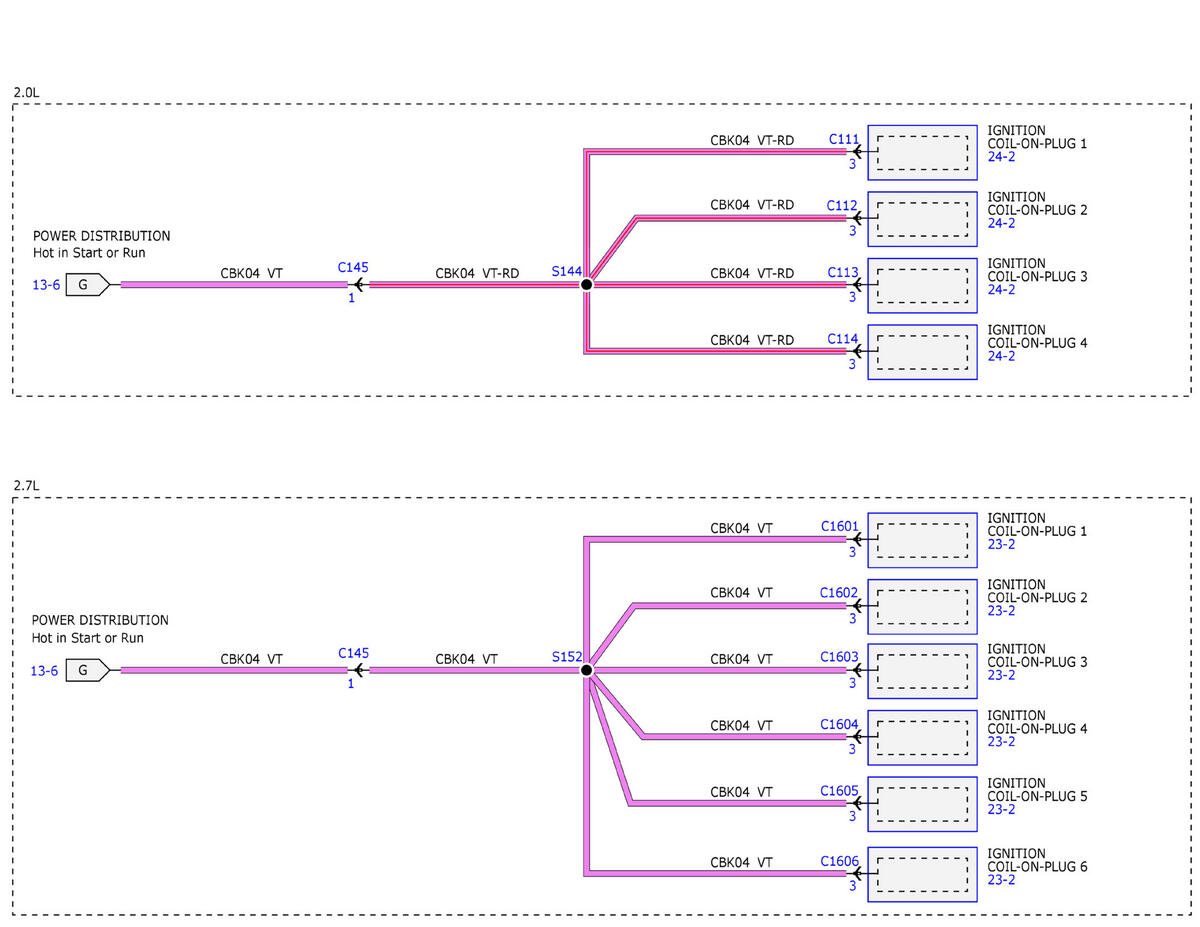

Fig 45: Power Distribution Wiring Diagram (45 Of 47)

GFDWR221403

Courtesy of FORD MOTOR COMPANY

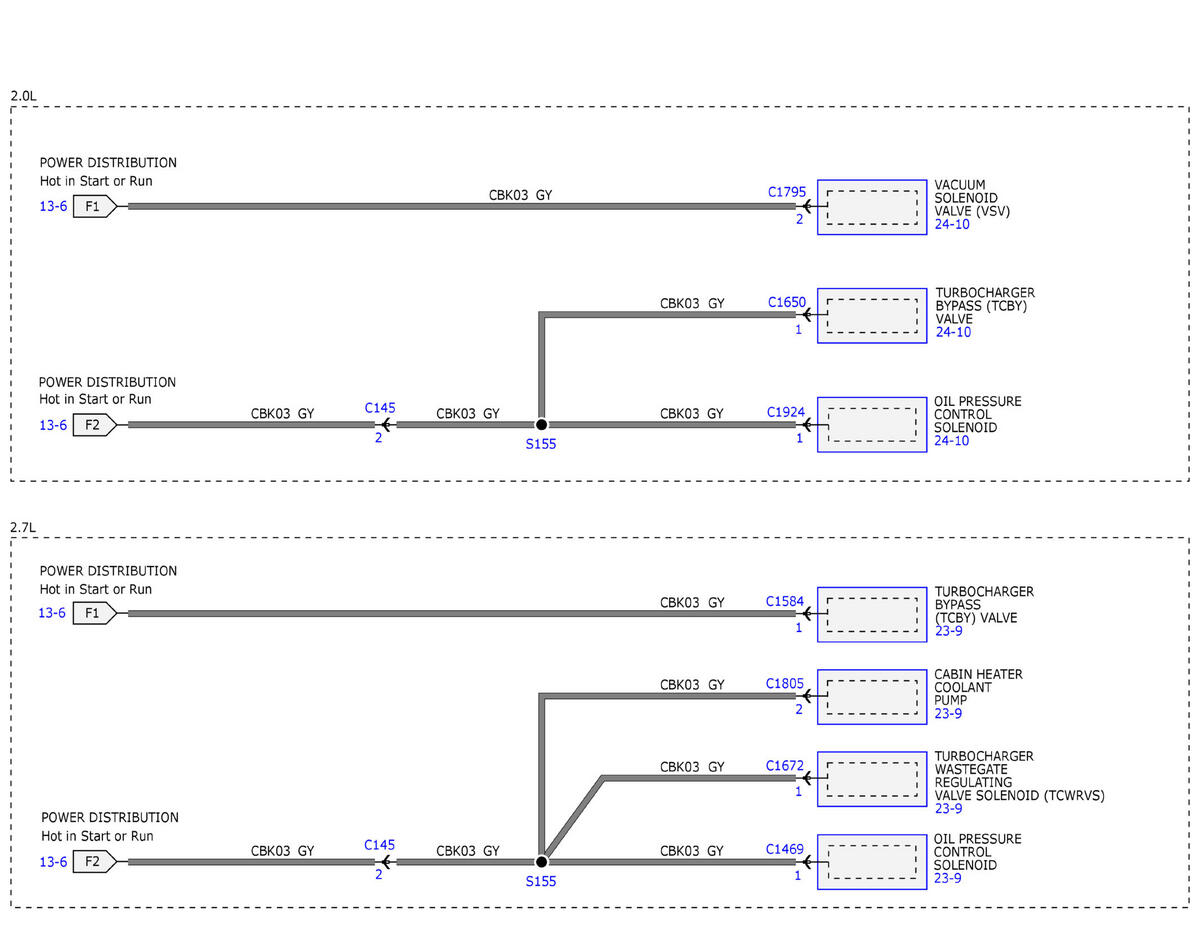

Fig 46: Power Distribution Wiring Diagram (46 Of 47)

GFDWR221404

Courtesy of FORD MOTOR COMPANY

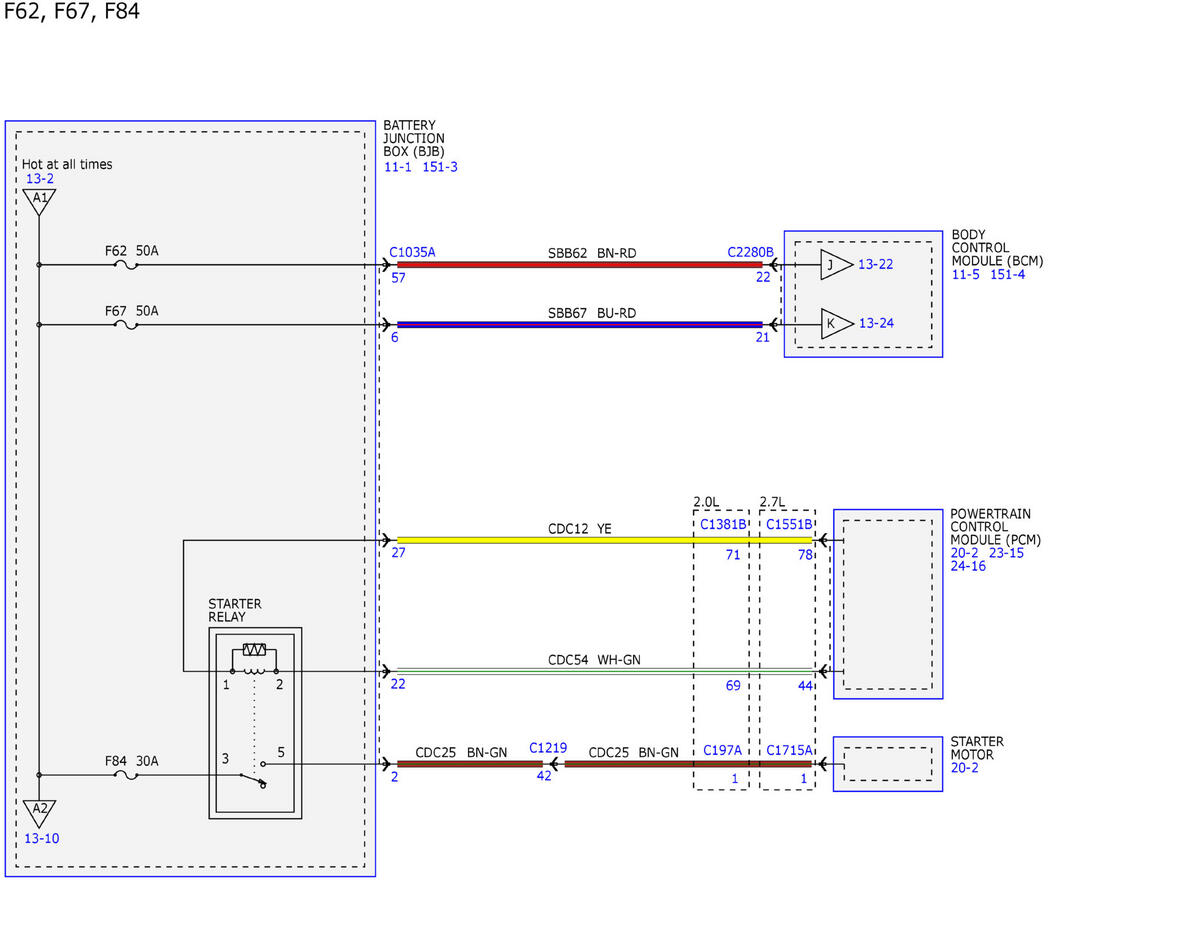

Fig 47: Power Distribution Wiring Diagram (47 Of 47)

GFDWR221405

Courtesy of FORD MOTOR COMPANY
