Front Head Restraint Guide Sleeve: Removal

NOTE: Typical head restraint guide sleeve shown in illustration, others similar.

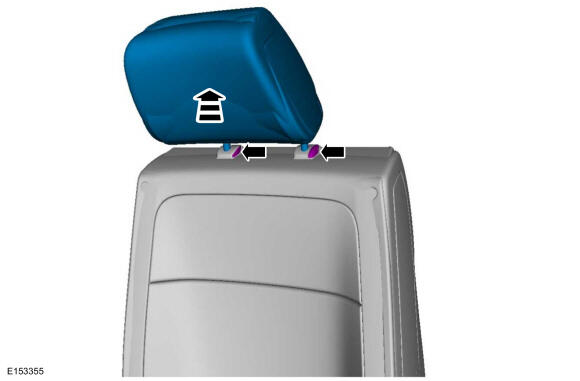

  1. Depress the locking tabs and remove the head restraint.
    GFD815209Courtesy of FORD MOTOR COMPANY

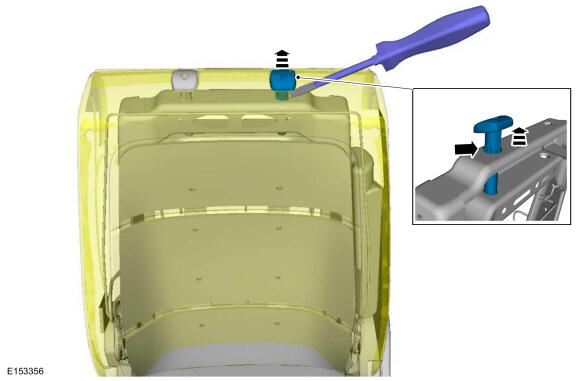

  2. Remove the headrest restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver
    GFD815210Courtesy of FORD MOTOR COMPANY

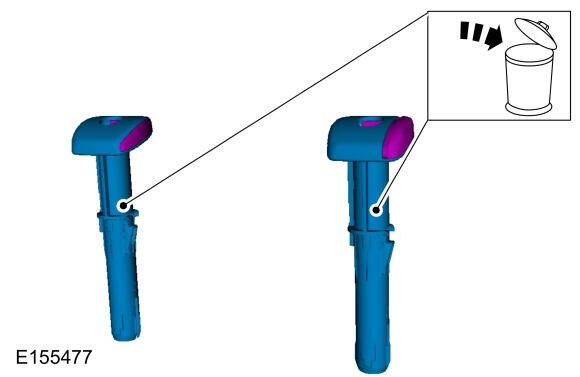

  3. Discard the head restraint guide sleeves.
GFD815211Courtesy of FORD MOTOR COMPANY
