Hands-Free Liftgate Actuation Module: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the rear bumper cover. Refer to: Rear Bumper Cover

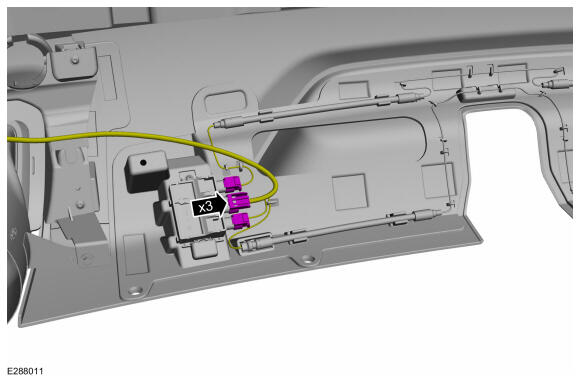

2. Disconnect the hands-free liftgate actuation module electrical connectors.

   Courtesy of FORD MOTOR COMPANY

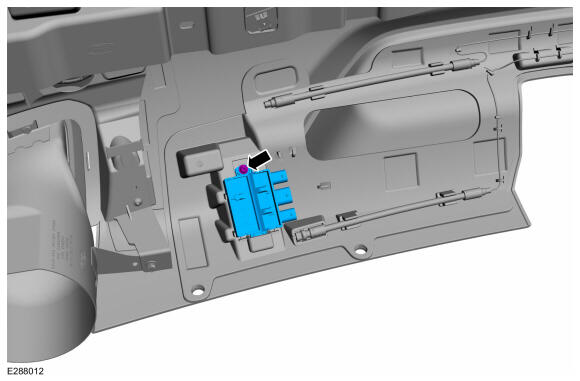

3. Remove the screw and the hands-free liftgate actuation module.

   Torque : 3 Nm

Courtesy of FORD MOTOR COMPANY
