Rear Door Alignment
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Inspection
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:

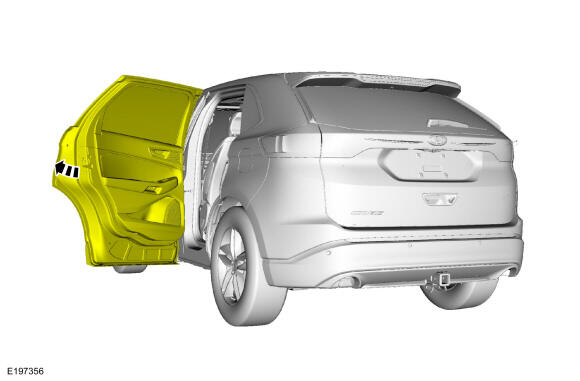

LH side shown, RH side similar.

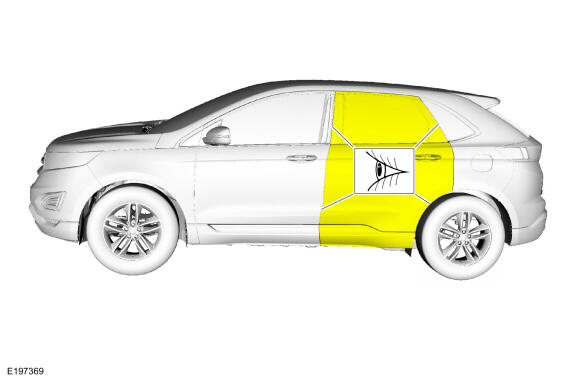

- Inspect the rear door-to-body dimensions. Refer to the appropriate Body Repairs service information.
Adjustment
All alignments

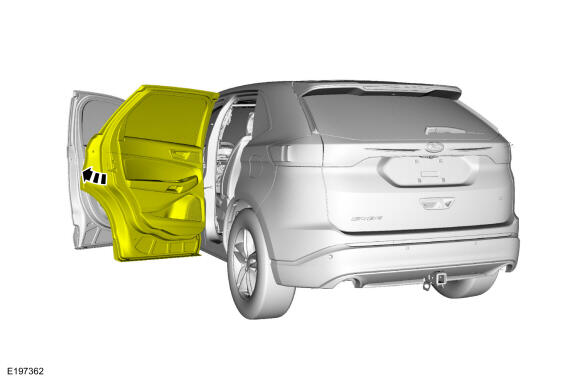

- Open the rear door.

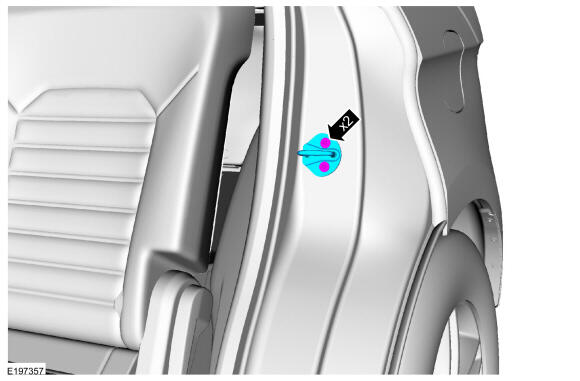

- Remove the bolts and the striker assembly.
Torque : 25 Nm

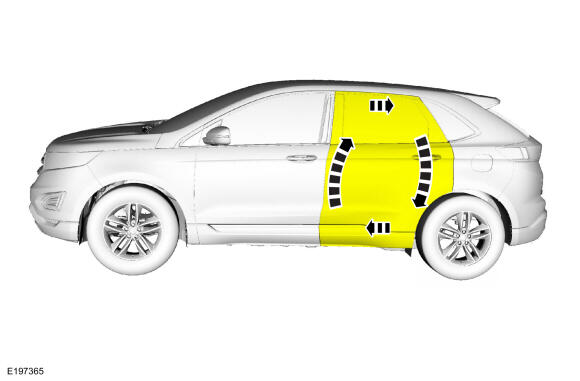

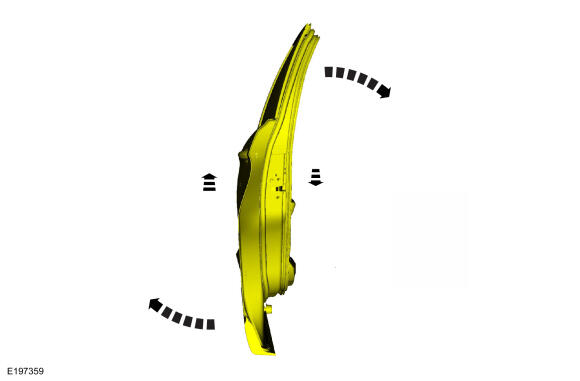

Rear door in and out, up and down alignment

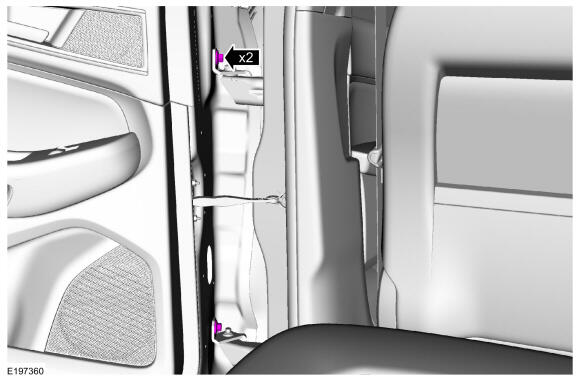

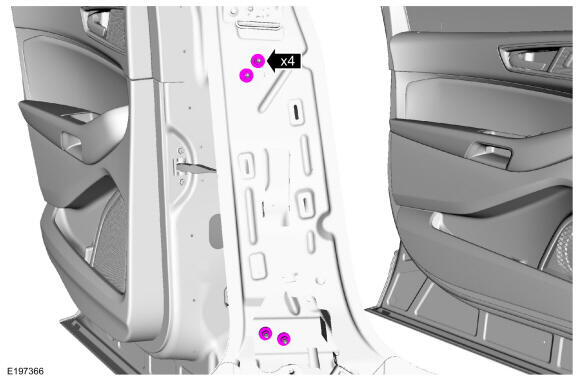

- Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)
- Adjust the door to specification. Refer to the appropriate Body Repairs service information.
- Tighten the bolts.
Torque : 48 Nm
Rear door fore, aft and tilt alignment
- Remove the lower B-pillar trim panel. Refer to: B-Pillar Trim Panel
- Depower the SRS. Refer to: SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING .

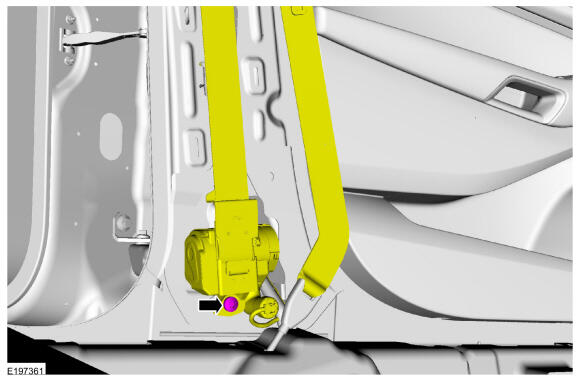

- Remove the bolt and position aside the safety belt retractor.

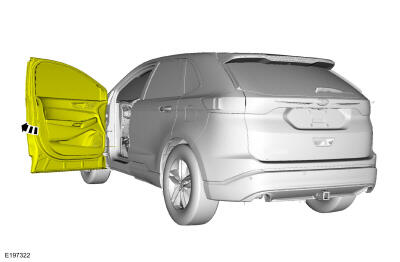

- Open the front door.

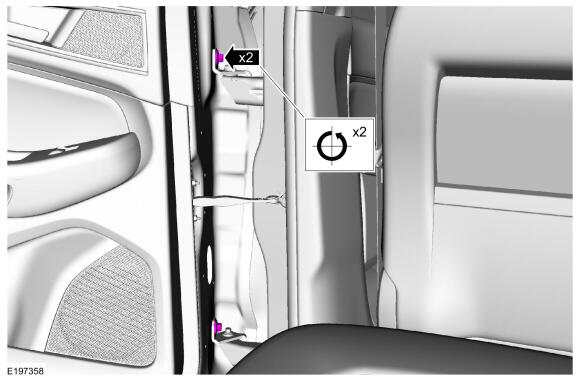

- Loosen the nuts to permit movement of the door. Loosen: : 2 turn(s)
- Carefully close the rear door.
- Carefully close the front door.
- Adjust the door to specification. Refer to the appropriate Body Repairs service information.
- Carefully open the front door.
- Carefully open the rear door.
- Tighten the nuts.
Torque : 30 Nm
- Install the safety belt retractor and the bolt.
Torque : 40 Nm
-
NOTE: During installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.
Repower the SRS. Refer to: Supplemental Restraint System (Srs) Repowering .
- Check the active restraint system for correct operation. Refer to the appropriate Seatbelt Systems service information
.
All alignments
- Install the striker assembly.
Torque : 25 Nm
- Inspect the body-to-rear door dimensions. Refer to the appropriate Body Repairs service information.
