Liftgate Alignment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Inspection

NOTE: Removal steps in this procedure may contain installation details.

Check liftgate-to-body dimensions. Refer to the appropriate Body Repairs service information.
Adjustment

All alignments

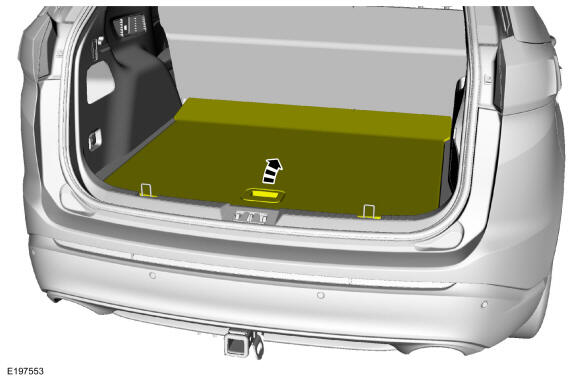

Position aside the load compartment luggage cover.

Courtesy of FORD MOTOR COMPANY

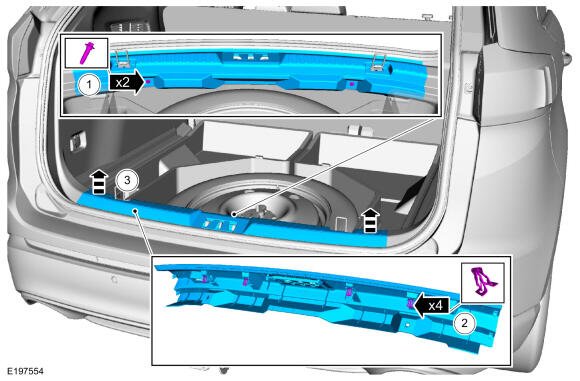

1. Remove the bolts.
  Torque : 9 Nm
2. Remove the retainers.
3. Remove the liftgate opening trim panel.
Courtesy of FORD MOTOR COMPANY

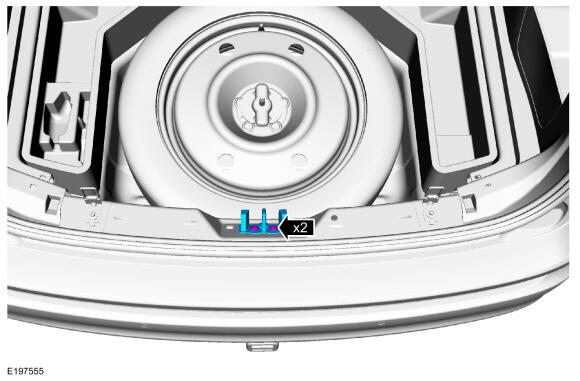

Remove the liftgate striker.
Torque : 20 Nm

Courtesy of FORD MOTOR COMPANY

Liftgate left and right, up and down alignment

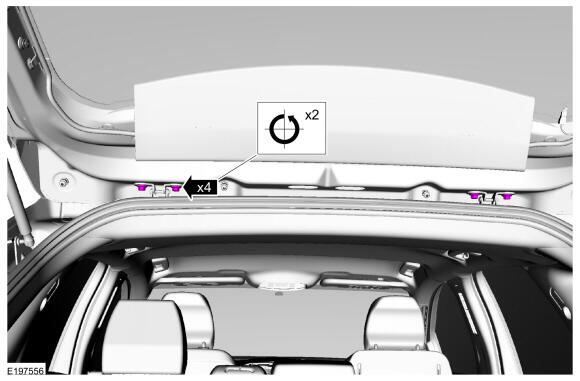

Loosen the bolts. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

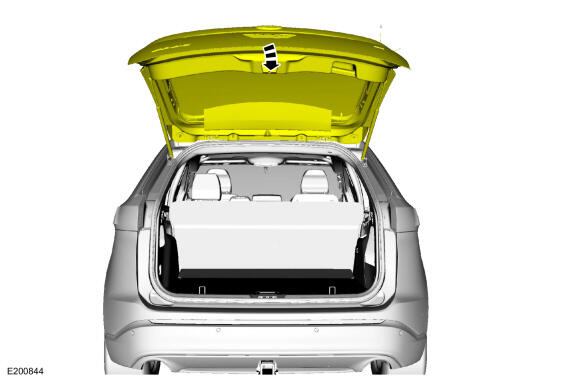

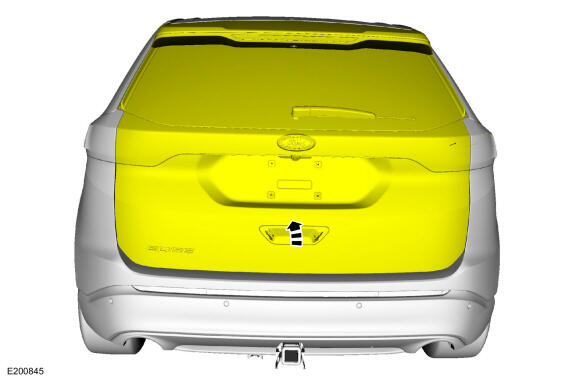

Carefully close the liftgate.

Courtesy of FORD MOTOR COMPANY

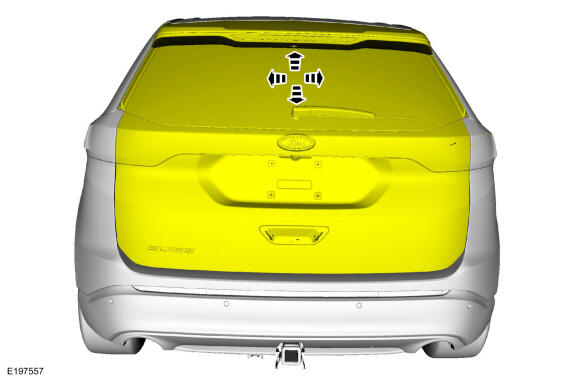

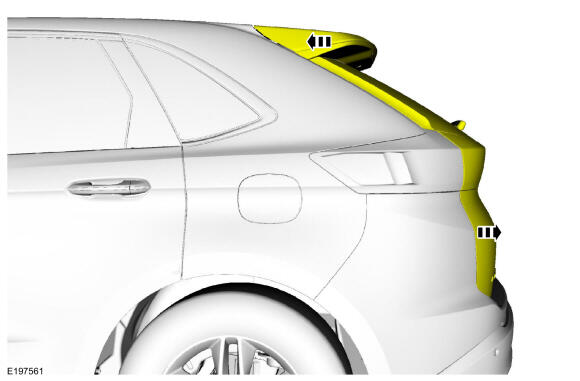

Adjust the liftgate to specification. Refer to the appropriate Body Repairs service information.

Courtesy of FORD MOTOR COMPANY
Carefully open the liftgate.

Courtesy of FORD MOTOR COMPANY

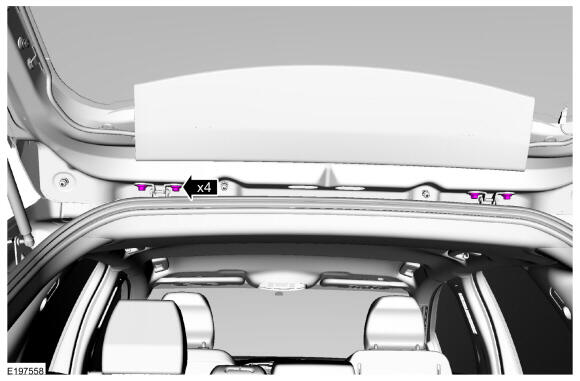

Tighten the bolts.
Torque : 30 Nm

Courtesy of FORD MOTOR COMPANY

Liftgate in and out alignment
Lower the headliner. Refer to: REMOVAL AND INSTALLATION .

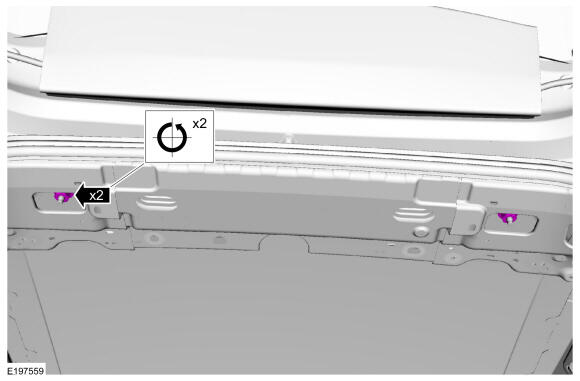

Loosen the nuts. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
NOTE: Nominal overslam bumpers have a small lip and should be adjusted flush with the sheet metal surface.

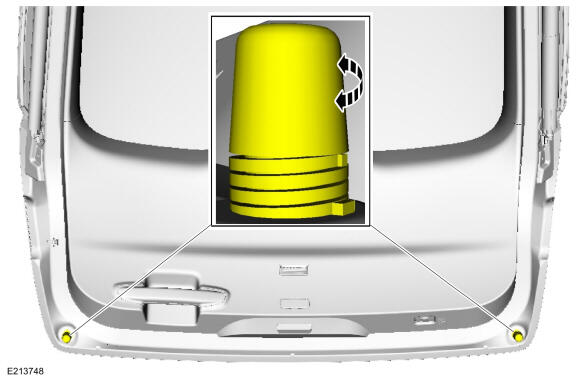

Adjust the nominal overslam bumpers.

Courtesy of FORD MOTOR COMPANY
Carefully close the liftgate.

Courtesy of FORD MOTOR COMPANY
Adjust the liftgate to specification. Refer to the appropriate Body Repairs service information.

Courtesy of FORD MOTOR COMPANY
Carefully open the liftgate.

Courtesy of FORD MOTOR COMPANY

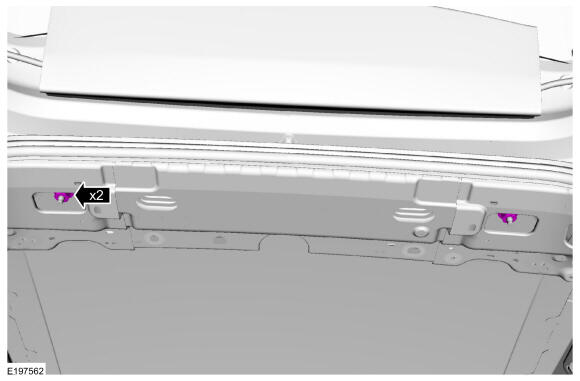

Tighten the nuts.
Torque : 62. 5 Nm

Courtesy of FORD MOTOR COMPANY

All alignments

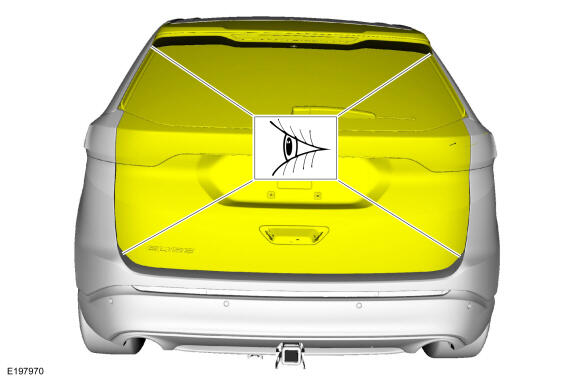

Inspect the body-to-liftgate door dimensions. Refer to the appropriate Body Repairs service information.

Courtesy of FORD MOTOR COMPANY
Install the removed components.
If equipped, carry out the power liftgate initialization. Refer to: Power Liftgate Initialization .
