Hood Alignment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Inspection

1. Inspect the hood-to-body dimensions. Refer to the appropriate Body Repairs service information.

   All alignments

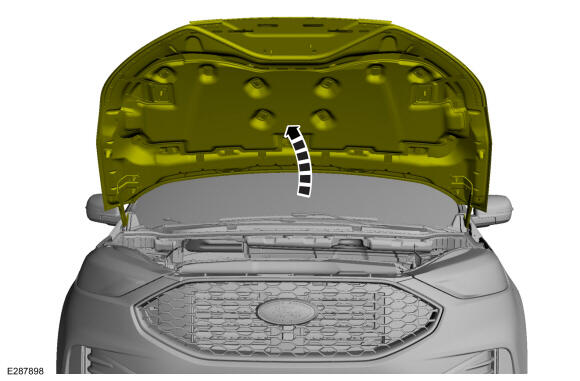

2. Open the hood.

   Courtesy of FORD MOTOR COMPANY

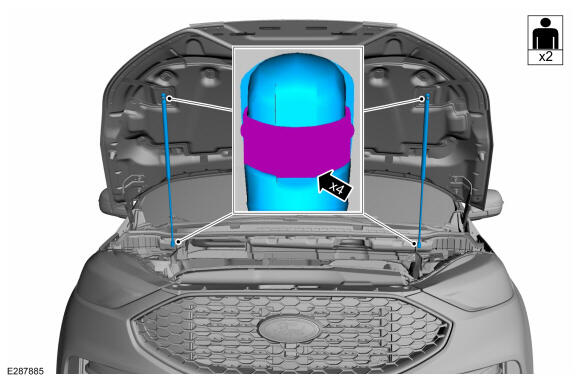

3. NOTE: Support the hood before removing the struts. Failure to follow this direction may result in damage to the components.

   Release the clips and remove the struts.

   Courtesy of FORD MOTOR COMPANY

4. Remove the hood latch. Refer to: Hood Latch

   Hood fore and aft, left and right alignments

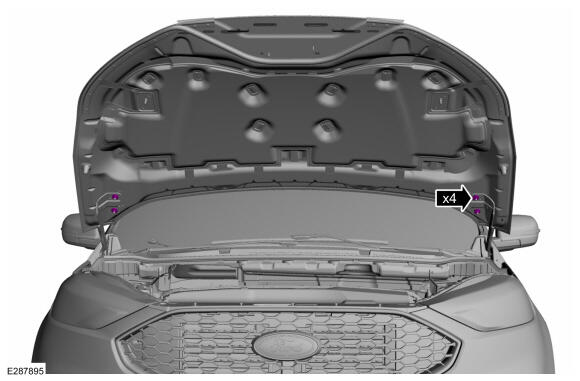

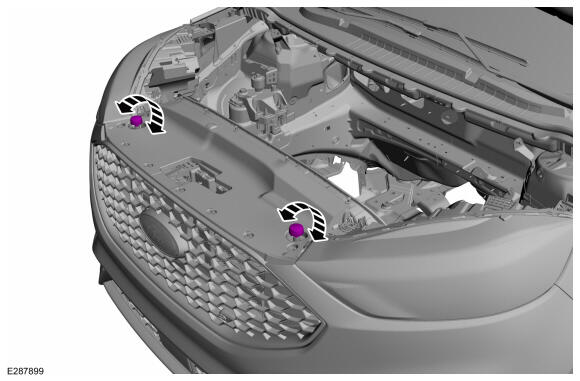

5. Loosen the nuts enough to permit movement of the hood.

   Courtesy of FORD MOTOR COMPANY

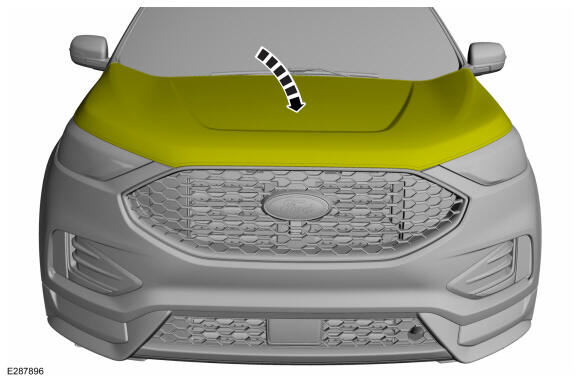

6. Carefully close the hood.

   Courtesy of FORD MOTOR COMPANY

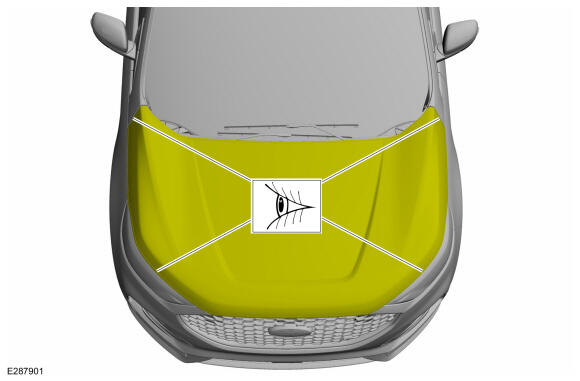

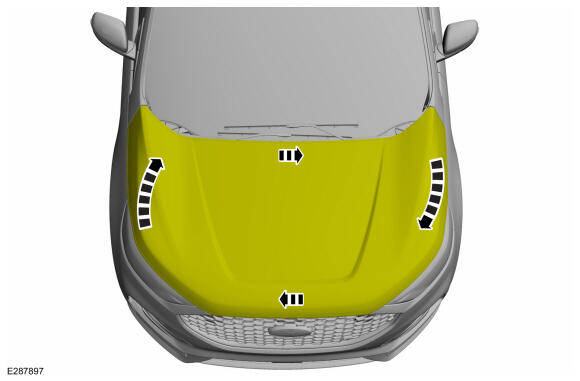

7. Adjust the hood to specification. Refer to the appropriate Body Repairs service information.

   Courtesy of FORD MOTOR COMPANY

8. Carefully open the hood.

   Courtesy of FORD MOTOR COMPANY

9. Tighten the nuts.

   Torque : 25 Nm

   Courtesy of FORD MOTOR COMPANY

   Hood front up and down alignments

10. Adjust the bump stop rubbers.

    Courtesy of FORD MOTOR COMPANY

11. Carefully close the hood.

    Courtesy of FORD MOTOR COMPANY

12. Adjust the hood to specification. Refer to the appropriate Body Repairs service information.

    Courtesy of FORD MOTOR COMPANY

    All alignments

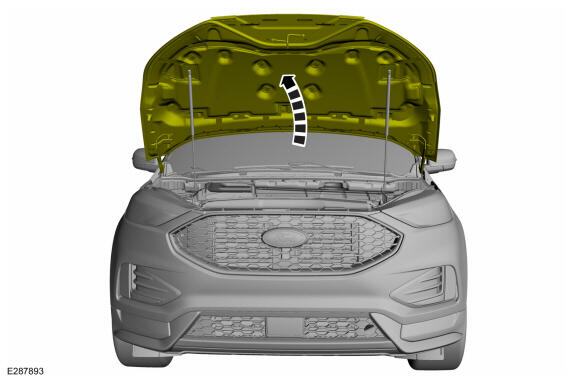

13. Carefully open the hood.

    Courtesy of FORD MOTOR COMPANY

14. Install the struts and secure the clips.

    Courtesy of FORD MOTOR COMPANY

15. Install the hood latch. Refer to: Hood Latch
16. Inspect the body-to-hood dimensions. Refer to the appropriate Body Repairs service information.
