Front Door Alignment

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Inspection

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

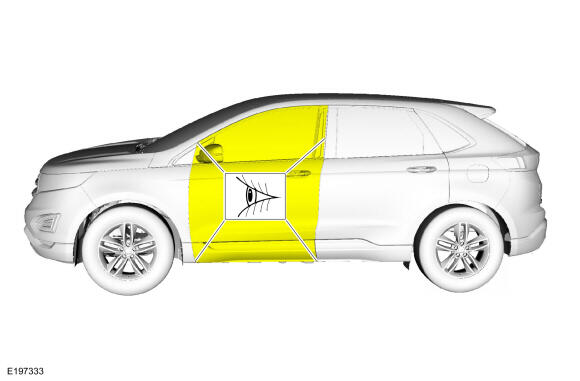

Inspect the front door-to-body dimensions. Refer to the appropriate Body Repairs service information.
Adjustment

All alignments

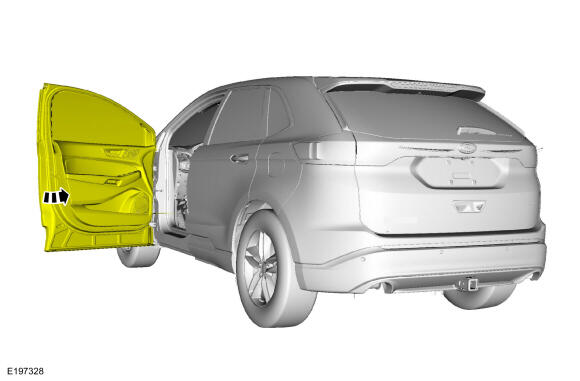

Open the door.

Courtesy of FORD MOTOR COMPANY

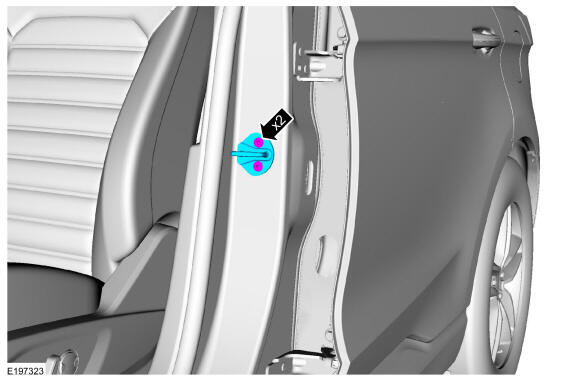

Remove the bolts and the striker assembly.
Torque : 25 Nm

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment

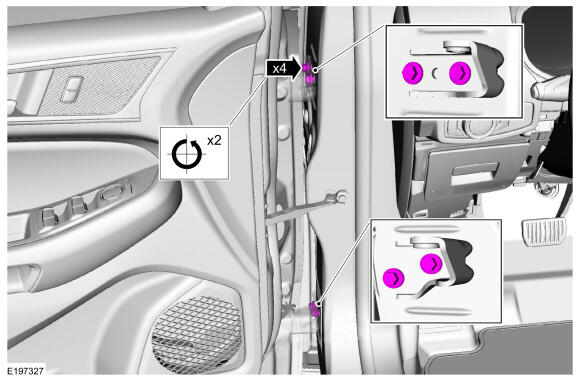

Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

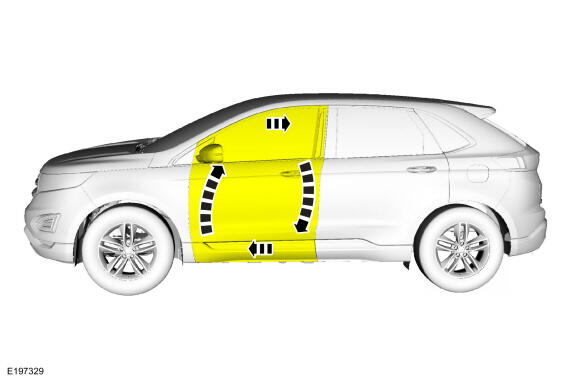

Adjust the door to specification. Refer to the appropriate Body Repairs service information.

Courtesy of FORD MOTOR COMPANY

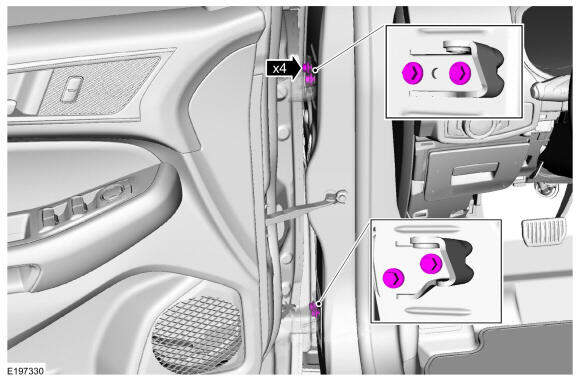

Tighten the bolts.
Torque : 48 Nm

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment

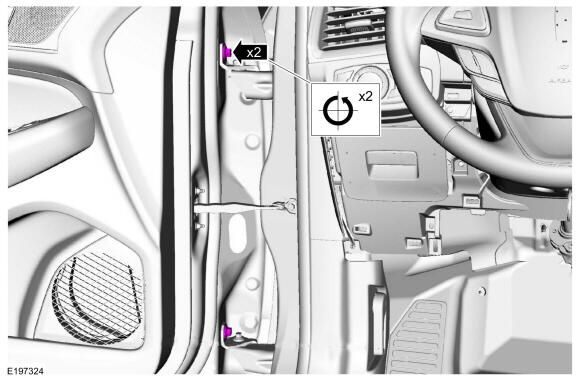

Loosen the bolts to permit movement of the door. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Carefully close the door.

Courtesy of FORD MOTOR COMPANY

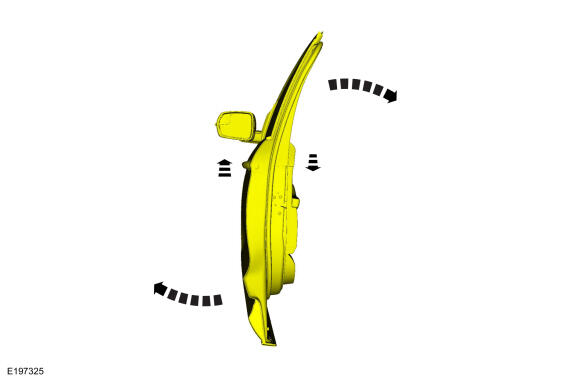

Adjust the door to specification. Refer to the appropriate Body Repairs service information.

Courtesy of FORD MOTOR COMPANY
Carefully open the door.

Courtesy of FORD MOTOR COMPANY

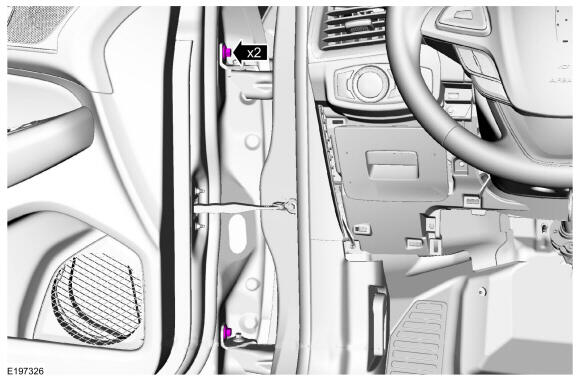

Tighten the bolts.
Torque : 30 Nm

Courtesy of FORD MOTOR COMPANY

All alignments
Install the striker assembly.
Torque : 25 Nm

Courtesy of FORD MOTOR COMPANY
Inspect the body-to-front door dimensions. Refer to the appropriate Body Repairs service information.

Courtesy of FORD MOTOR COMPANY
