All-Wheel Drive (AWD) Module: Removal

NOTE: Removal steps in this procedure may contain installation details.
NOTE: If installing a new all-wheel drive module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new all-wheel drive module after installation. Using a diagnostic scan tool, begin the PMI process for the all-wheel drive module following the onscreen instructions
  1. Remove the degas bottle. Refer to: Degas Bottle . Refer to: Degas Bottle .
  2. Remove the module.

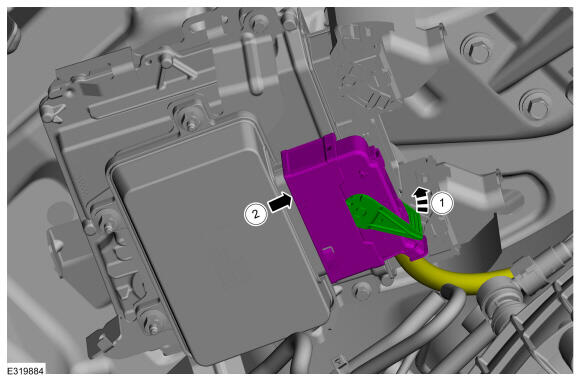

    1. Release the tab from the connector.
    2. Disconnect the electrical connector from the module.

    GFD839870Courtesy of FORD MOTOR COMPANY

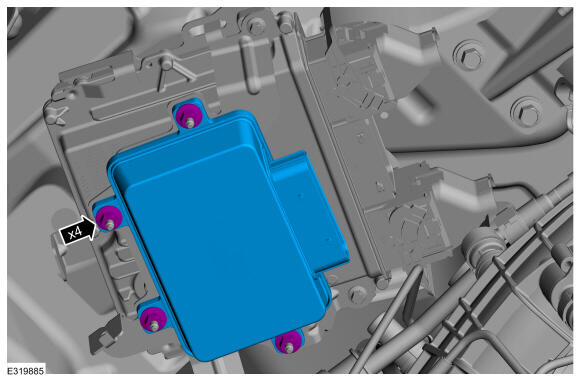

  3. Remove the bolts and the AWD module.

    Torque: 8 Nm

GFD839871Courtesy of FORD MOTOR COMPANY
