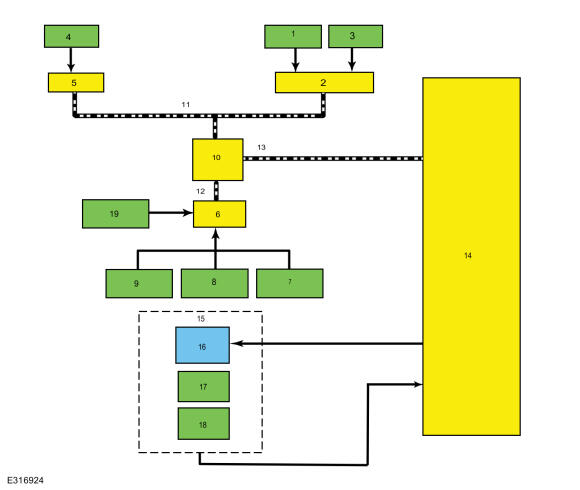

System Diagram
| Item | Description |
|---|---|
| 1 | Brake Switch |
| 2 | PCM |
| 3 | APP |
| 4 | Ignition status |
| 5 | BCM |
| 6 | ABS module |
| 7 | Steering wheel angle data |
| 8 | Vehicle Acceleration is sent by RCM to ABS |
| 9 | Wheel speed data |
| 10 | GWM |
| 11 | HS-CAN1 |
| 12 | HS-CAN2 |
| 13 | HS-CAN1 |
| 14 | AWD module |
| 15 | Transfer case assembly |
| 16 | Transfer case clutch actuator |
| 17 | Transfer case motor position sensor A |
| 18 | Transfer case motor position sensor B |
| 19 | Drive mode switch |
