Steering Column Control Module (SCCM): Removal

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. NOTE: This step is only necessary when installing a new component.
    NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

    Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.

  2. Remove the steering wheel.Refer to: Steering Wheel (211-04 Steering Column, Removal and Installation).
  3. Remove the steering column shrouds.Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).

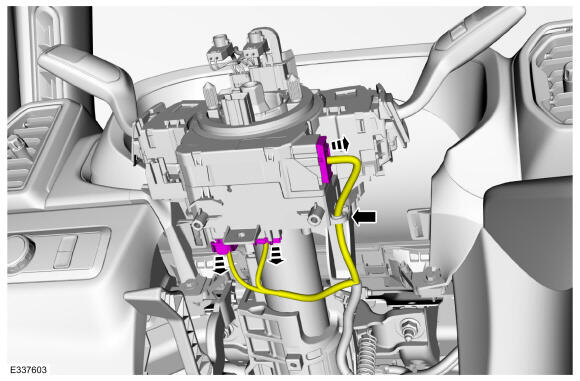

  4. Disconnect the SCCM electrical connectors and position the wiring harness aside.
    GFD832508Courtesy of FORD MOTOR COMPANY

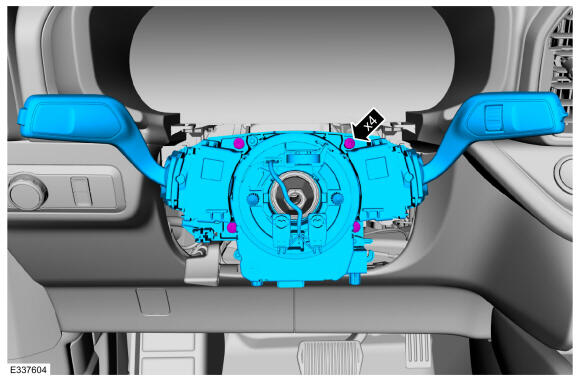

  5. Remove the retainers and the SCCM.
GFD832509Courtesy of FORD MOTOR COMPANY
