Light Emitting Diode (LED) Control Module: Removal
WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the headlamp assembly. Refer to: Headlamp Assembly

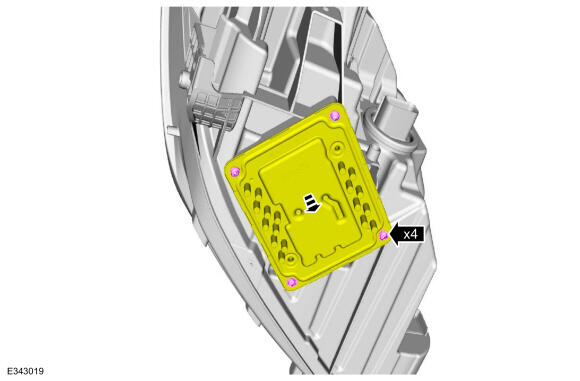

- Remove the screws and position the LED control module.

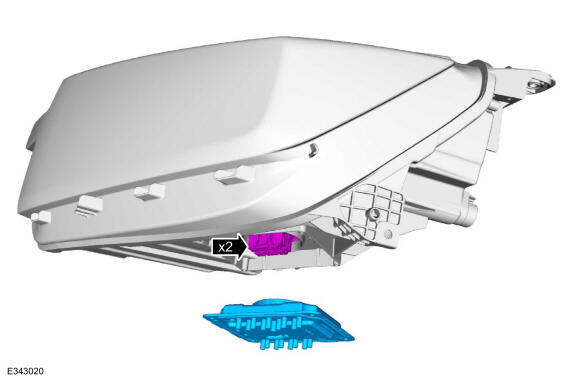

- Disconnect the electrical connectors and remove the LED control module.
