Rear Door Alignment

WARNING: This page is about a different car, the 2024 Ford Maverick. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Inspection

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

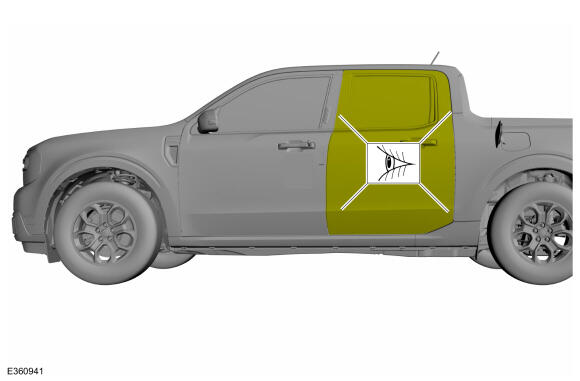

Inspect the rear door-to-body dimensions.

Courtesy of FORD MOTOR COMPANY

Adjustment

All alignments

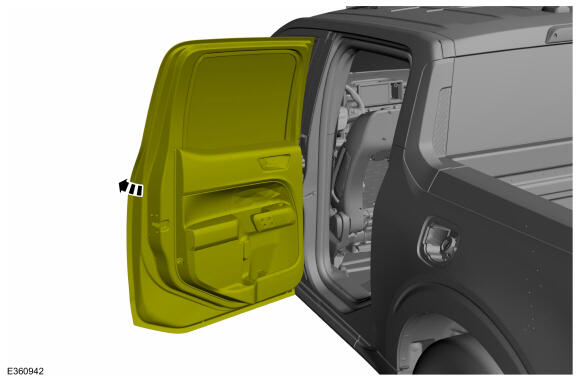

Open the rear door.

Courtesy of FORD MOTOR COMPANY

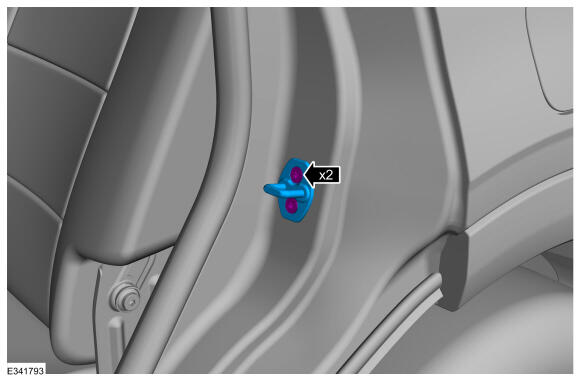

Remove the bolts and the striker assembly.
Torque

: 25 Nm

Courtesy of FORD MOTOR COMPANY

Rear door in and out, up and down alignment
Loosen the bolts to permit movement of the door.Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

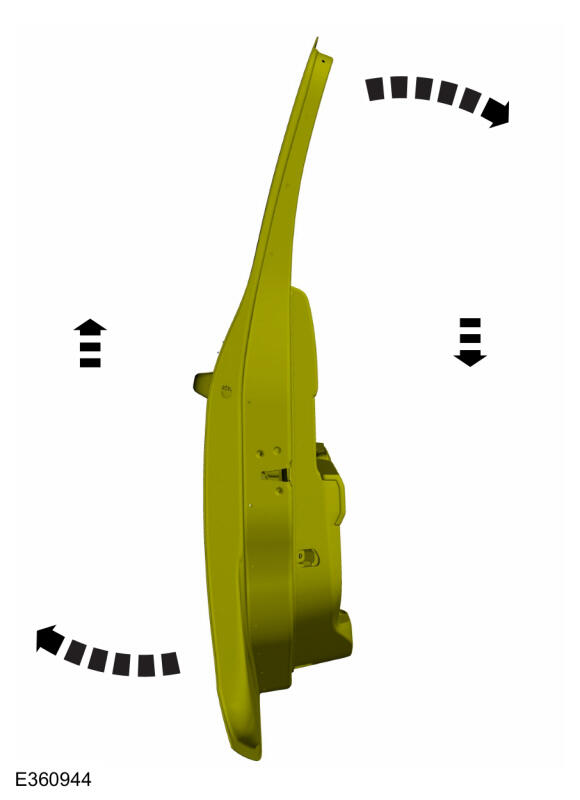

Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 48 Nm

Courtesy of FORD MOTOR COMPANY

Rear door fore, aft and tilt alignment

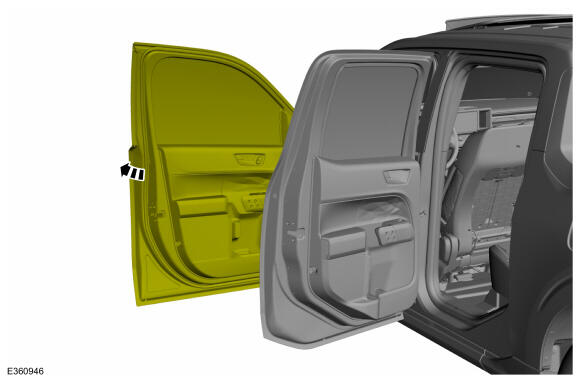

Open the front door.

Courtesy of FORD MOTOR COMPANY
Remove the B-pillar trim panel. Refer to: B-Pillar Lower Trim Panel .

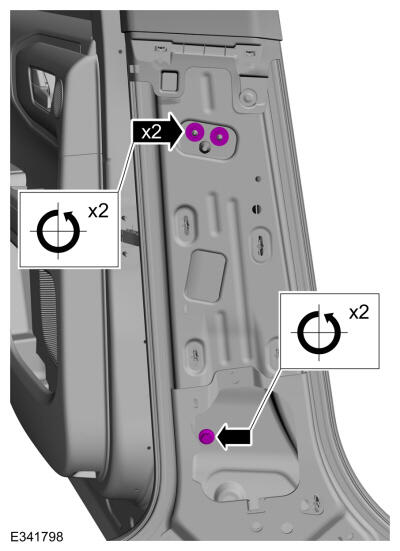

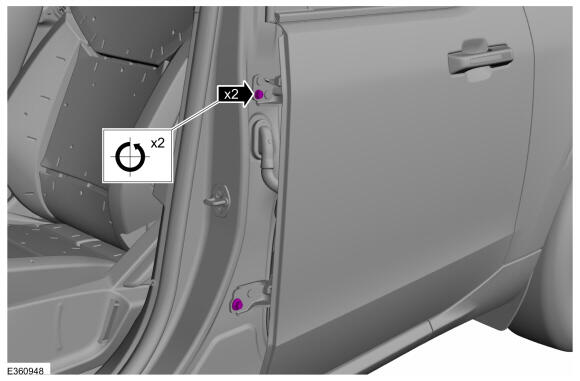

Loosen the fasteners to permit movement of the door.Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Carefully close the rear door.

Courtesy of FORD MOTOR COMPANY

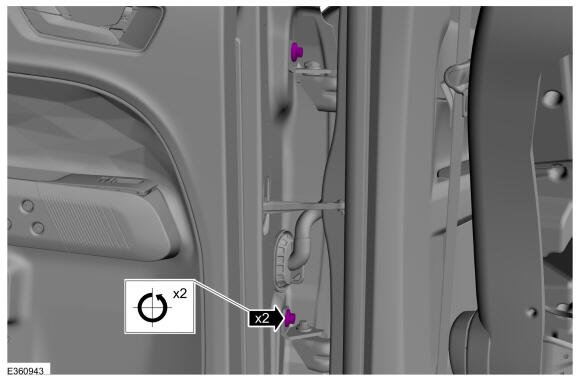

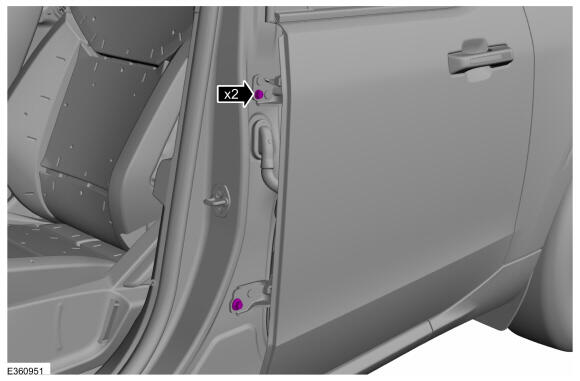

Loosen the fsateners to permit movement of the door.Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

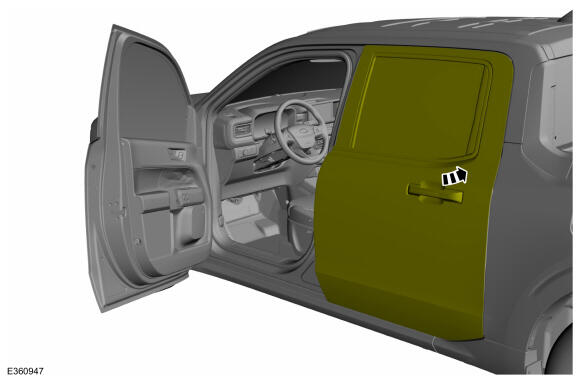

Carefully close the front door.

Courtesy of FORD MOTOR COMPANY

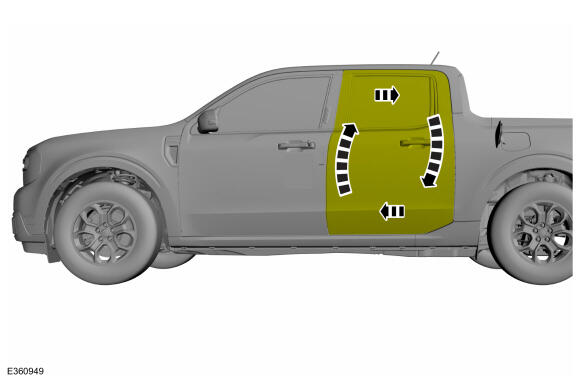

Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Carefully open the front door.

Courtesy of FORD MOTOR COMPANY

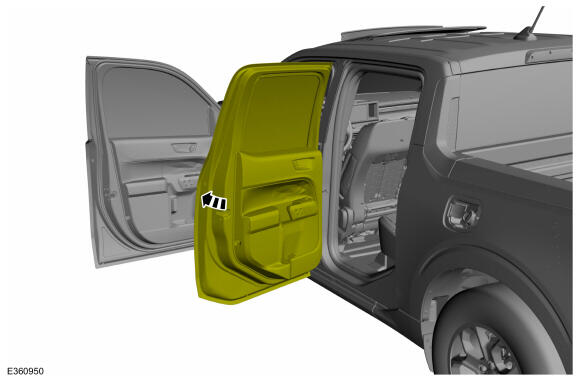

Carefully open the rear door.

Courtesy of FORD MOTOR COMPANY

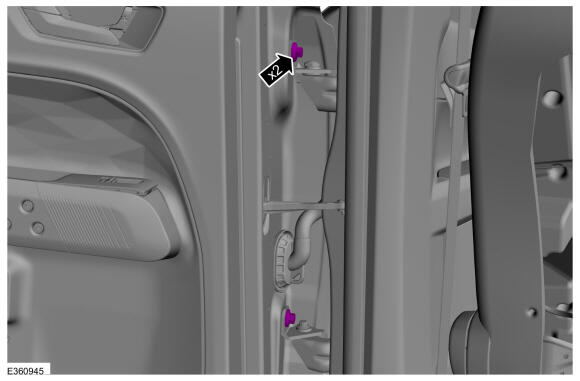

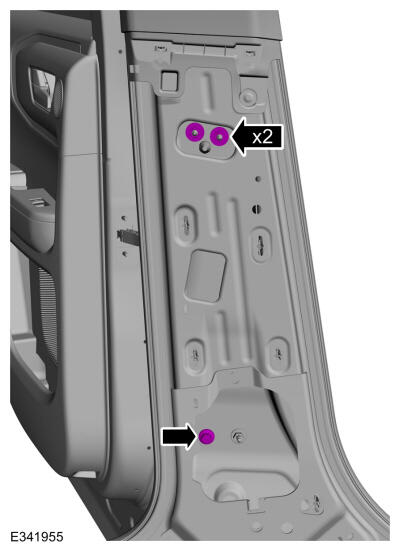

Tighten the nuts and the bolt.
Torque

: nuts: 30 Nm bolt: 30 Nm

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 1: 10 Nm 2: 30 Nm

Courtesy of FORD MOTOR COMPANY

All alignments
Install the striker assembly.
Torque

: 25 Nm

Courtesy of FORD MOTOR COMPANY
Inspect the body-to-rear door dimensions.

Courtesy of FORD MOTOR COMPANY
Install the removed components.
