Tailgate Latch Control Assembly: Removal

WARNING: This page is about a different car, the 2024 Ford Maverick. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

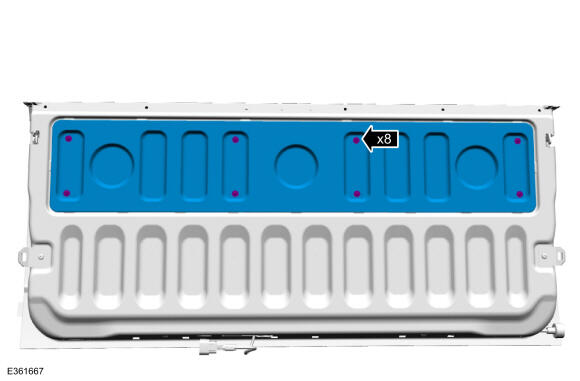

Remove the tailgate access panel bolts and the tailgate access panel.
Torque: 2.5 Nm

Courtesy of FORD MOTOR COMPANY

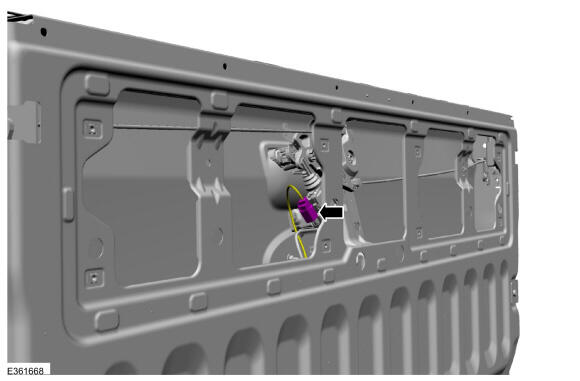

Disconnect the tailgate latch actuator electrical connector.

Courtesy of FORD MOTOR COMPANY

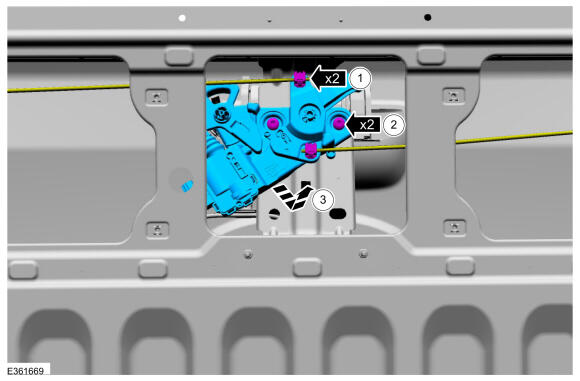

Remove the tailgate latch control assembly.
1. Disconnect the right and left tailgate latch actuating rods.
2. Remove the tailgate latch control assembly bolts.
  Torque: 8 Nm
3. Remove the tailgate latch control assembly.

Courtesy of FORD MOTOR COMPANY
