Front Subframe: Installation

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: The steering column floor seal mounting surface must be cleaned using solvent before reinstallation.

    Clean and inspect the steering column floor seal mounting surface before reinstallation.

    Material

    : Brake Cleaner

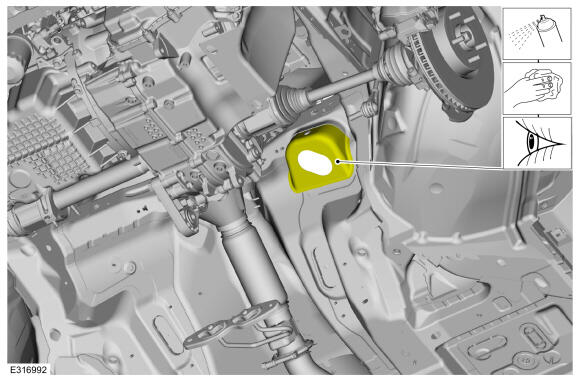

    GFD836303Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure that the floor seal lip is fully wrapped around the carrier on the steering gear.

    Install the new steering column floor seal.

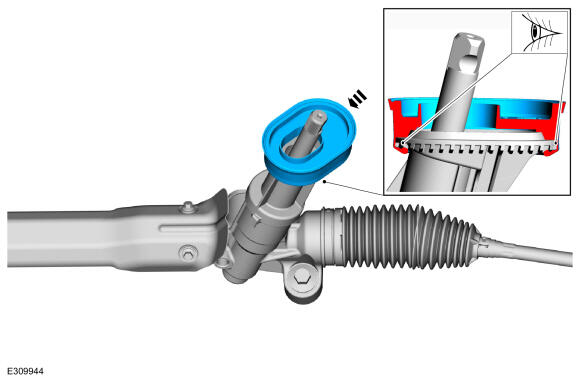

    GFD836304Courtesy of FORD MOTOR COMPANY

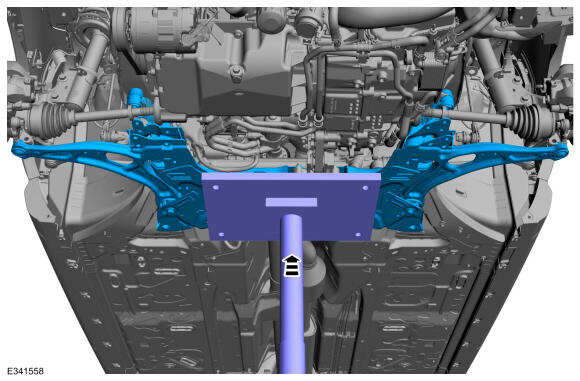

  3. Partially raise the subframe and position it to the vehicle.Use the General Equipment: Transmission Jack
    GFD836305Courtesy of FORD MOTOR COMPANY
  4. On both sidesInstall the new forward subframe bolts finger tight.

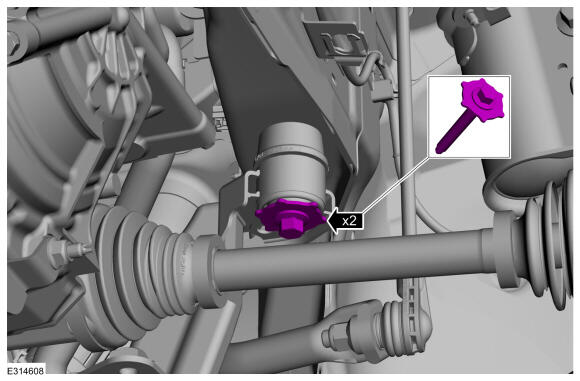

    GFD836306Courtesy of FORD MOTOR COMPANY

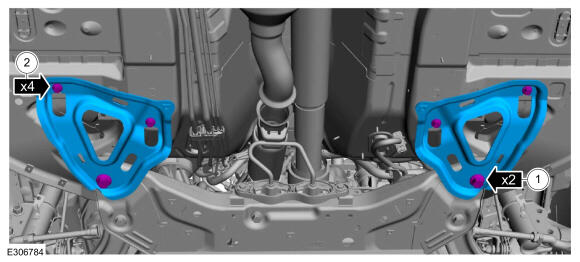

    1. Install the subframe brackets and the new rearward subframe bolts finger tight.
    2. Install the new subframe bracket bolts finger tight.
    GFD834304Courtesy of FORD MOTOR COMPANY
  5. NOTE: Rear mounting location shown.

    On both sidesAlign index-mark made during removal.

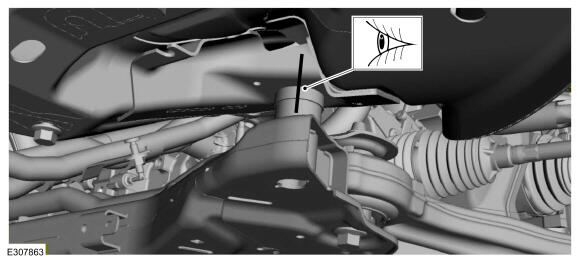

    GFD834305Courtesy of FORD MOTOR COMPANY
  6. NOTE: Front mounting location shown.

    On both sidesAlign index-mark made during removal.

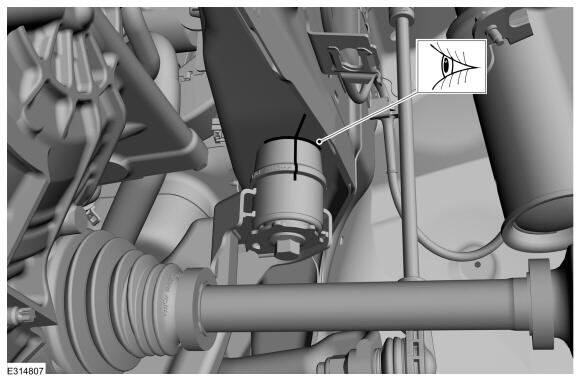

    GFD836307Courtesy of FORD MOTOR COMPANY
  7. On both sidesTighten the forward subframe bolts.

    Torque

    : 115 Nm

    GFD836306Courtesy of FORD MOTOR COMPANY
    1. Tighten the bolts.

      Torque

      : Stage 1: 215 Nm Stage 2: 120deg.

    2. Tighten the bolts.

      Torque

      : 63 Nm

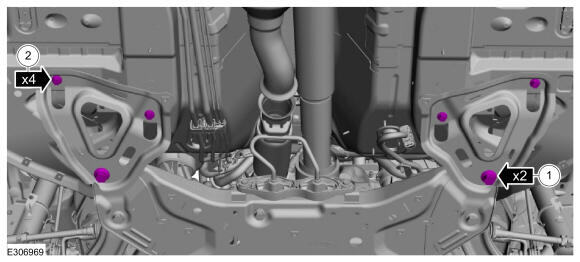

    GFD834306Courtesy of FORD MOTOR COMPANY
  8. Clip the wire harness retainers.

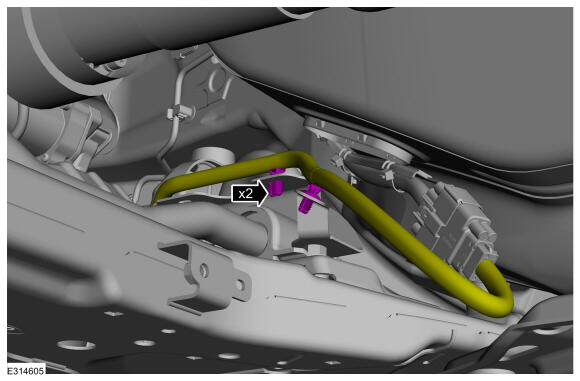

    GFD836296Courtesy of FORD MOTOR COMPANY

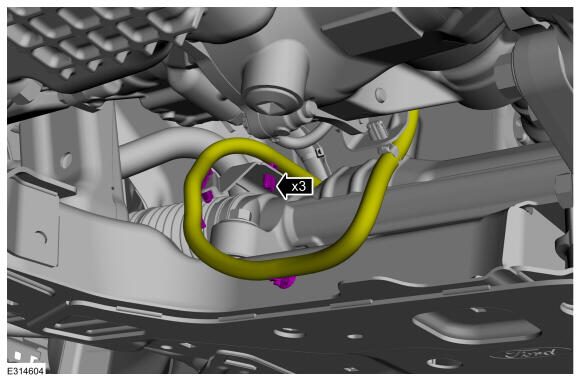

  9. Clip the wire harness retainers.
    GFD836295Courtesy of FORD MOTOR COMPANY
  10. NOTE: 2.0L GTDI shown, others similar.

    Install the new roll restrictor bolt.

    Torque

    : 175 Nm

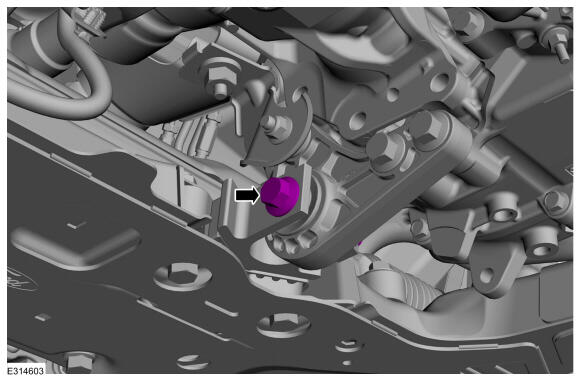

    GFD836308Courtesy of FORD MOTOR COMPANY
  11. Install the exhaust support bracket bolts.

    Torque

    : 25 Nm

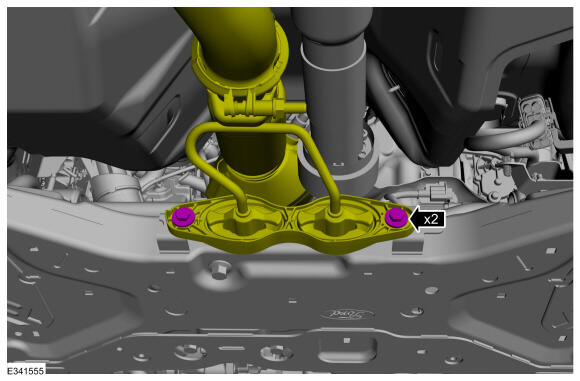

    GFD836293Courtesy of FORD MOTOR COMPANY
  12. NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.
    NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

    On both sides.Position the stabilizer bar links and install the new stabilizer bar link lower nut.

    Torque

    : 115 Nm

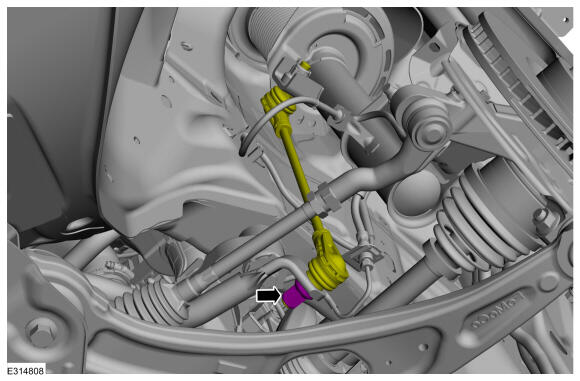

    GFD836309Courtesy of FORD MOTOR COMPANY
  13. NOTE: Make sure that the ball joint ball does not rotate.

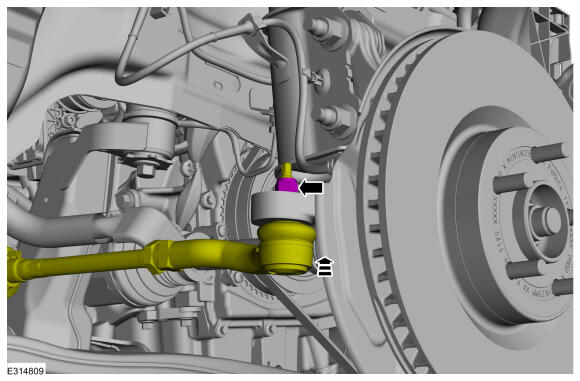

    On both sides.Connect the tie rod end to the wheel knuckle and install the new tie rod end nut.

    Torque

    : 48 Nm

    GFD836310Courtesy of FORD MOTOR COMPANY
  14. On both sides.Connect the lower ball joint to the wheel knuckle and install the new ball joint pinch bolt and nut.

    Torque

    : 110 Nm

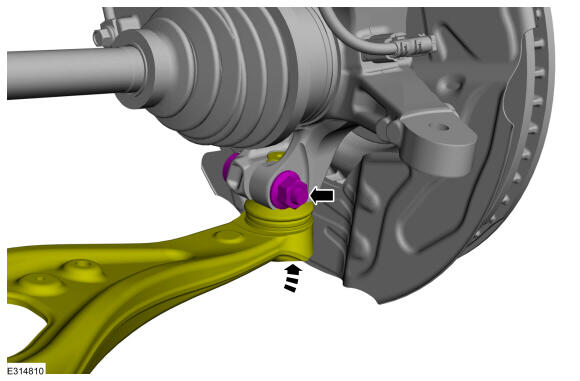

    GFD836311Courtesy of FORD MOTOR COMPANY

    2.0L EcoBoost (177kW/240PS) - MI4

  15. Install the front outer side member with new bolts.

    Torque

    : 30 Nm

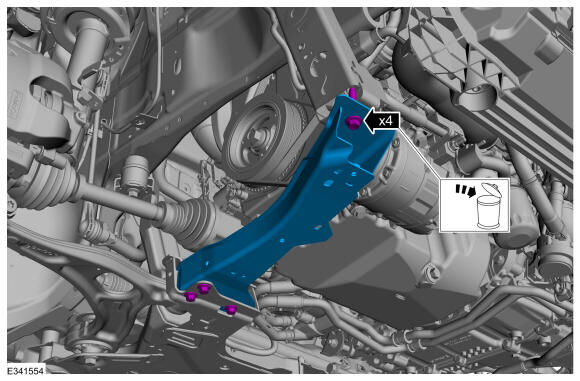

    GFD832035Courtesy of FORD MOTOR COMPANY

    1.5L EcoBoost (132kW/180PS) - I3 (Y1)

  16. On both sides.Install the front outer side member with new bolts.

    Torque

    : 30 Nm

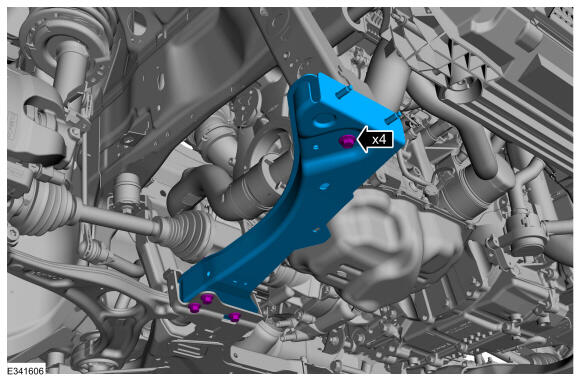

    GFD832041Courtesy of FORD MOTOR COMPANY

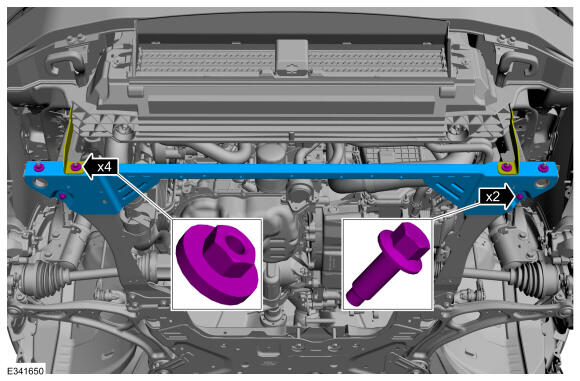

  17. Install the front cross member and the fasteners.

    Torque

    : nut: 30 Nm bolt: 30 Nm

    GFD832033Courtesy of FORD MOTOR COMPANY

    All vehicles

  18. Install the front bumper cover. Refer to: Front Bumper Cover .
  19. Install the underbody shield and the retainers.

    Torque

    : 2.5 Nm

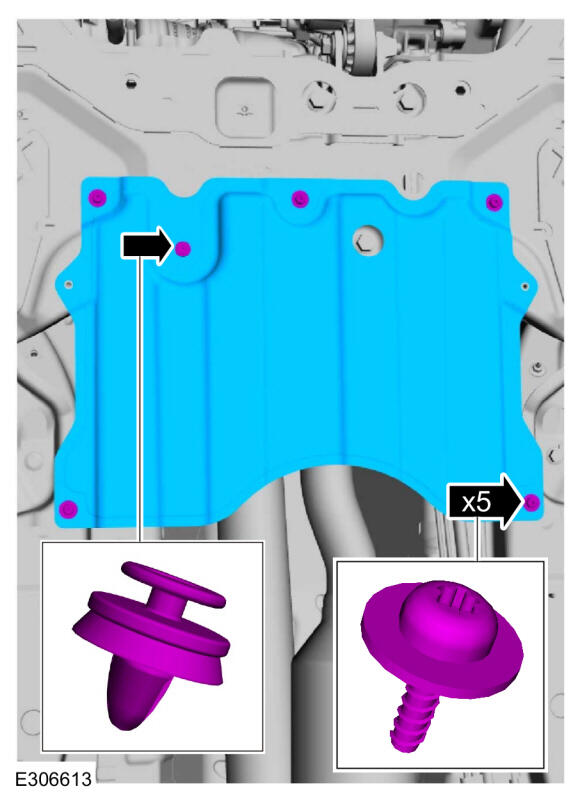

    GFD836288Courtesy of FORD MOTOR COMPANY

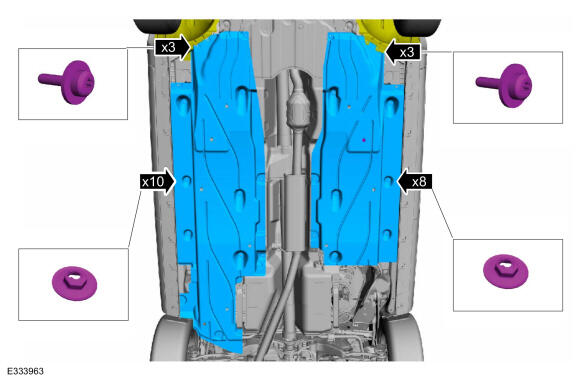

  20. Install the underbody shields and the retainers.

    Torque

    : 2.5 Nm

    GFD834292Courtesy of FORD MOTOR COMPANY
  21. Position the steering shaft coupler and install the new steering shaft coupler bolt.

    Torque

    : 63 Nm

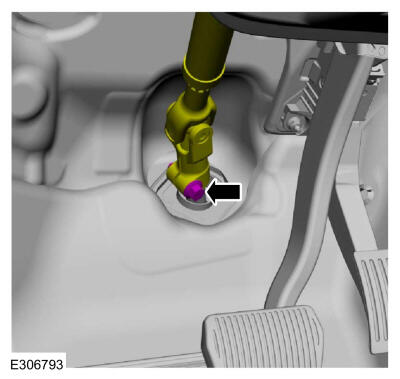

    GFD833587Courtesy of FORD MOTOR COMPANY
  22. If equippedInstall the fasteners and the underbody shields.

    Torque

    : 1.5 Nm

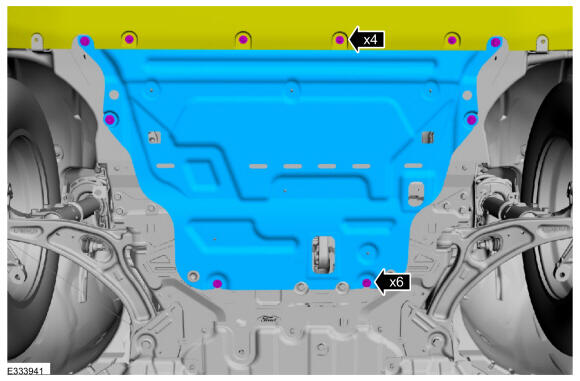

    GFD834237Courtesy of FORD MOTOR COMPANY
  23. If equippedRemove the fasteners and the underbody shields.

    Torque

    : 1.5 Nm

    GFD832030Courtesy of FORD MOTOR COMPANY
  24. Install the wheels and tires. Refer to: Wheel and Tire .
  25. Remove the holding device.
    GFD831994Courtesy of FORD MOTOR COMPANY
  26. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
  27. Check and if necessary adjust front toe. Refer to: Front Toe Adjustment .
