Connector Repair Procedures

WARNING: This page is about a different car, the 2024 Ford Maverick. However, it is still accessible from the selected car via links, so may be relevant.

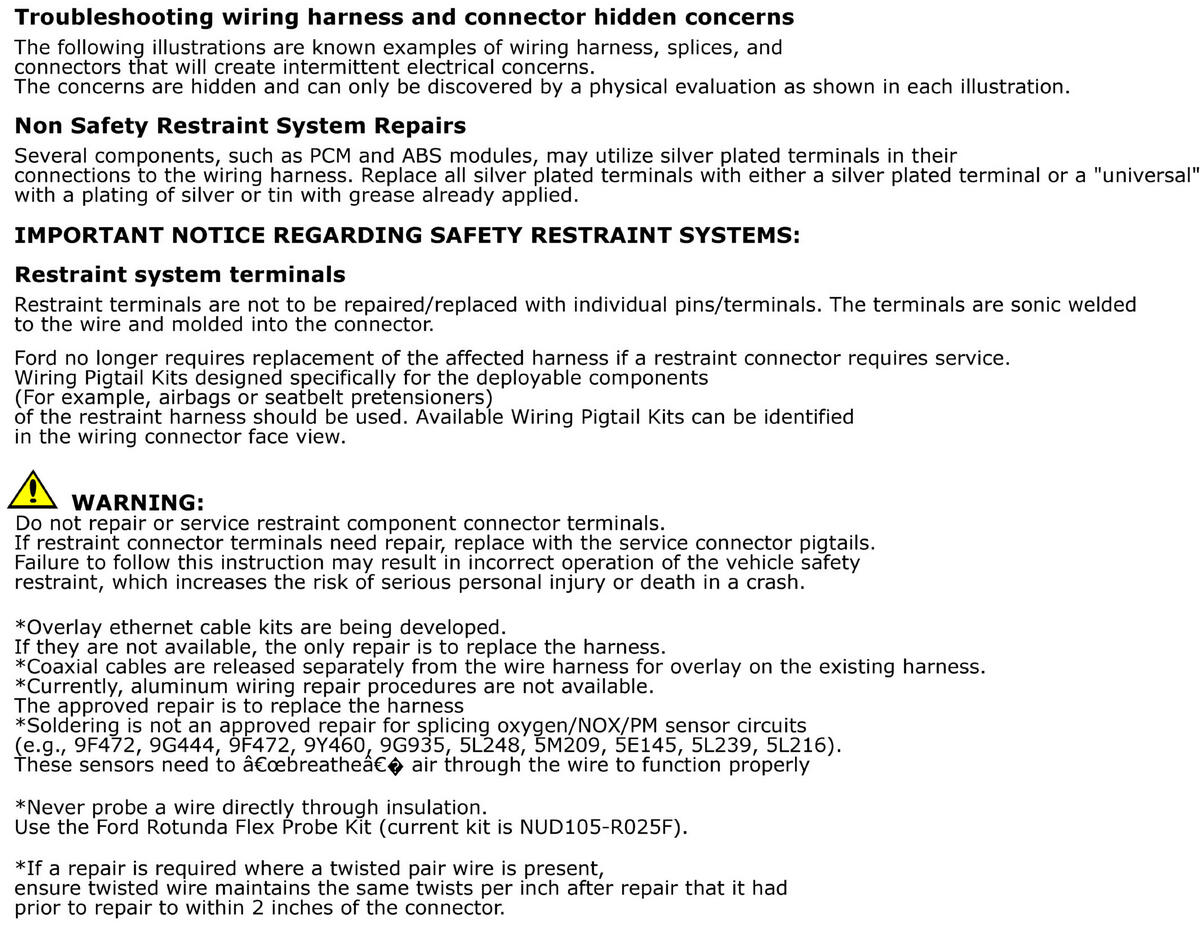

GFDWR240767Courtesy of FORD MOTOR COMPANY

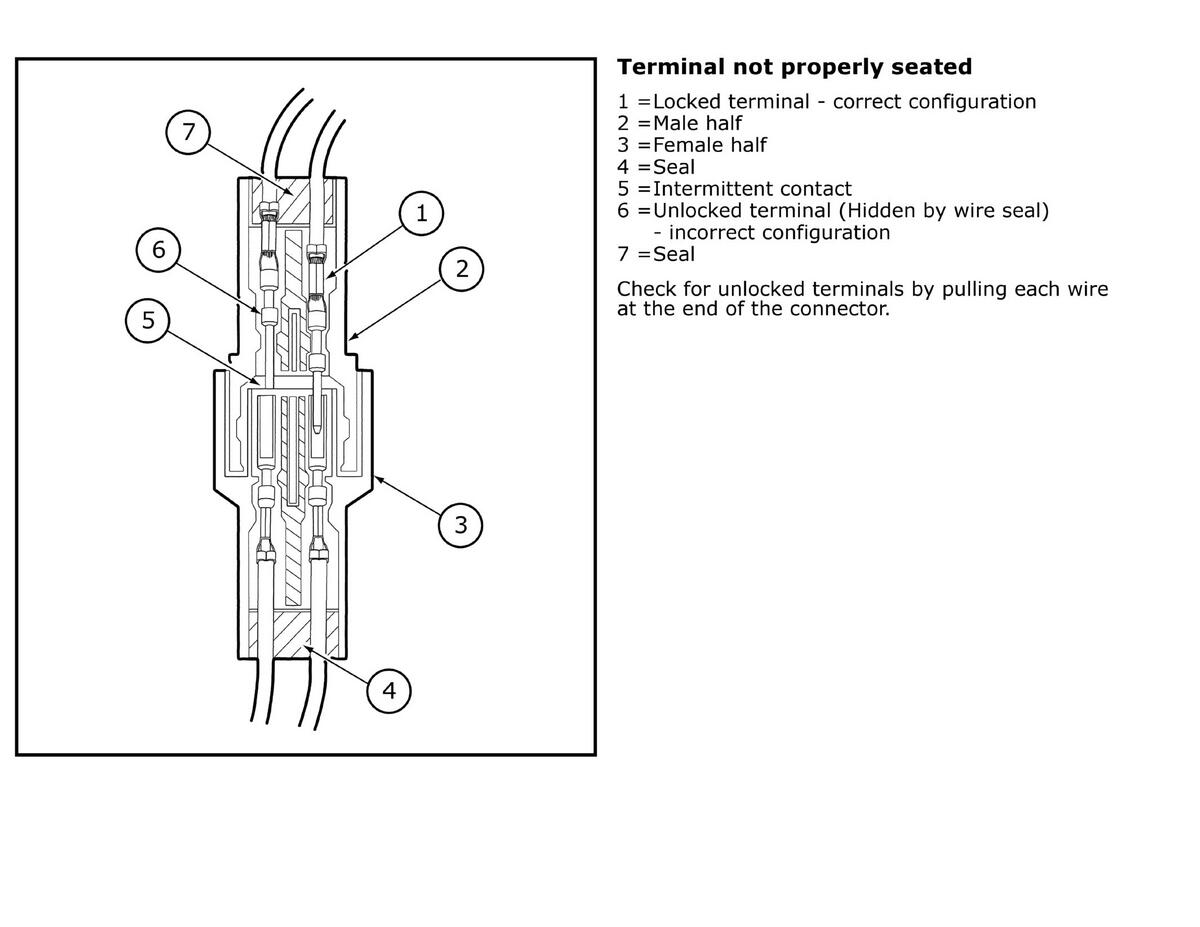

GFDWR240768Courtesy of FORD MOTOR COMPANY

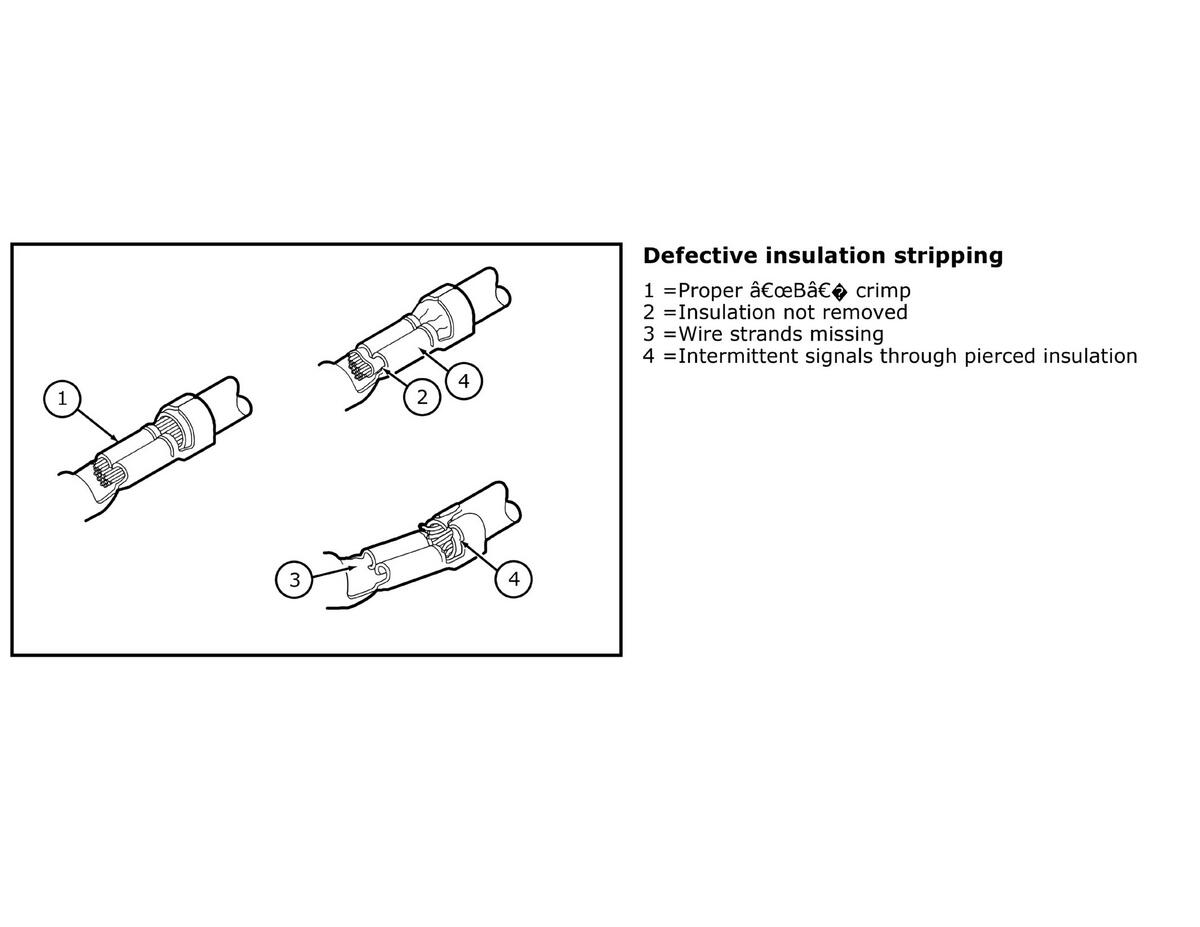

GFDWR240769Courtesy of FORD MOTOR COMPANY

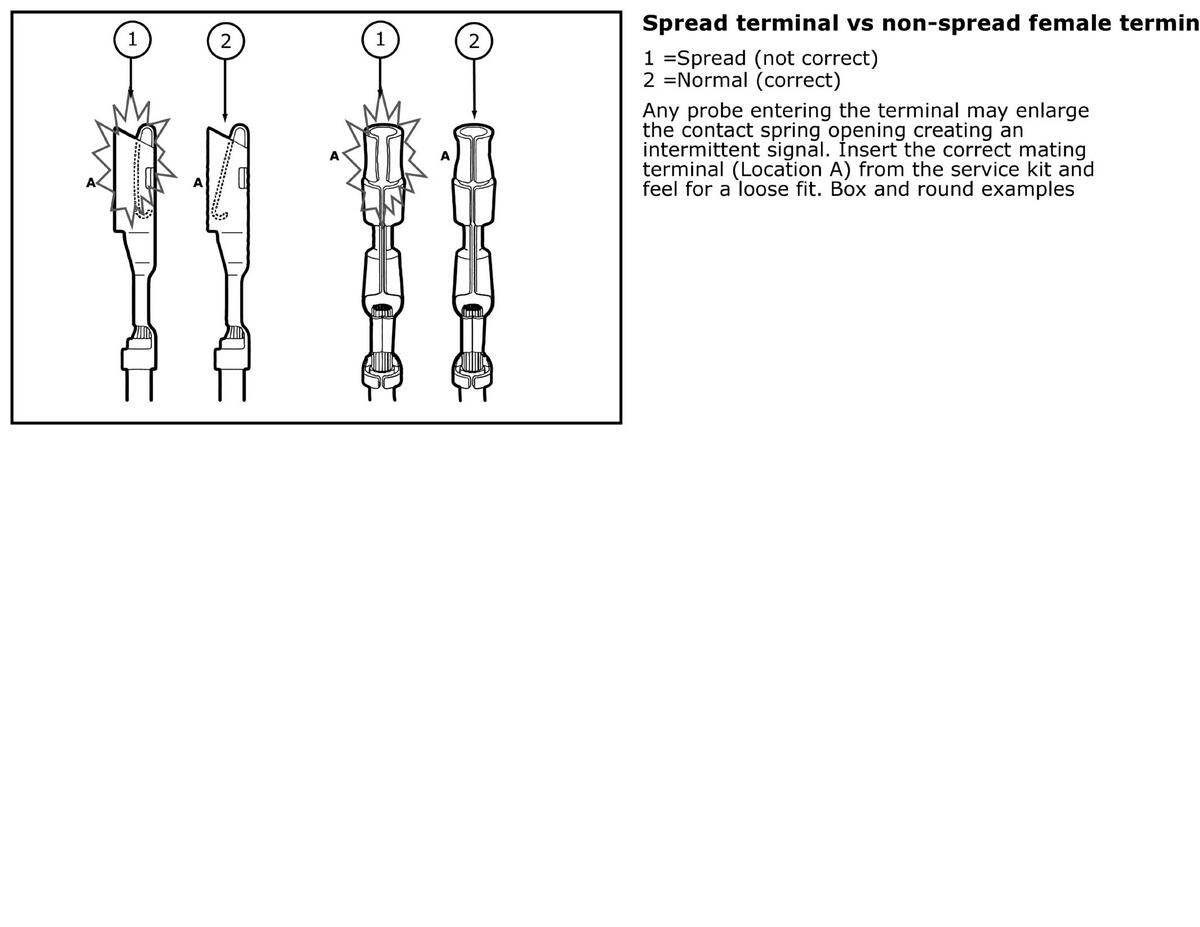

GFDWR240770Courtesy of FORD MOTOR COMPANY

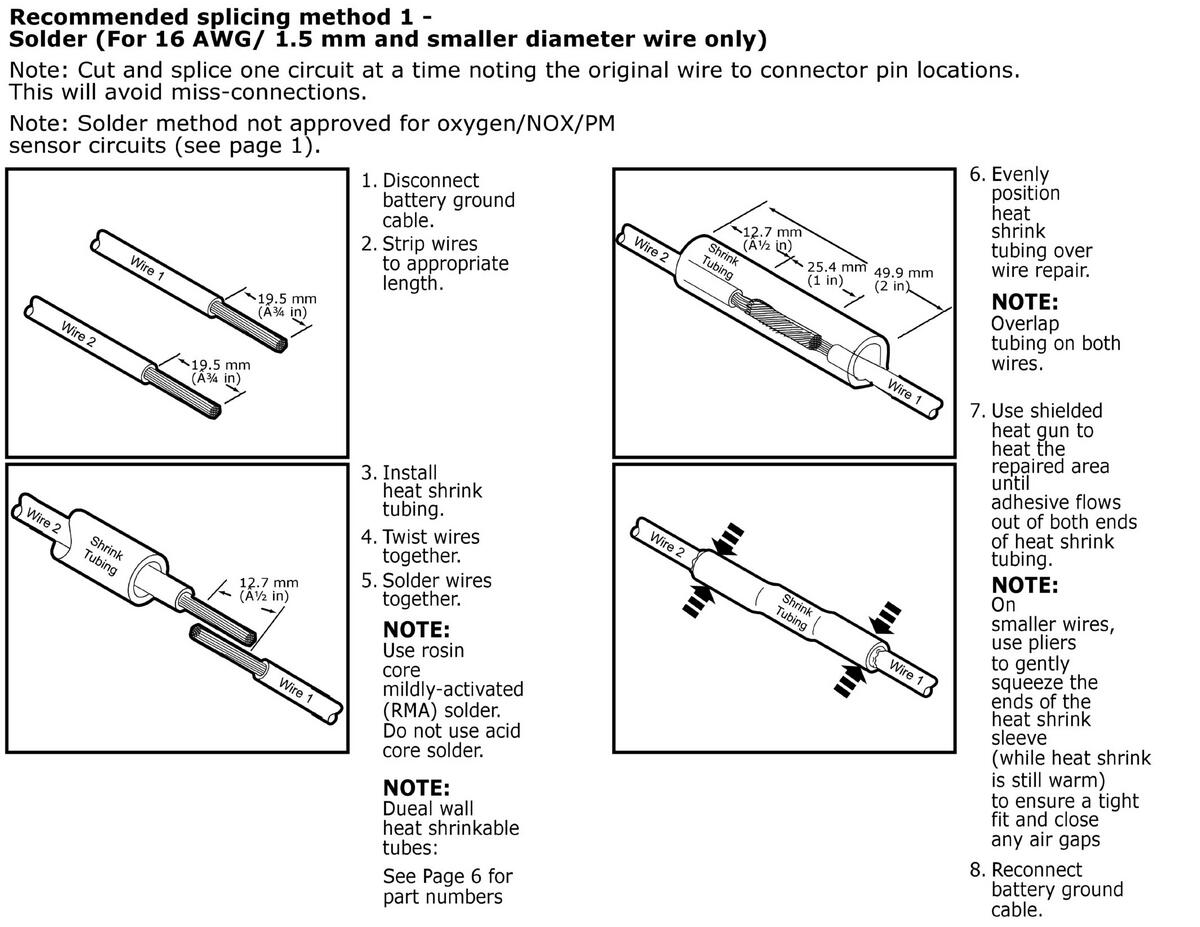

GFDWR240771Courtesy of FORD MOTOR COMPANY

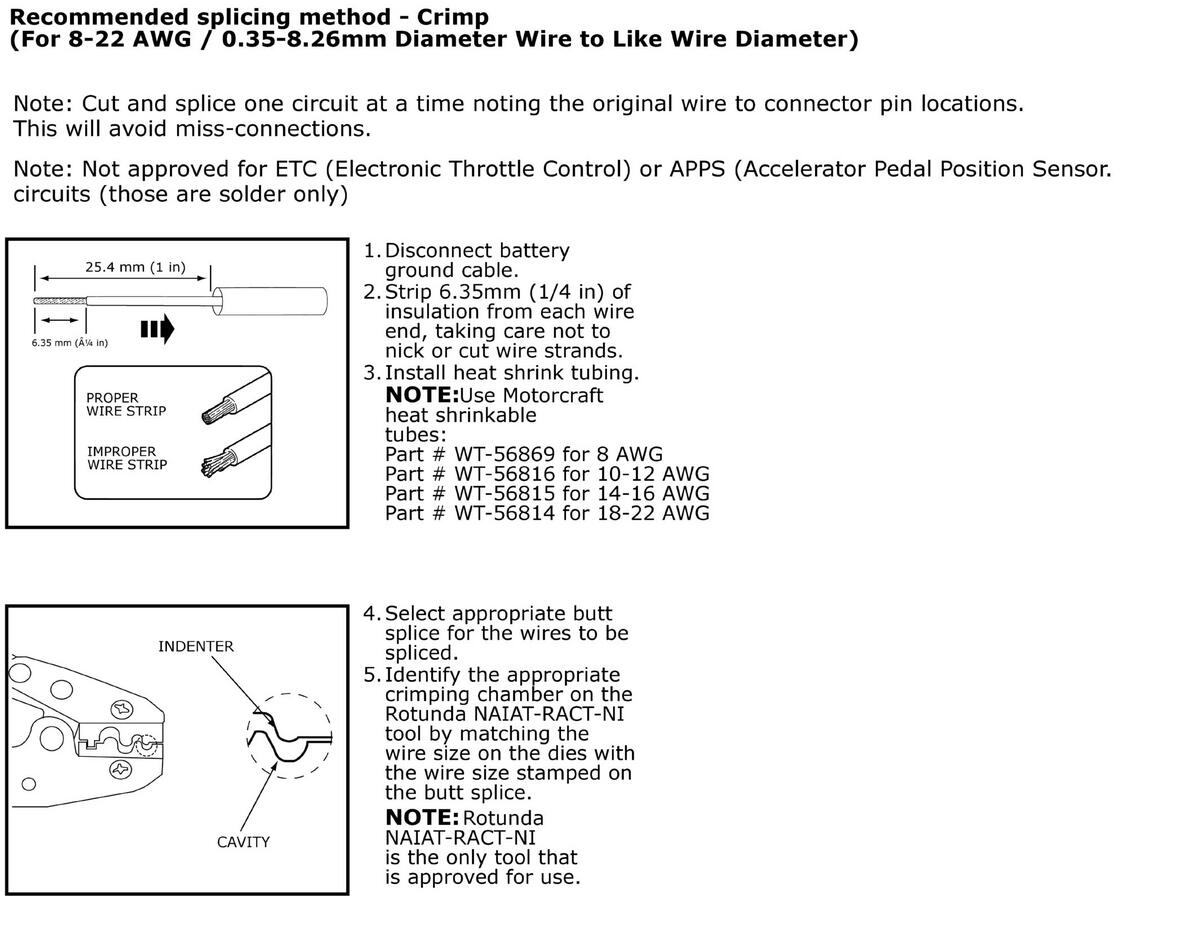

GFDWR240772Courtesy of FORD MOTOR COMPANY

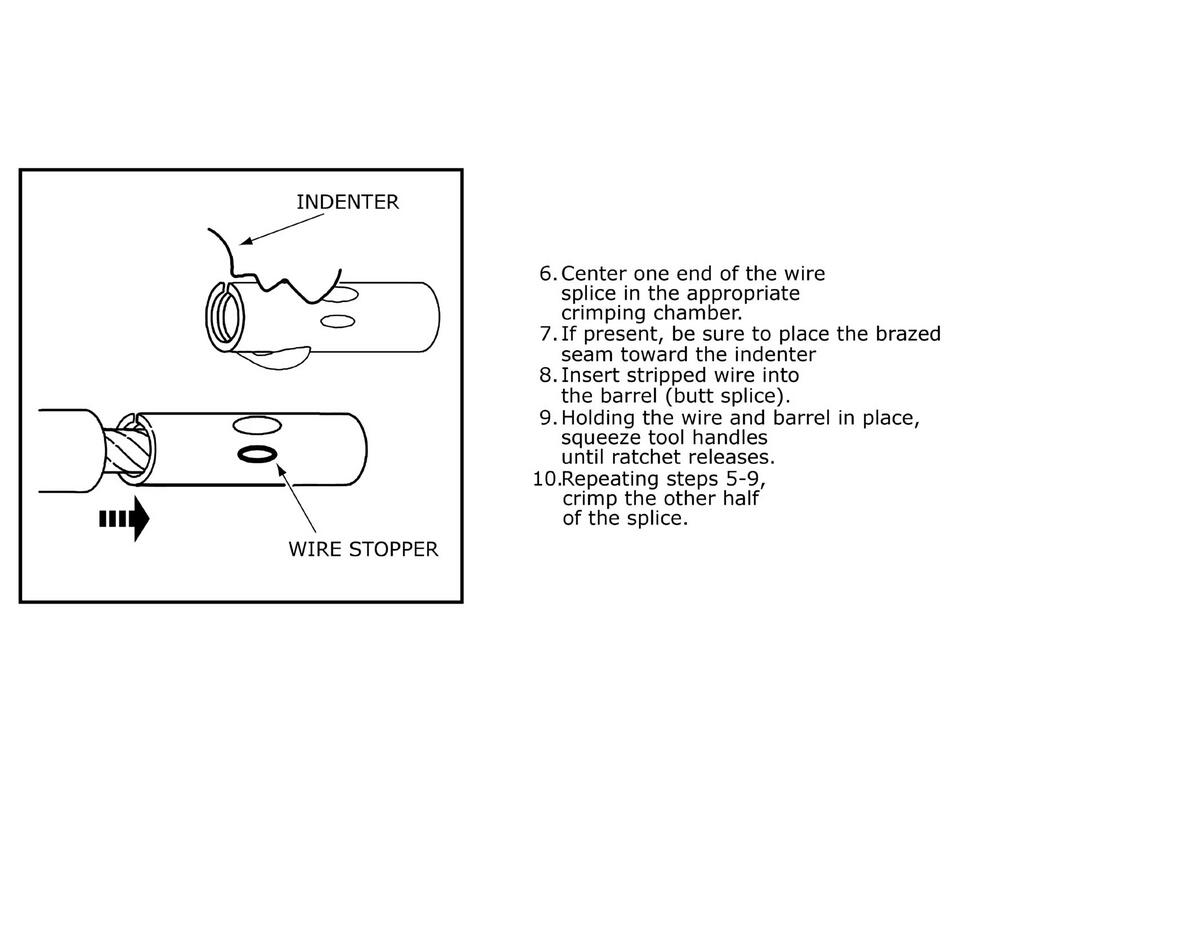

GFDWR240773Courtesy of FORD MOTOR COMPANY

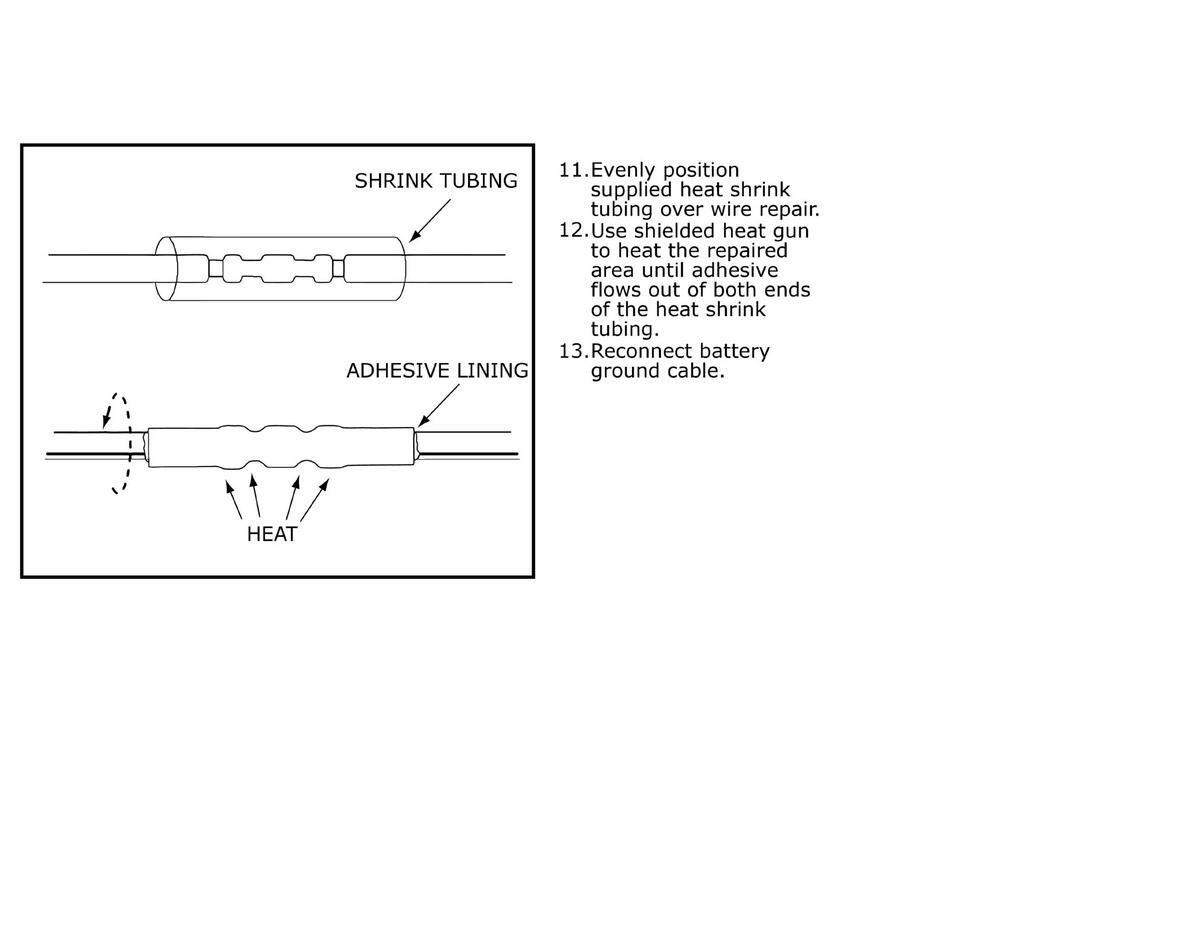

GFDWR240774Courtesy of FORD MOTOR COMPANY

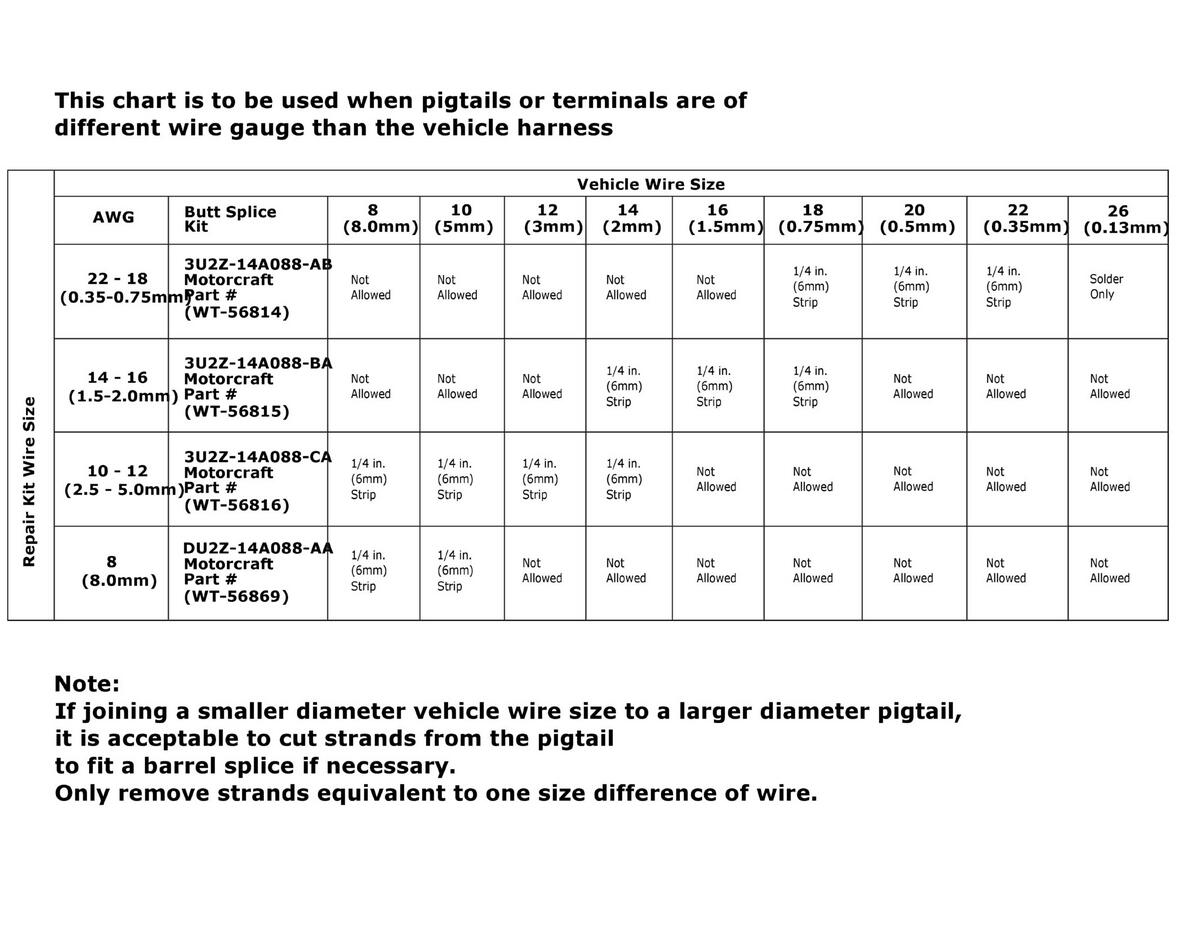

GFDWR240775Courtesy of FORD MOTOR COMPANY
