Roof Opening Panel Alignment

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Adjustment

Measurement

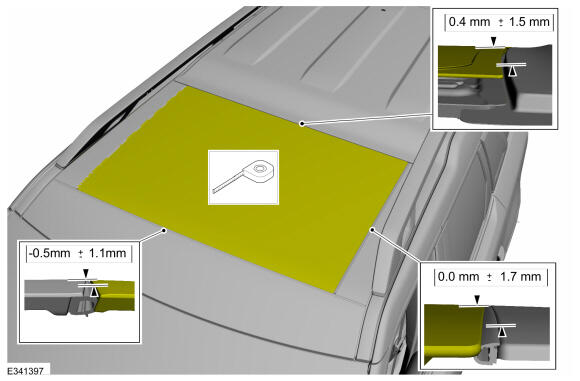

  1. Measure the roof opening panel movable glass height/flushness.

    • Measure the roof opening panel sliding glass front edge-to-header panel height/flushness. Refer to the specifications as shown.

    • Measure the roof opening panel sliding glass rear edge-to-roof opening panel height/flushness. Refer to the specifications as shown.

    GFD836009Courtesy of FORD MOTOR COMPANY
    • Measure the roof opening panel sliding glass front edge-to-header panel margins. Refer to the specifications as shown.

    • Measure the roof opening panel sliding glass rear edge-to-roof opening panel margins. Refer to the specifications as shown.

    GFD836010Courtesy of FORD MOTOR COMPANY

    Alignment

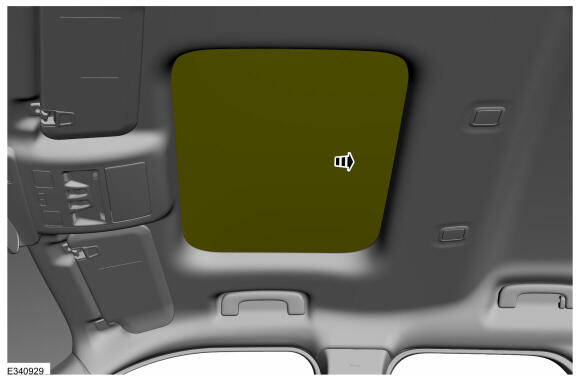

  3. If closed, open the roof opening panel shield.
    GFD836011Courtesy of FORD MOTOR COMPANY

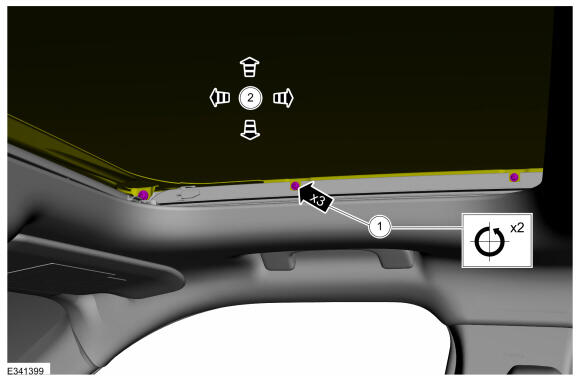

  4. NOTE: RH side shown, LH side similar.

    1. On both sides.Loosen the screws.
    2. Adjust the glass to specifications shown in measurement steps.

    GFD836012Courtesy of FORD MOTOR COMPANY

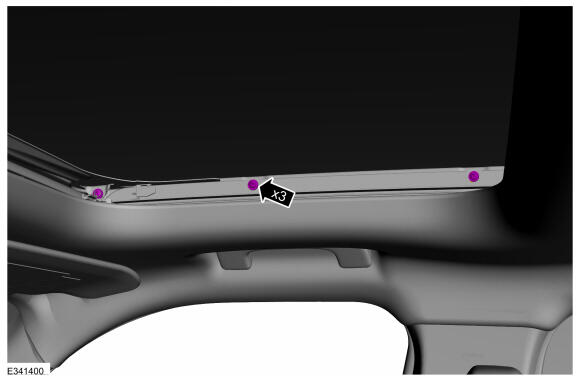

  5. On both sides.Tighten the screws.

    Torque

    : 5.5 Nm

    GFD836013Courtesy of FORD MOTOR COMPANY

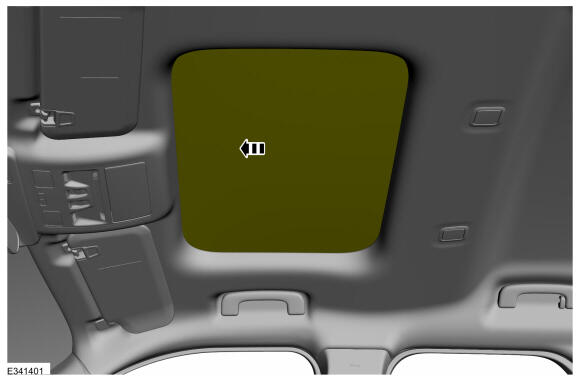

  6. Close the roof opening panel shield.
GFD836014Courtesy of FORD MOTOR COMPANY
