Liftgate Alignment

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations Refer to OEM COLOR CODING

Inspection

NOTE: Removal steps in this procedure may contain installation details.

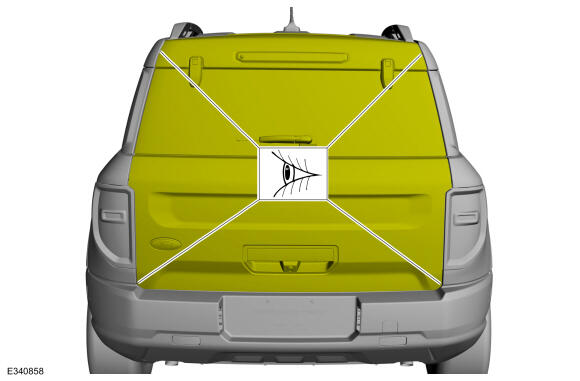

Check liftgate-to-body dimensions.

Courtesy of FORD MOTOR COMPANY

Adjustment

All alignments

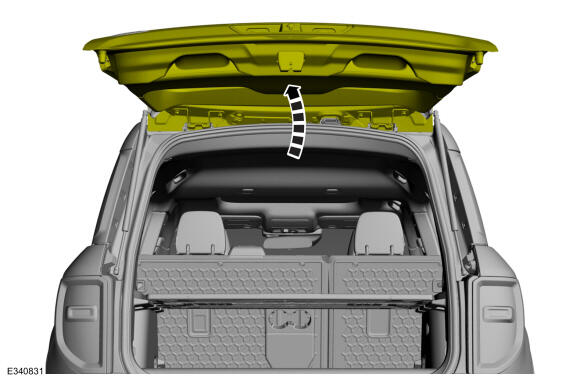

Open the liftgate.

Courtesy of FORD MOTOR COMPANY

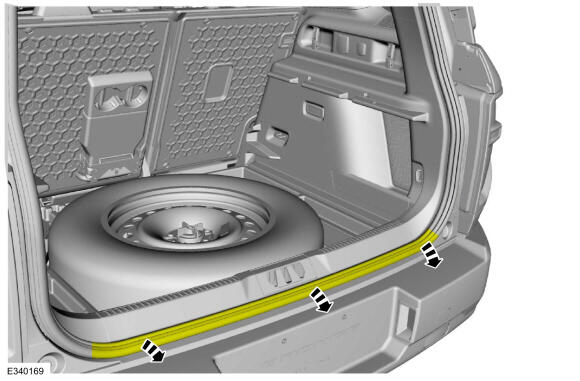

Position the liftgate opening weather strip aside.

Courtesy of FORD MOTOR COMPANY

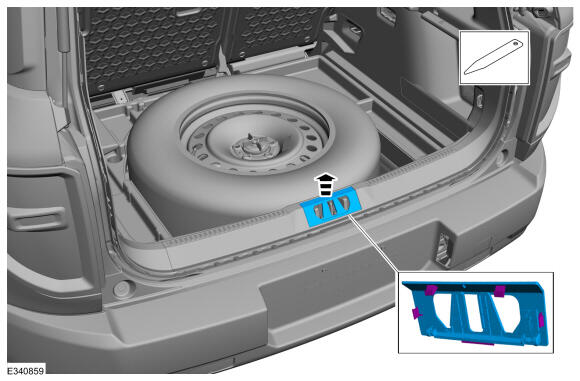

Release the tabs and remove the liftgate striker cover.

Courtesy of FORD MOTOR COMPANY

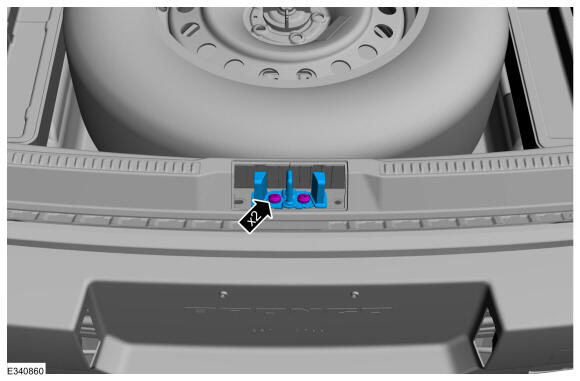

Remove the fasteners and the liftgate striker.
Torque

: 25 Nm

Courtesy of FORD MOTOR COMPANY

Liftgate left and right, up and down alignment

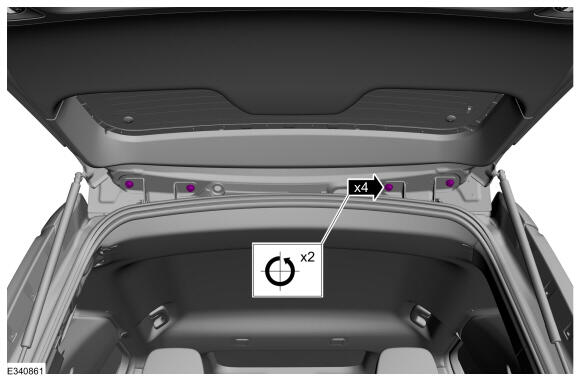

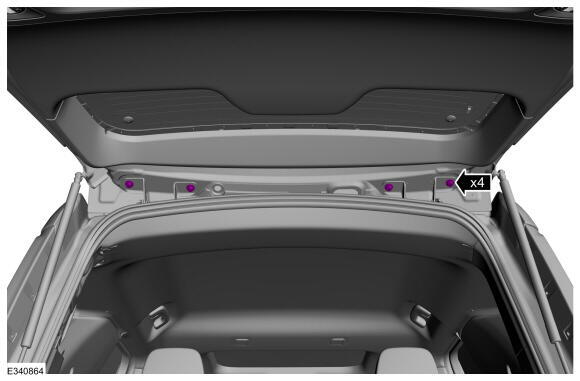

Loosen the bolts.Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

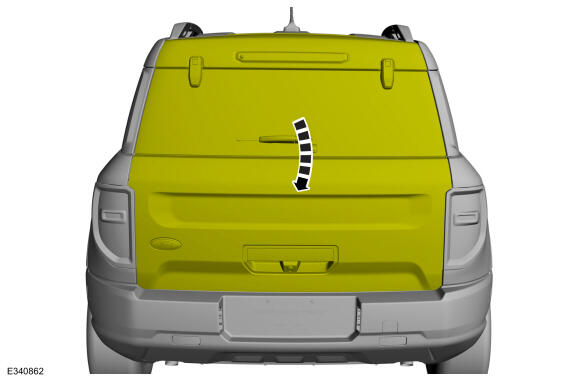

Carefully close the liftgate.

Courtesy of FORD MOTOR COMPANY

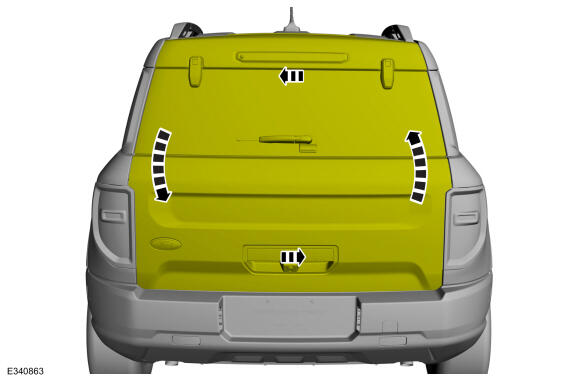

Adjust the liftgate as required.

Courtesy of FORD MOTOR COMPANY

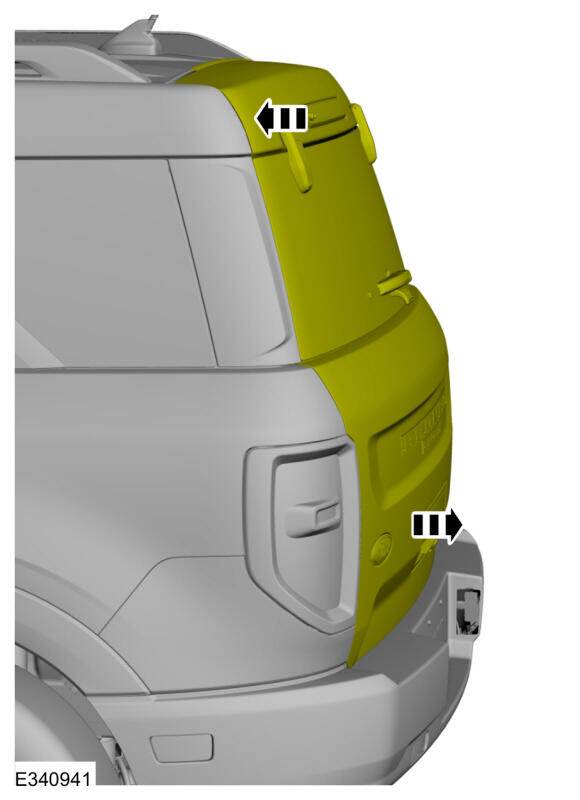

Carefully open the liftgate.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 30 Nm

Courtesy of FORD MOTOR COMPANY

Liftgate in and out alignment

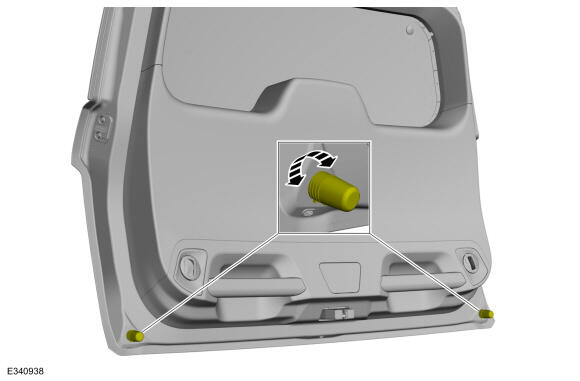

Adjust the stops.

Courtesy of FORD MOTOR COMPANY
On both sidesRemove the C-pillar trim panel. Refer to: C-Pillar Trim Panel .

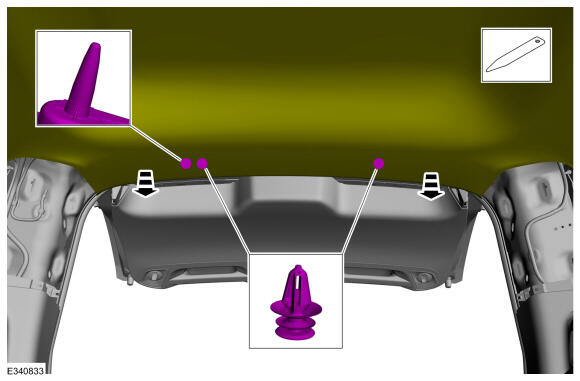

Release the clips and lower the rear headliner.

Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care not to damage the seal.

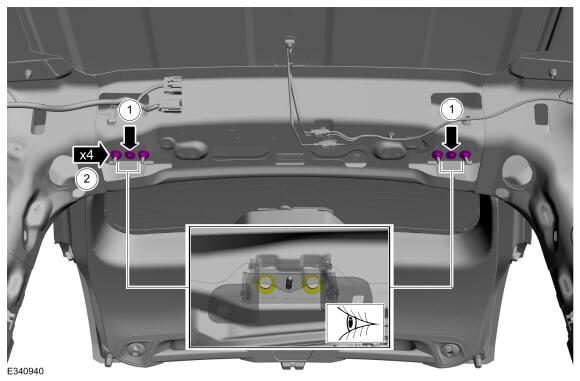

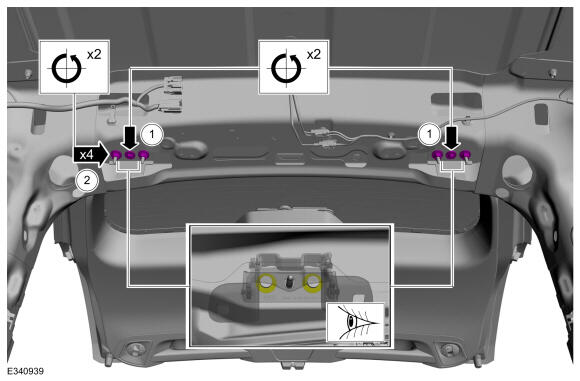

Loosen the bolts and nuts.Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Adjust the liftgate as required.

Courtesy of FORD MOTOR COMPANY
NOTE: Take extra care not to damage the seal.

Tighten the bolts and nuts.

Torque

: bolt: 30 Nm nut: 30 Nm

Courtesy of FORD MOTOR COMPANY

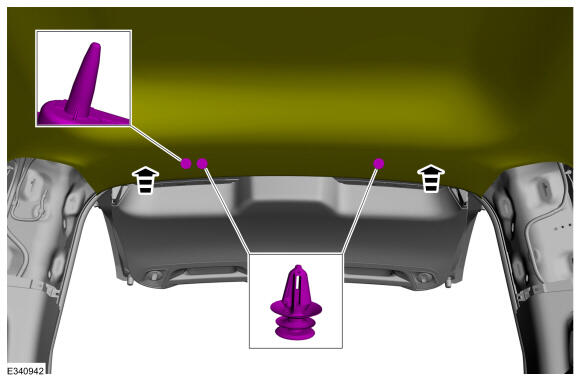

Attach the clips and position back the rear headliner.

Courtesy of FORD MOTOR COMPANY
On both sidesInstall the C-pillar trim panel. Refer to: C-Pillar Trim Panel .
All alignments
Inspect the body-to-liftgate door dimensions.

Courtesy of FORD MOTOR COMPANY
Install the positioned aside and removed components.
