Front Door Alignment

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations Refer to OEM COLOR CODING

Inspection

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

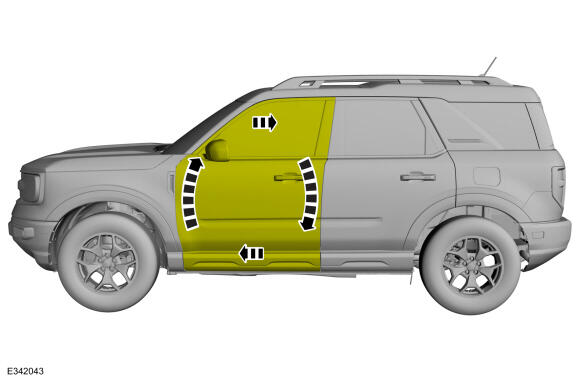

Inspect the front door-to-body dimensions.

Courtesy of FORD MOTOR COMPANY

Adjustment

All alignments

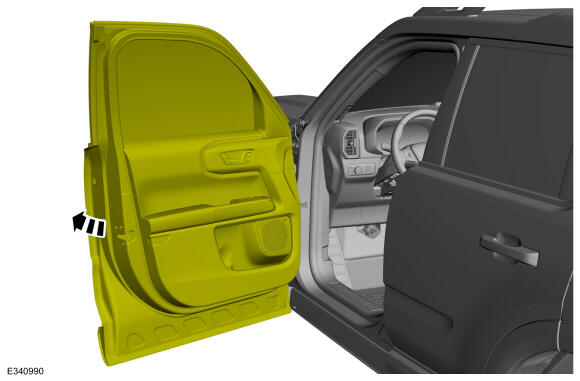

Open the door.

Courtesy of FORD MOTOR COMPANY

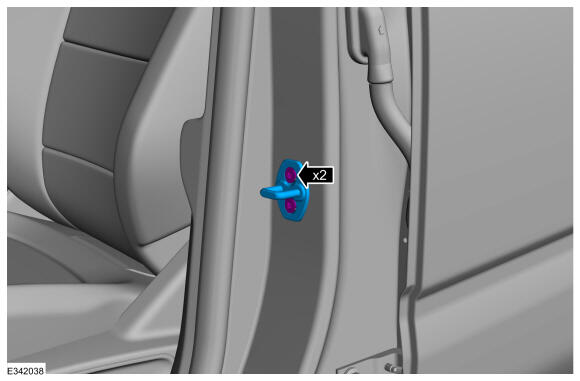

Remove the bolts and the striker assembly.
Torque

: 25 Nm

Courtesy of FORD MOTOR COMPANY

Front door in and out, up and down alignment

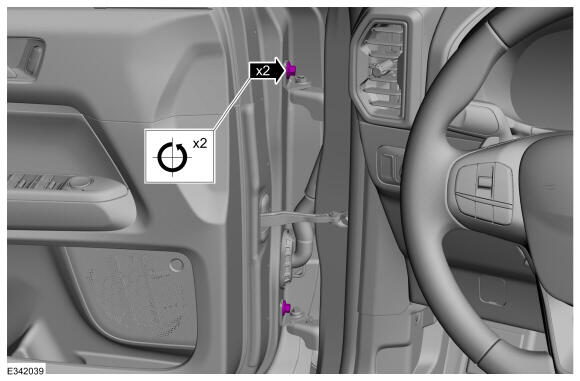

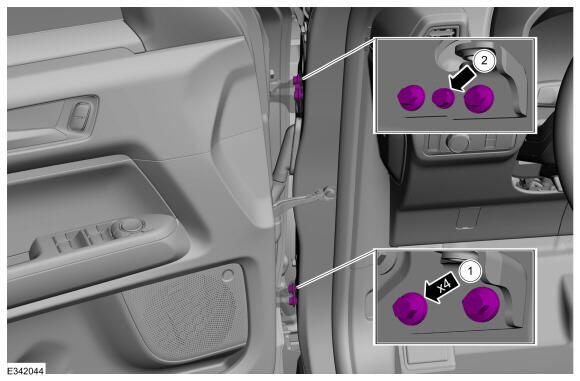

Loosen the bolts to permit movement of the door.Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

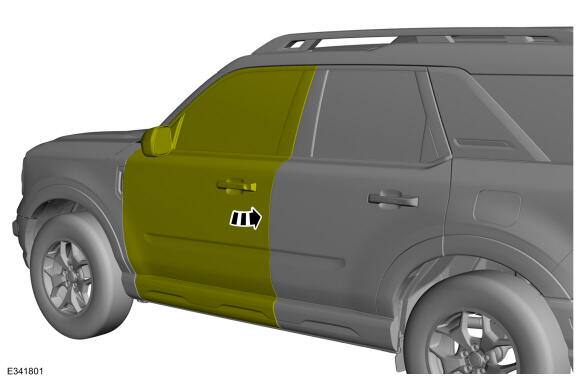

Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 48 Nm

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment

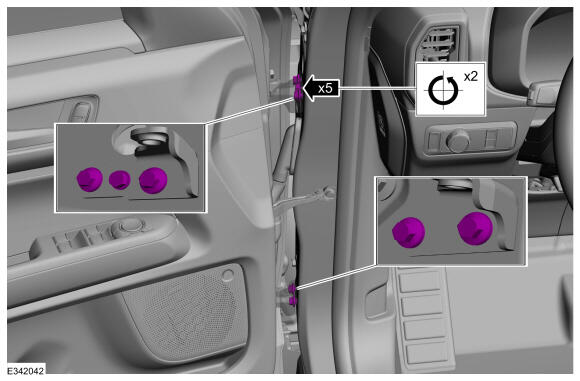

Loosen the bolts to permit movement of the door.Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Carefully close the door.

Courtesy of FORD MOTOR COMPANY

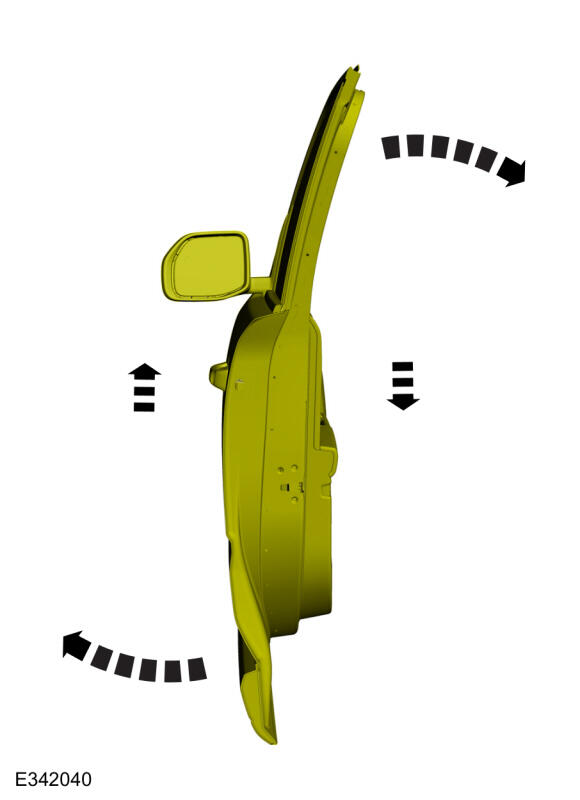

Adjust the door as required.

Courtesy of FORD MOTOR COMPANY
Carefully open the door.

Courtesy of FORD MOTOR COMPANY

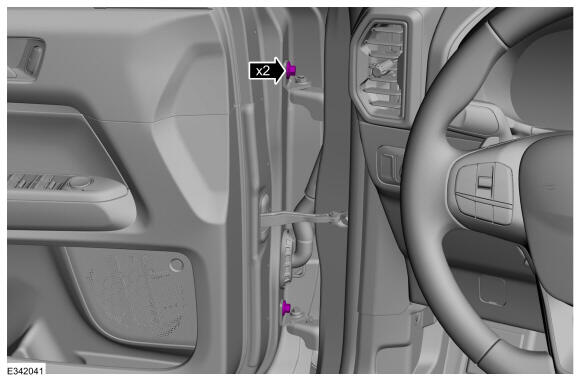

Tighten the bolts.
Torque

: 1.: 30 Nm 2.: 10 Nm

Courtesy of FORD MOTOR COMPANY

All alignments

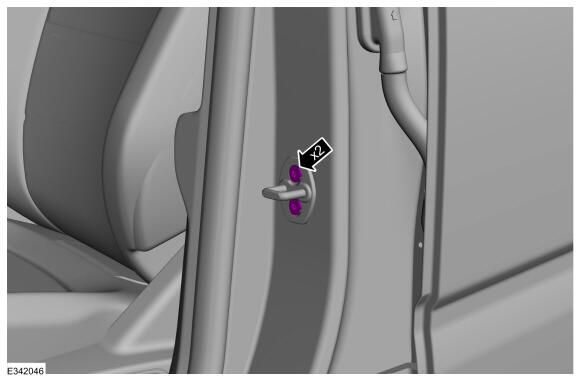

Install the striker assembly.
Torque

: 25 Nm

Courtesy of FORD MOTOR COMPANY

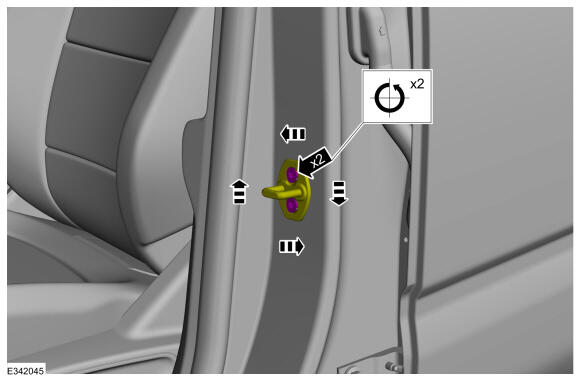

Loosen the bolts to permit movement of the striker assembly. Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY
Tighten the bolts.
Torque

: 25 Nm

Courtesy of FORD MOTOR COMPANY

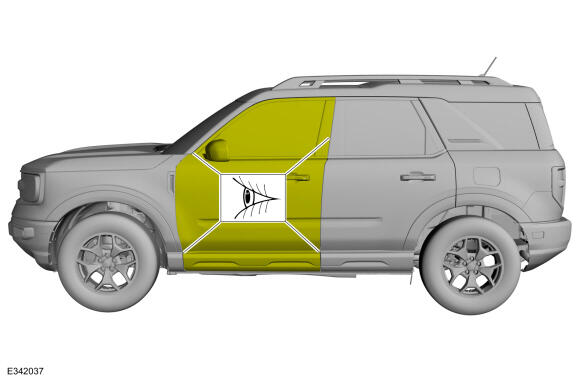

Inspect the body-to-front door dimensions.

Courtesy of FORD MOTOR COMPANY
