Vehicle Dynamic Systems

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

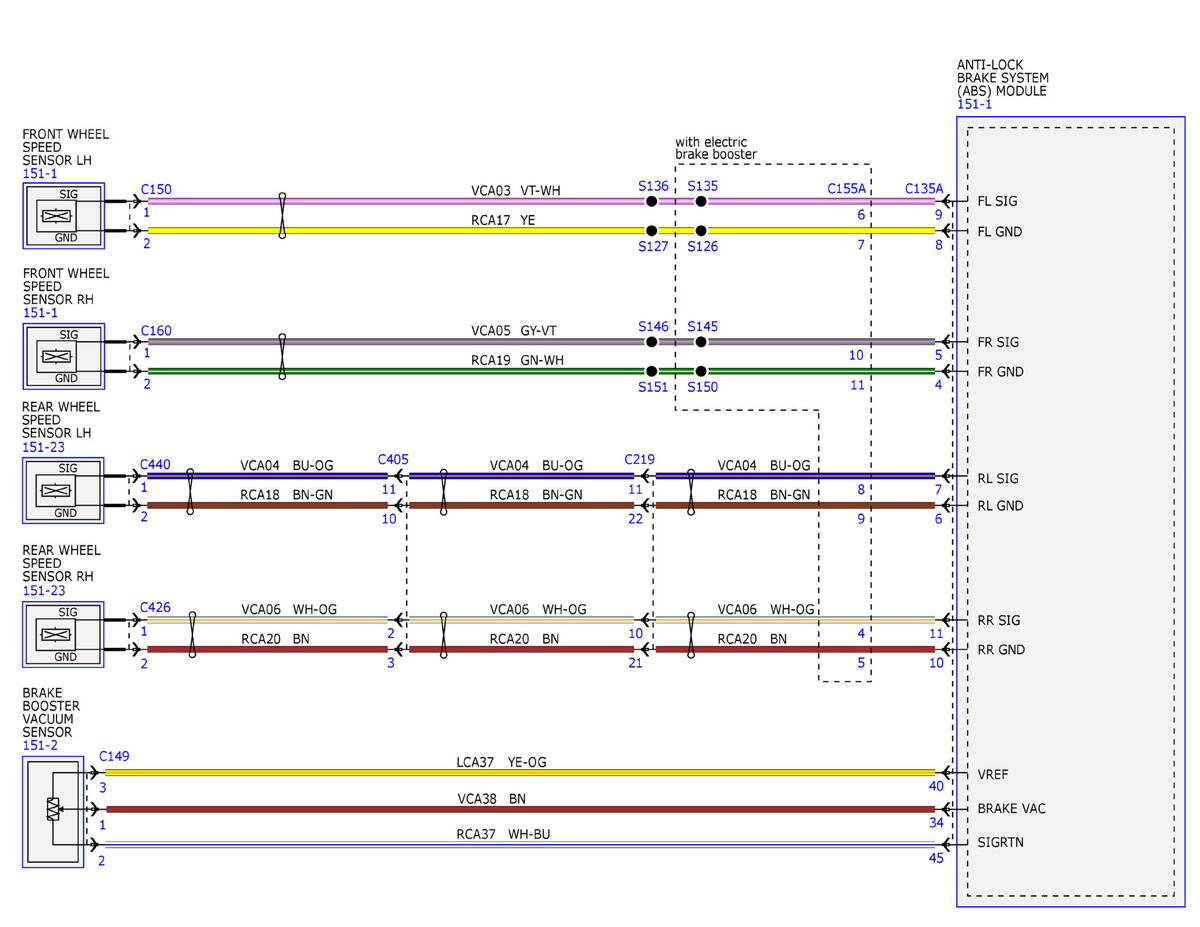

Fig 1: Vehicle Dynamic Systems (1 Of 4)

Courtesy of FORD MOTOR COMPANY

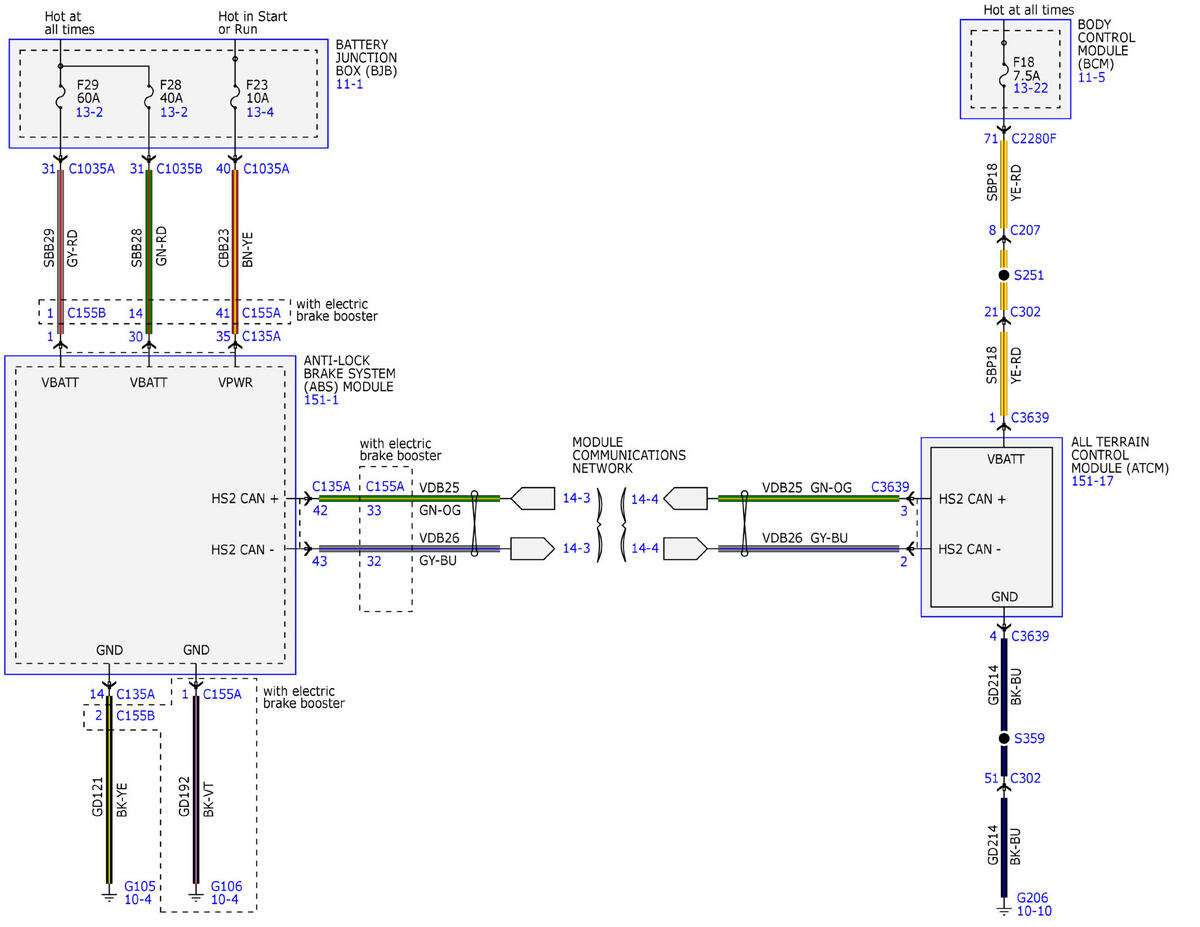

Fig 2: Vehicle Dynamic Systems (2 Of 4)

Courtesy of FORD MOTOR COMPANY

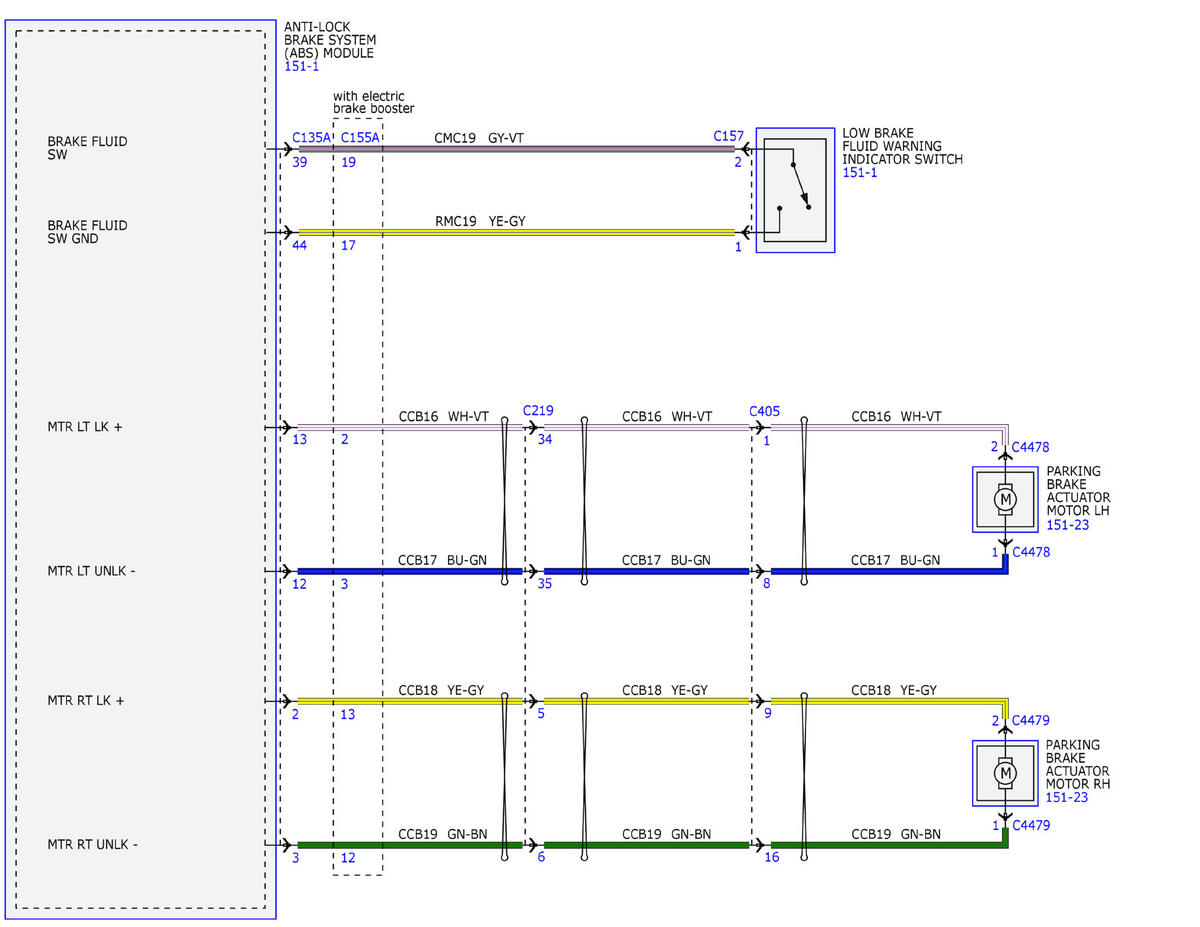

Fig 3: Vehicle Dynamic Systems (3 Of 4)

Courtesy of FORD MOTOR COMPANY

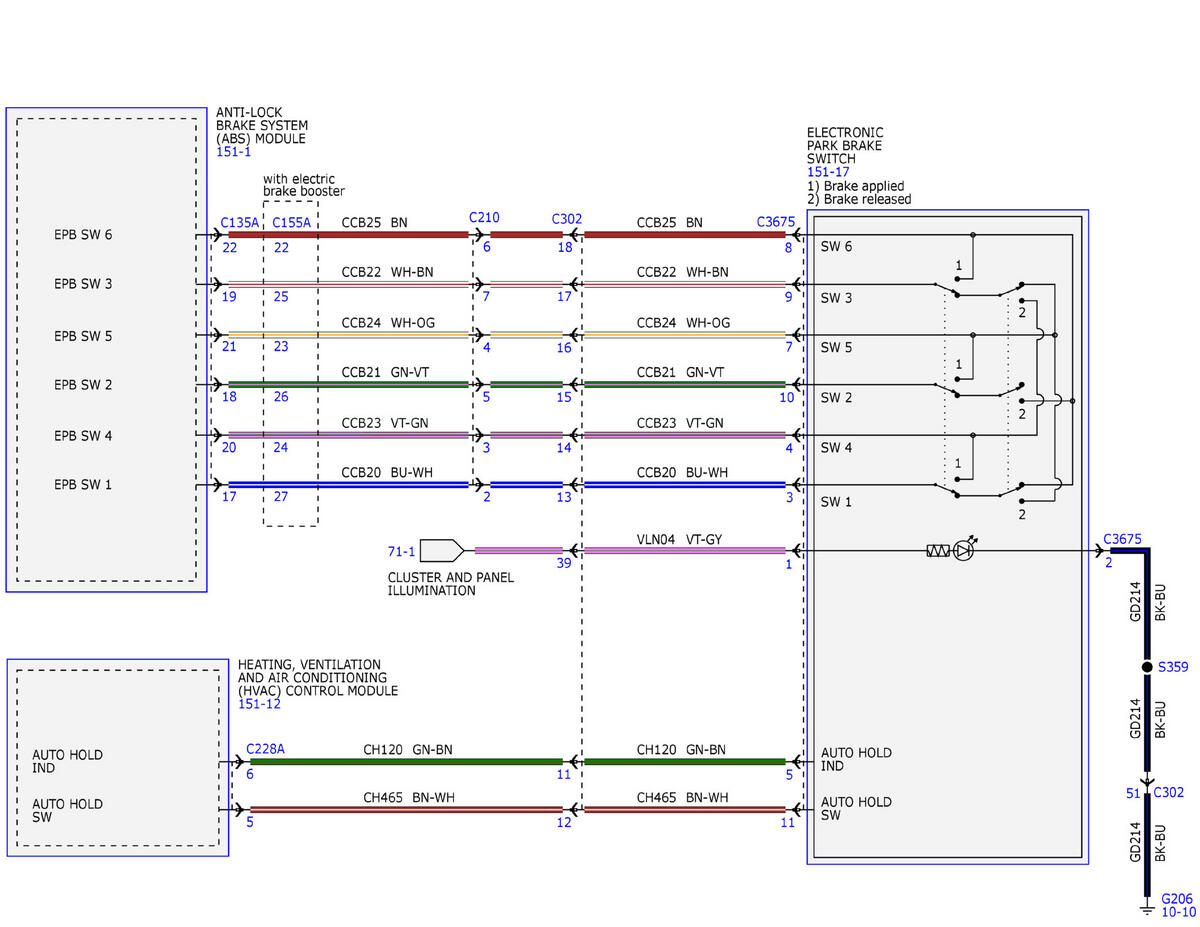

Fig 4: Vehicle Dynamic Systems (4 Of 4)

Courtesy of FORD MOTOR COMPANY
