Section 10 (OEM Wiring Diagrams)
>>
Tire Pressure Monitor System
Tire Pressure Monitor System
WARNING:
This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

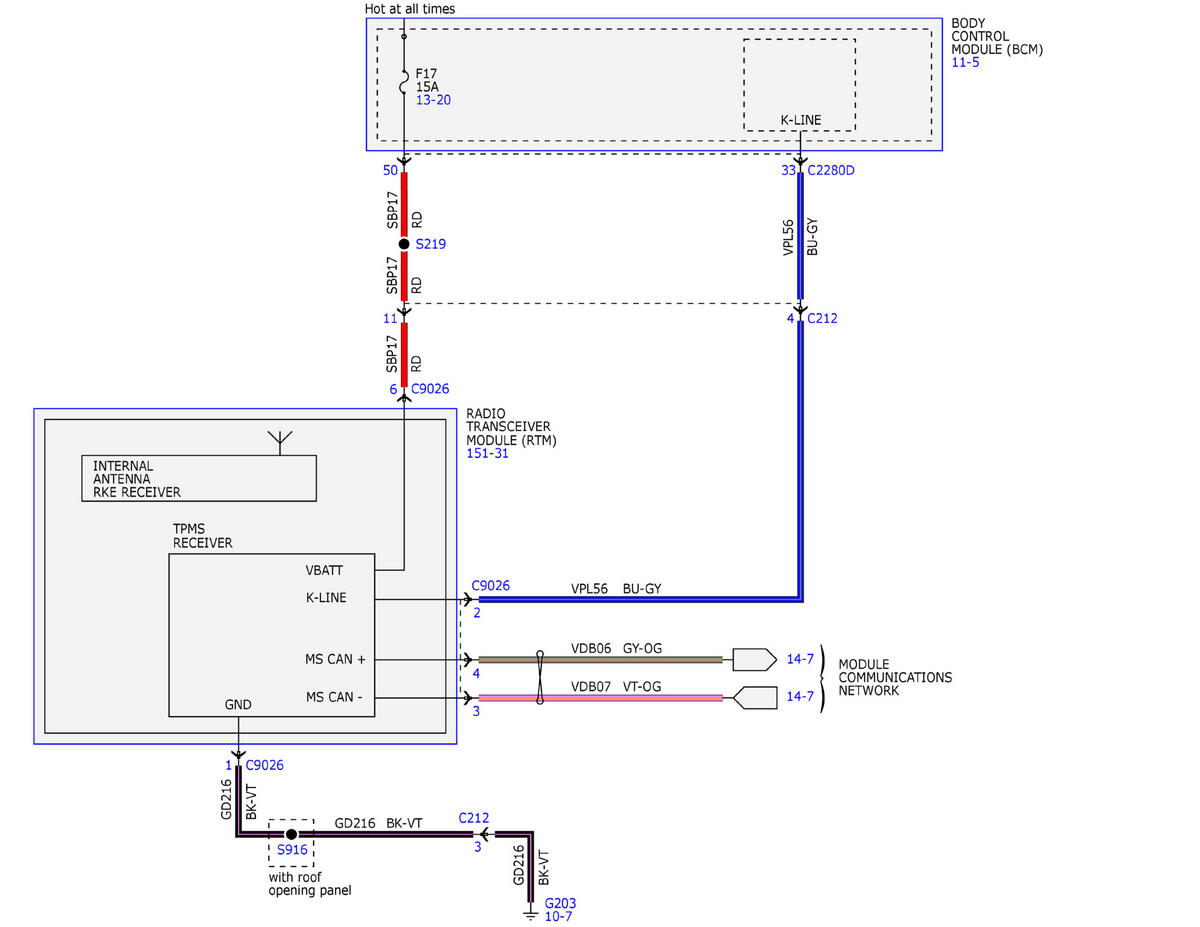

Fig 1: Tire Pressure Monitor System
Courtesy of FORD MOTOR COMPANY
