Section 10 (OEM Wiring Diagrams)
>>
Power Distribution/BCM
Power Distribution/BCM
WARNING:
This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

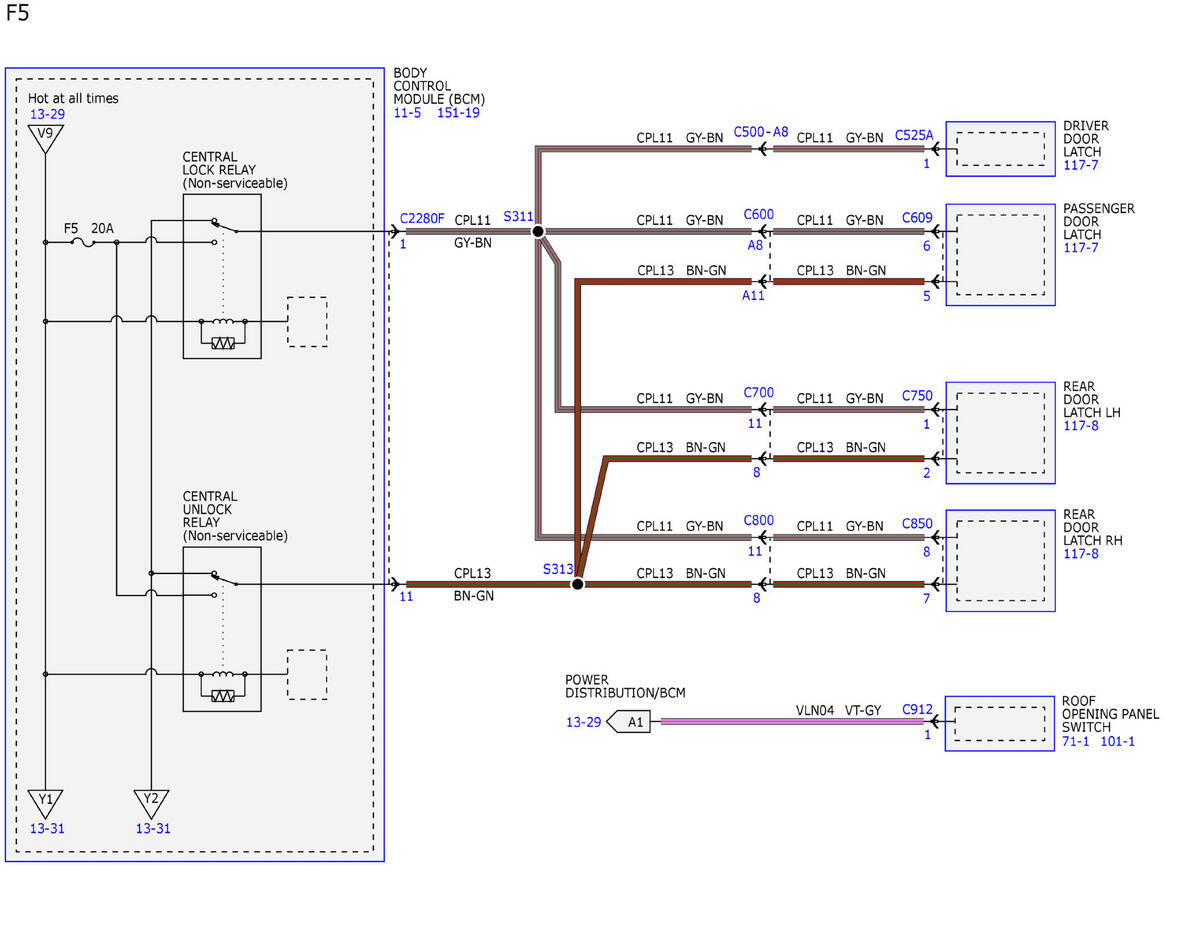

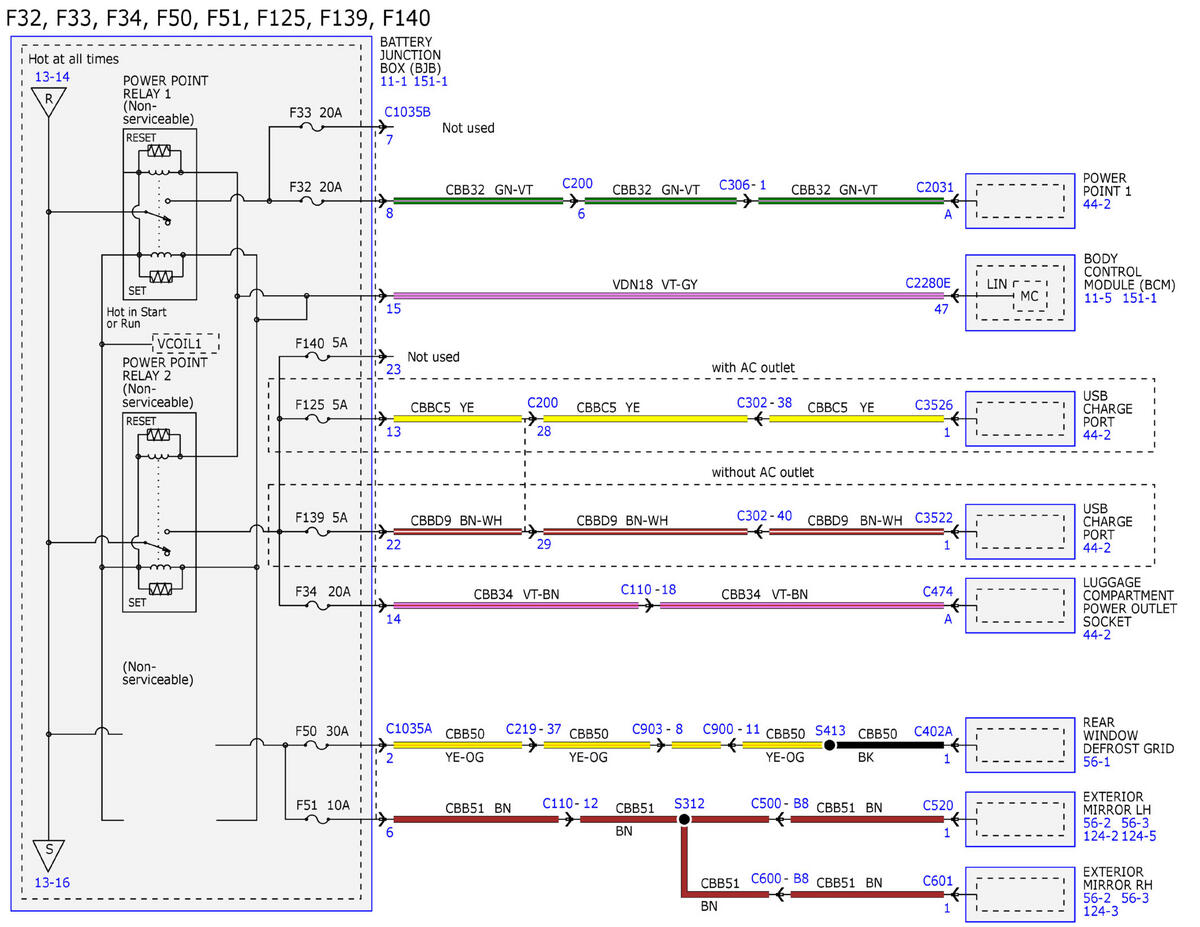

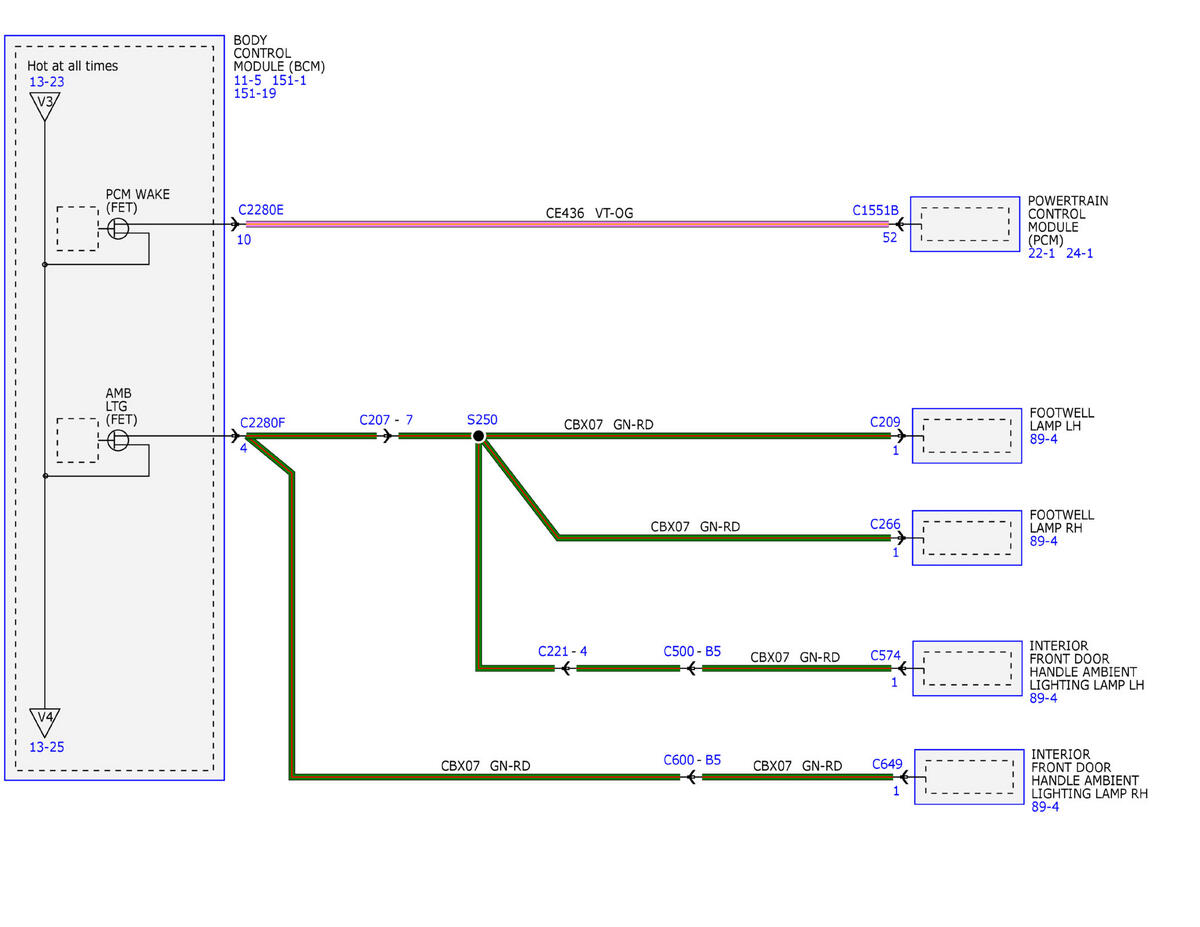

Fig 1: Power Distribution/BCM (1 Of 31)
Courtesy of FORD MOTOR COMPANY

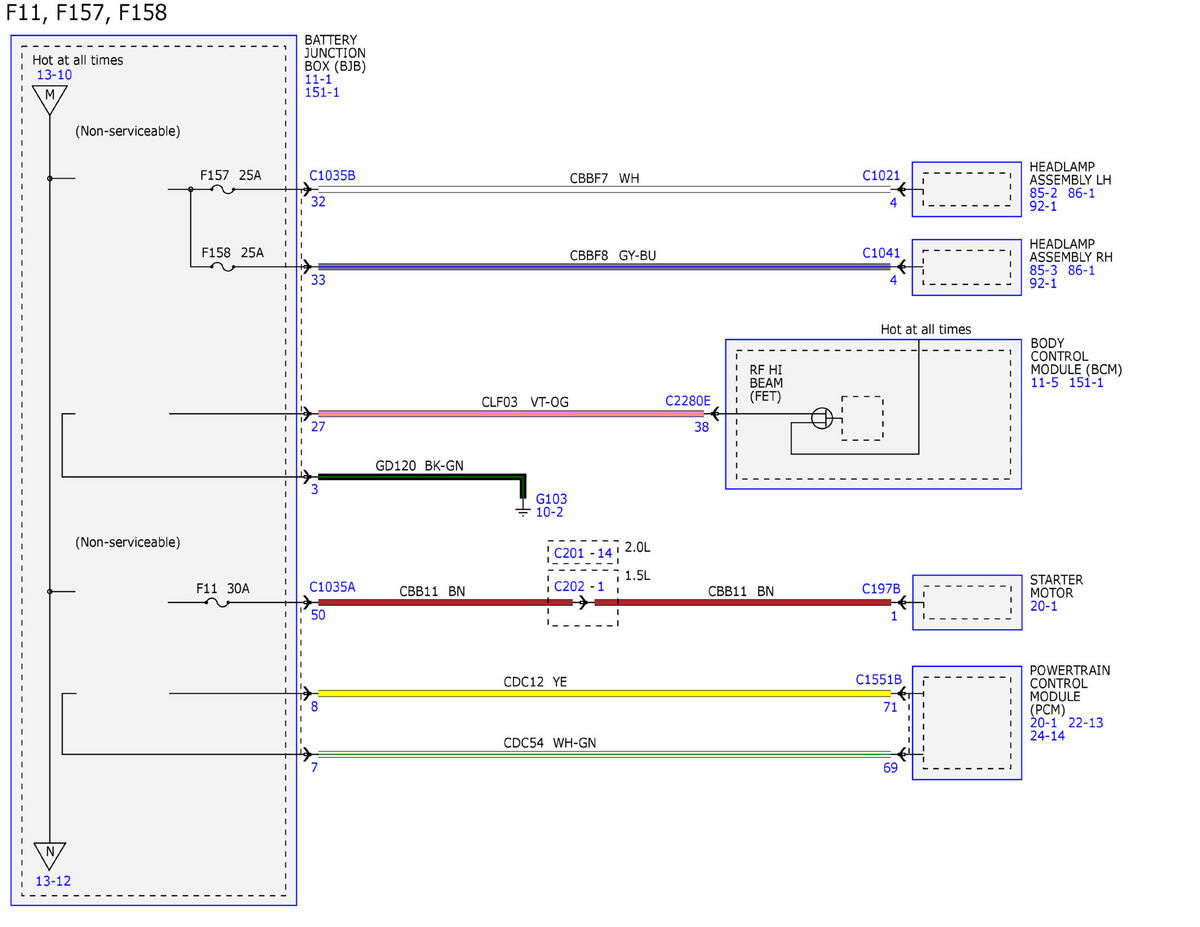

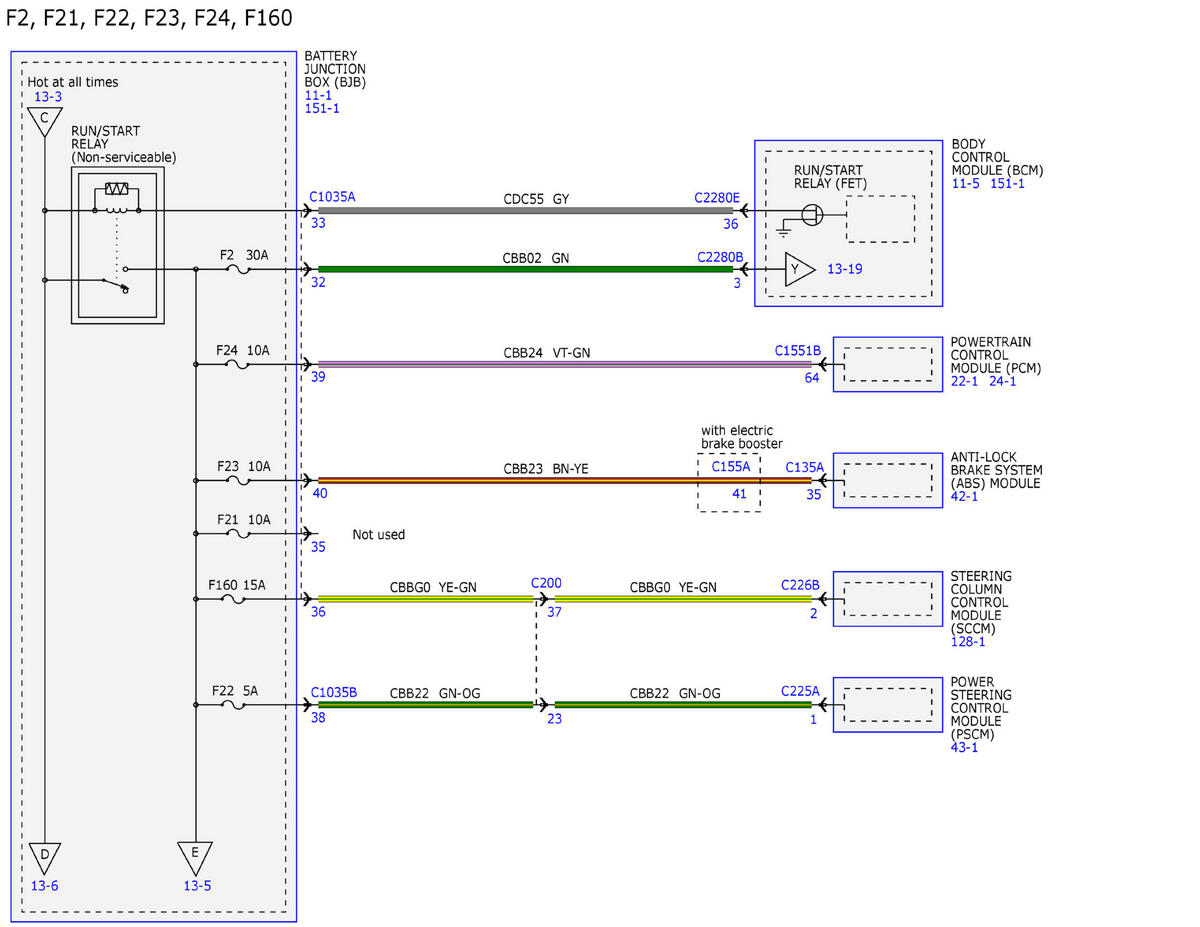

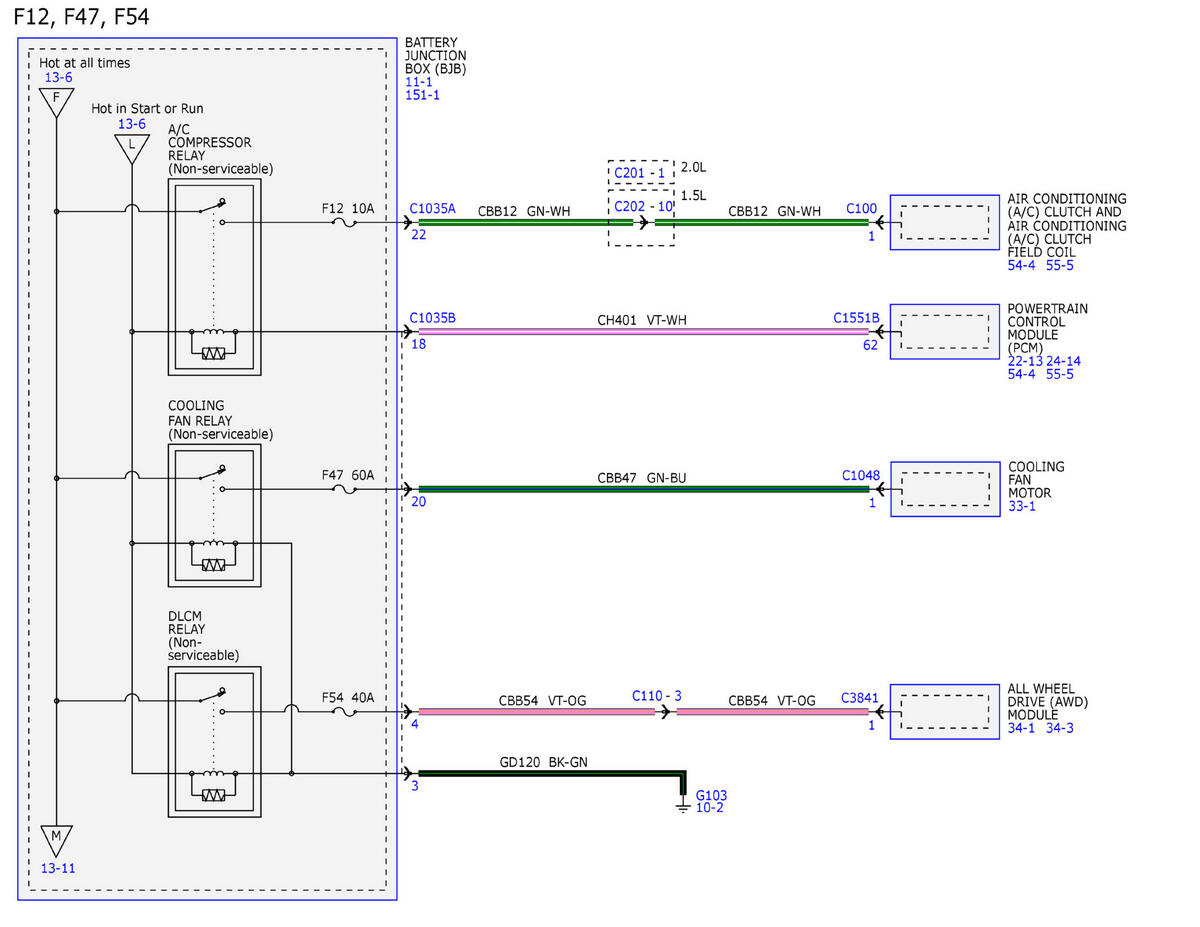

Fig 2: Power Distribution/BCM (2 Of 31)
Courtesy of FORD MOTOR COMPANY

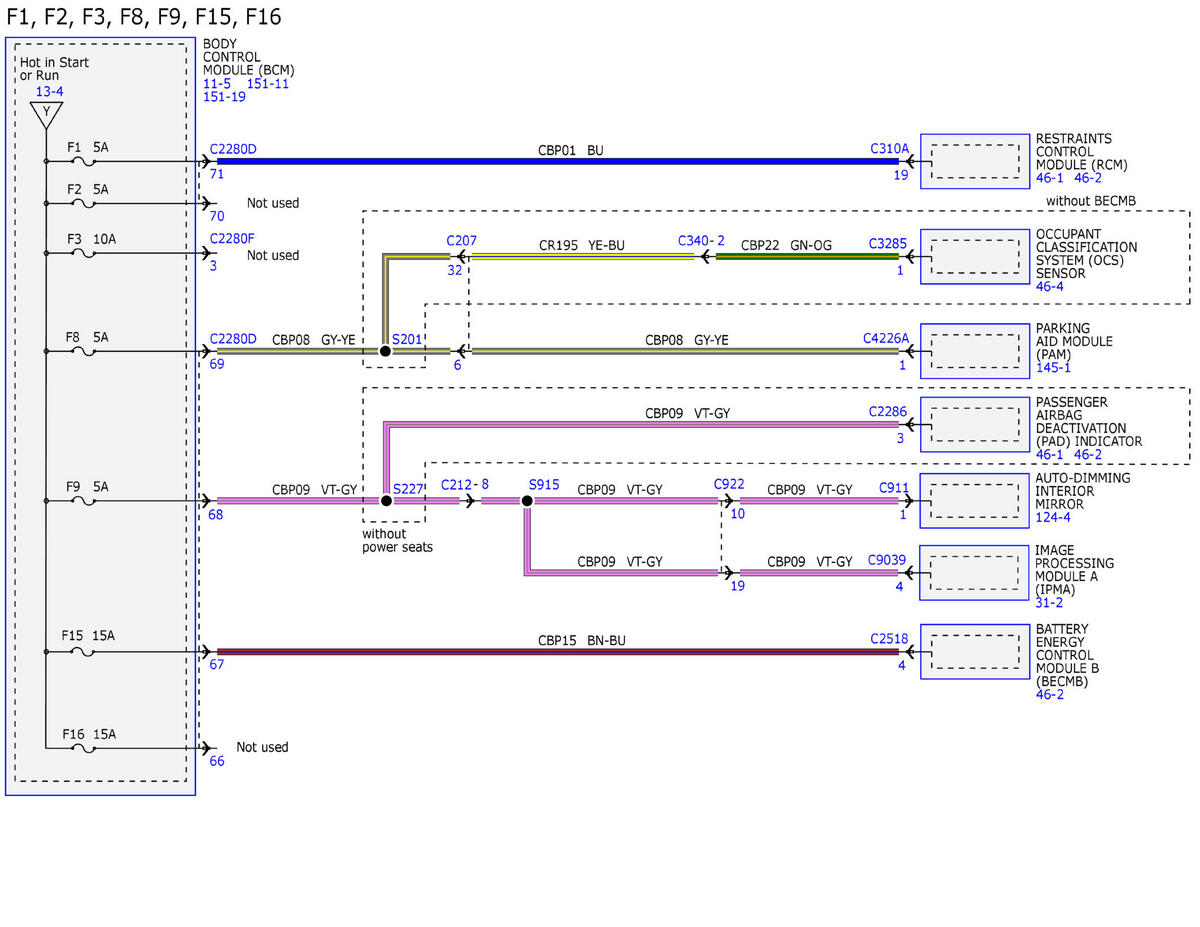

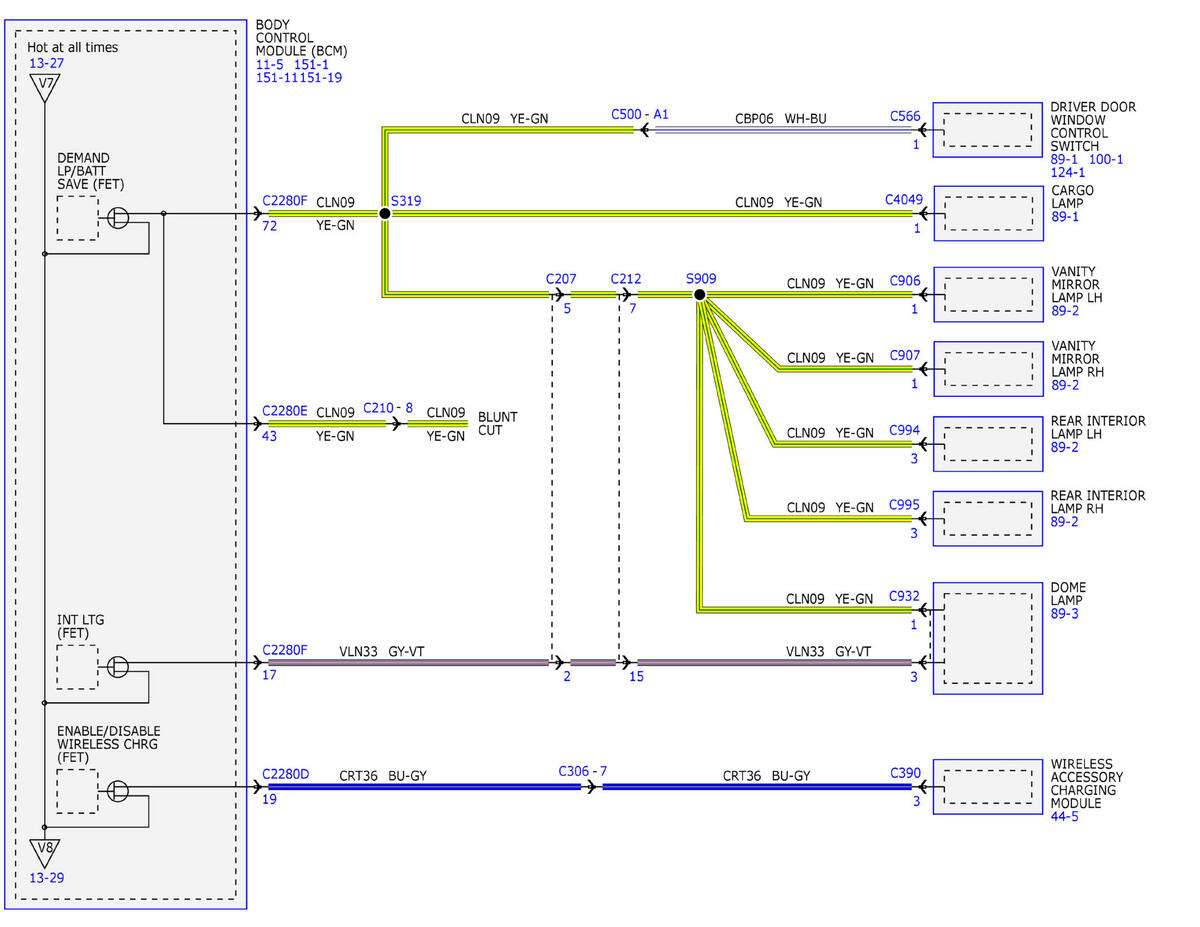

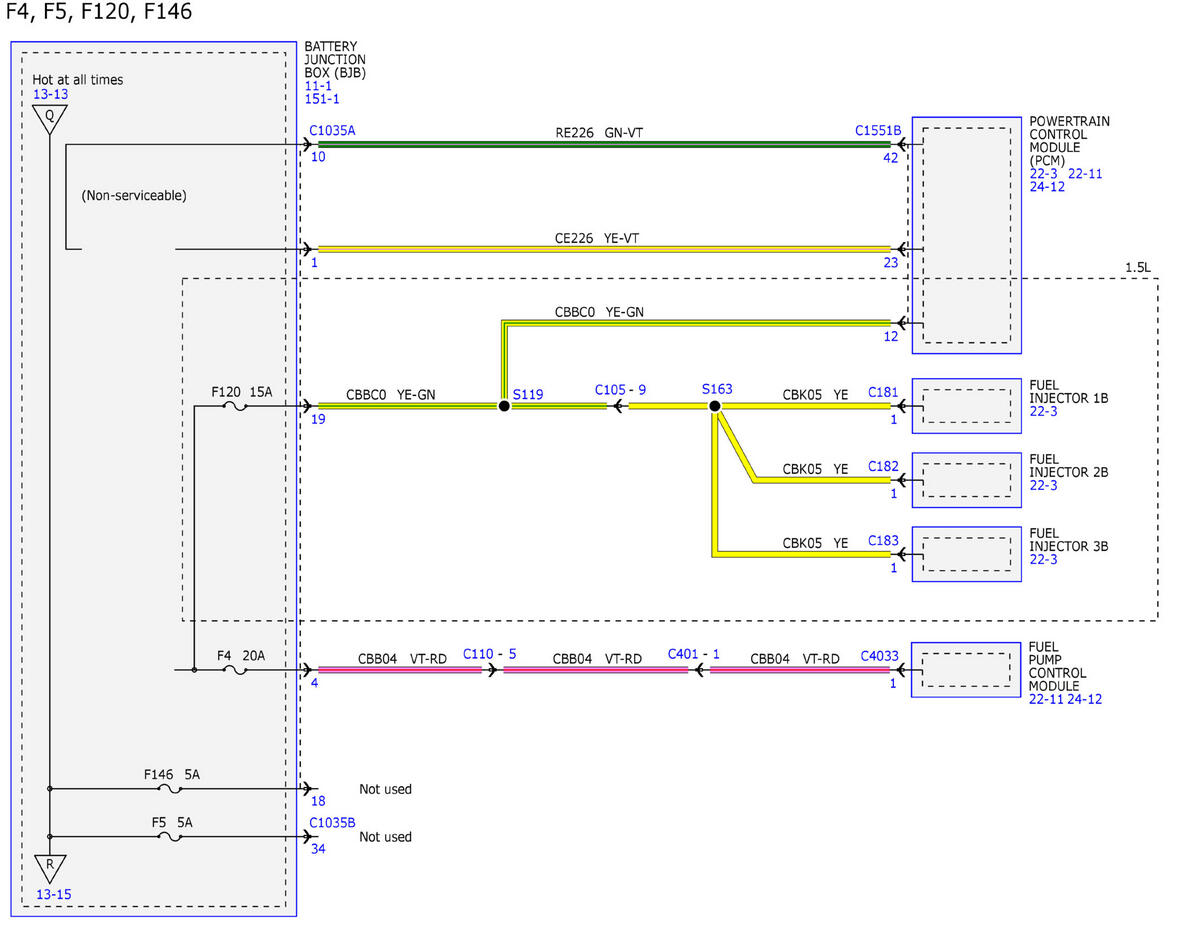

Fig 3: Power Distribution/BCM (3 Of 31)
Courtesy of FORD MOTOR COMPANY

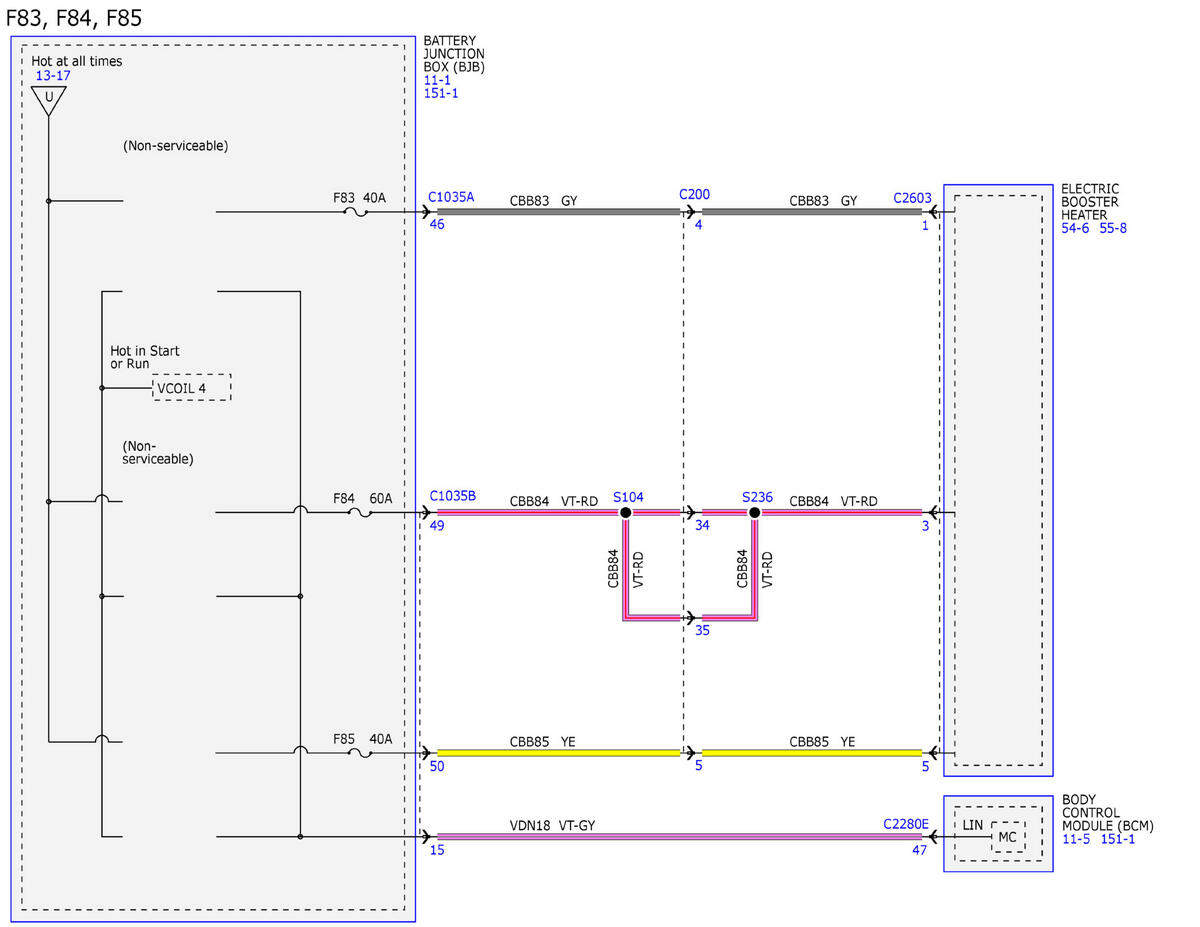

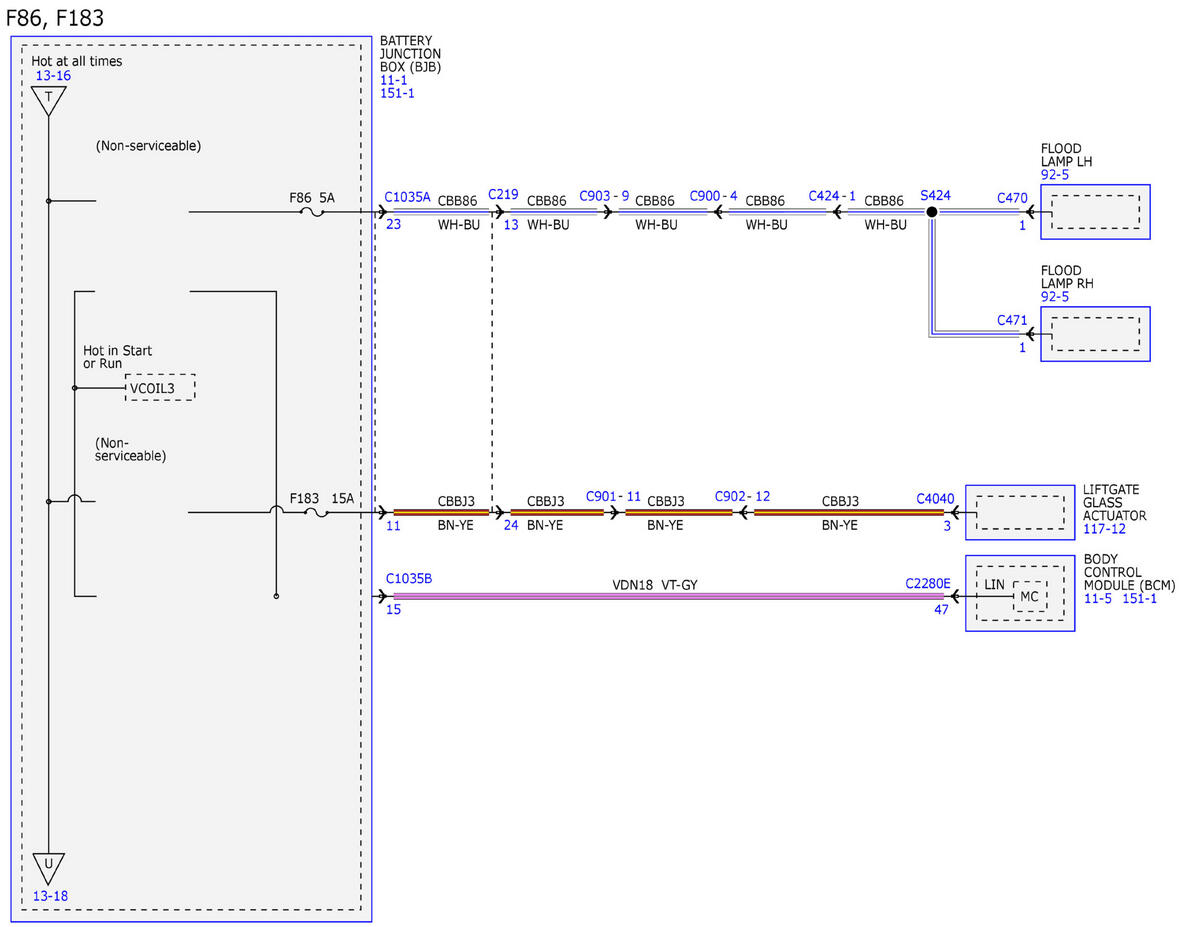

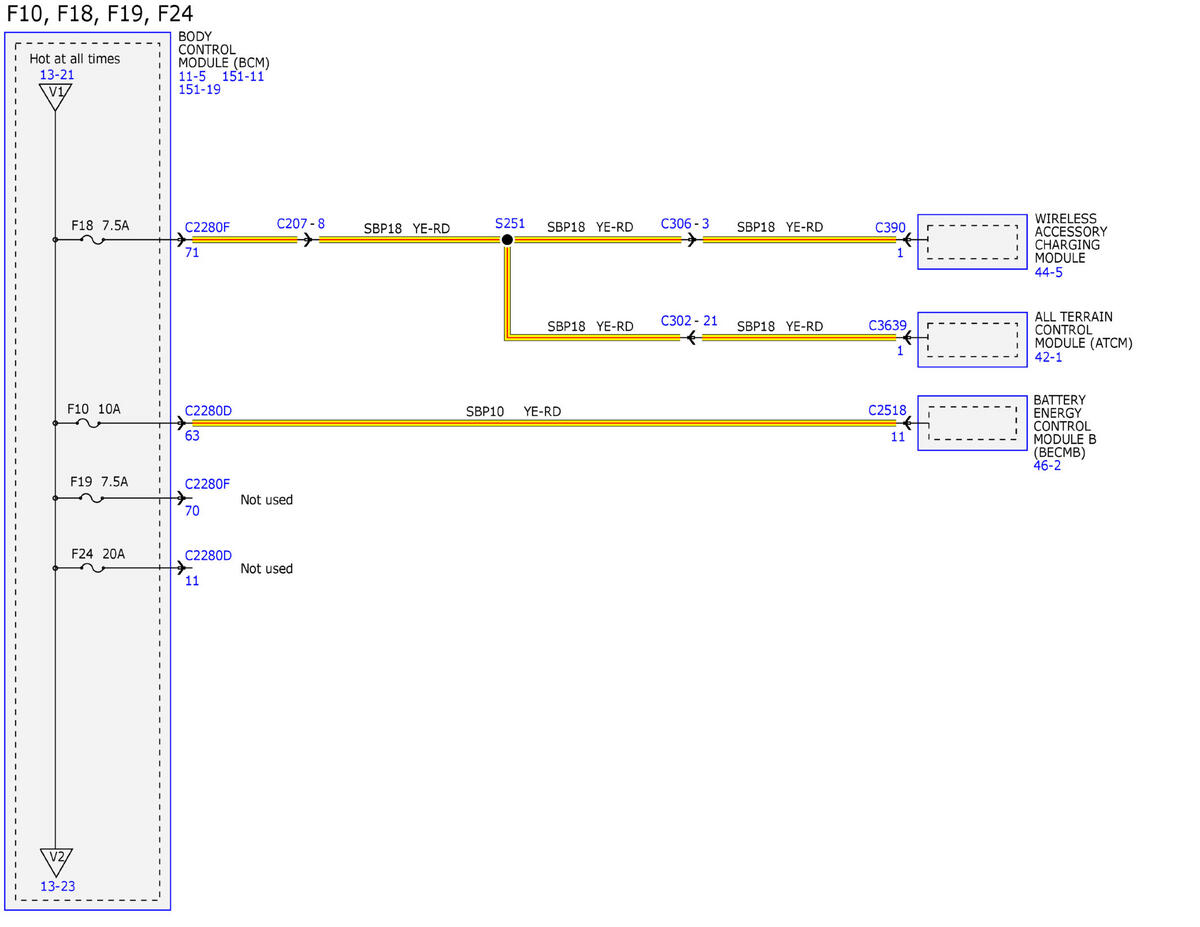

Fig 4: Power Distribution/BCM (4 Of 31)
Courtesy of FORD MOTOR COMPANY

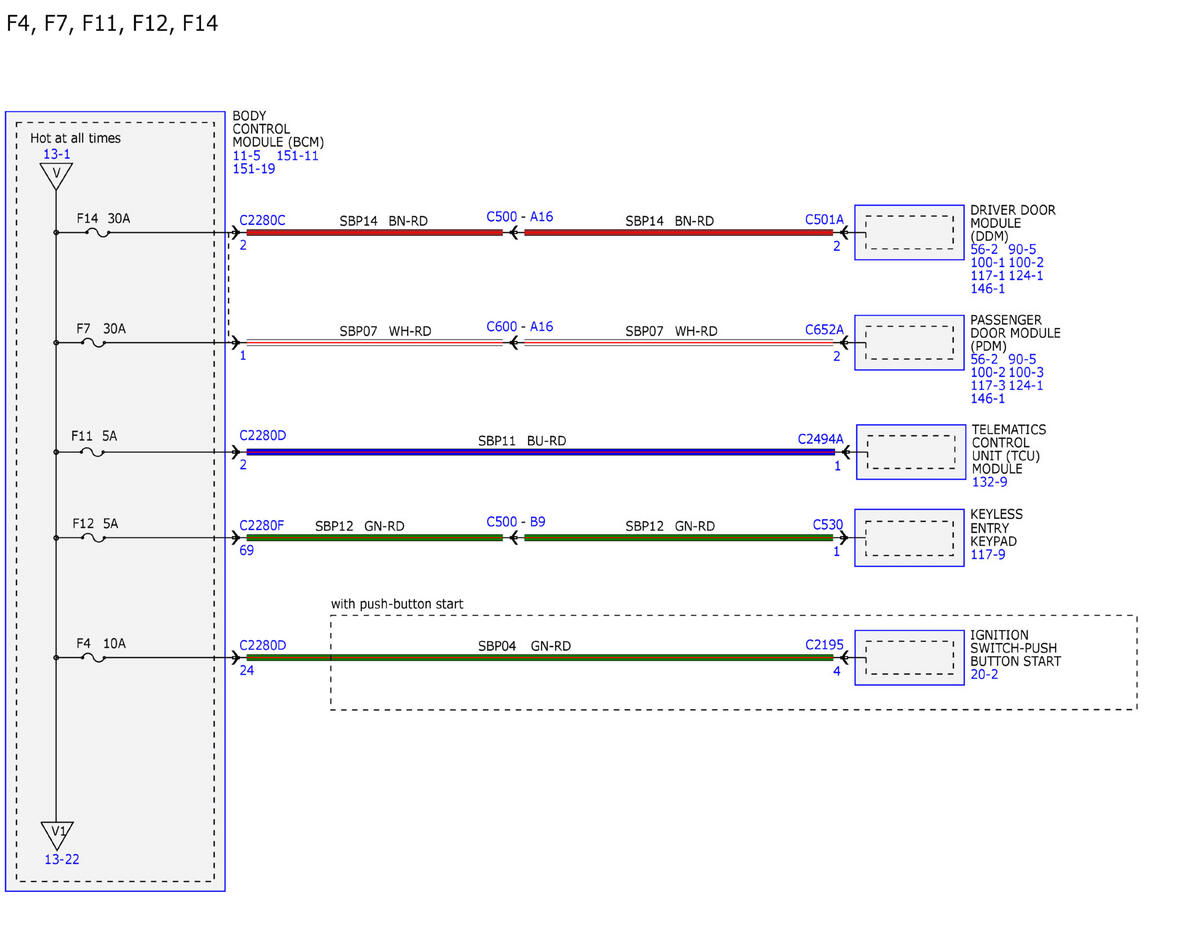

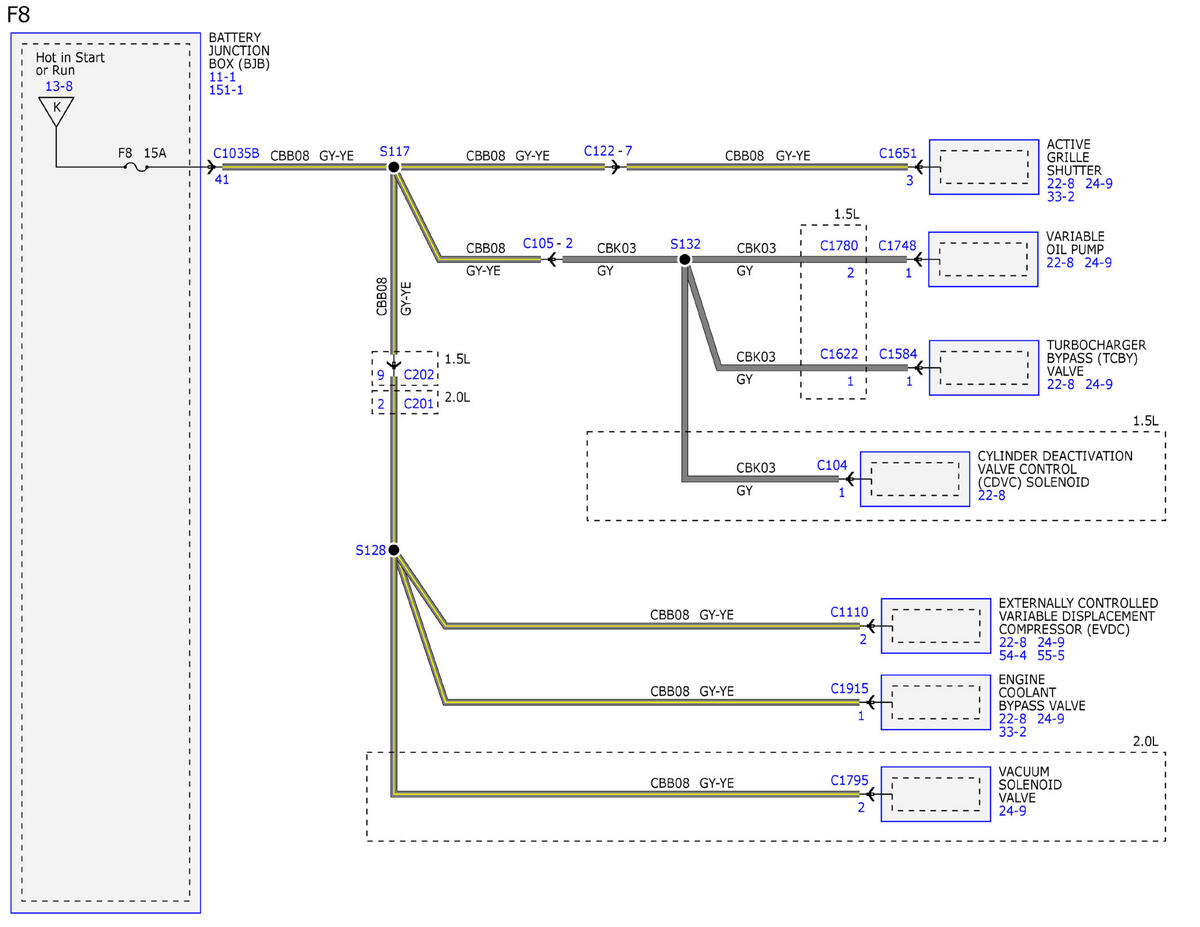

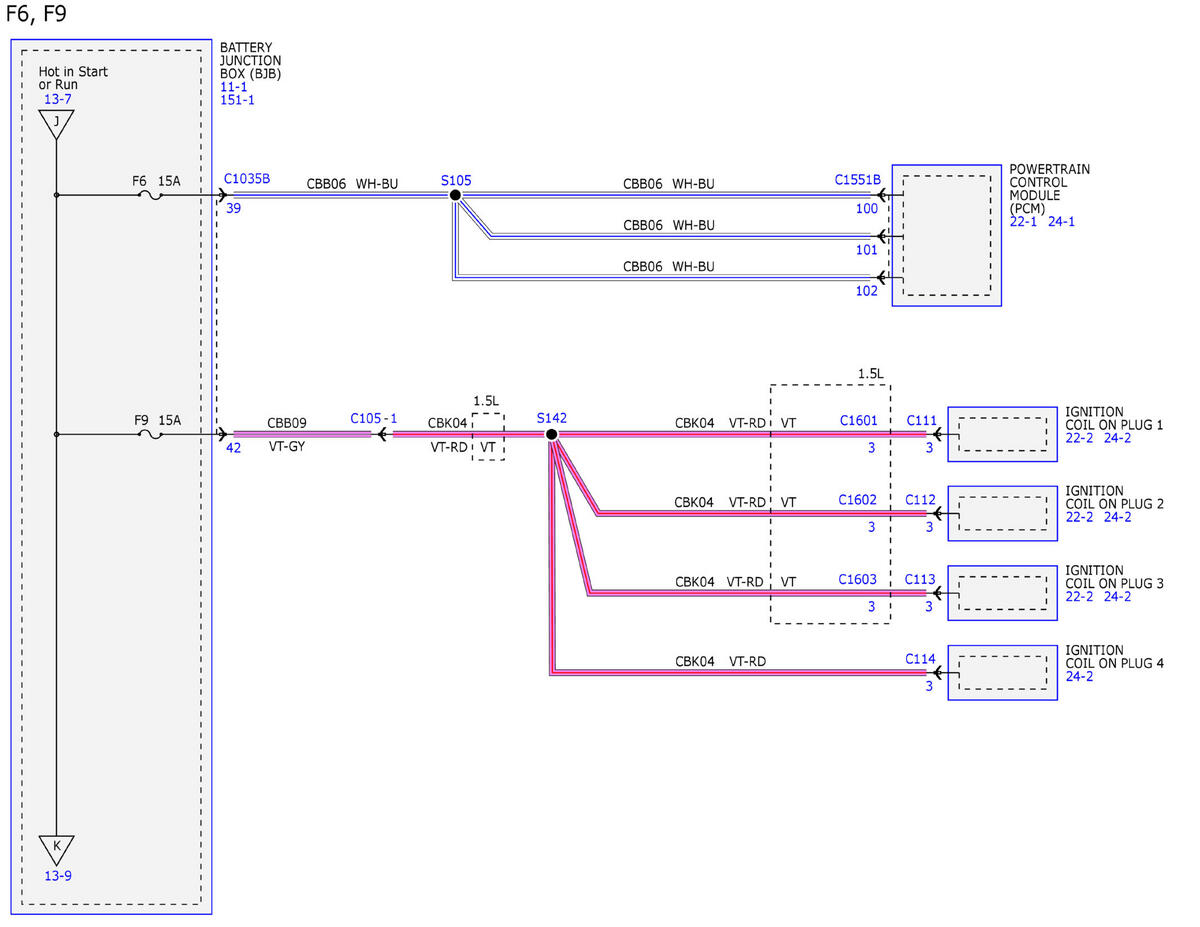

Fig 5: Power Distribution/BCM (5 Of 31)
Courtesy of FORD MOTOR COMPANY

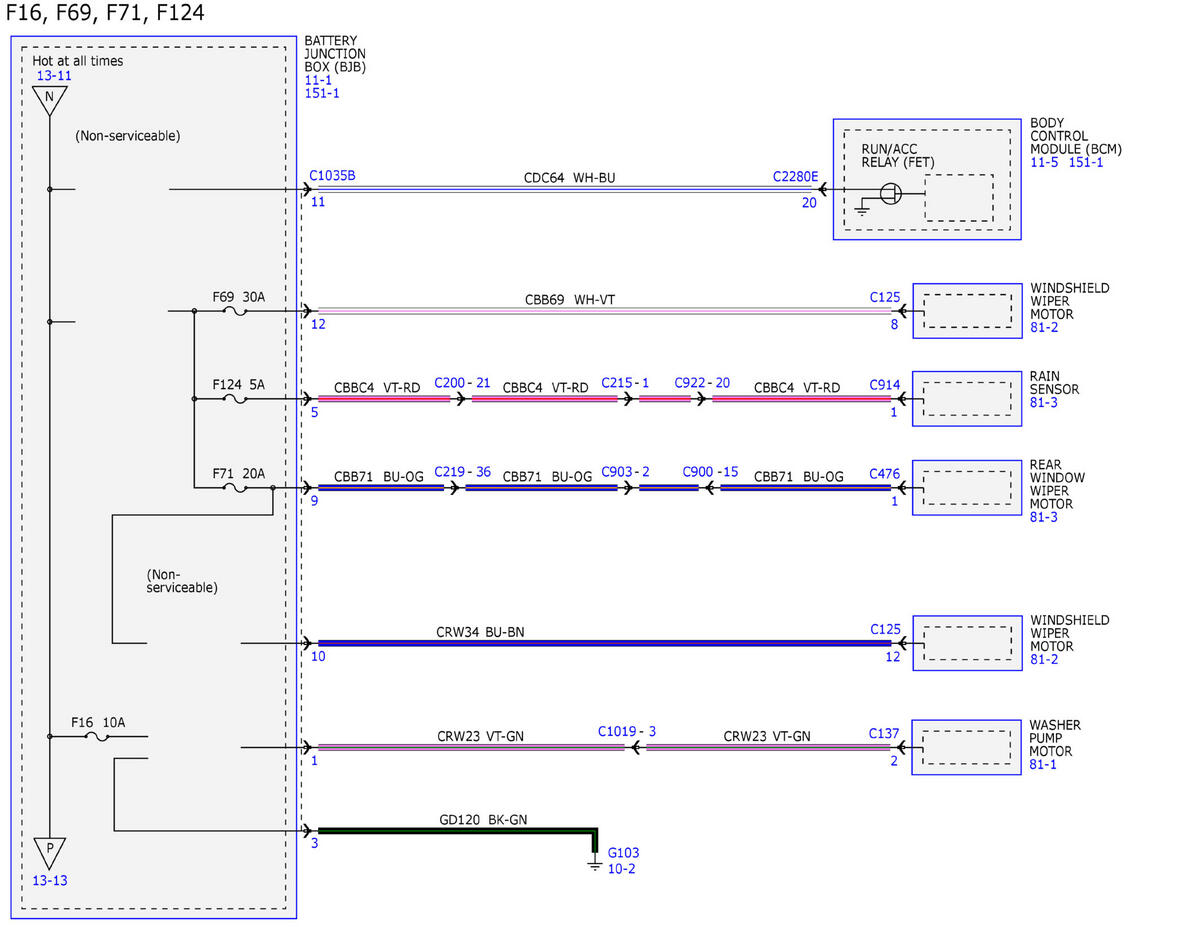

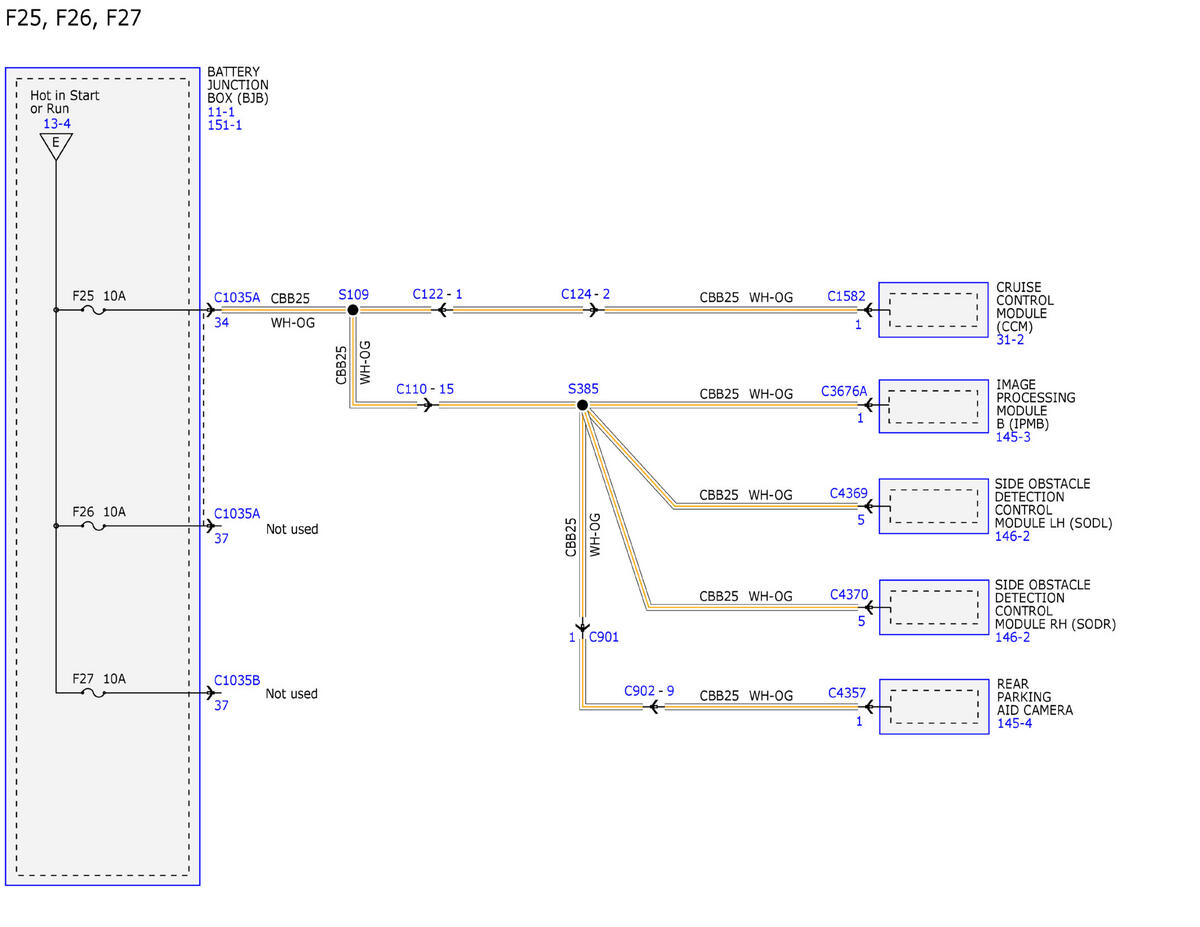

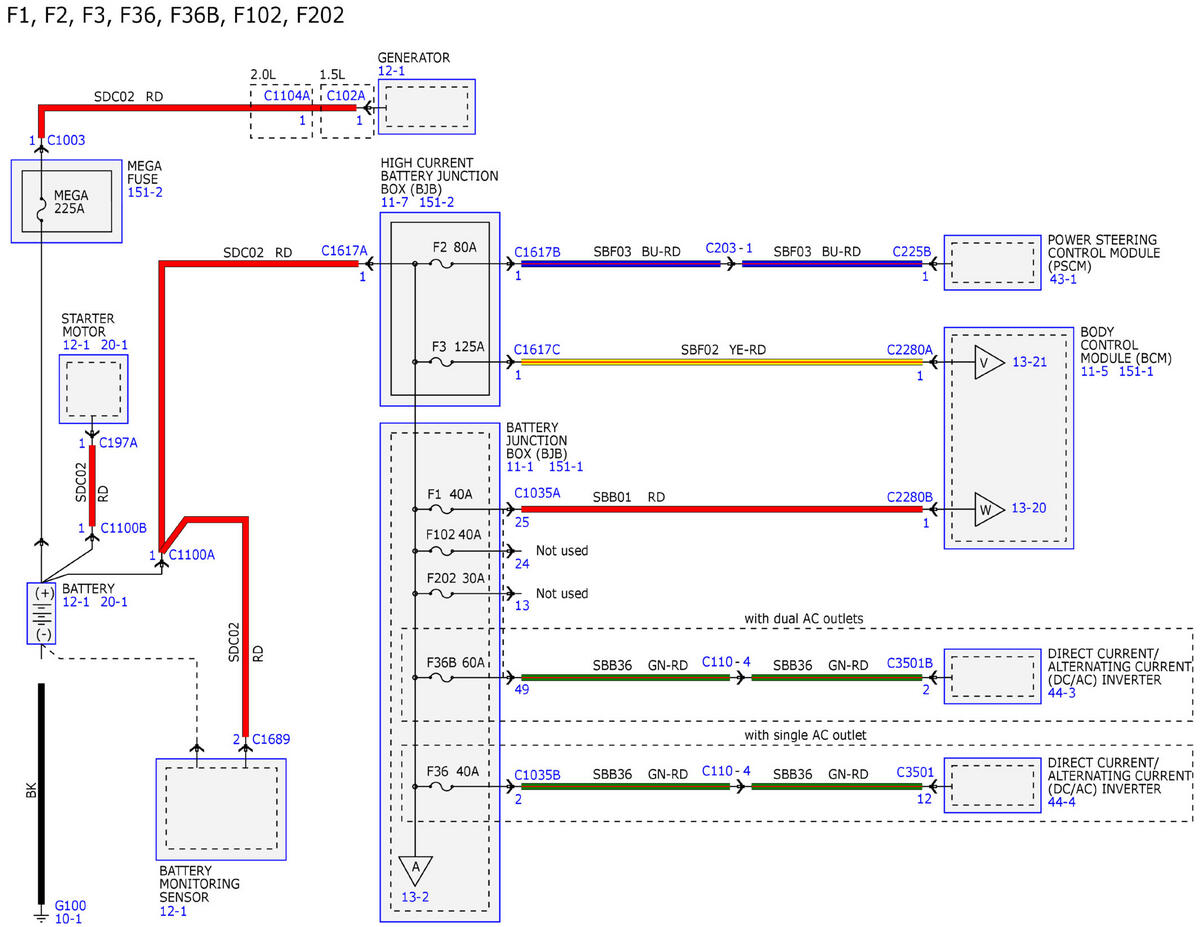

Fig 6: Power Distribution/BCM (6 Of 31)
Courtesy of FORD MOTOR COMPANY

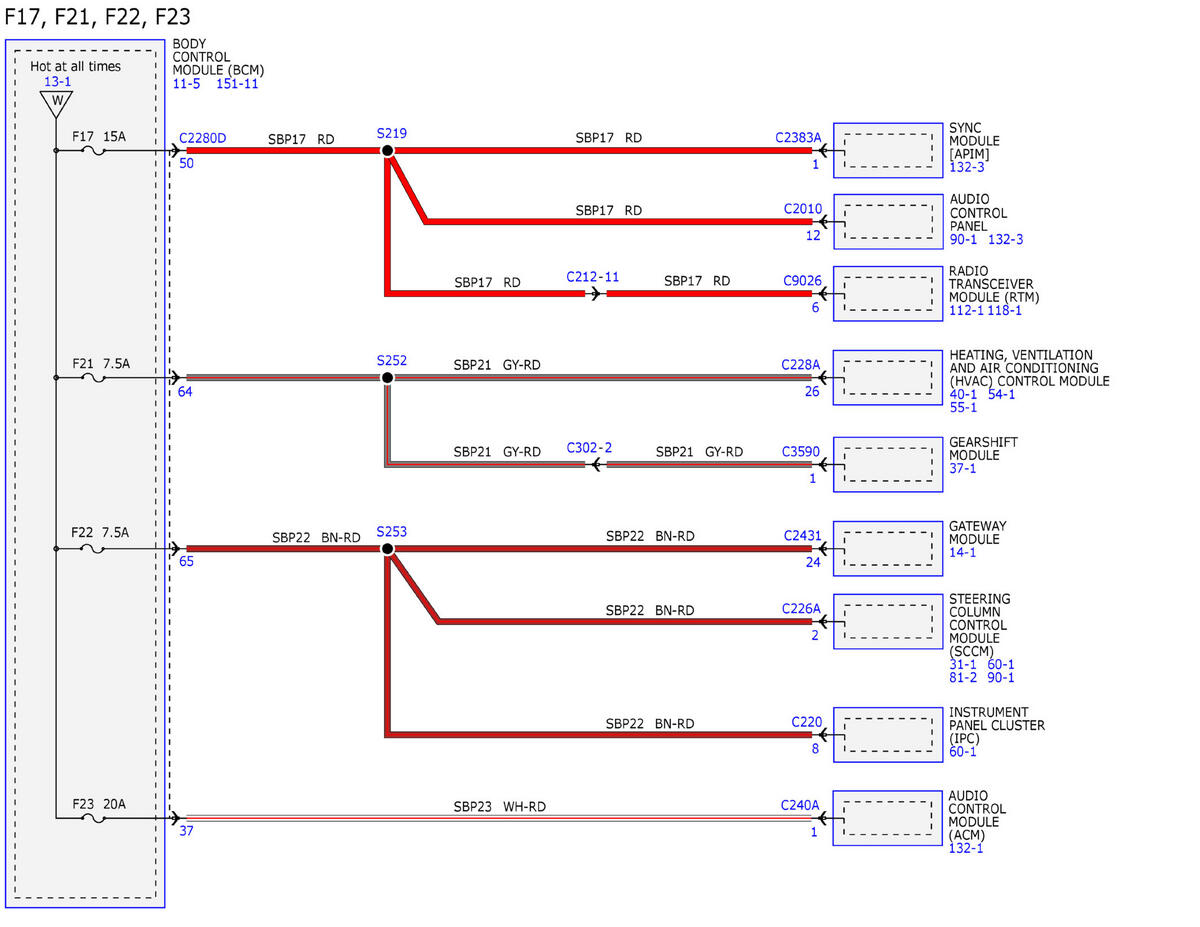

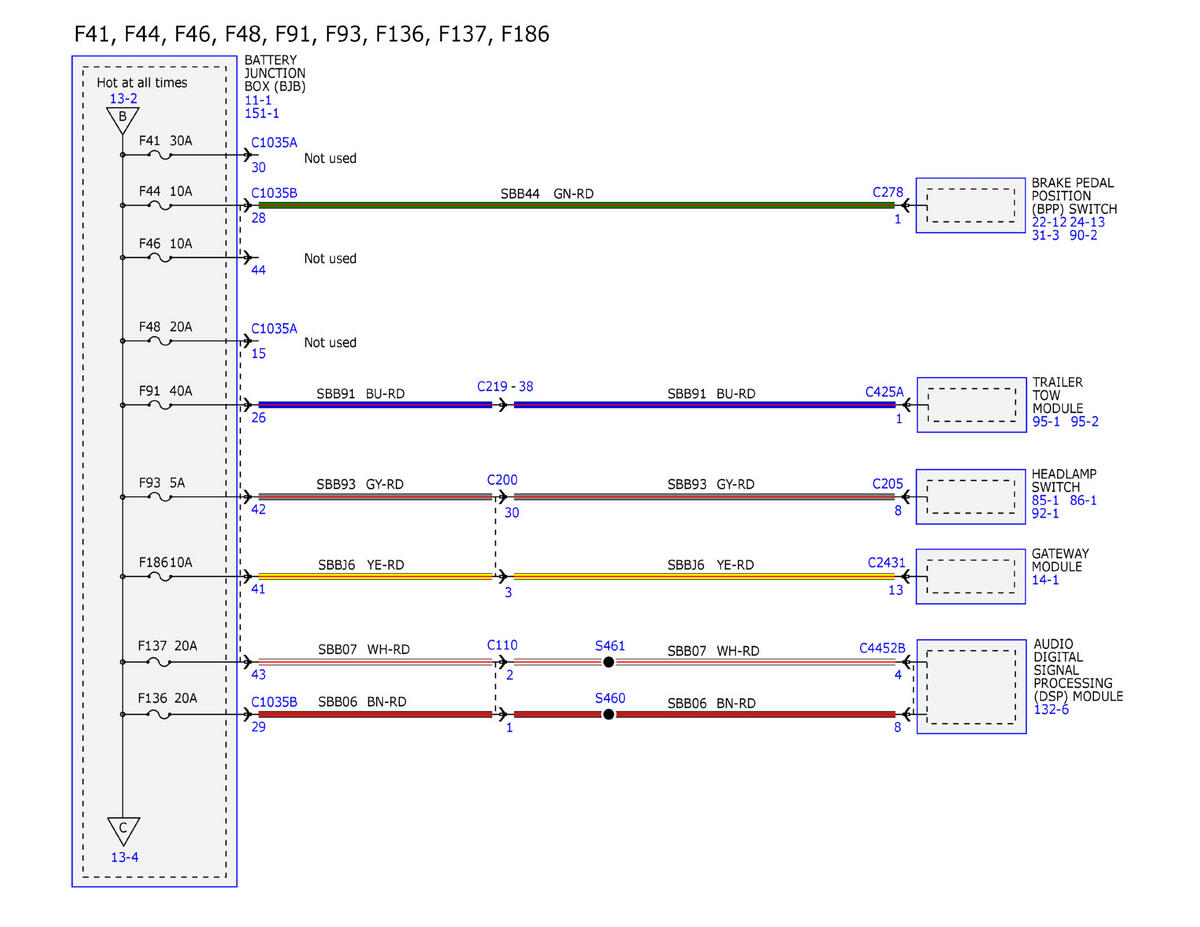

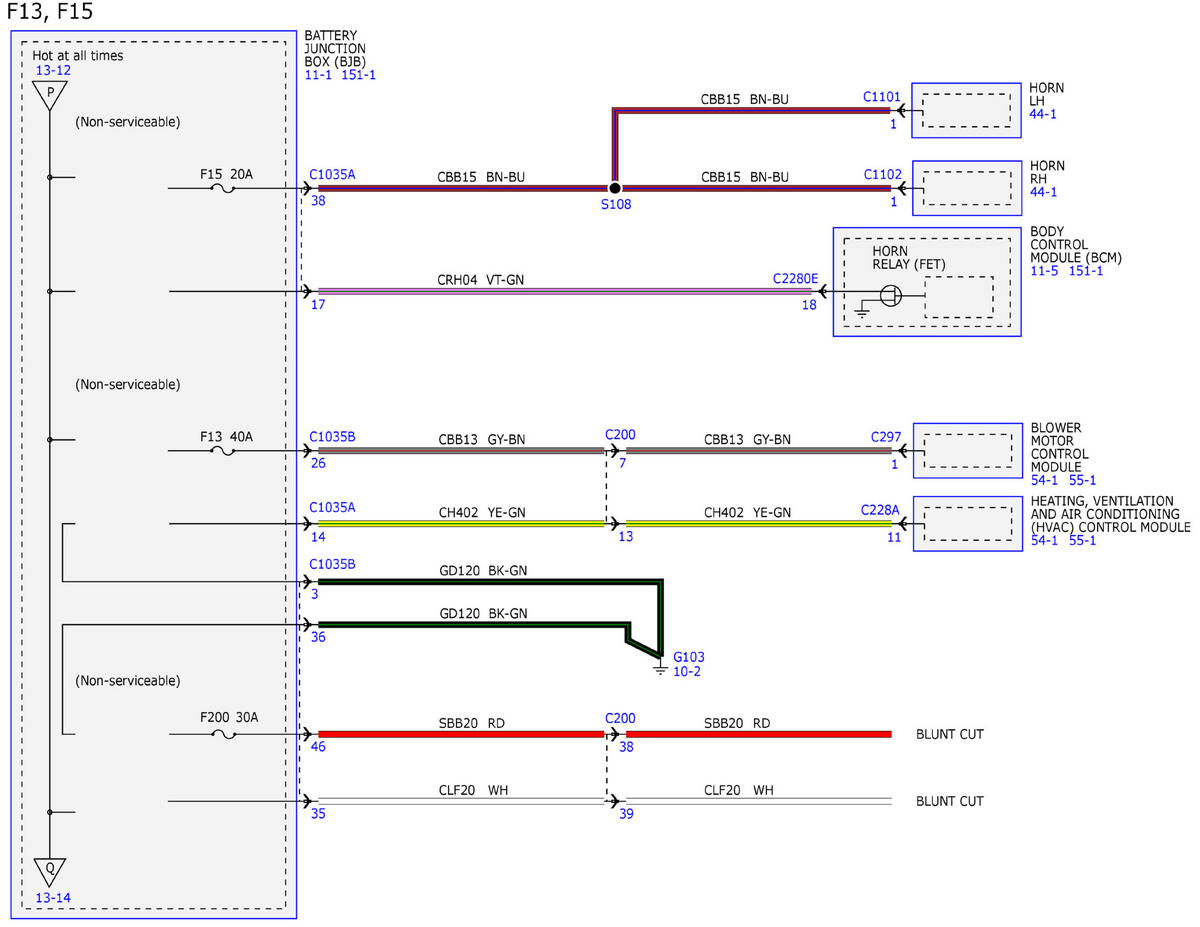

Fig 7: Power Distribution/BCM (7 Of 31)
Courtesy of FORD MOTOR COMPANY

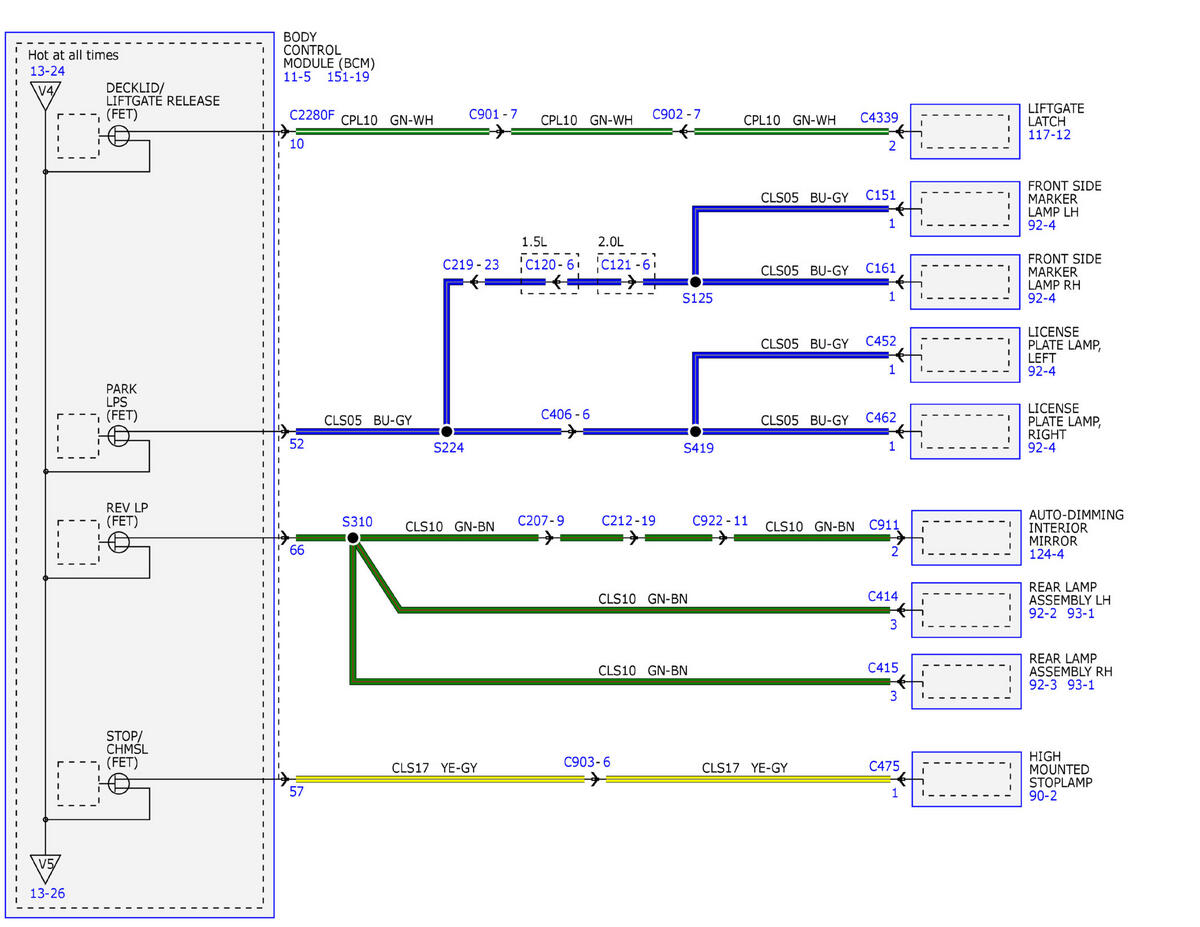

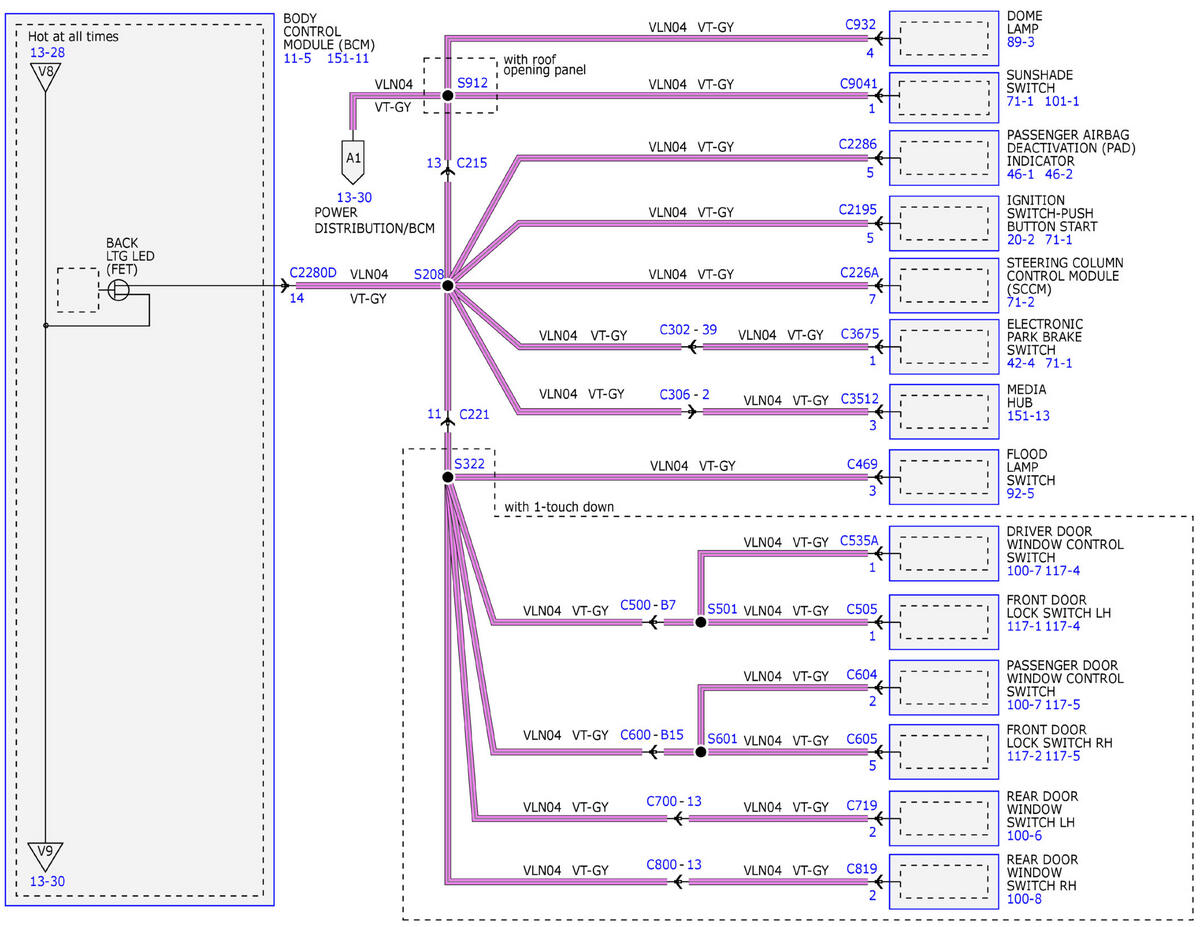

Fig 8: Power Distribution/BCM (8 Of 31)
Courtesy of FORD MOTOR COMPANY

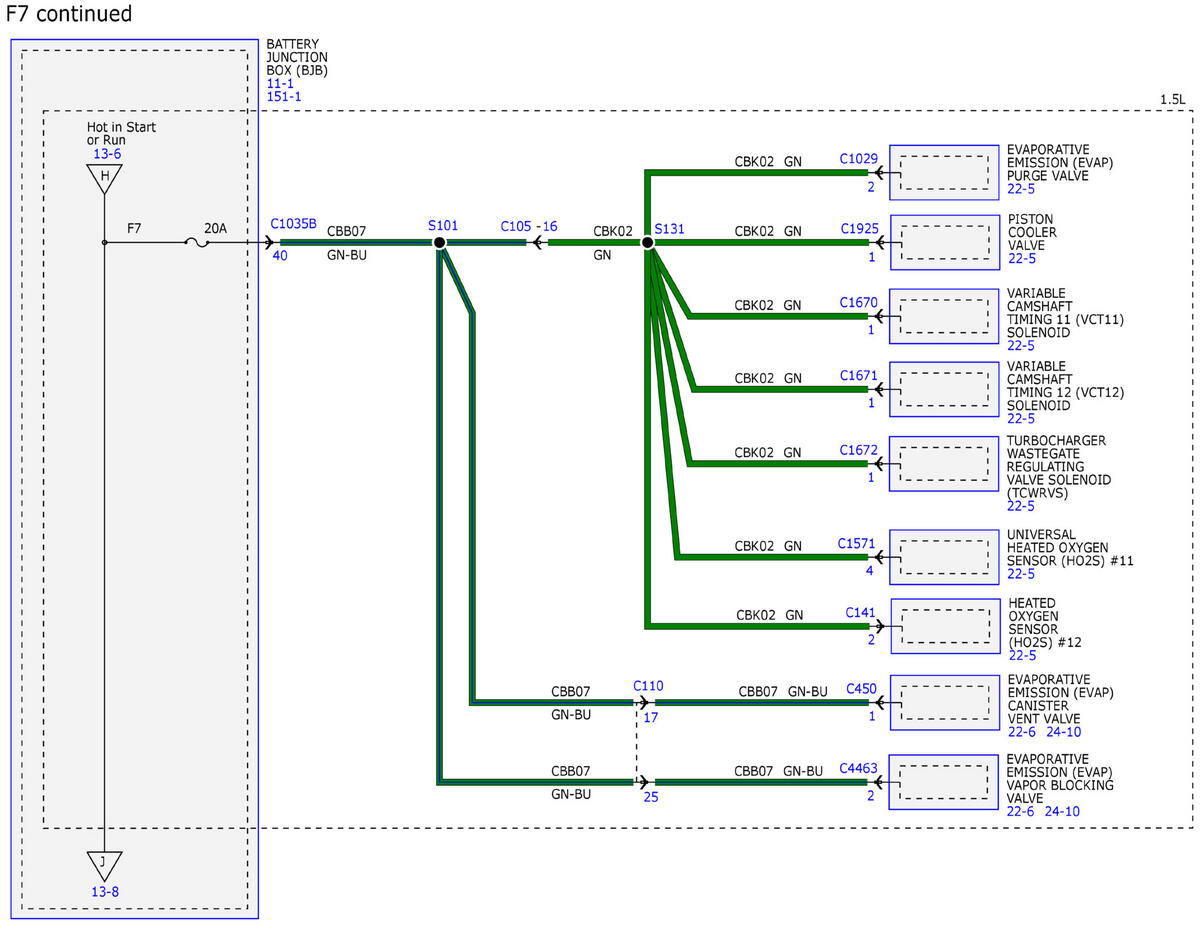

Fig 9: Power Distribution/BCM (9 Of 31)
Courtesy of FORD MOTOR COMPANY

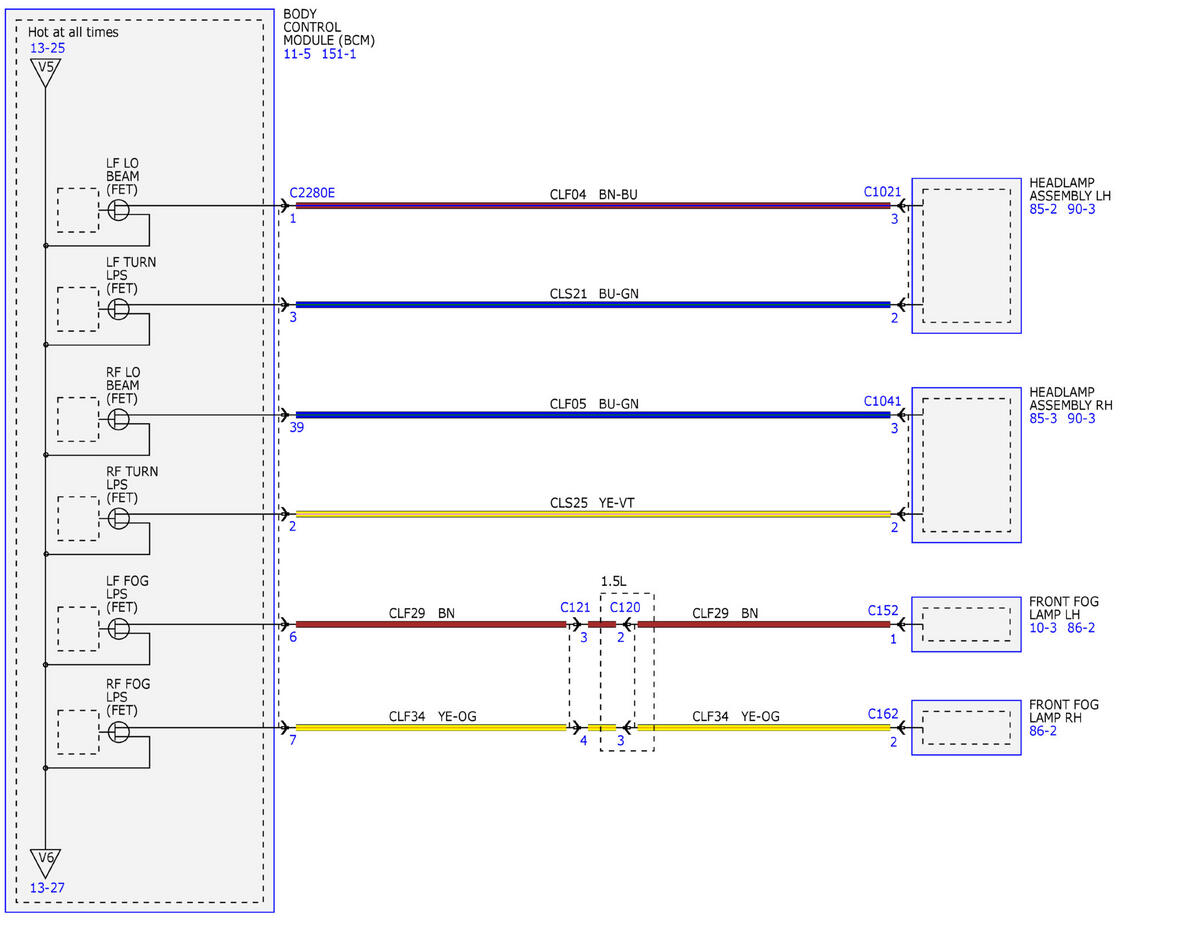

Fig 10: Power Distribution/BCM (10 Of 31)
Courtesy of FORD MOTOR COMPANY

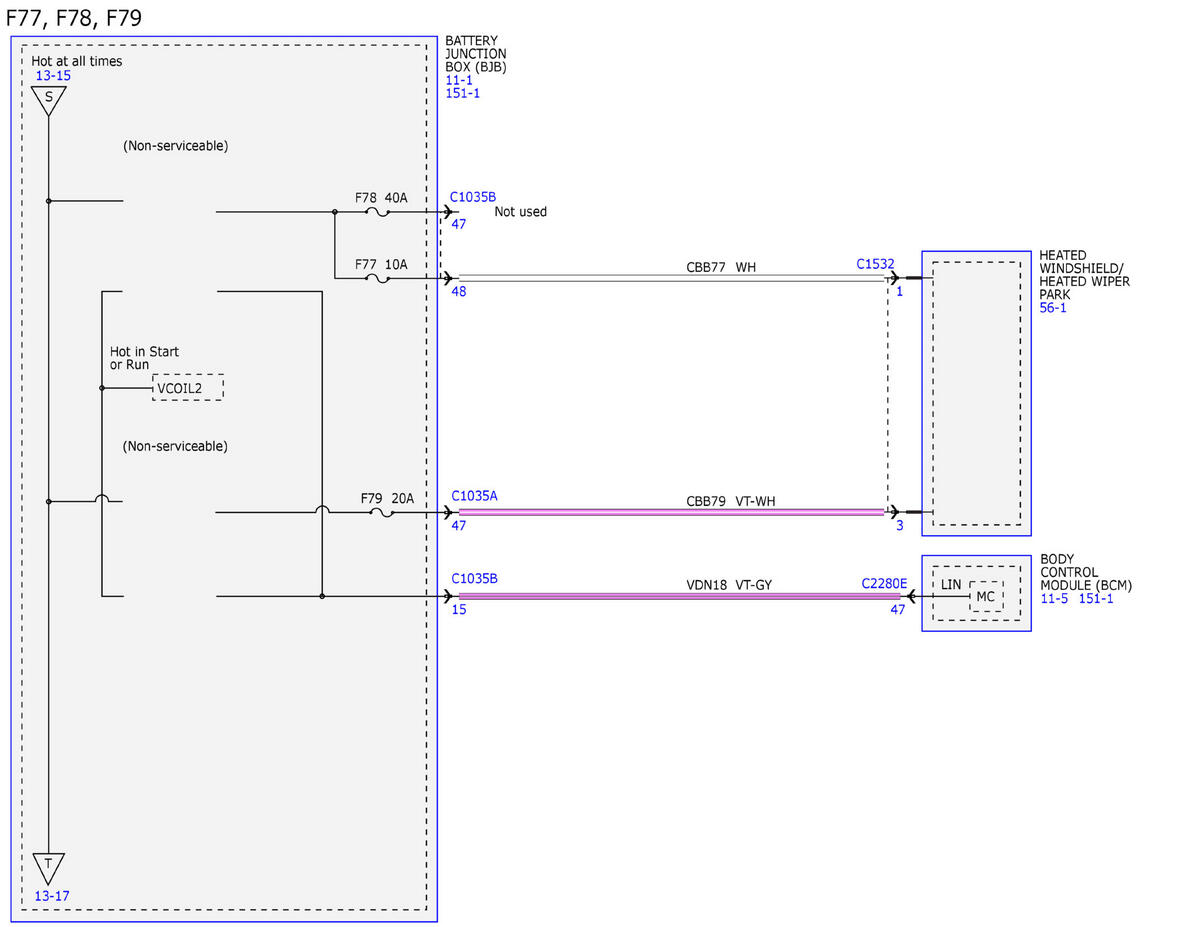

Fig 11: Power Distribution/BCM (11 Of 31)
Courtesy of FORD MOTOR COMPANY

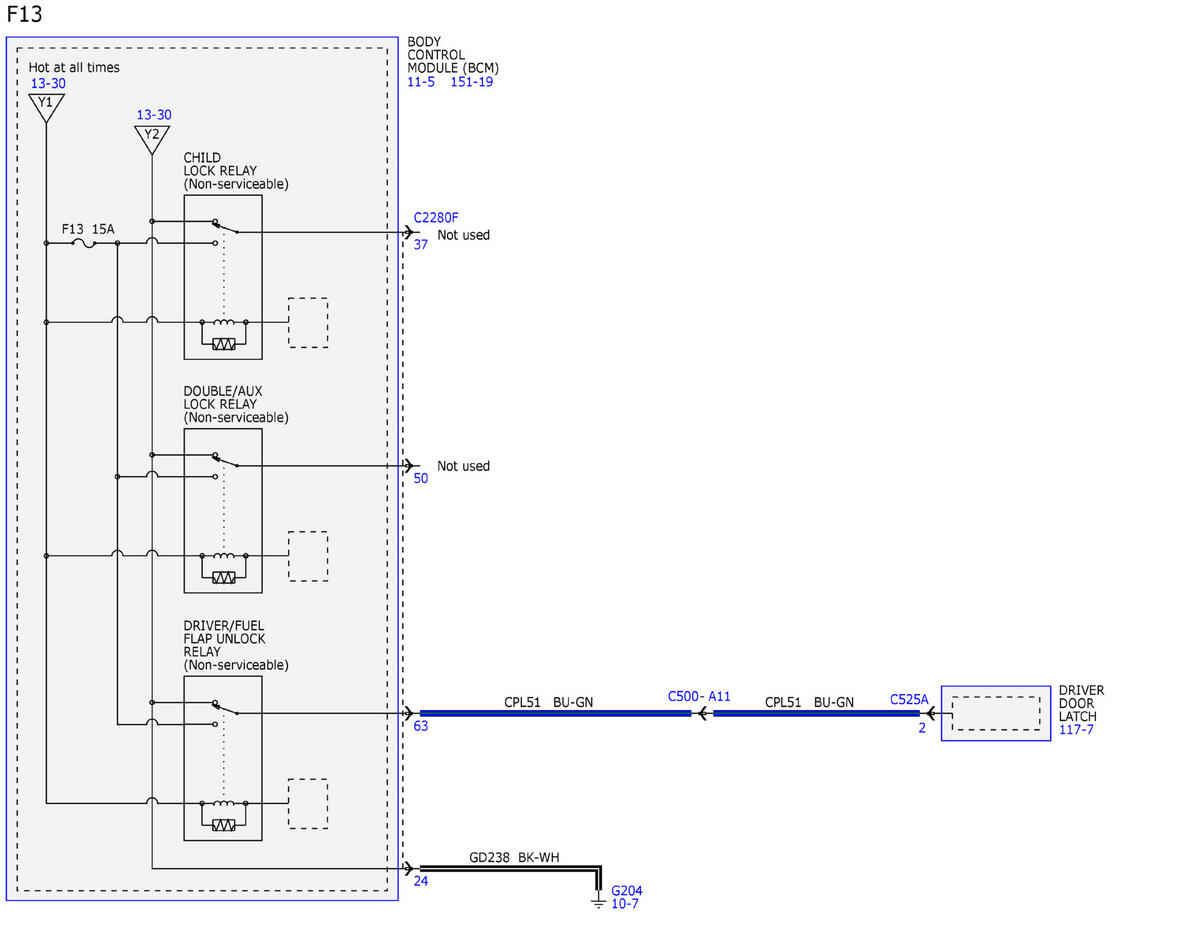

Fig 12: Power Distribution/BCM (12 Of 31)
Courtesy of FORD MOTOR COMPANY

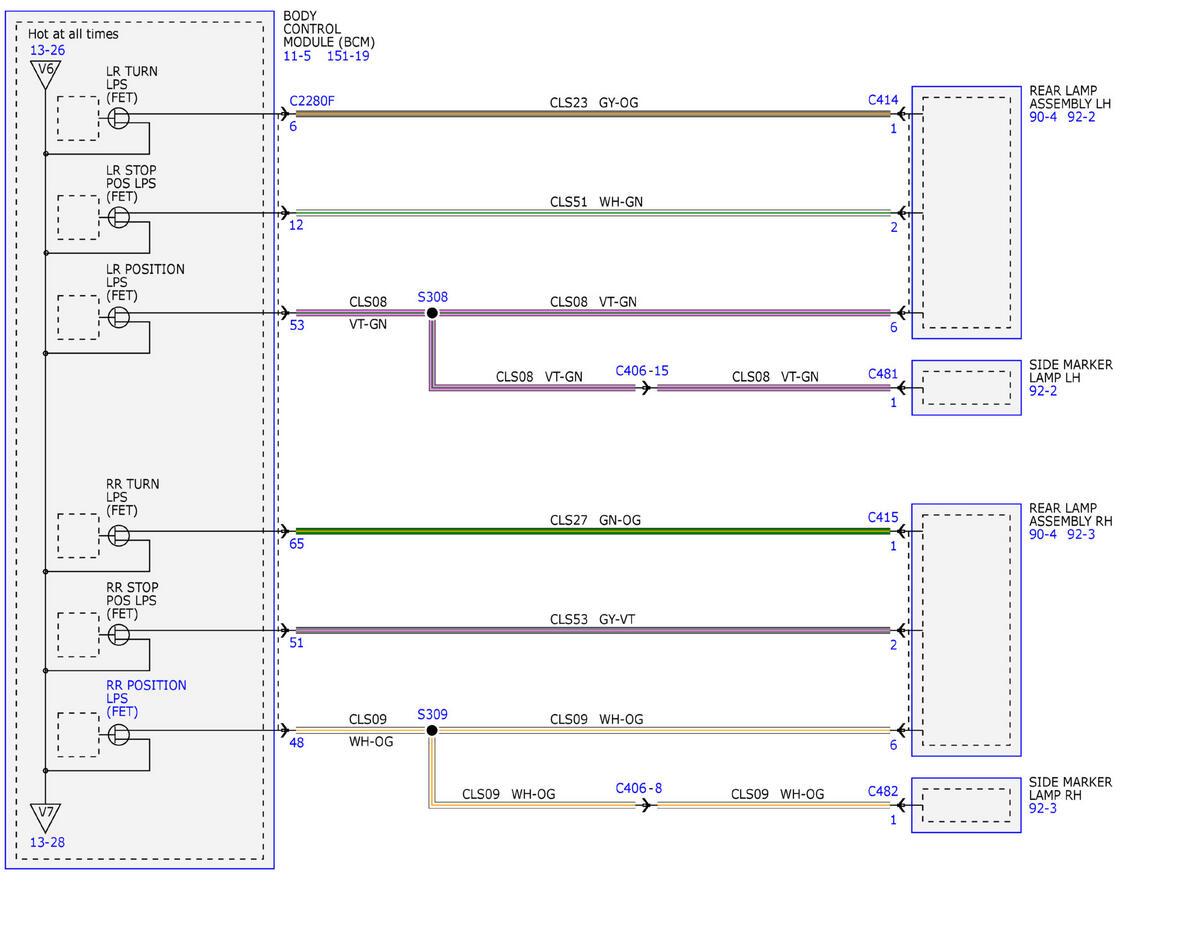

Fig 13: Power Distribution/BCM (13 Of 31)
Courtesy of FORD MOTOR COMPANY

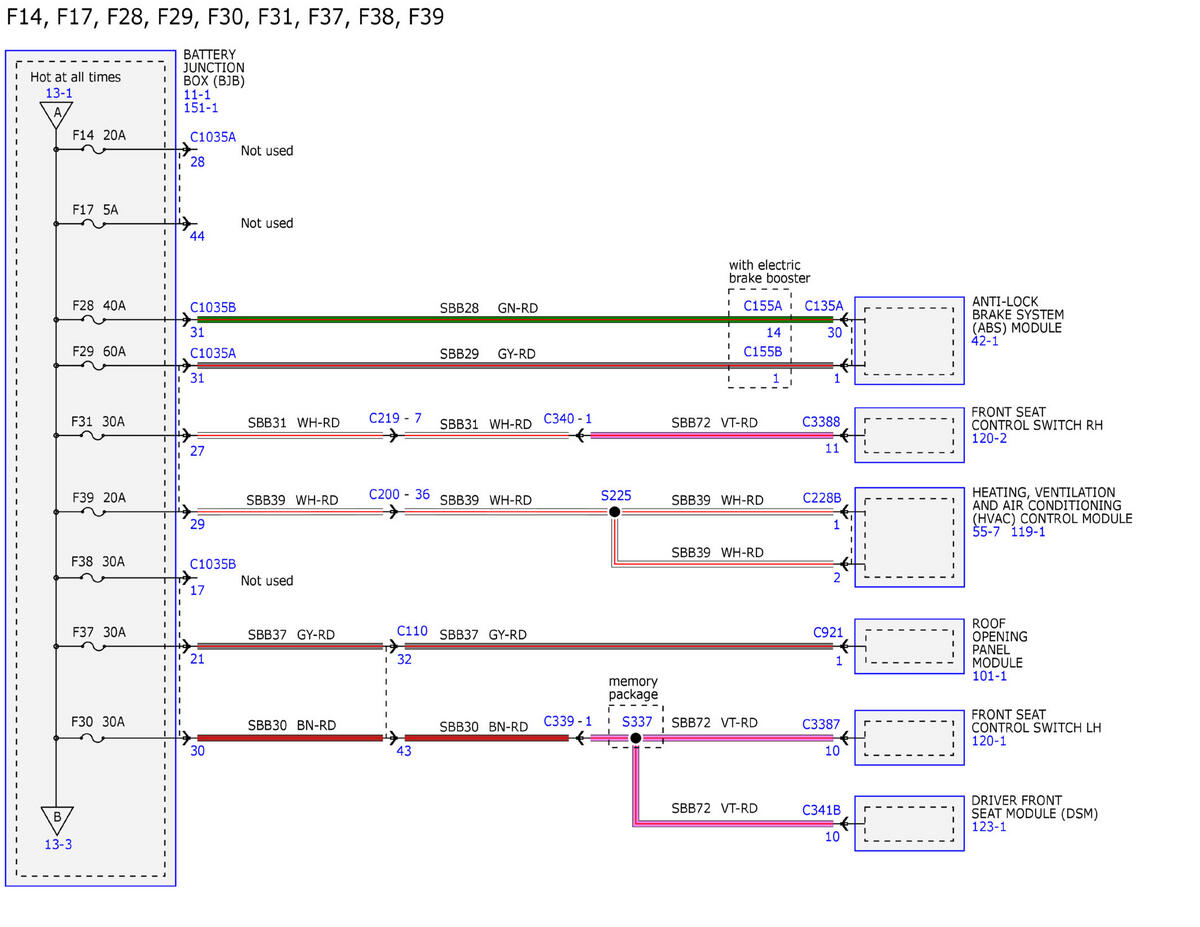

Fig 14: Power Distribution/BCM (14 Of 31)
Courtesy of FORD MOTOR COMPANY

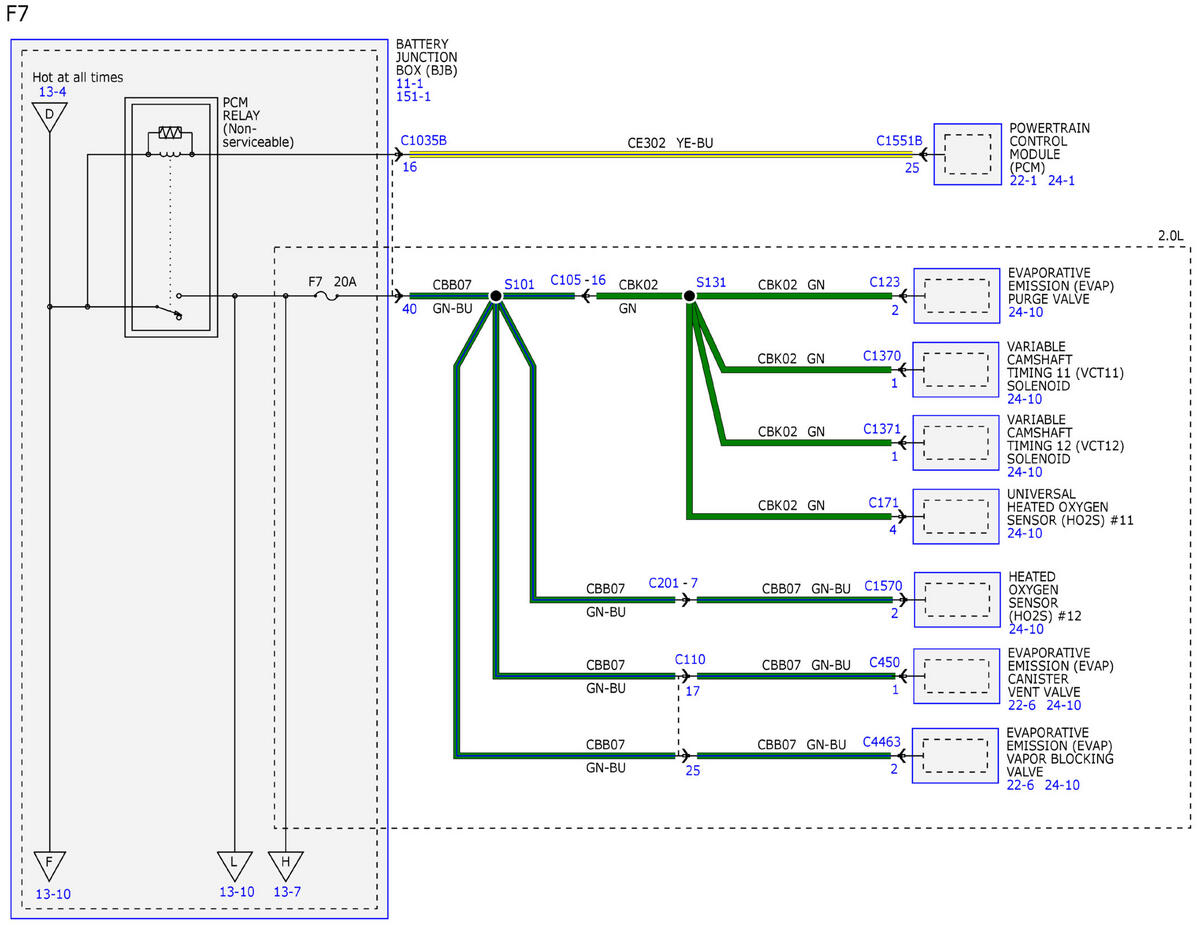

Fig 15: Power Distribution/BCM (15 Of 31)
Courtesy of FORD MOTOR COMPANY

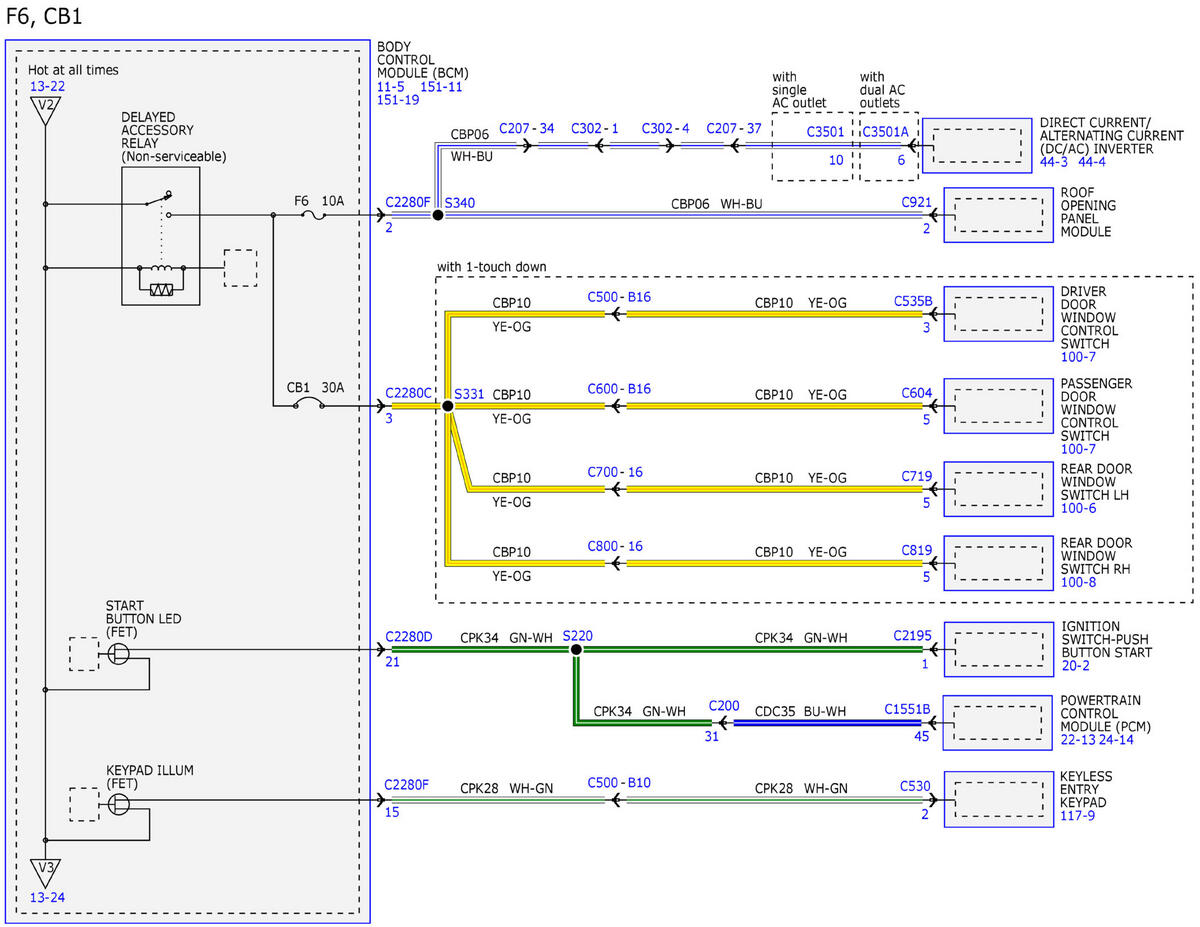

Fig 16: Power Distribution/BCM (16 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 17: Power Distribution/BCM (17 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 18: Power Distribution/BCM (18 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 19: Power Distribution/BCM (19 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 20: Power Distribution/BCM (20 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 21: Power Distribution/BCM (21 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 22: Power Distribution/BCM (22 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 23: Power Distribution/BCM (23 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 24: Power Distribution/BCM (24 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 25: Power Distribution/BCM (25 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 26: Power Distribution/BCM (26 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 27: Power Distribution/BCM (27 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 28: Power Distribution/BCM (28 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 29: Power Distribution/BCM (29 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 30: Power Distribution/BCM (30 Of 31)
Courtesy of FORD MOTOR COMPANY
Fig 31: Power Distribution/BCM (31 Of 31)
Courtesy of FORD MOTOR COMPANY
