Module Communications Network

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

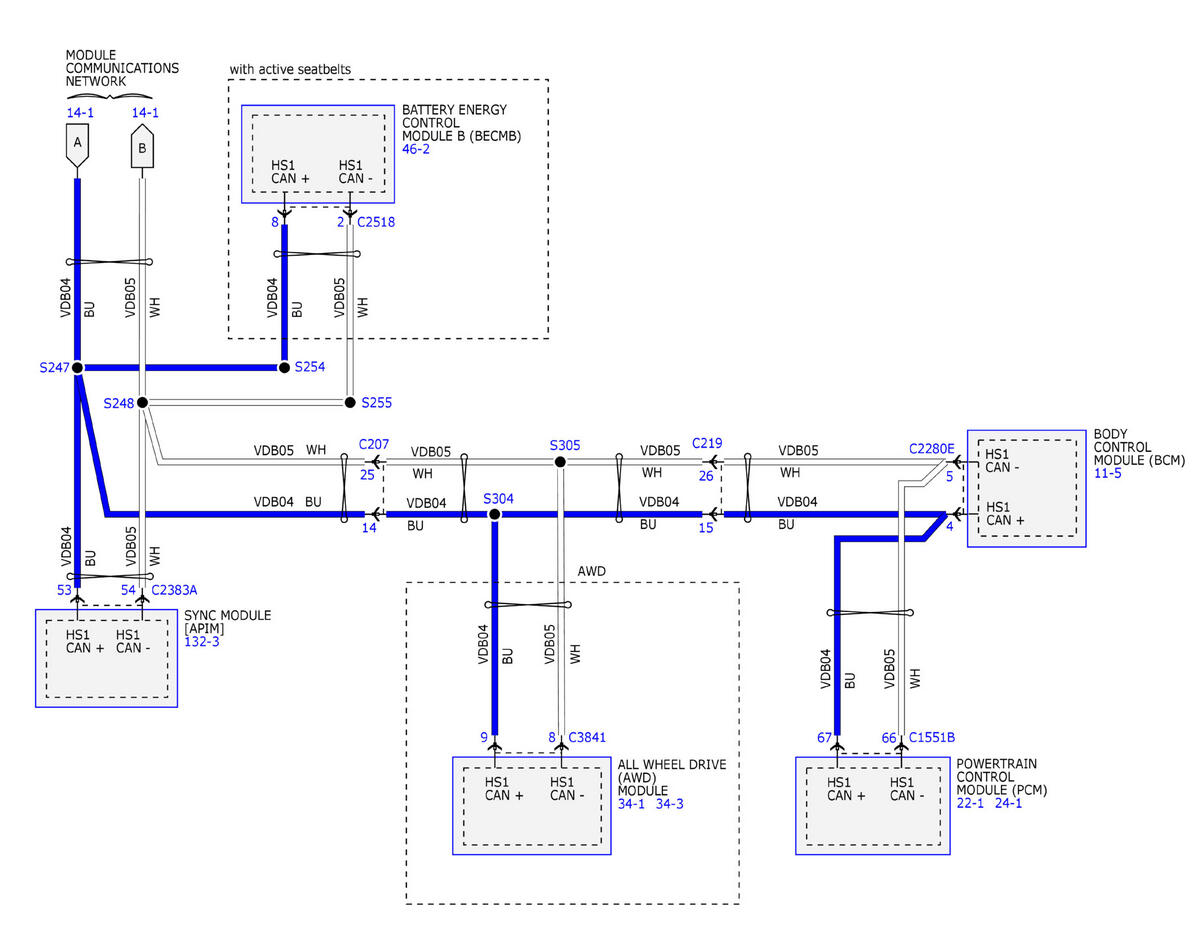

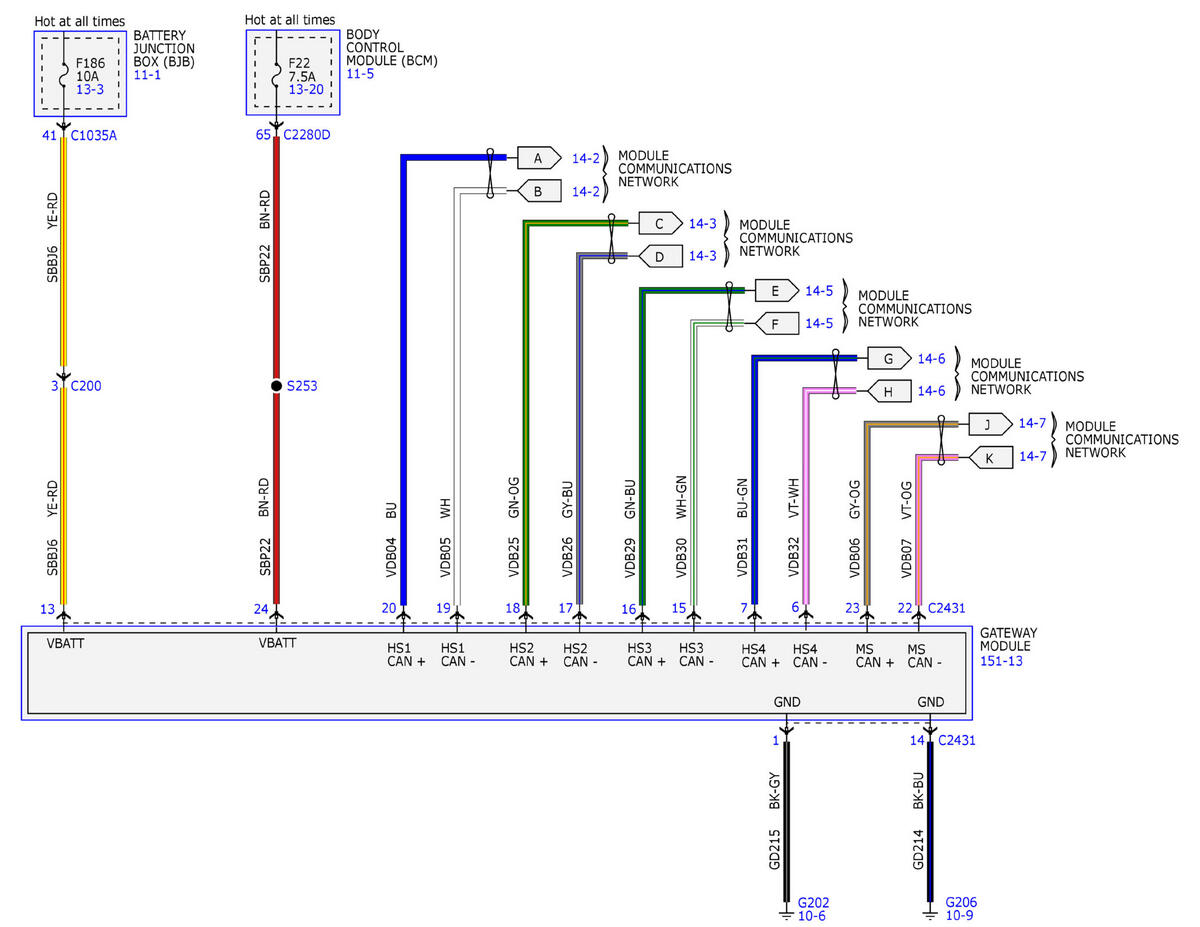

Fig 1: Module Communications Network (1 Of 9)

Courtesy of FORD MOTOR COMPANY

Fig 2: Module Communications Network (2 Of 9)

Courtesy of FORD MOTOR COMPANY

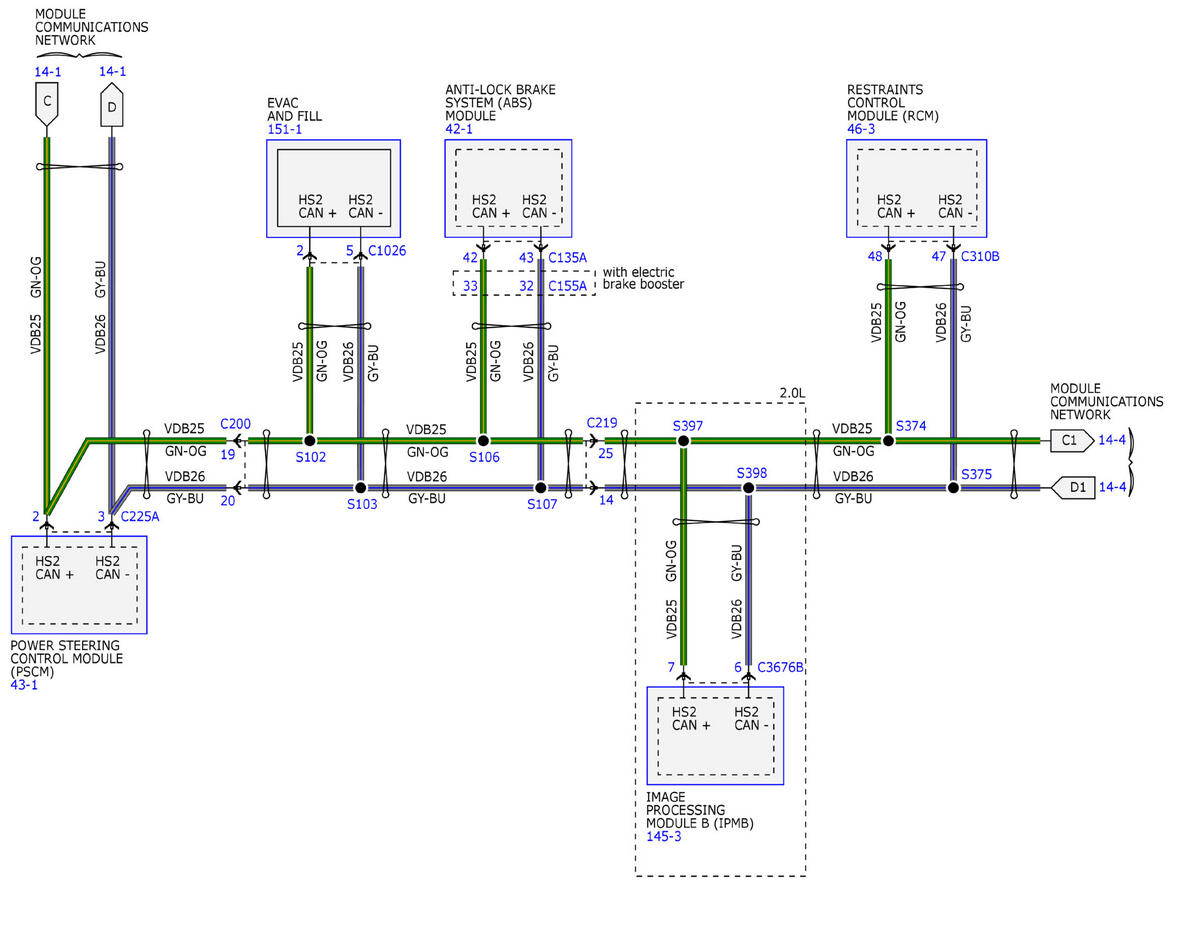

Fig 3: Module Communications Network (3 Of 9)

Courtesy of FORD MOTOR COMPANY

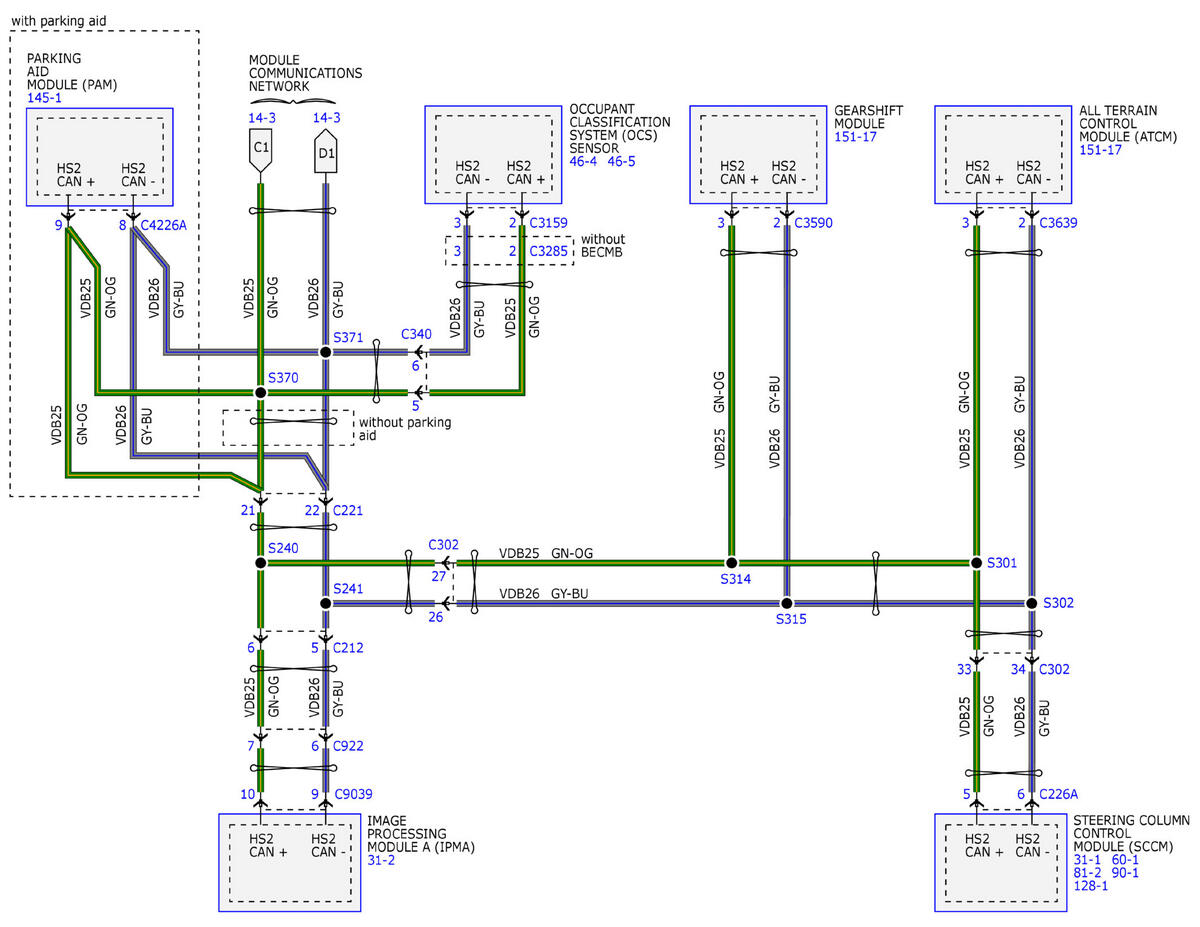

Fig 4: Module Communications Network (4 Of 9)

Courtesy of FORD MOTOR COMPANY

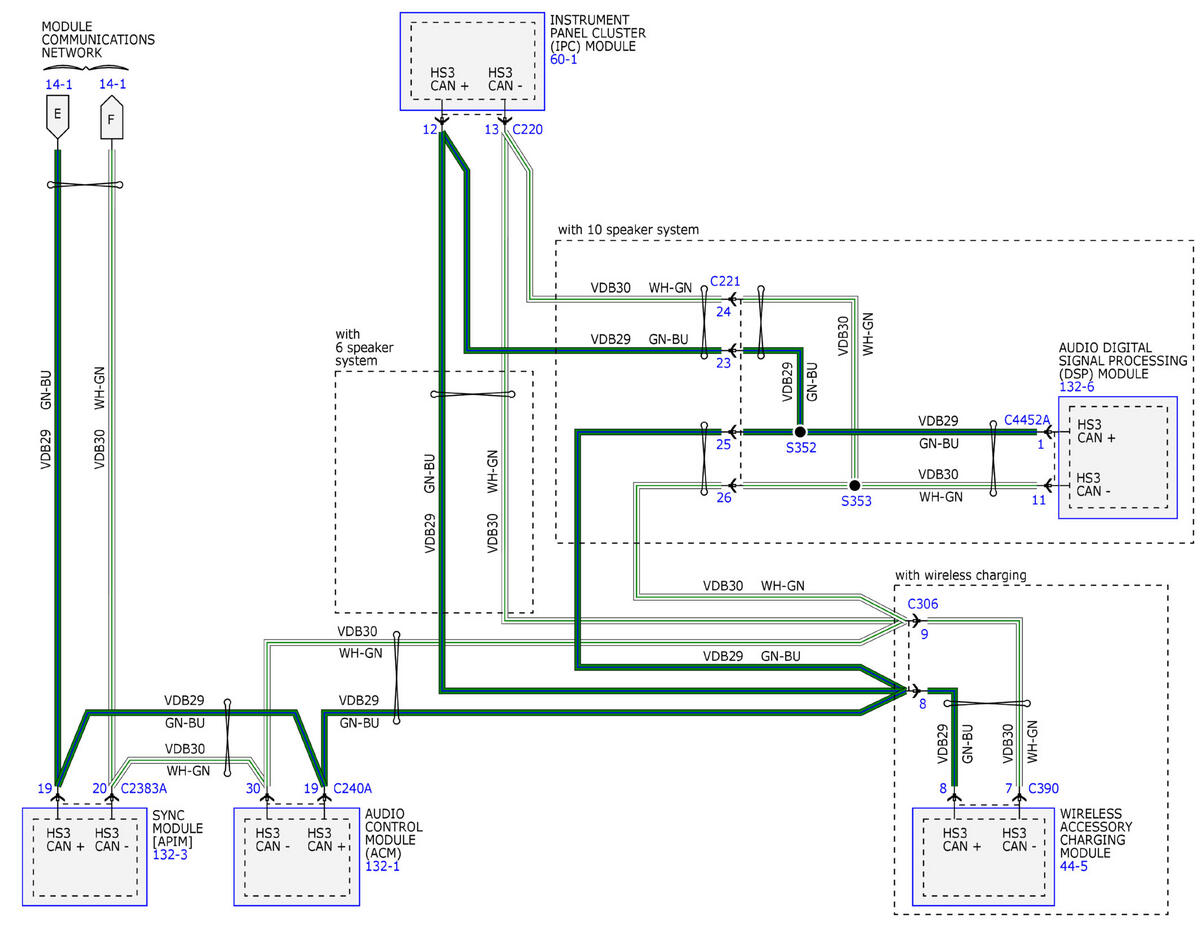

Fig 5: Module Communications Network (5 Of 9)

Courtesy of FORD MOTOR COMPANY

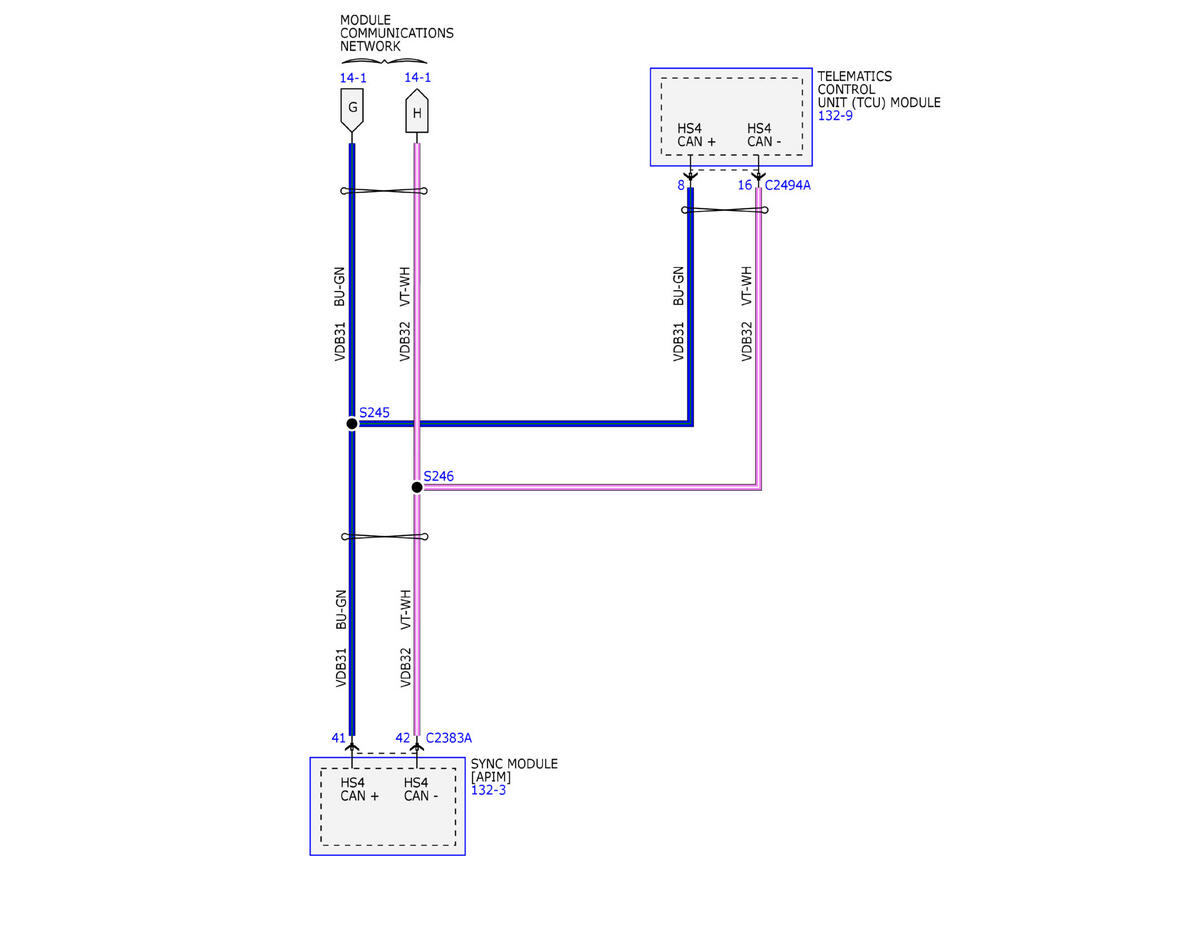

Fig 6: Module Communications Network (6 Of 9)

Courtesy of FORD MOTOR COMPANY

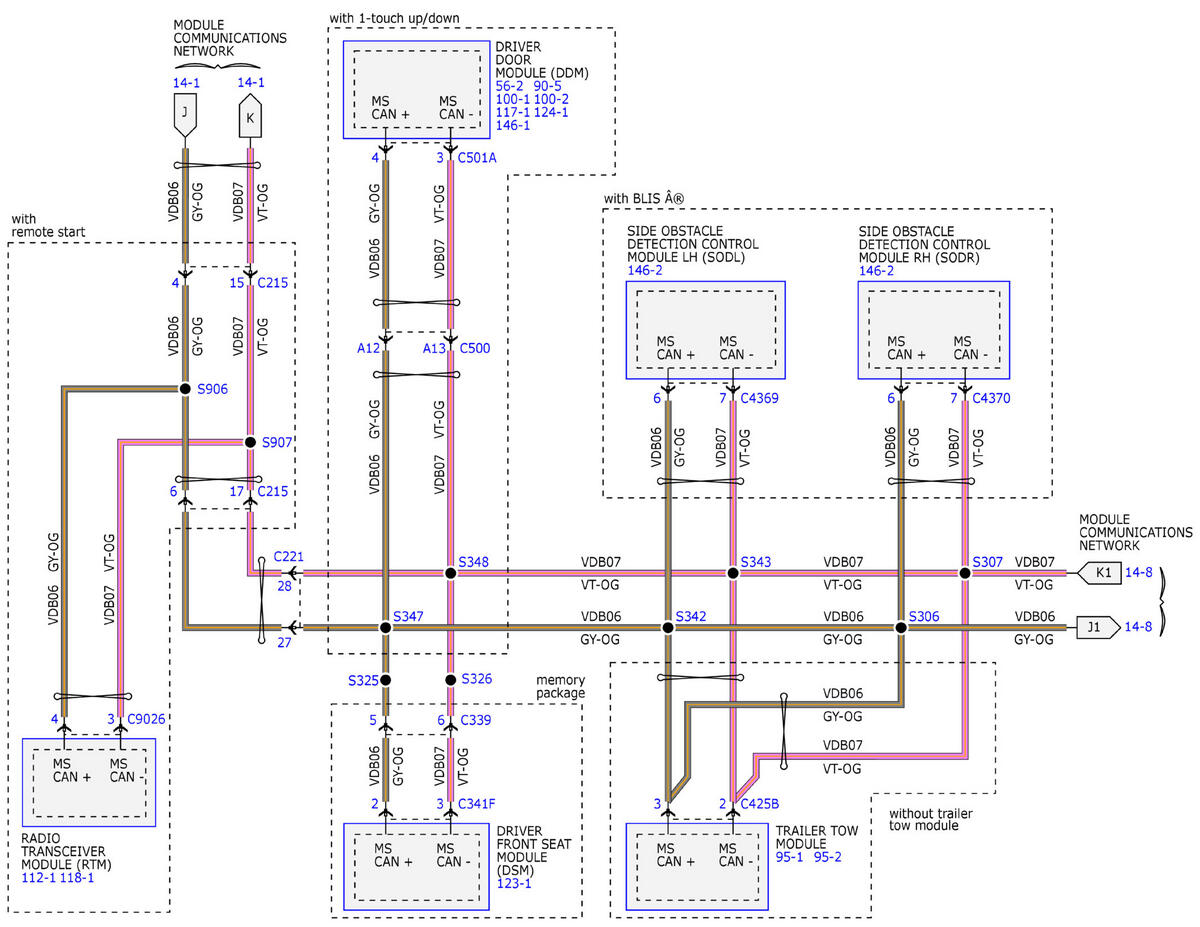

Fig 7: Module Communications Network (7 Of 9)

Courtesy of FORD MOTOR COMPANY

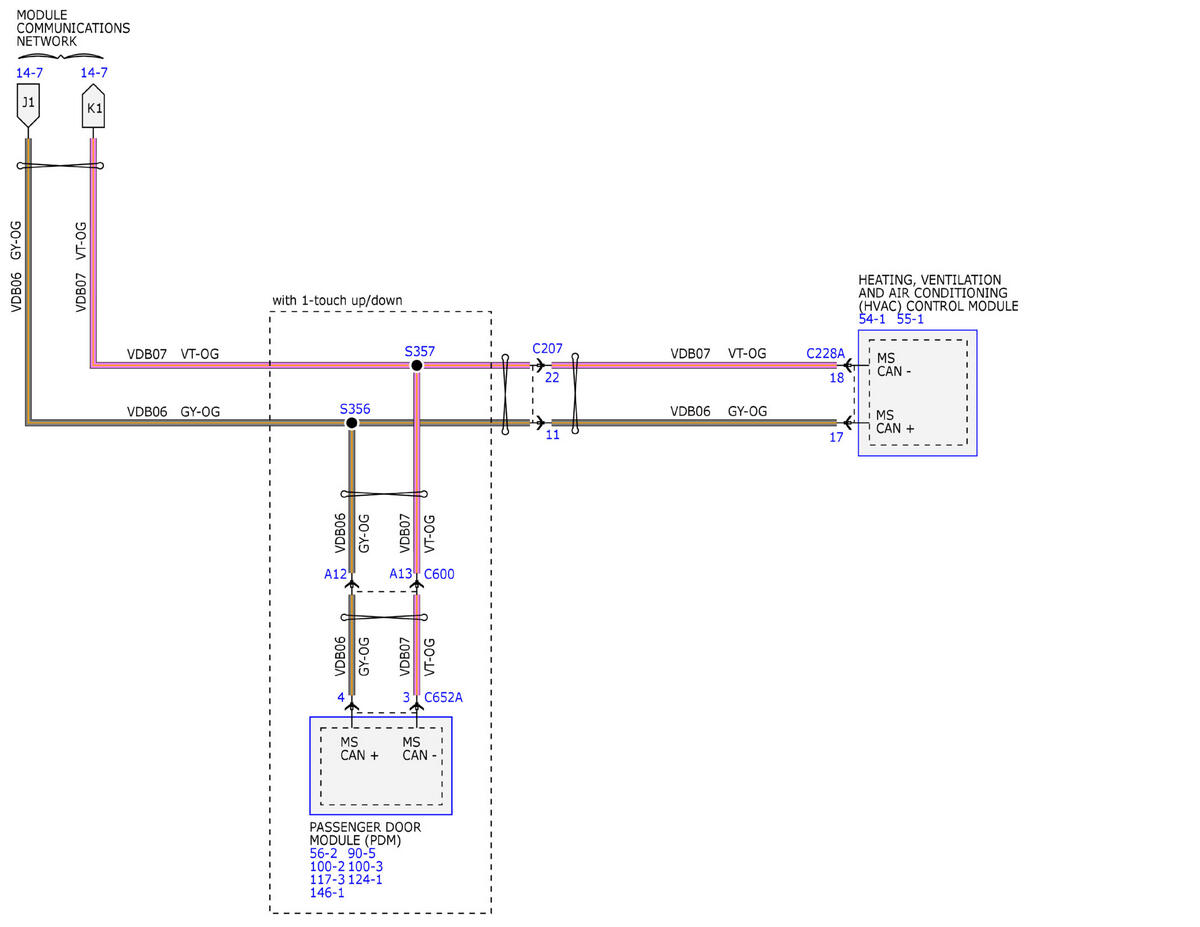

Fig 8: Module Communications Network (8 Of 9)

Courtesy of FORD MOTOR COMPANY

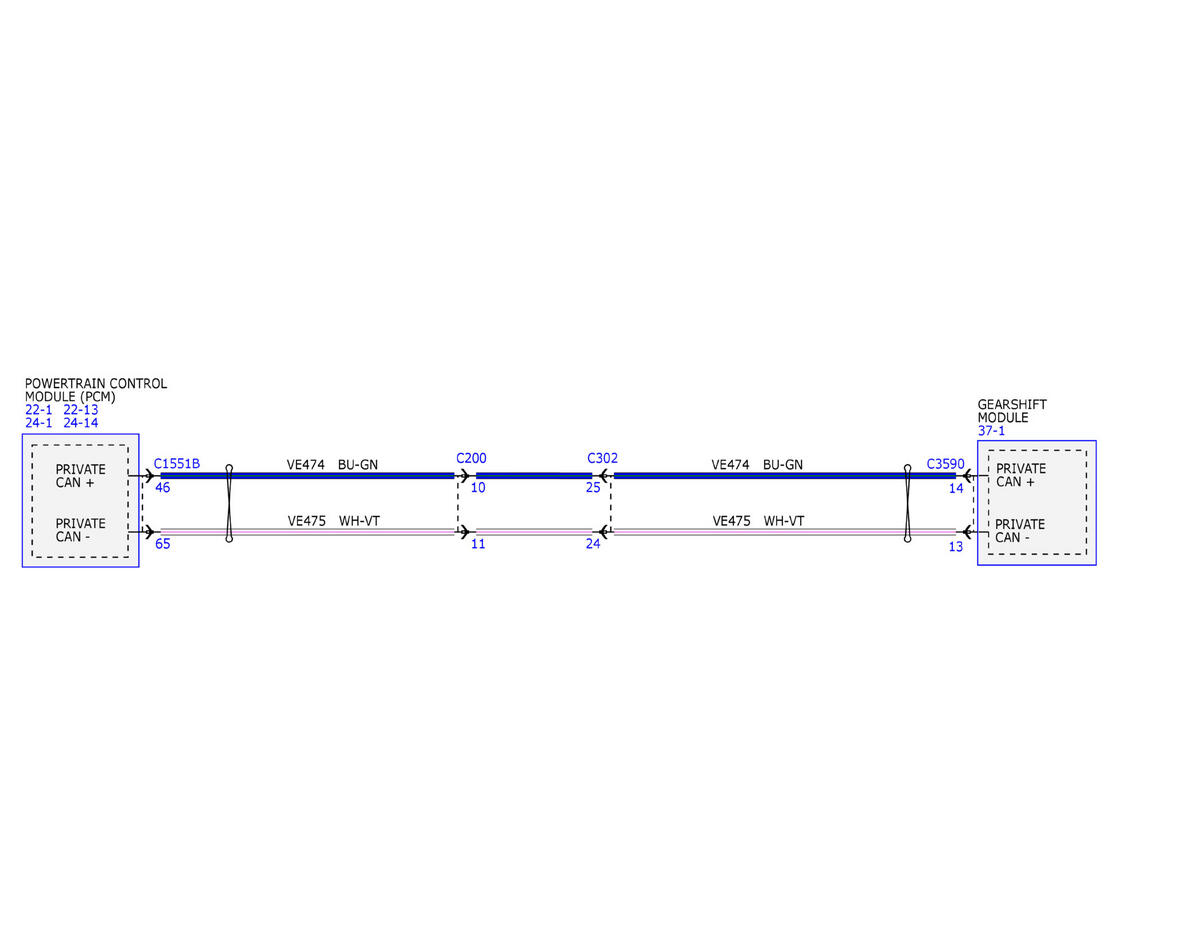

Fig 9: Module Communications Network (9 Of 9)

Courtesy of FORD MOTOR COMPANY
