Manual Climate Control System

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

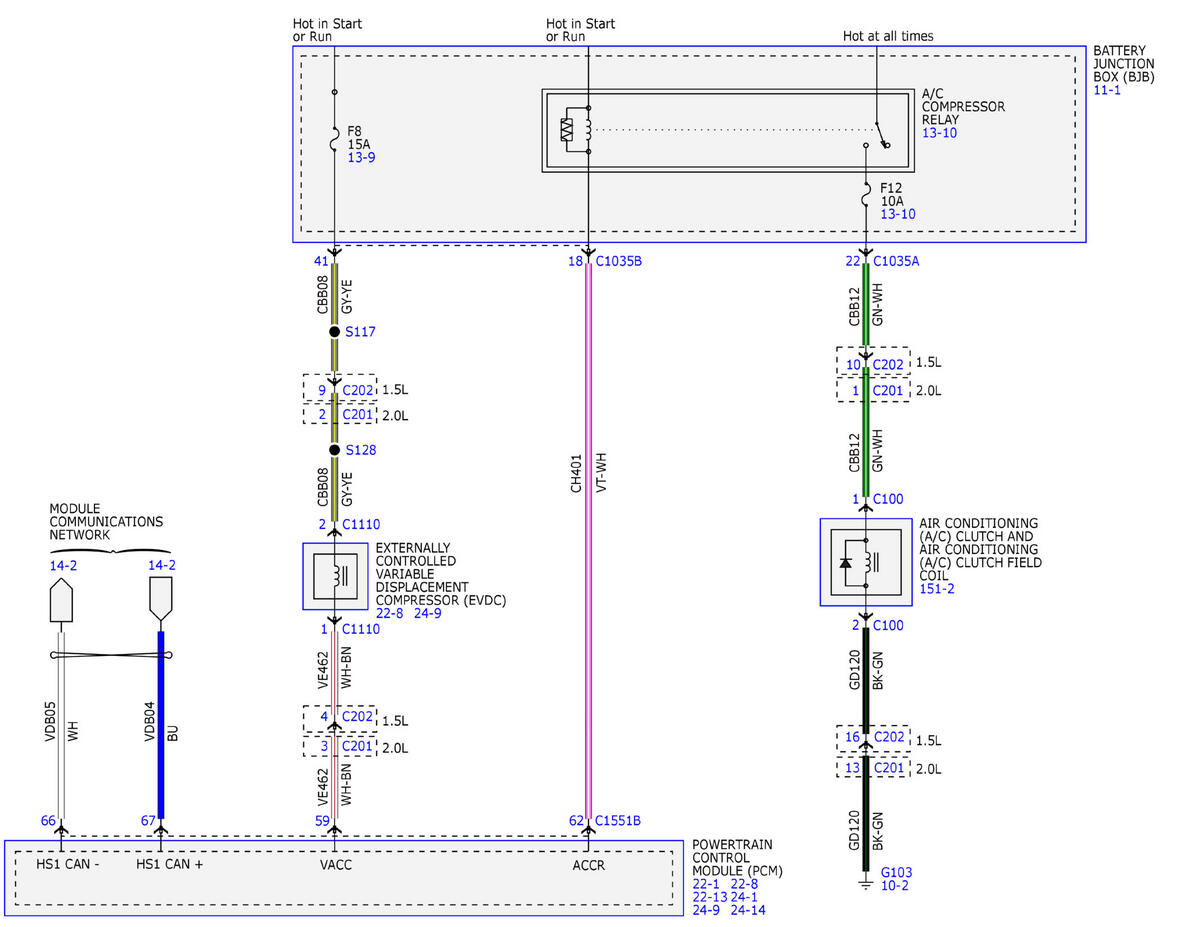

Fig 1: Manual Climate Control System (1 Of 6)

Courtesy of FORD MOTOR COMPANY

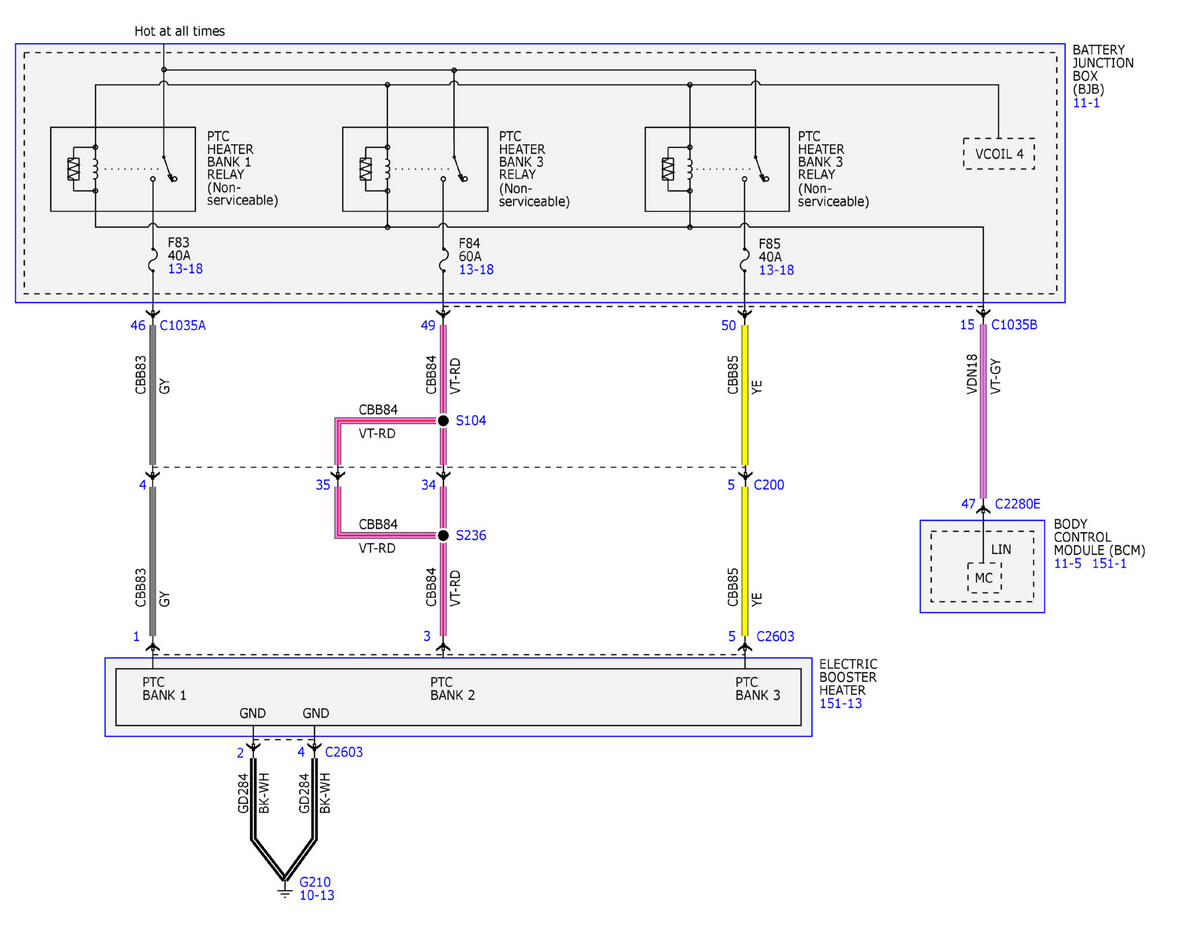

Fig 2: Manual Climate Control System (2 Of 6)

Courtesy of FORD MOTOR COMPANY

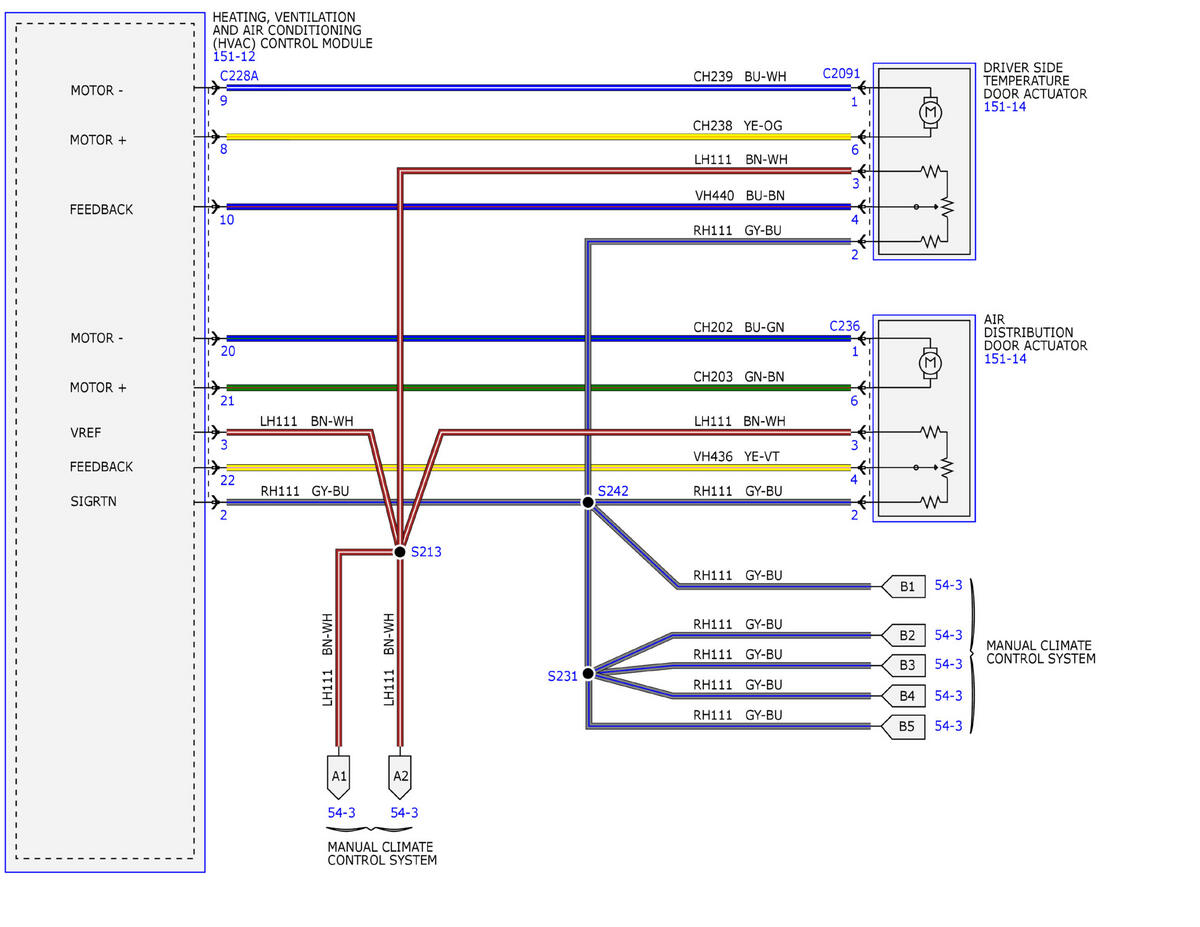

Fig 3: Manual Climate Control System (3 Of 6)

Courtesy of FORD MOTOR COMPANY

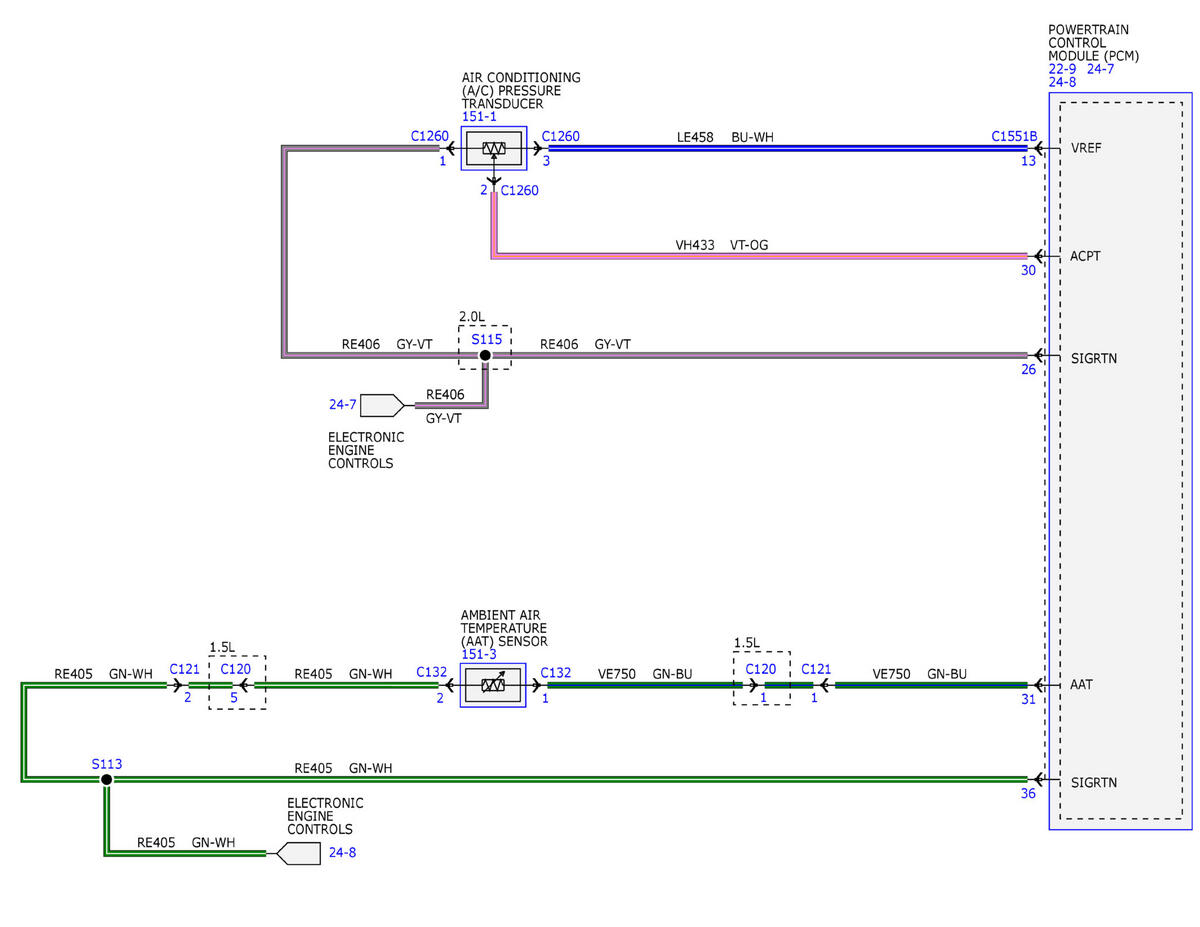

Fig 4: Manual Climate Control System (4 Of 6)

Courtesy of FORD MOTOR COMPANY

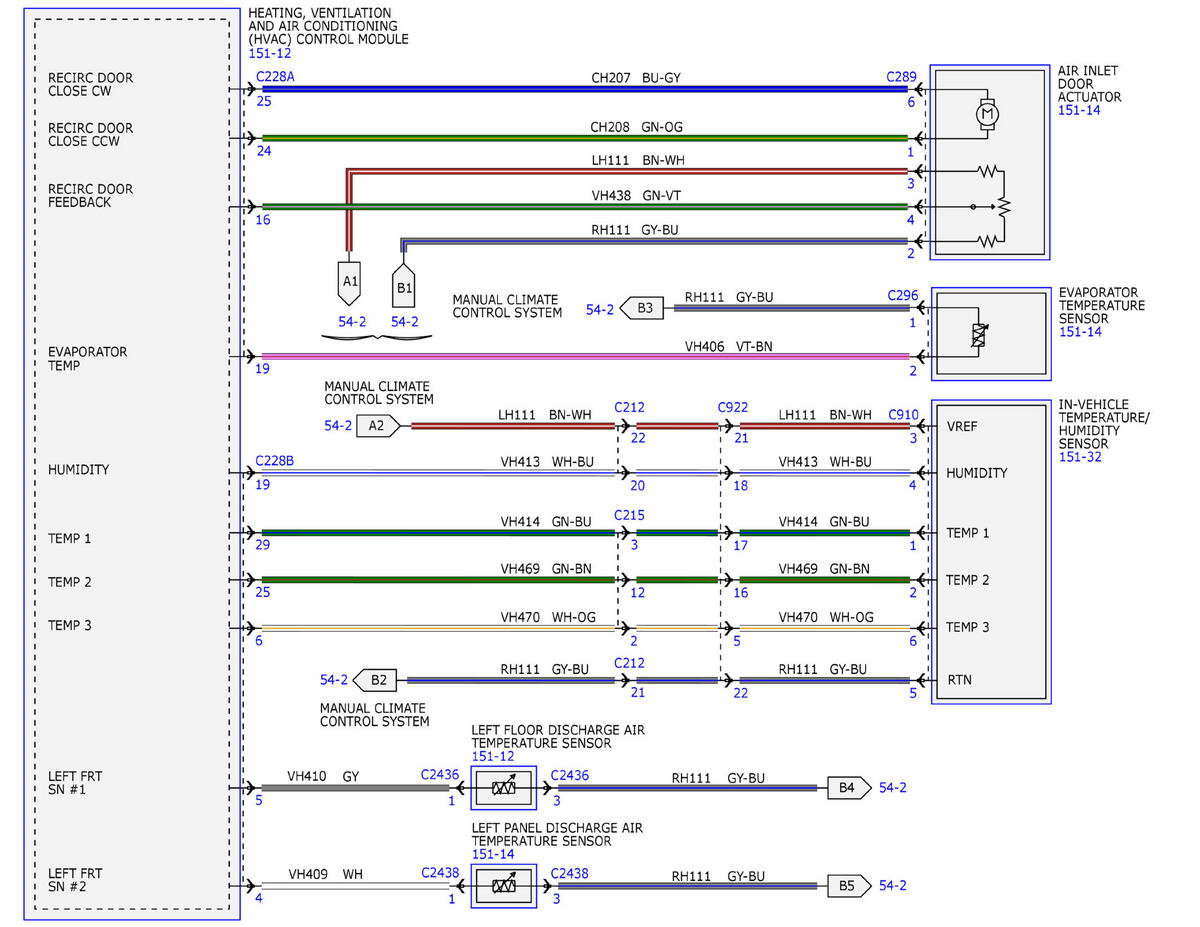

Fig 5: Manual Climate Control System (5 Of 6)

Courtesy of FORD MOTOR COMPANY

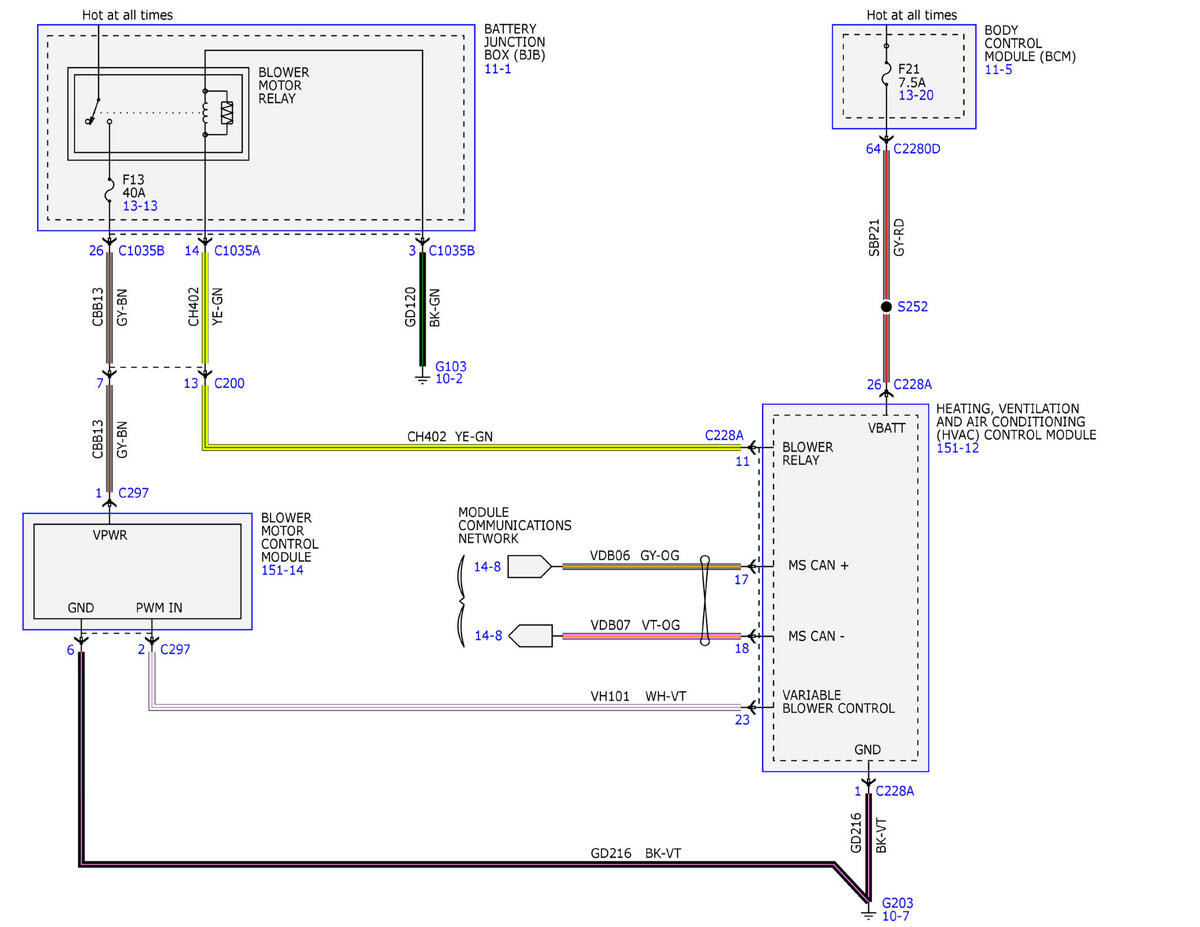

Fig 6: Manual Climate Control System (6 Of 6)

Courtesy of FORD MOTOR COMPANY
