WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

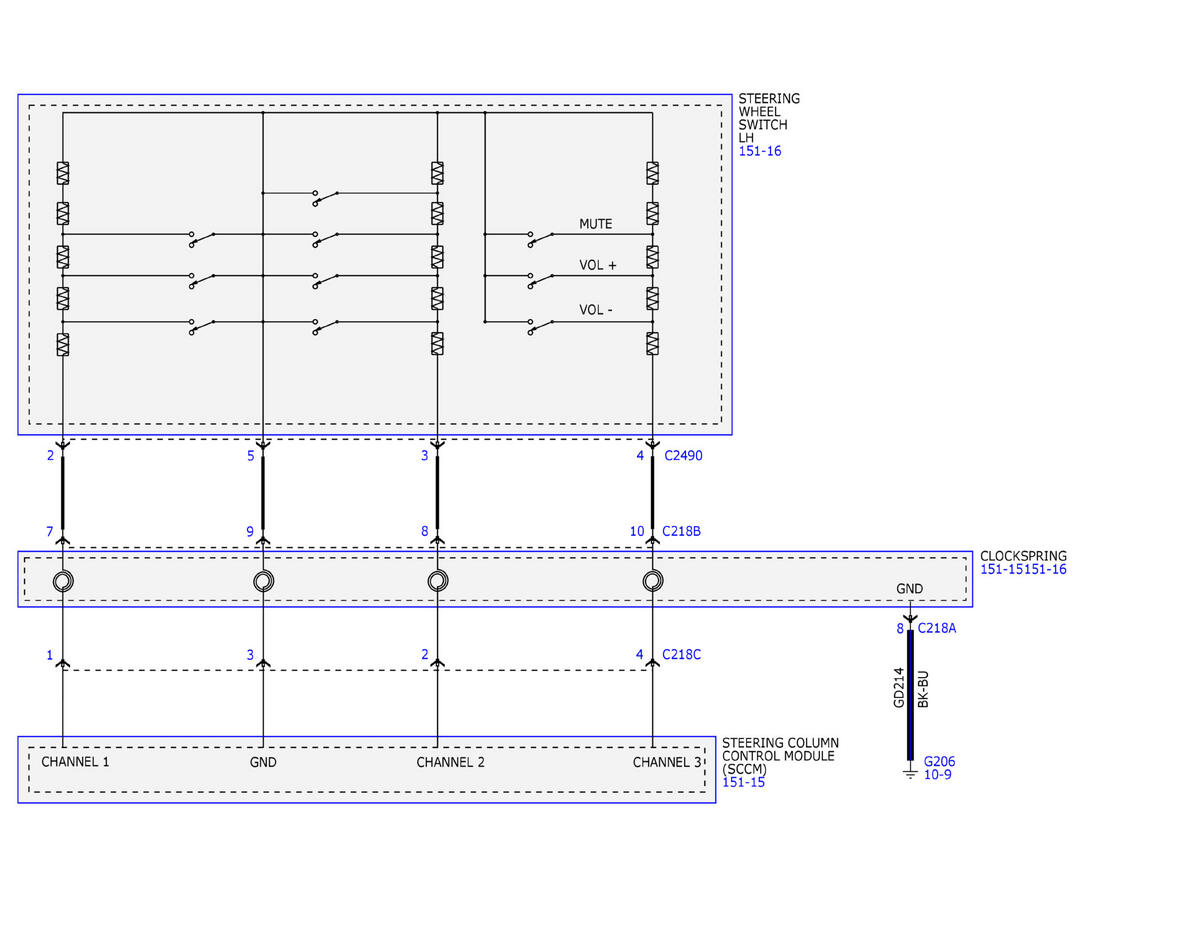

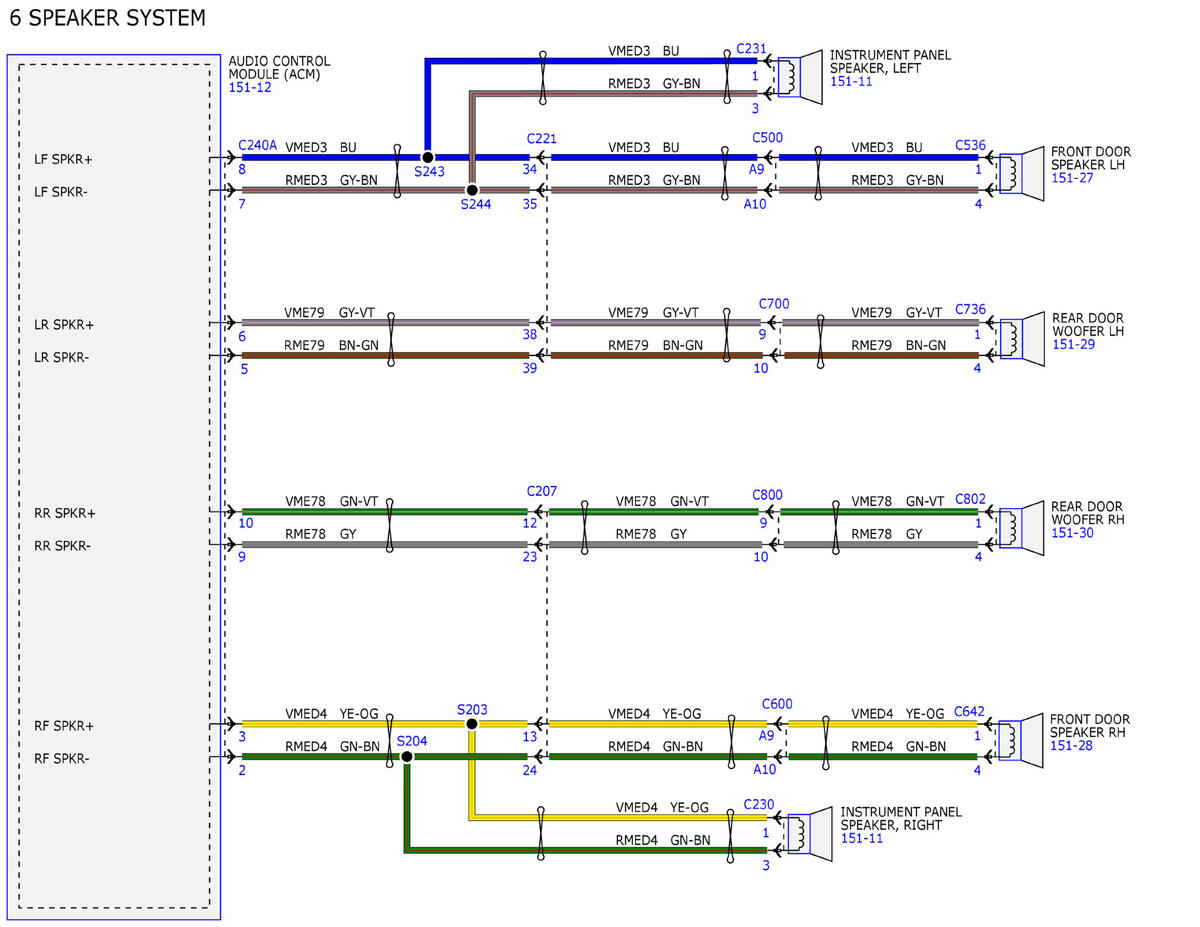

Fig 1: Audio System/Navigation - AM/FM/CD/SYNC (1 Of 11)
Courtesy of FORD MOTOR COMPANY

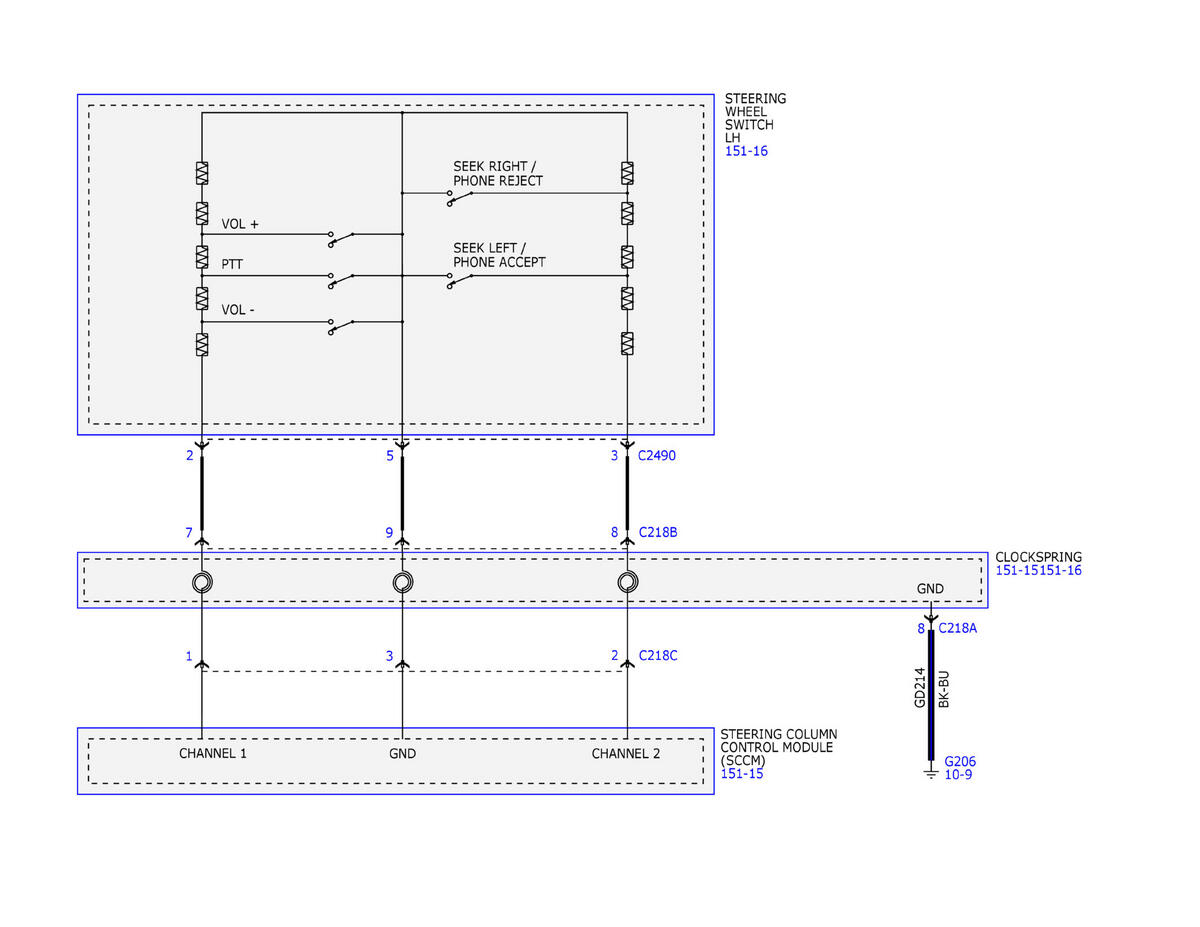

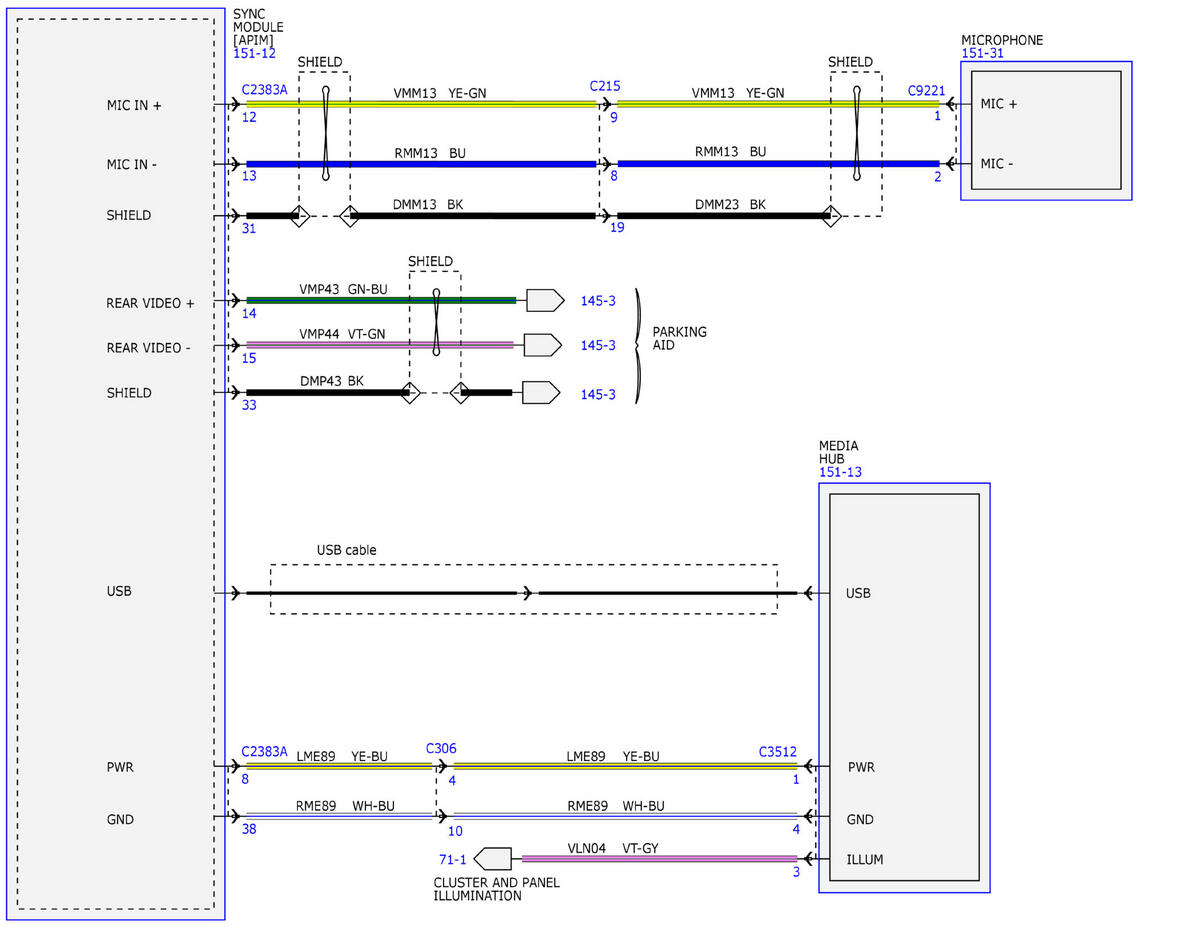

Fig 2: Audio System/Navigation - AM/FM/CD/SYNC (2 Of 11)
Courtesy of FORD MOTOR COMPANY

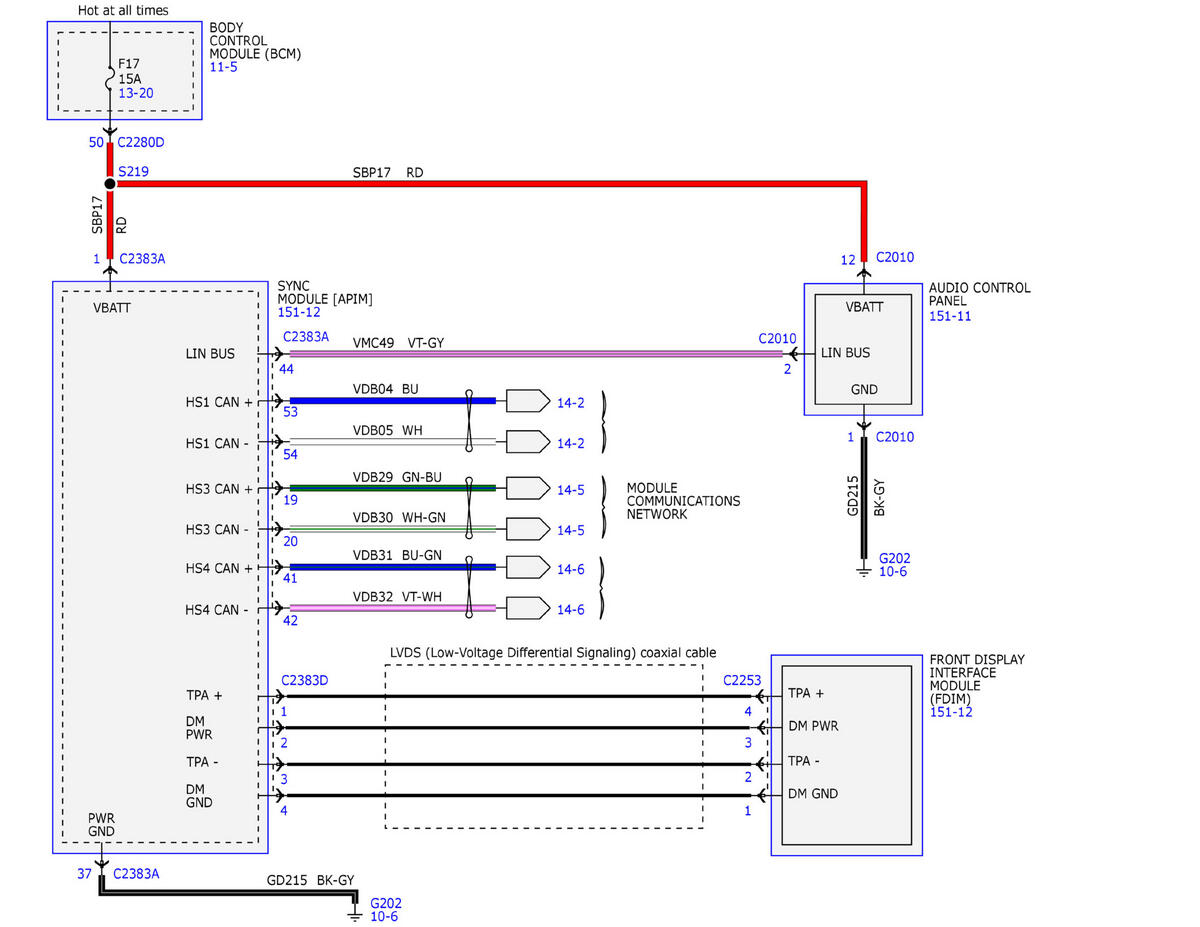

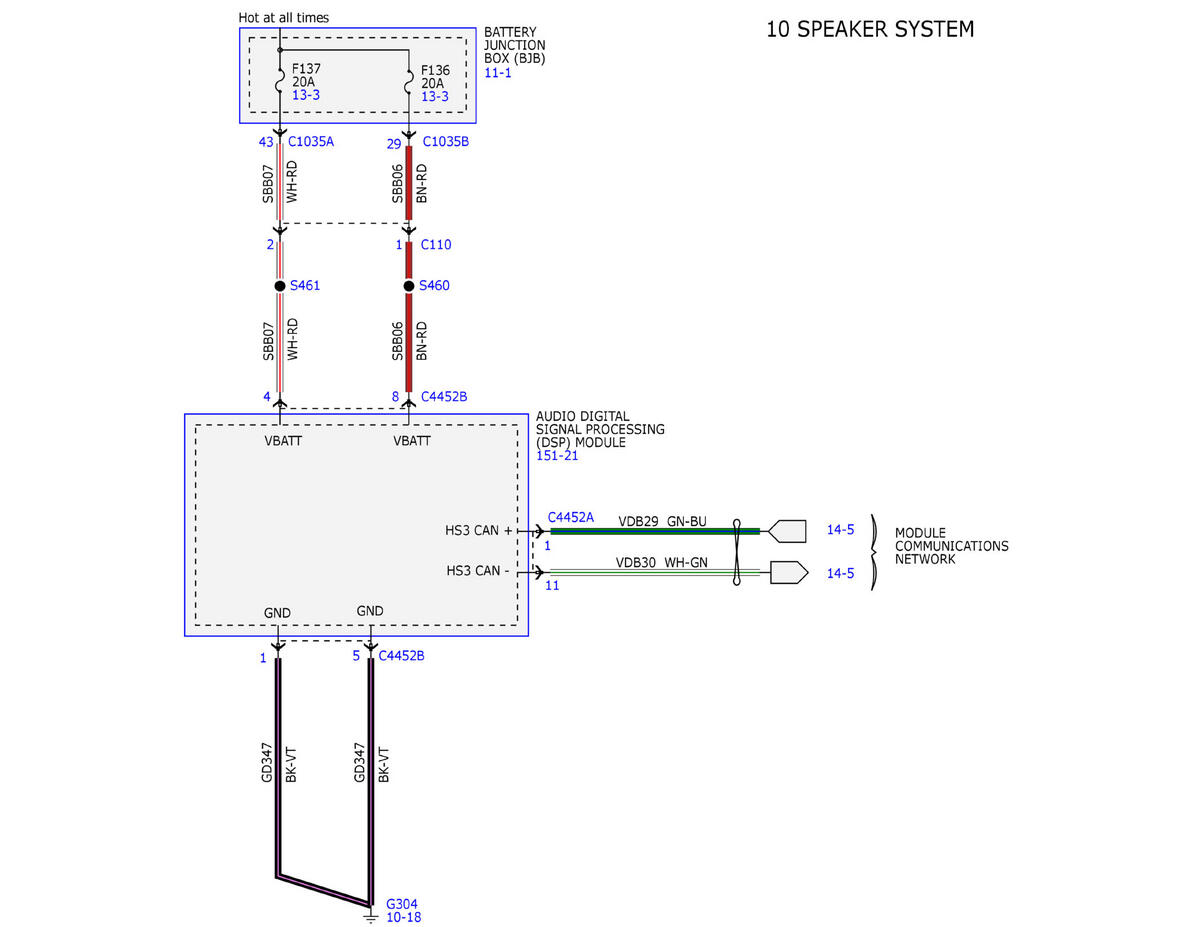

Fig 3: Audio System/Navigation - AM/FM/CD/SYNC (3 Of 11)
Courtesy of FORD MOTOR COMPANY

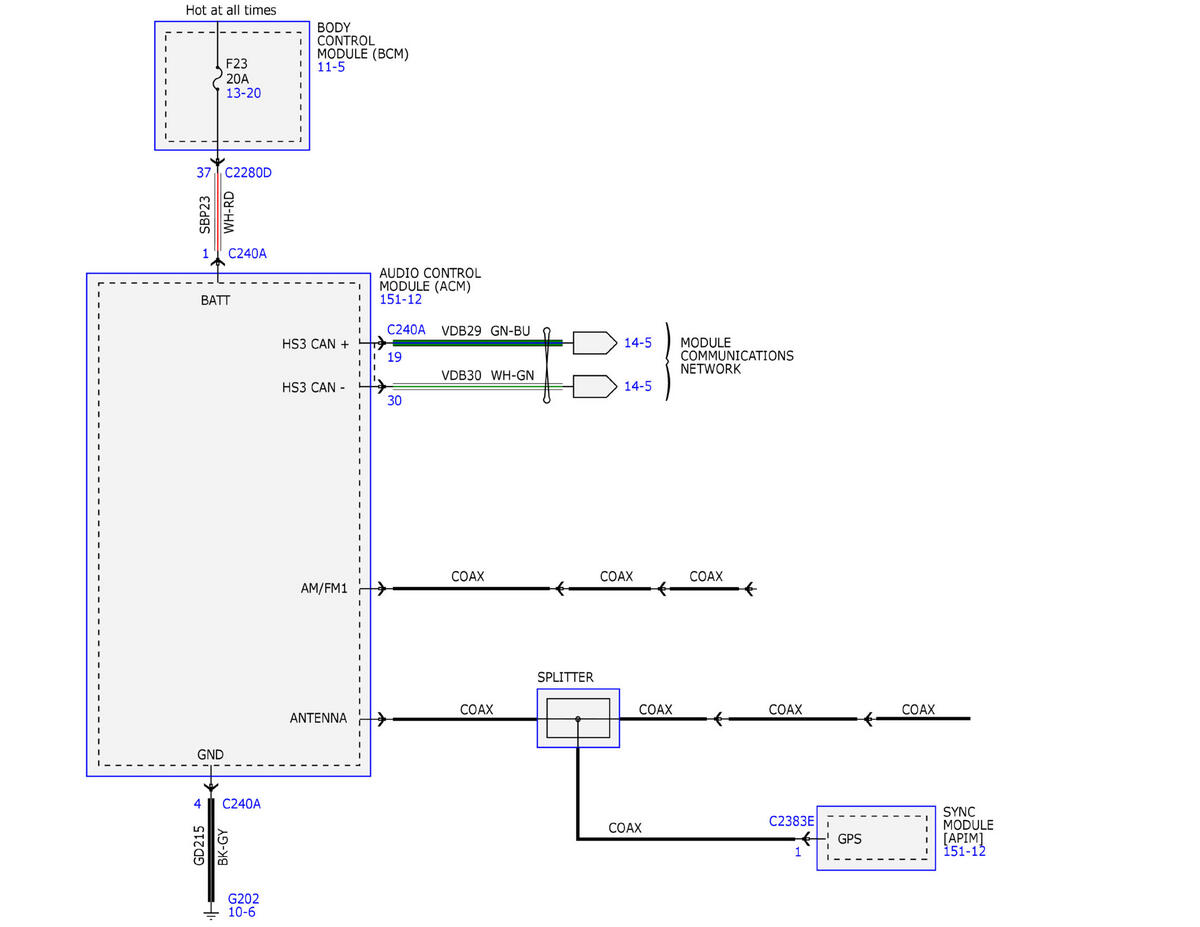

Fig 4: Audio System/Navigation - AM/FM/CD/SYNC (4 Of 11)
Courtesy of FORD MOTOR COMPANY

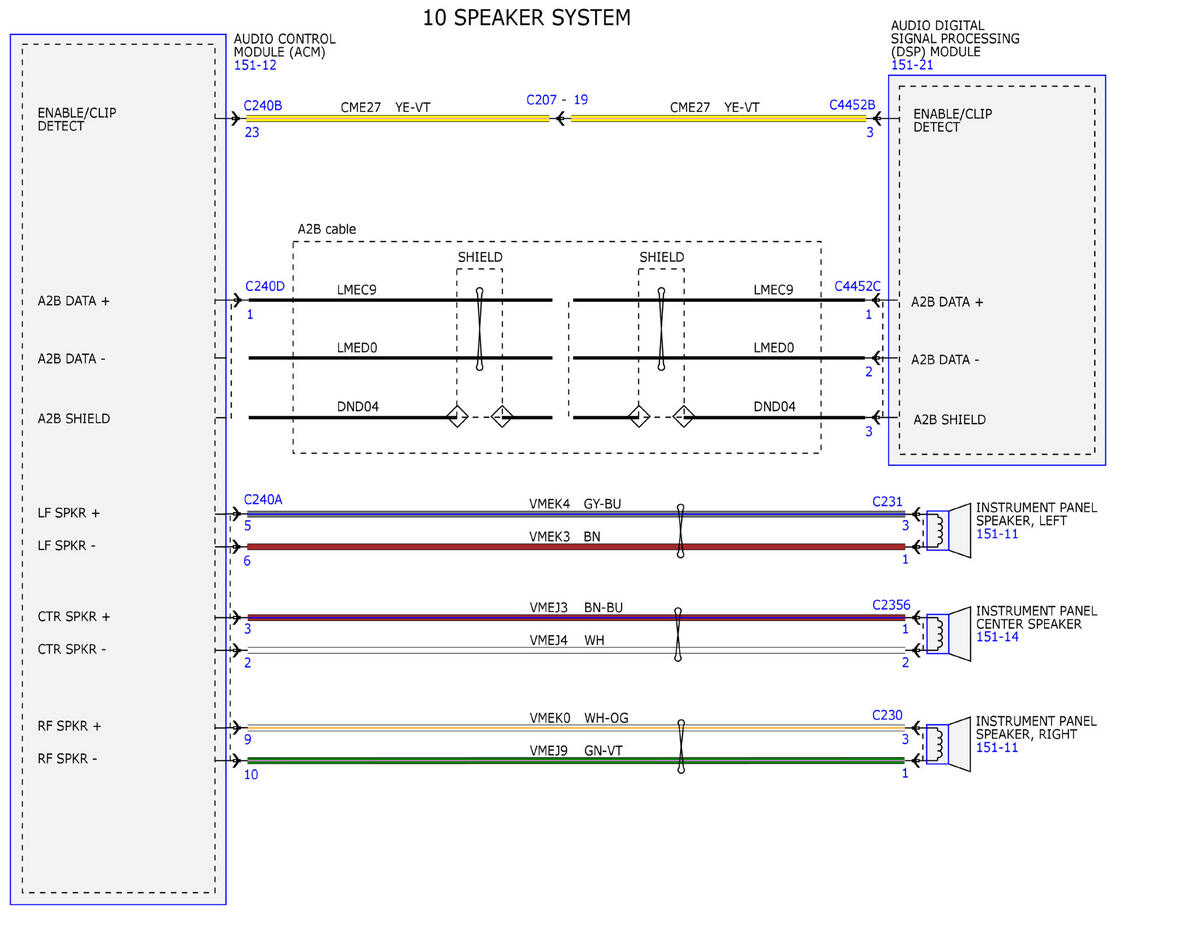

Fig 5: Audio System/Navigation - AM/FM/CD/SYNC (5 Of 11)
Courtesy of FORD MOTOR COMPANY

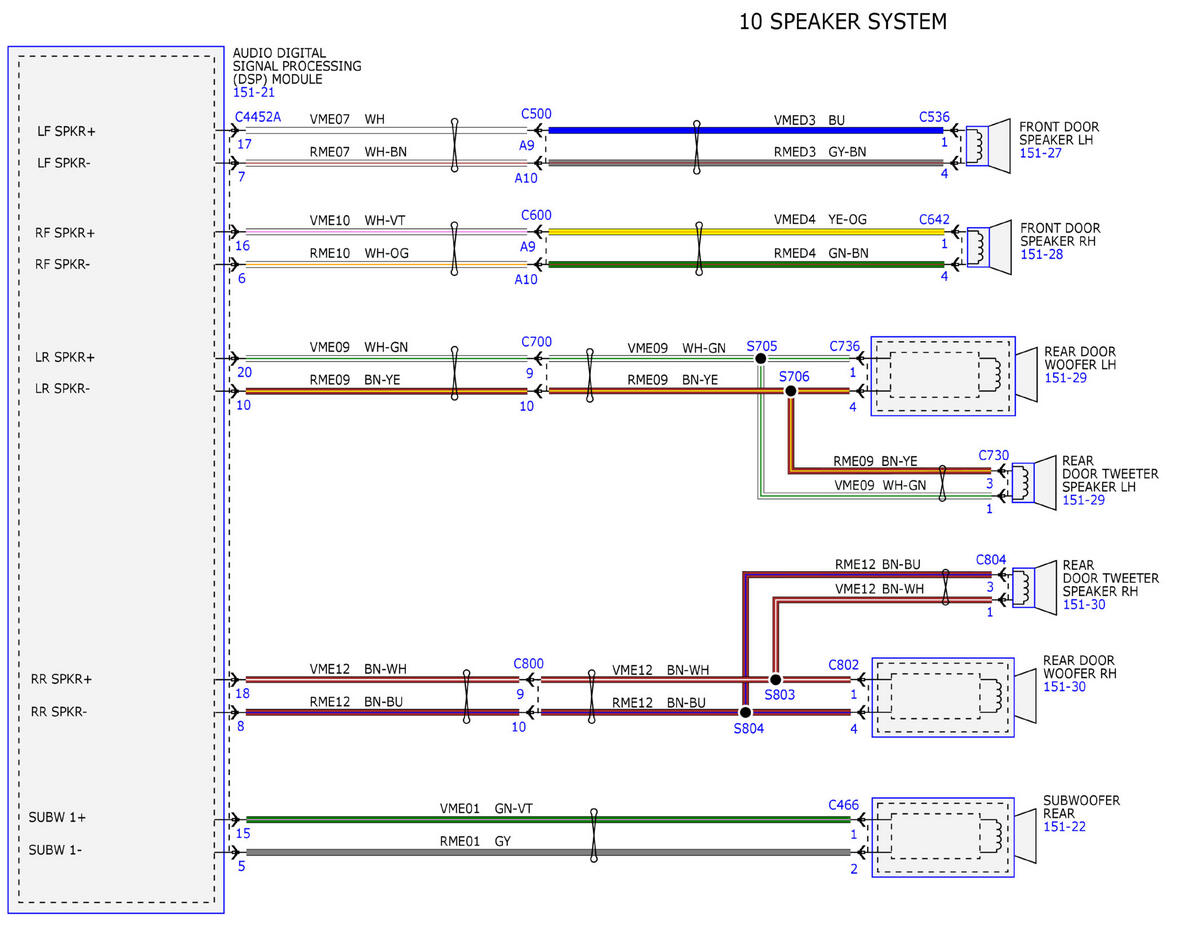

Fig 6: Audio System/Navigation - AM/FM/CD/SYNC (6 Of 11)
Courtesy of FORD MOTOR COMPANY

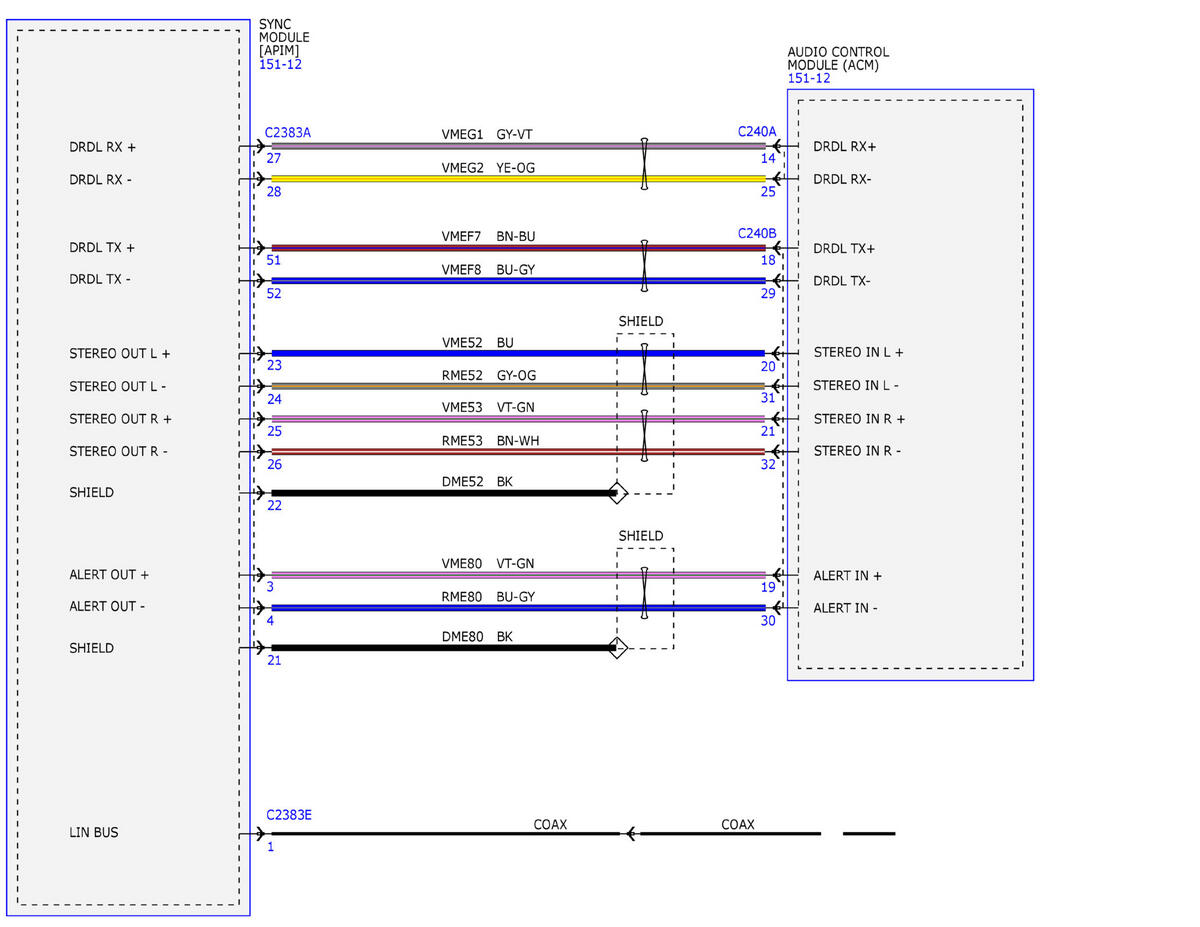

Fig 7: Audio System/Navigation - AM/FM/CD/SYNC (7 Of 11)
Courtesy of FORD MOTOR COMPANY

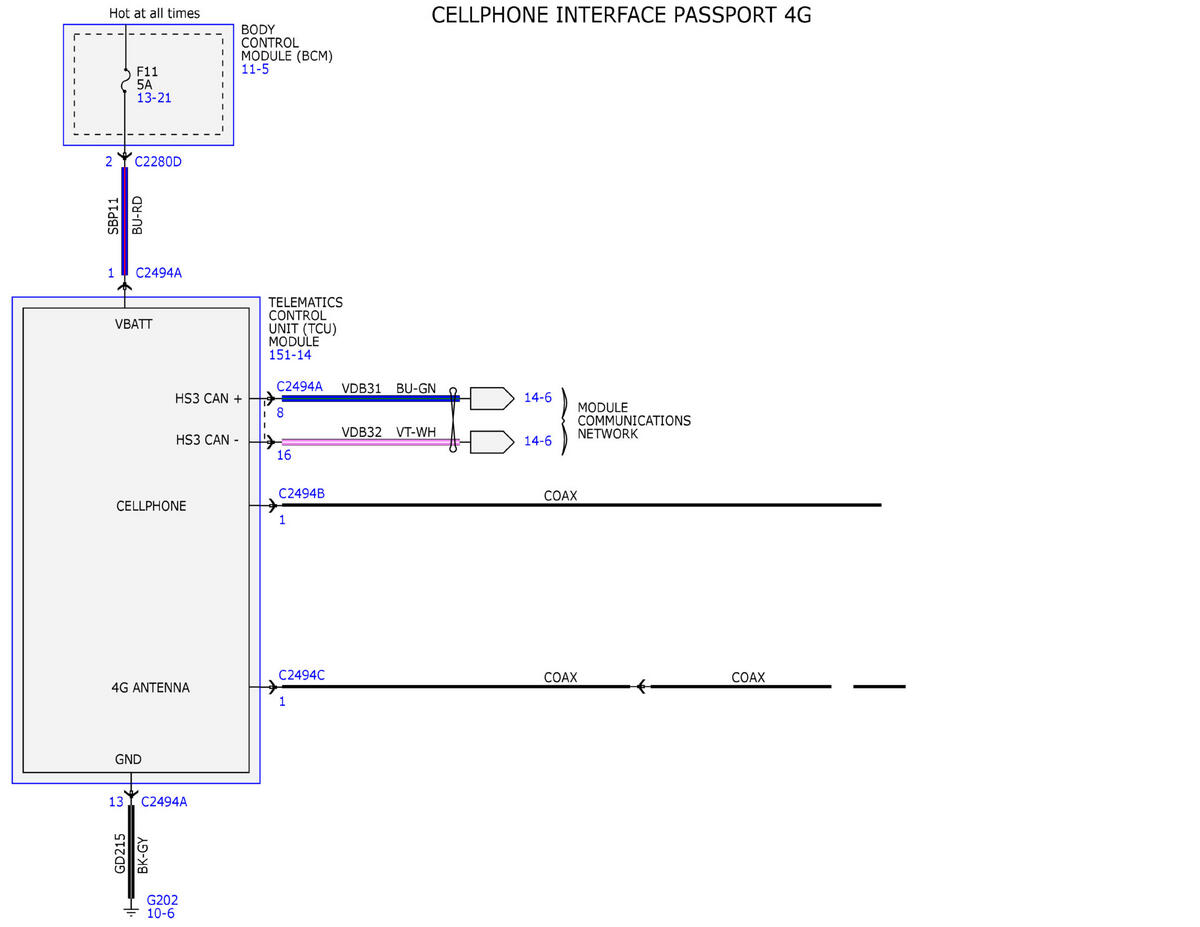

Fig 8: Audio System/Navigation - AM/FM/CD/SYNC (8 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 9: Audio System/Navigation - AM/FM/CD/SYNC (9 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 10: Audio System/Navigation - AM/FM/CD/SYNC (10 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 11: Audio System/Navigation - AM/FM/CD/SYNC (11 Of 11)
