Brake Disc: Installation

WARNING: This page is about a different car, the 2024 Ford Bronco Sport. However, it is still accessible from the selected car via links, so may be relevant.

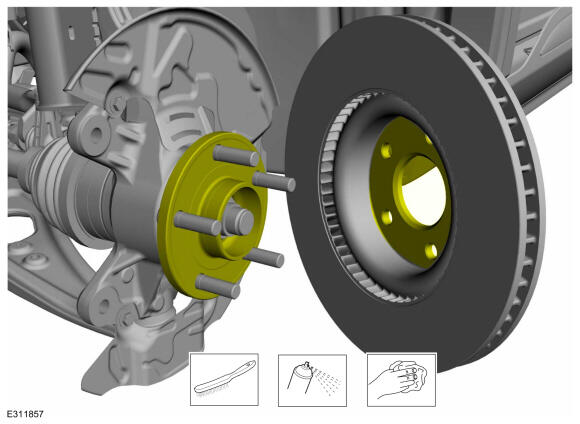

  1. Clean the brake disc mating surfaces using a wire brush and the specified material.

    Material

    : Brake Cleaner

    GFD832358Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.

    Vehicle with Electric Brake Booster

  3. Deactivate the brake service mode. Refer to: Brake Service Mode Activation and Deactivation .

    All vehicles

  4. Apply the brake pedal several times to verify correct brake system operation.
