Front Brake Disc Shield: Removal
WARNING: This page is about a different car, the 2022 Ford Transit-350 HD, 2022 Ford Transit-350, 2022 Ford Transit-250, 2022 Ford Transit-150, and 2022 Ford E-Transit. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front wheel bearing and wheel hub. Refer to: Front Wheel Bearing and Wheel Hub (RWD) . Refer to: Front Wheel Bearing and Wheel Hub (AWD) .

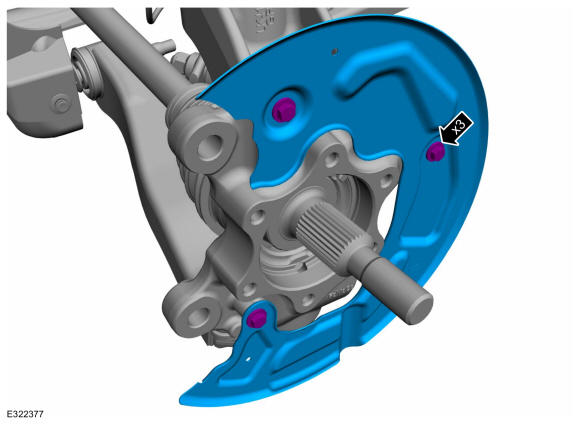

- Remove the bolts and the brake disc shield.
Torque: 80 lb.in (9 Nm)
