OEM Electrical Wiring Diagram Introduction: Introduction

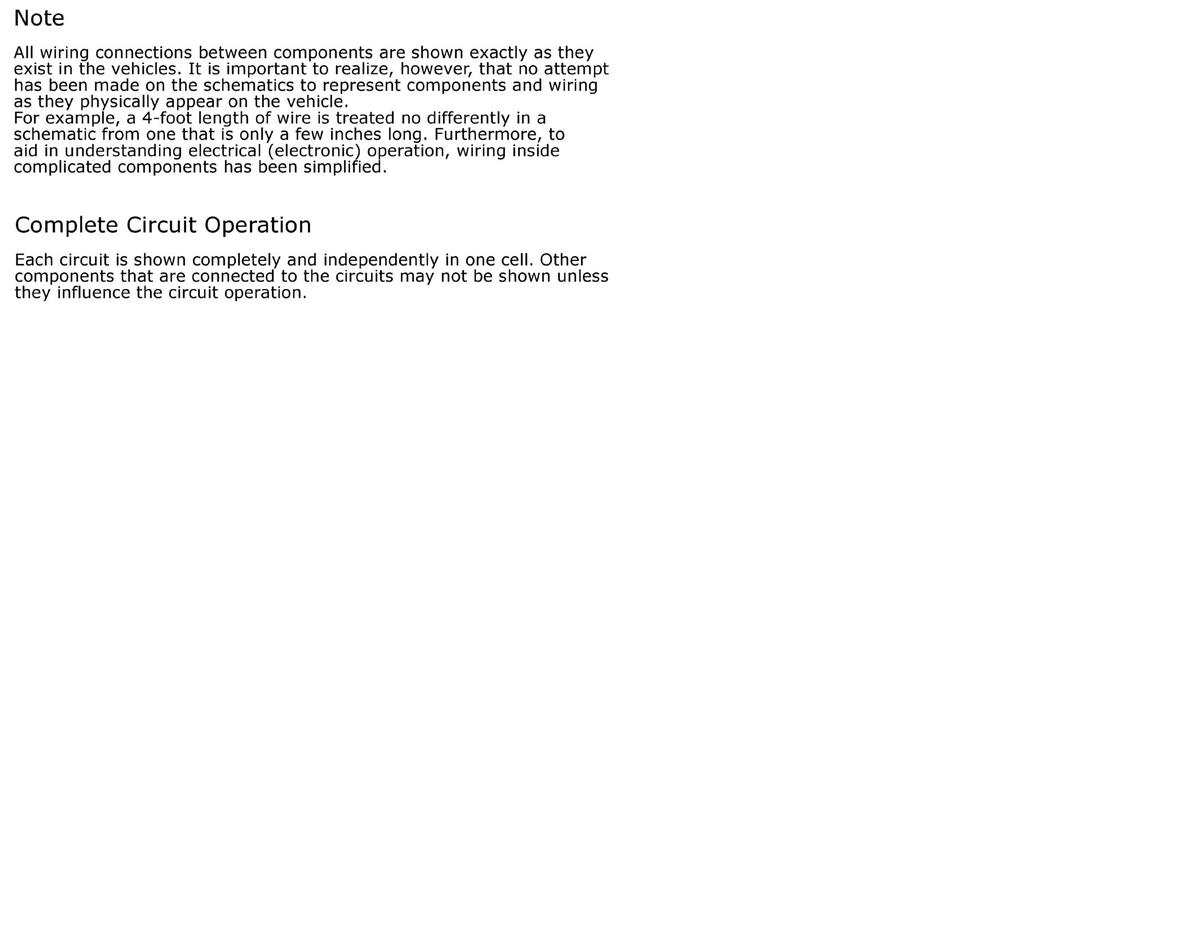

GFDWR206799Courtesy of FORD MOTOR COMPANY

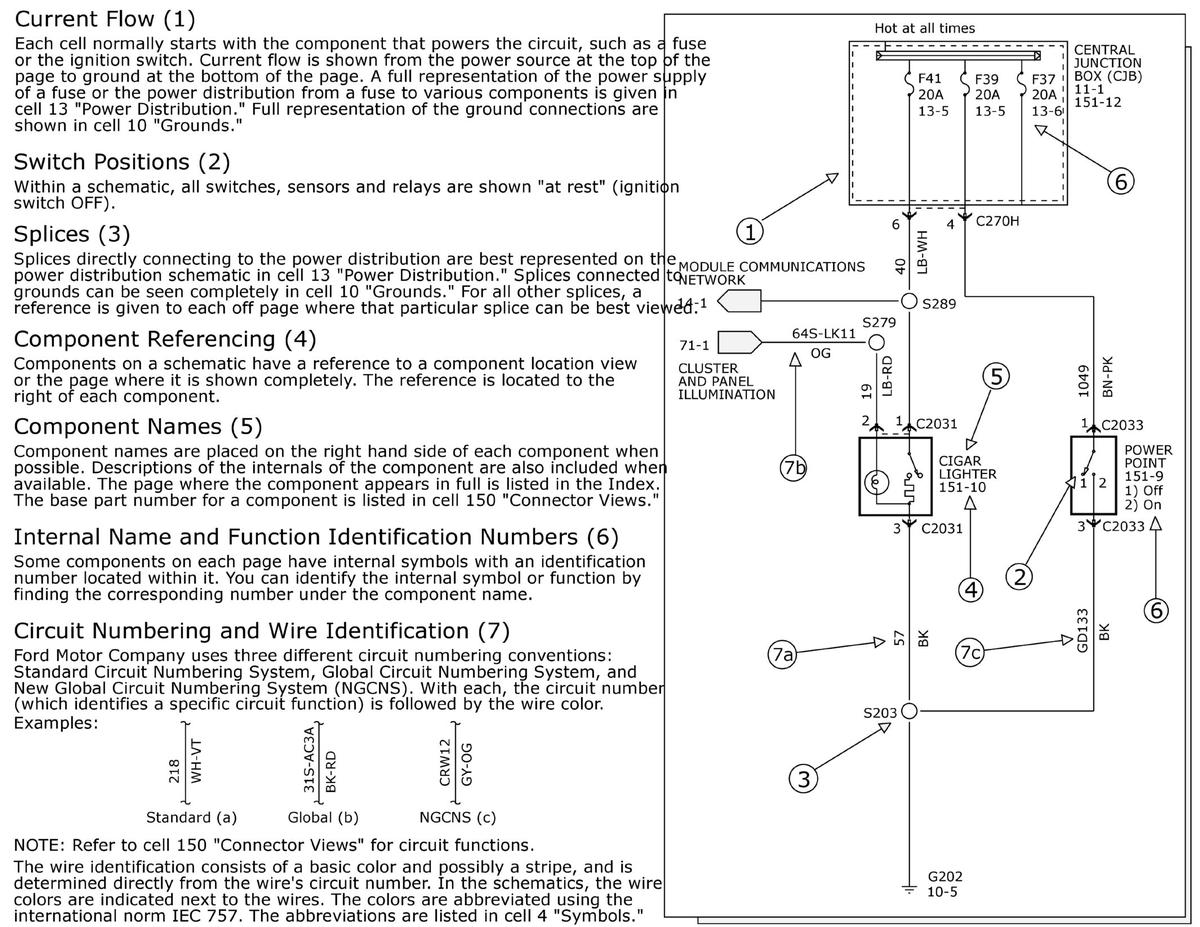

GFDWR206800Courtesy of FORD MOTOR COMPANY

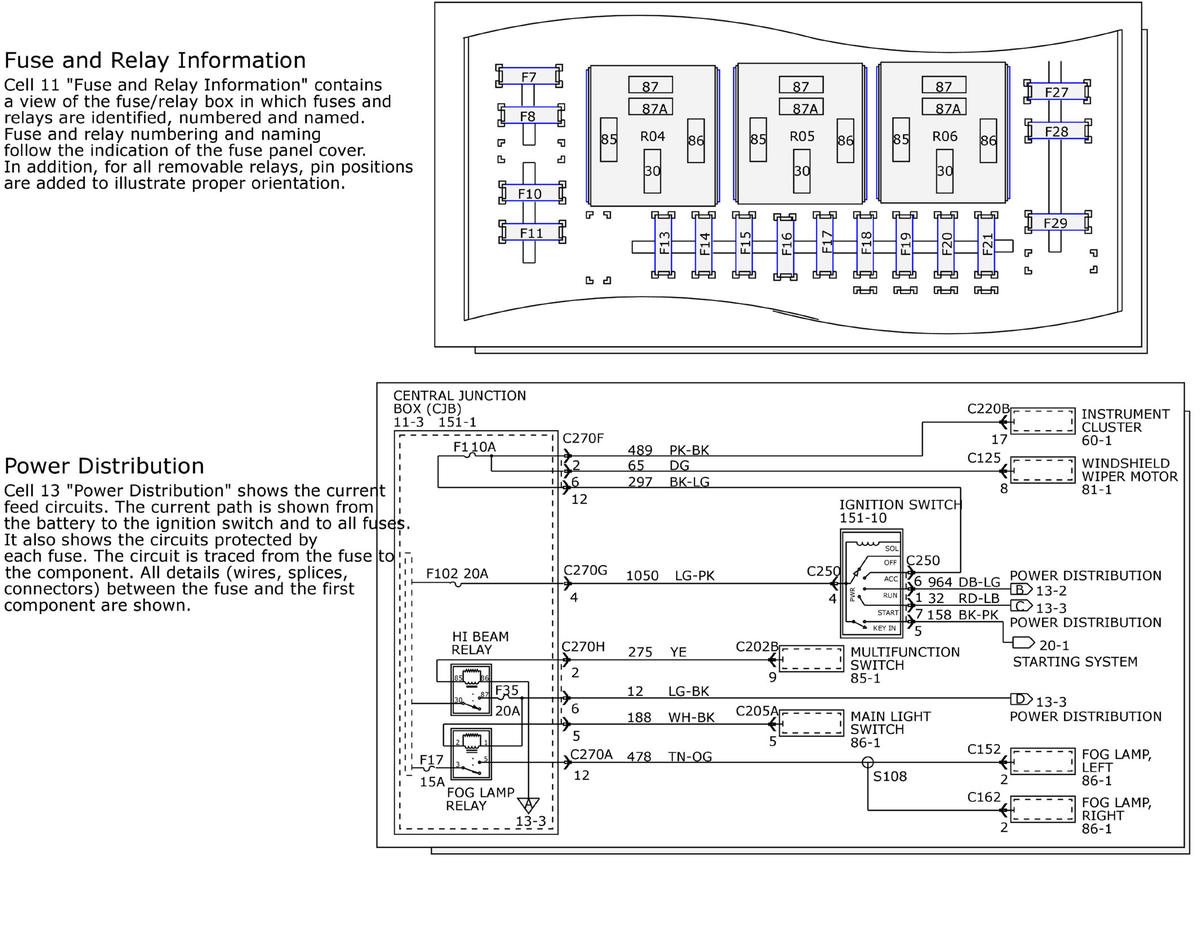

GFDWR206801Courtesy of FORD MOTOR COMPANY

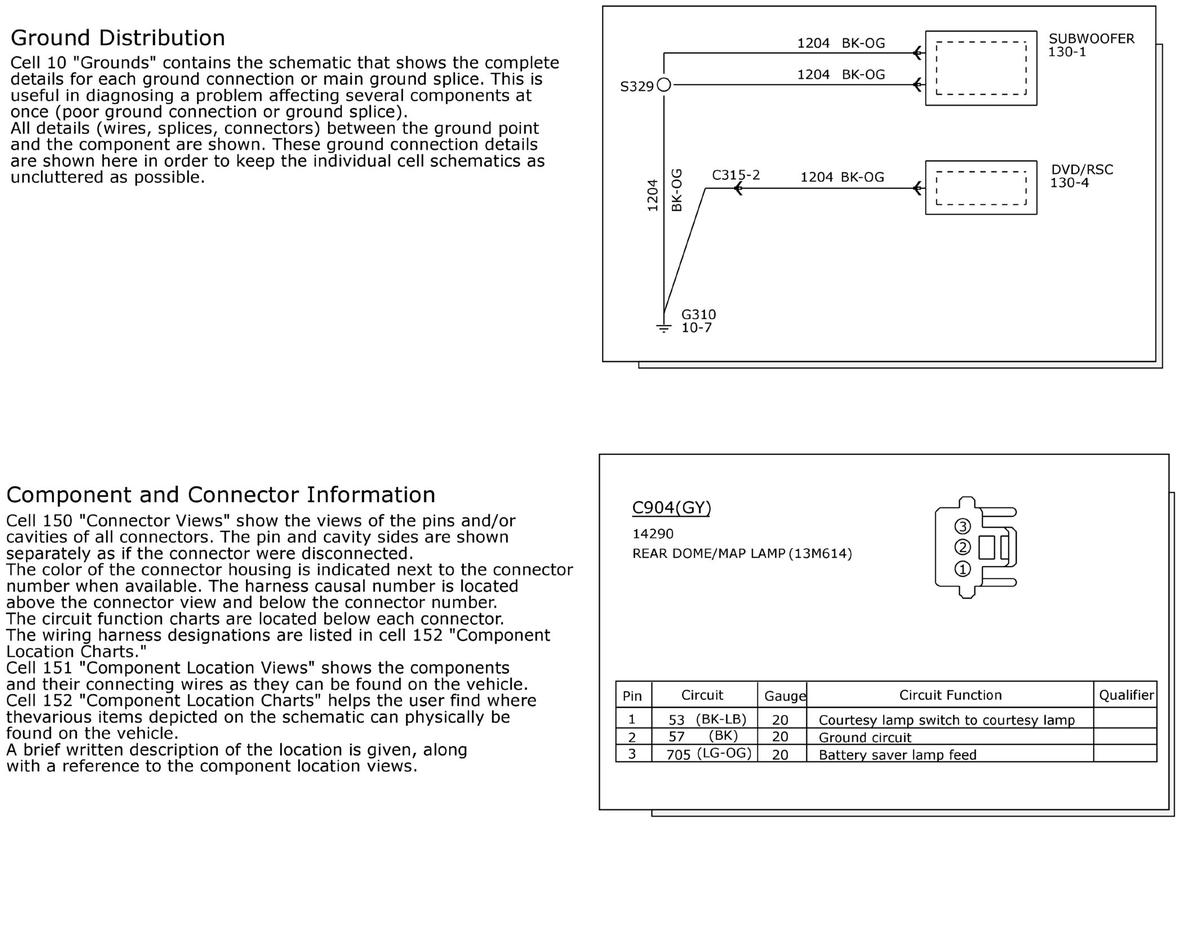

GFDWR206802Courtesy of FORD MOTOR COMPANY

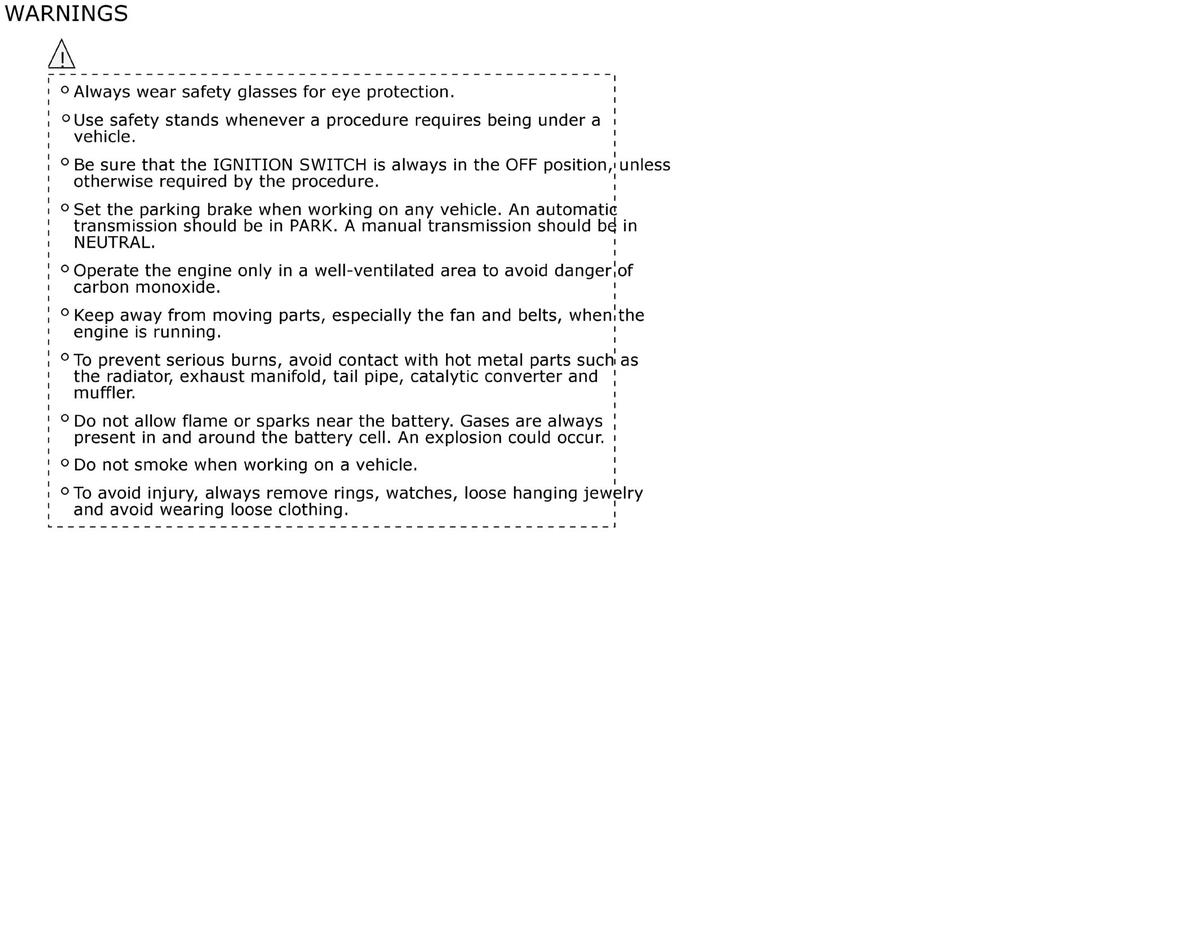

GFDWR206803Courtesy of FORD MOTOR COMPANY
