Fuse And Relay Location

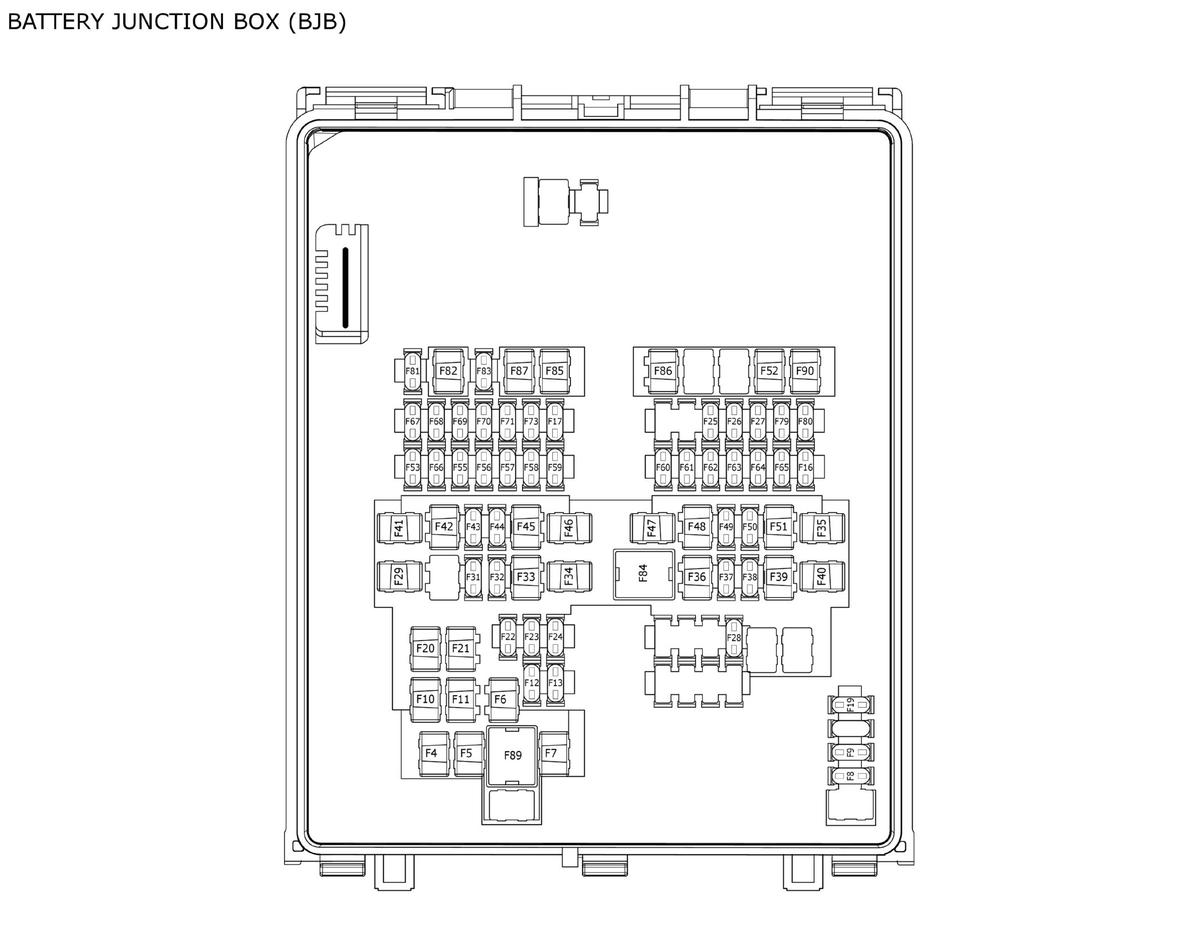

Fig 1: Battery Junction Box (BJB) Components Location
GFDWR206804Courtesy of FORD MOTOR COMPANY

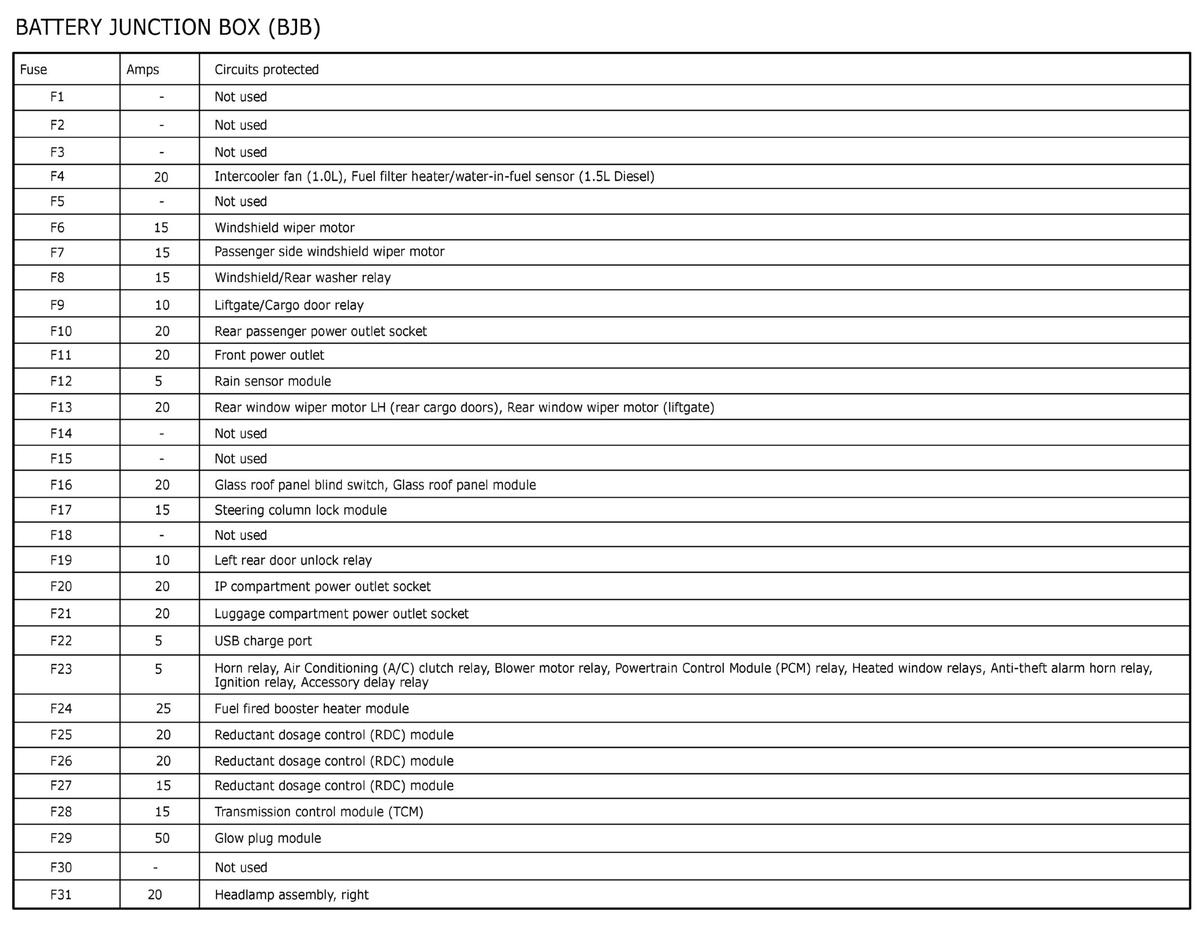

Fig 2: Battery Junction Box (BJB) Components Location Legend (F1 - F31)
GFDWR206805Courtesy of FORD MOTOR COMPANY

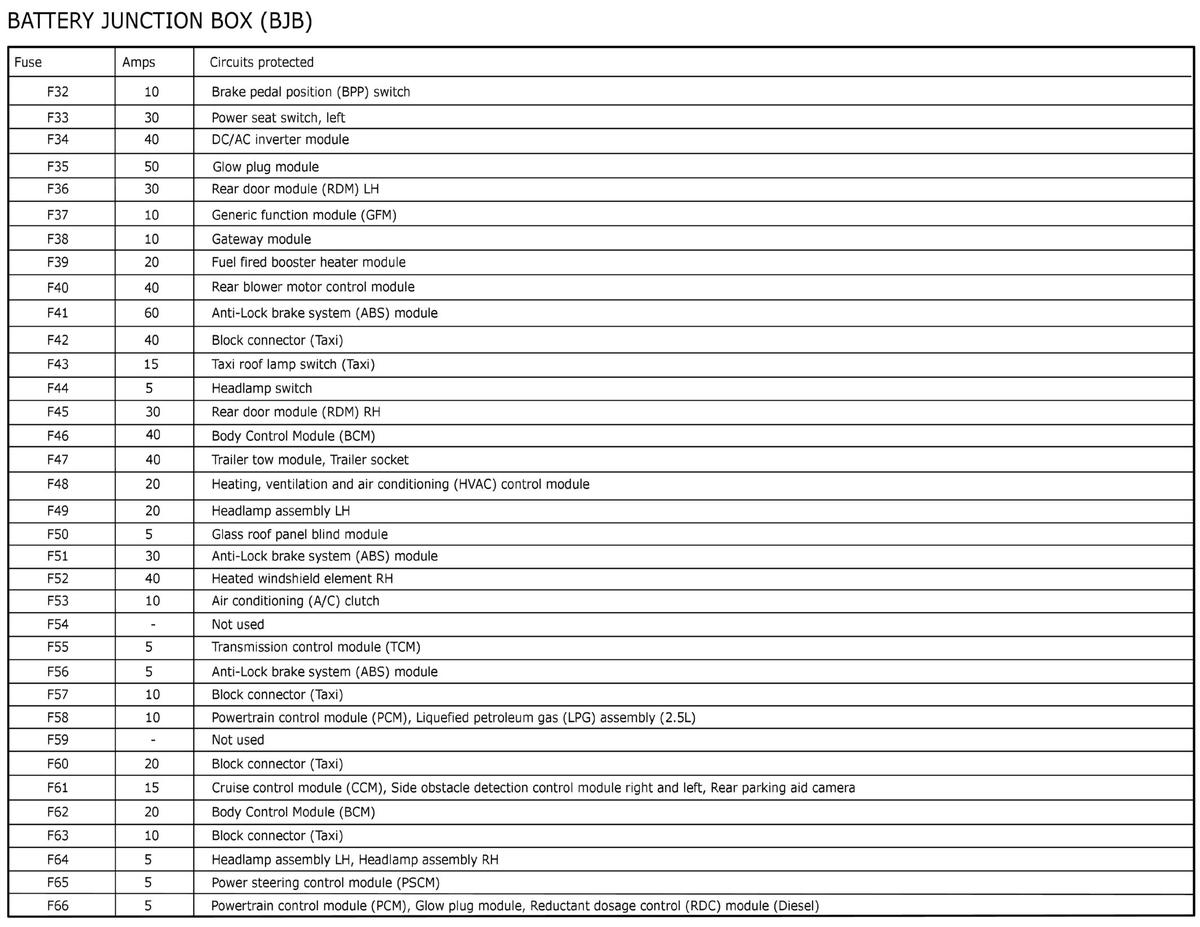

Fig 3: Battery Junction Box (BJB) Components Location Legend (F32 - F66)
GFDWR206806Courtesy of FORD MOTOR COMPANY

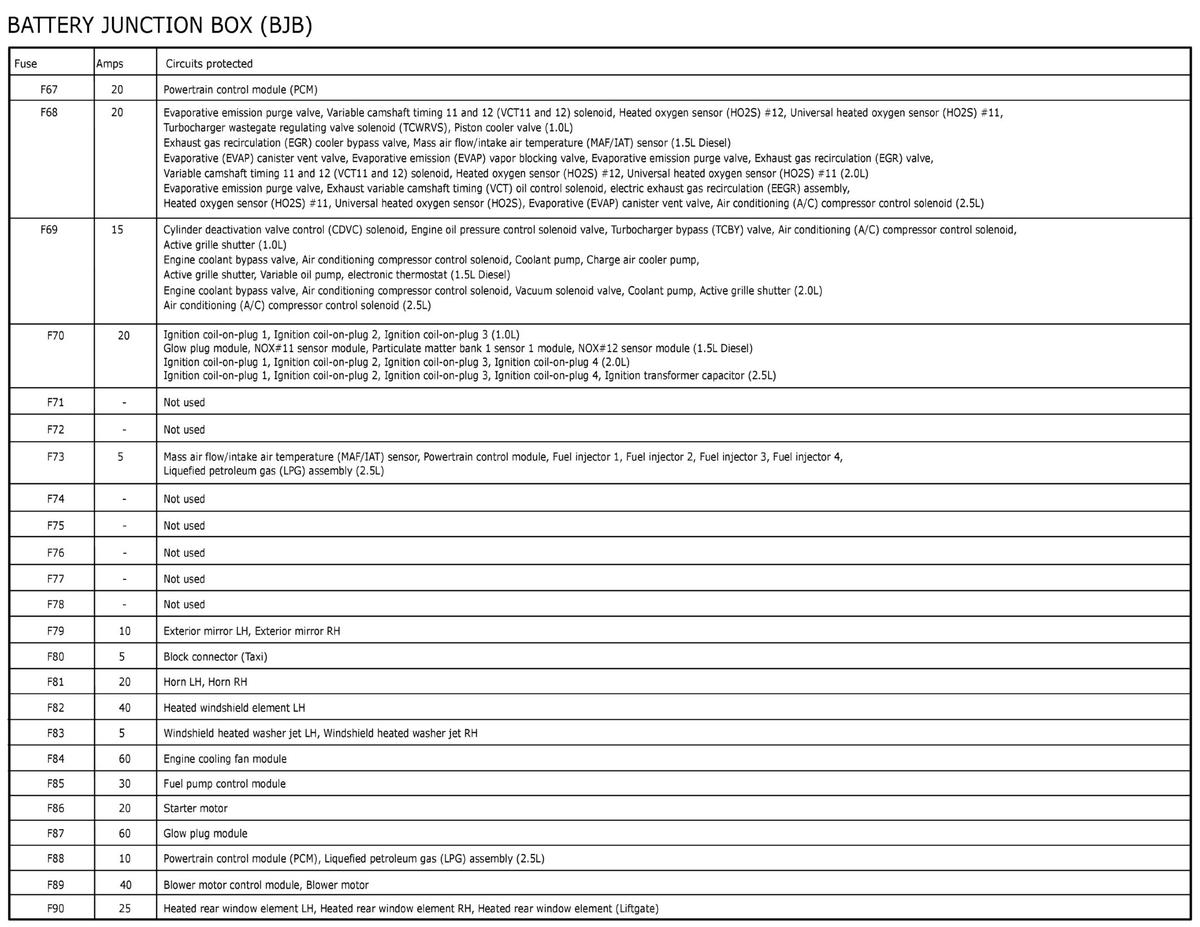

Fig 4: Battery Junction Box (BJB) Components Location Legend (F67 - F90)
GFDWR206807Courtesy of FORD MOTOR COMPANY

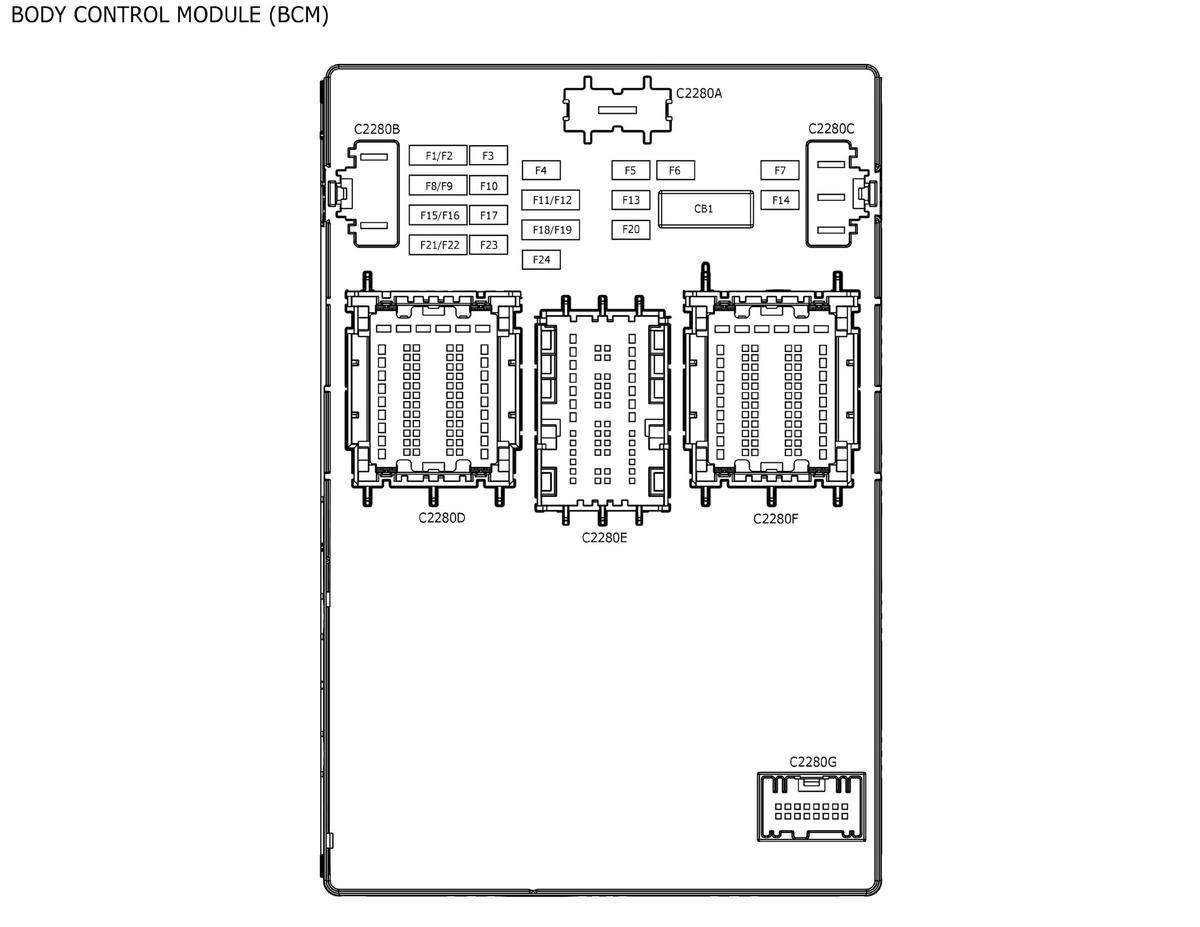

Fig 5: Body Control Module (BCM) Components Location
GFDWR206808Courtesy of FORD MOTOR COMPANY

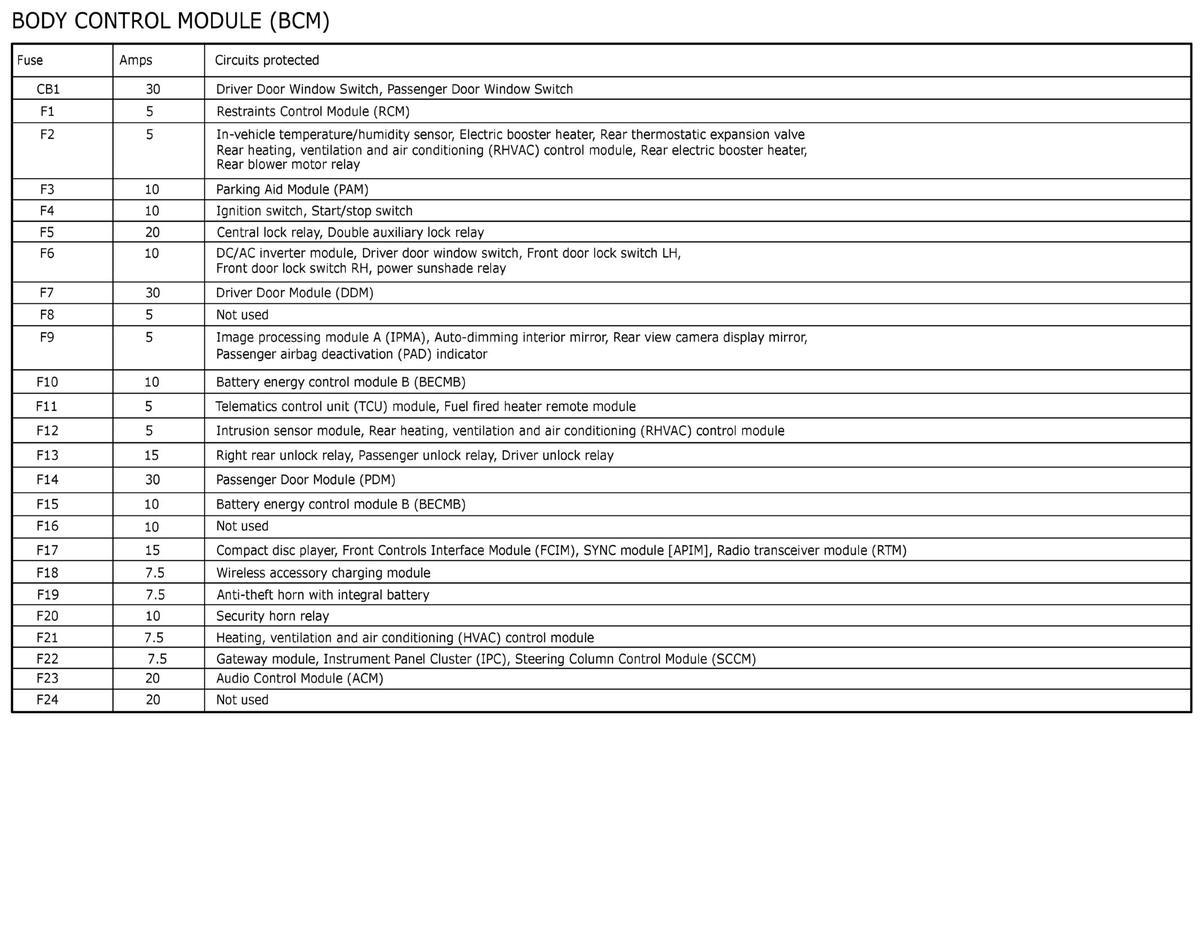

Fig 6: Body Control Module (BCM) Components Location Legend (CB1 F1 - F24)
GFDWR206809Courtesy of FORD MOTOR COMPANY

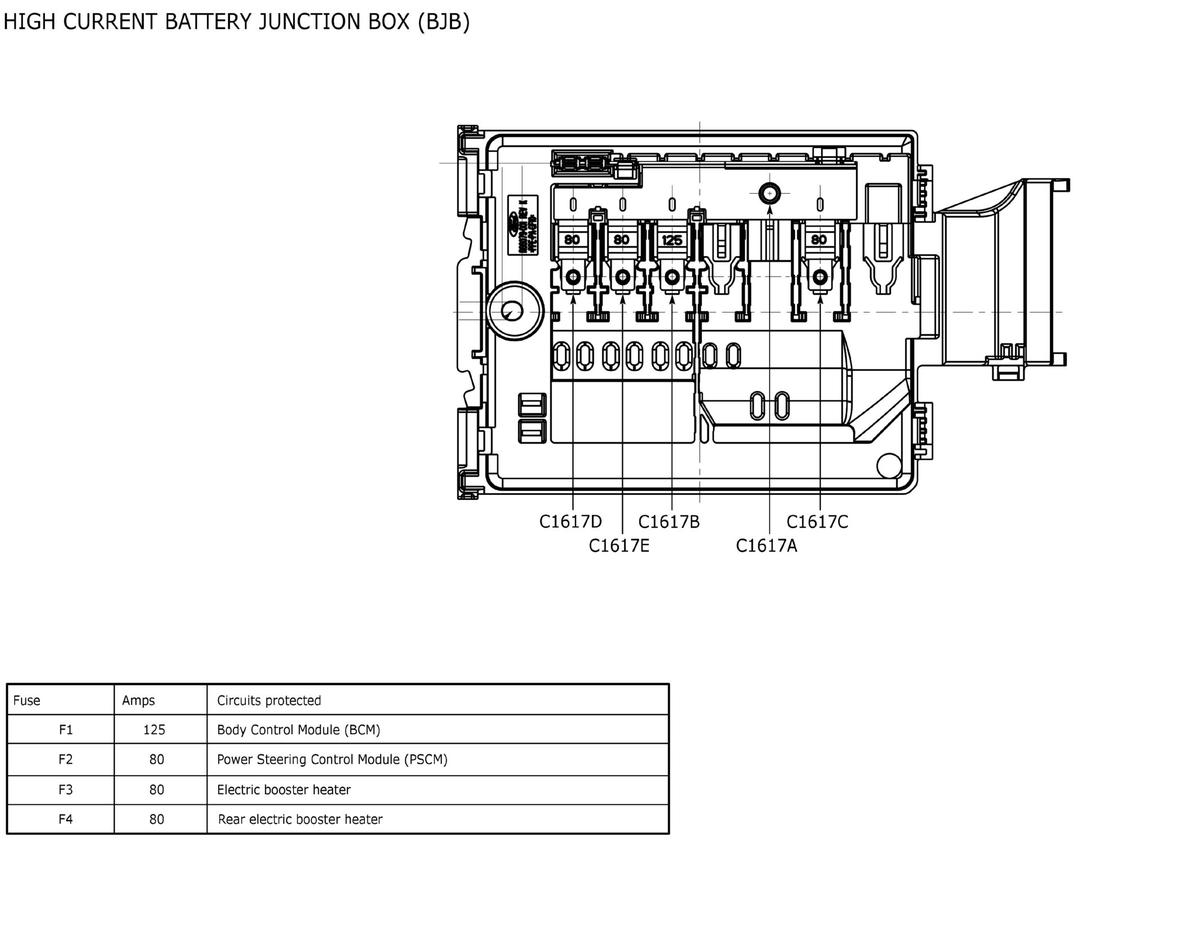

Fig 7: High Current Battery Junction Box (BJB) Components Location & Legend (F1 - F4)
GFDWR206810Courtesy of FORD MOTOR COMPANY
