Gear Shift Module (GSM): Removal

NOTE: Removal steps in this procedure may contain installation details.

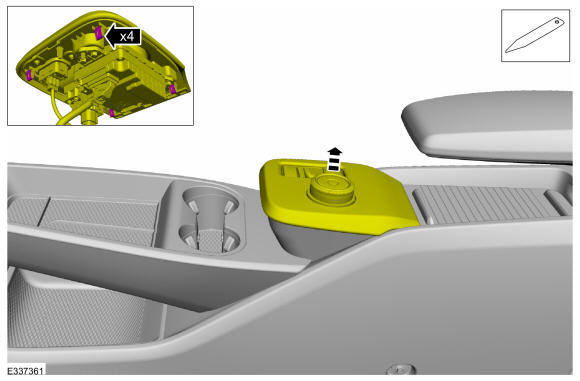

  1. Release the clips and position the floor console upper trim panel aside. Use the General Equipment: Interior Trim Remover
    GFD767830Courtesy of FORD MOTOR COMPANY

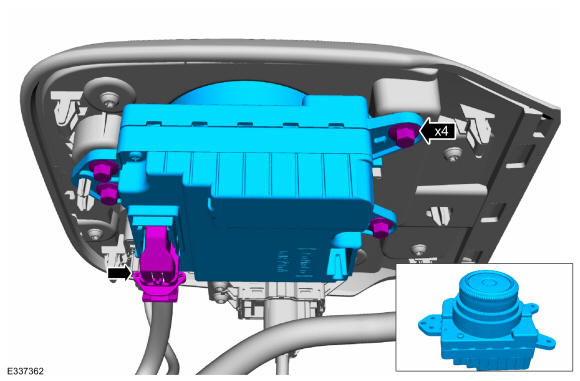

  2. Disconnect the GSM connector, remove the screws and the GSM.
GFD767831Courtesy of FORD MOTOR COMPANY
