Relay Component Testing

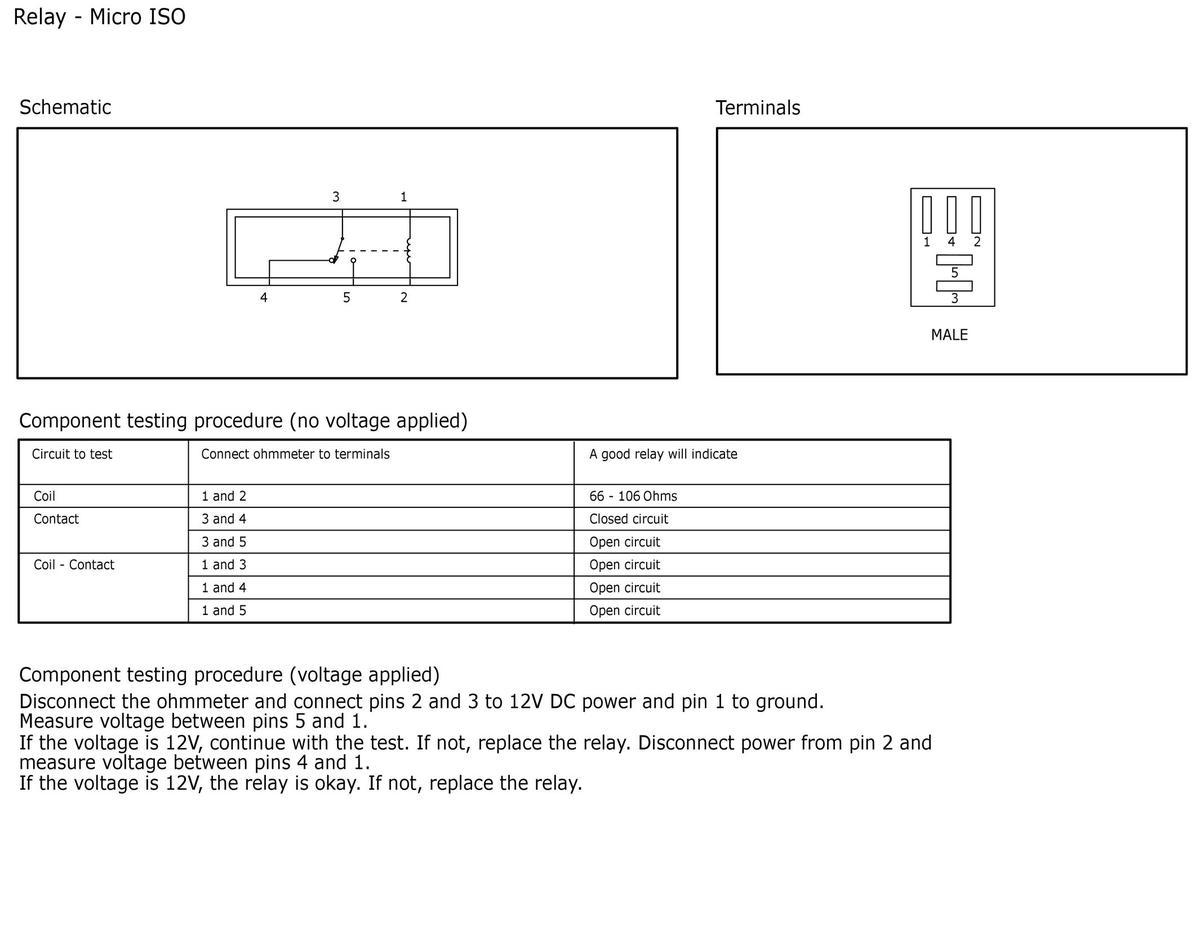

Fig 1: Relay - Micro ISO Component Testing
GFDWR194133Courtesy of FORD MOTOR COMPANY

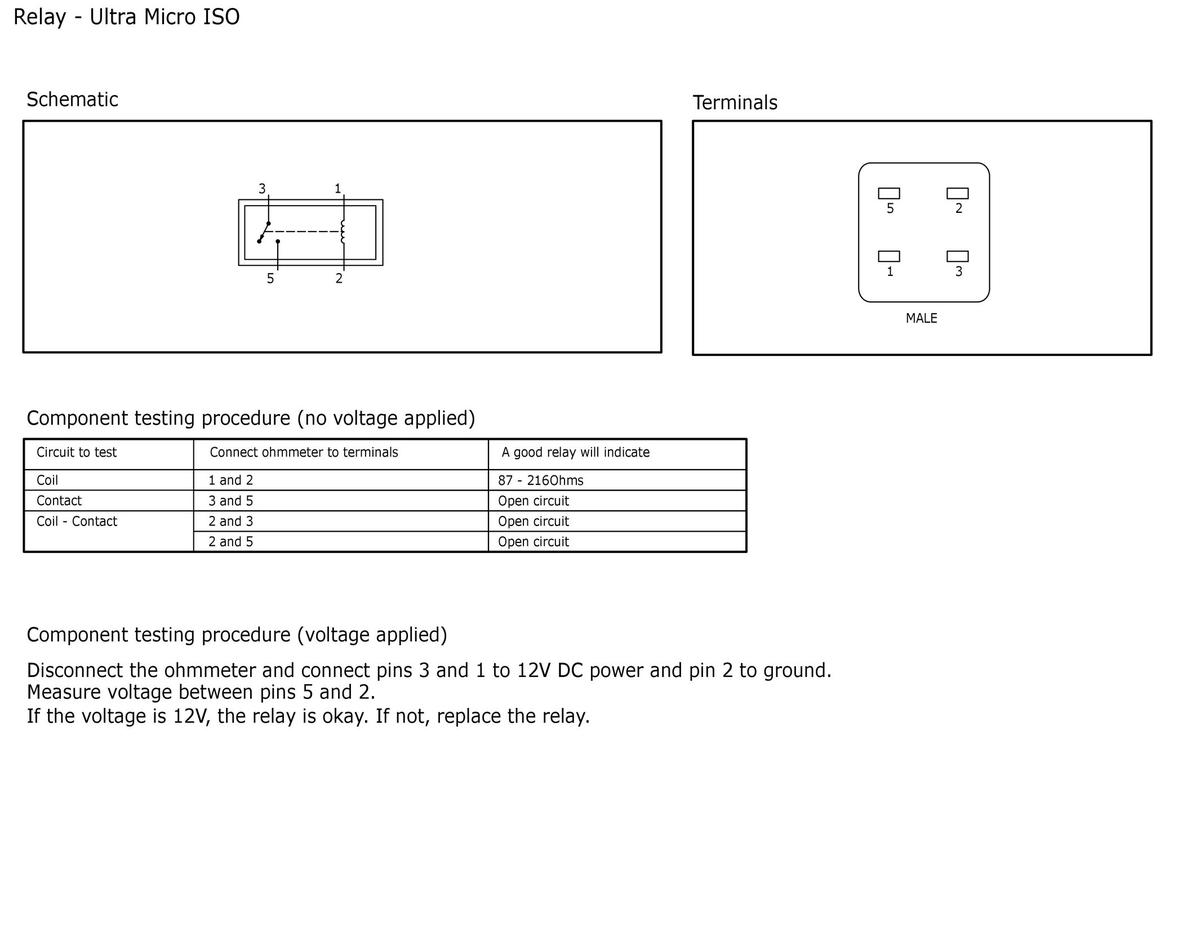

Fig 2: Relay - Ultra Micro ISO Component Testing
GFDWR194134Courtesy of FORD MOTOR COMPANY

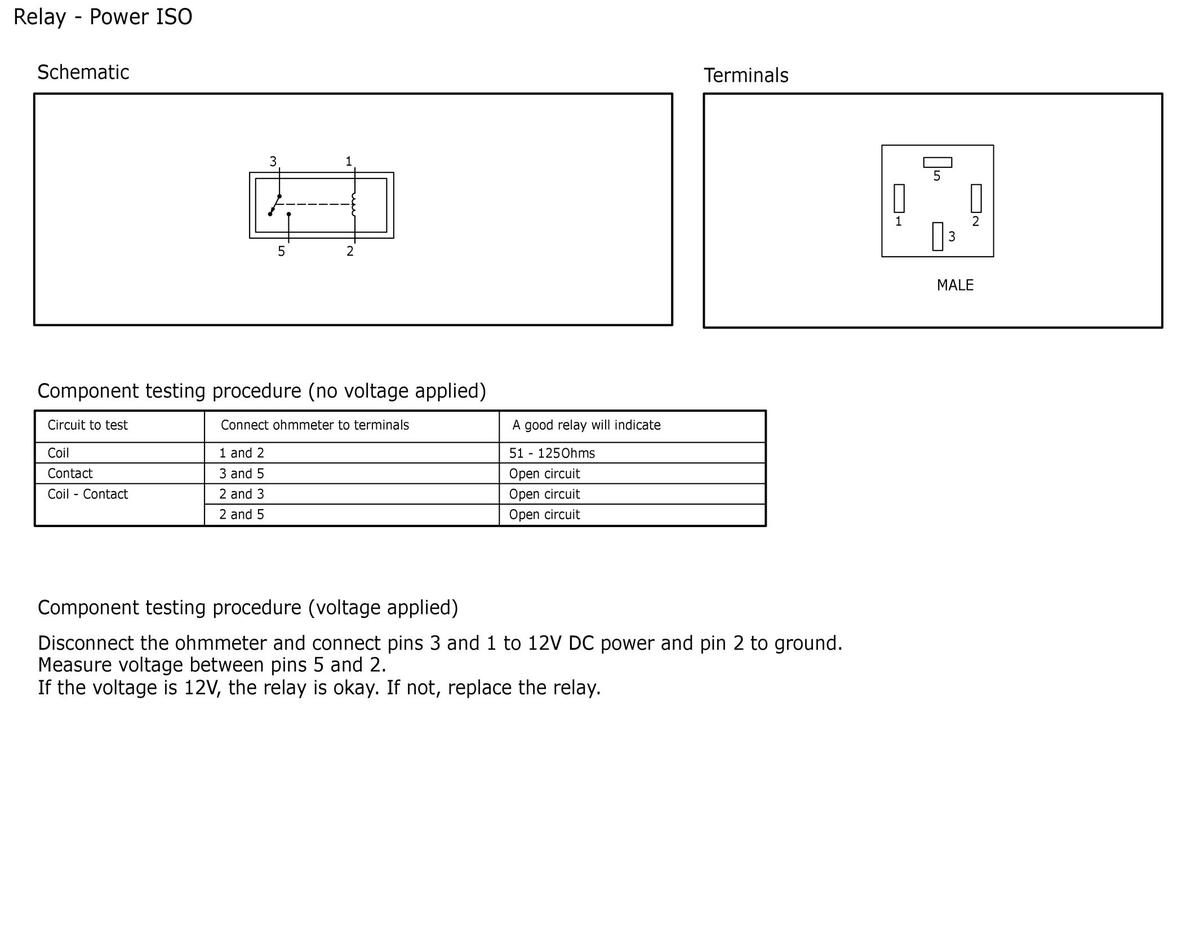

Fig 3: Relay - Power ISO Component Testing
GFDWR194135Courtesy of FORD MOTOR COMPANY

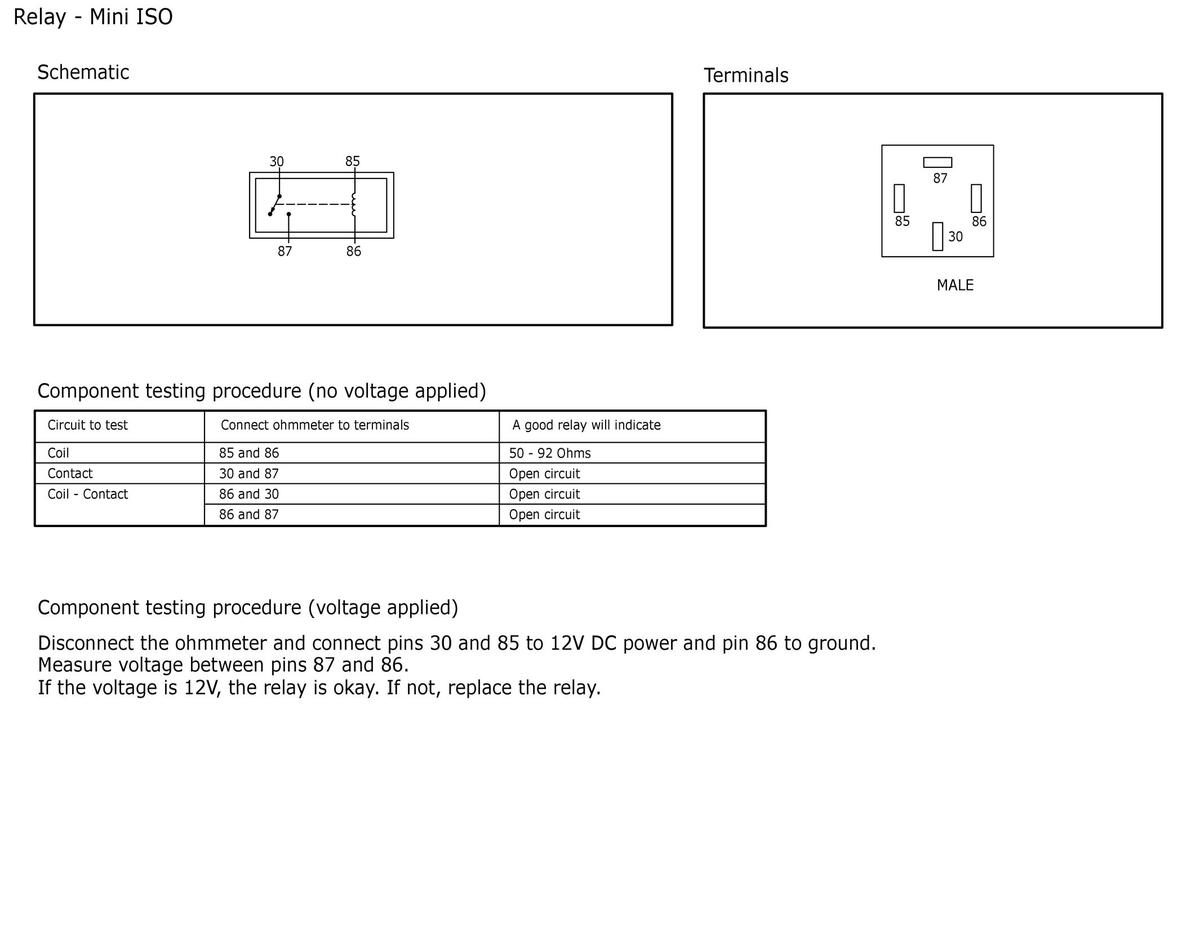

Fig 4: Relay - Mini ISO Component Testing
GFDWR194127Courtesy of FORD MOTOR COMPANY
