Ignition Switch Component Testing

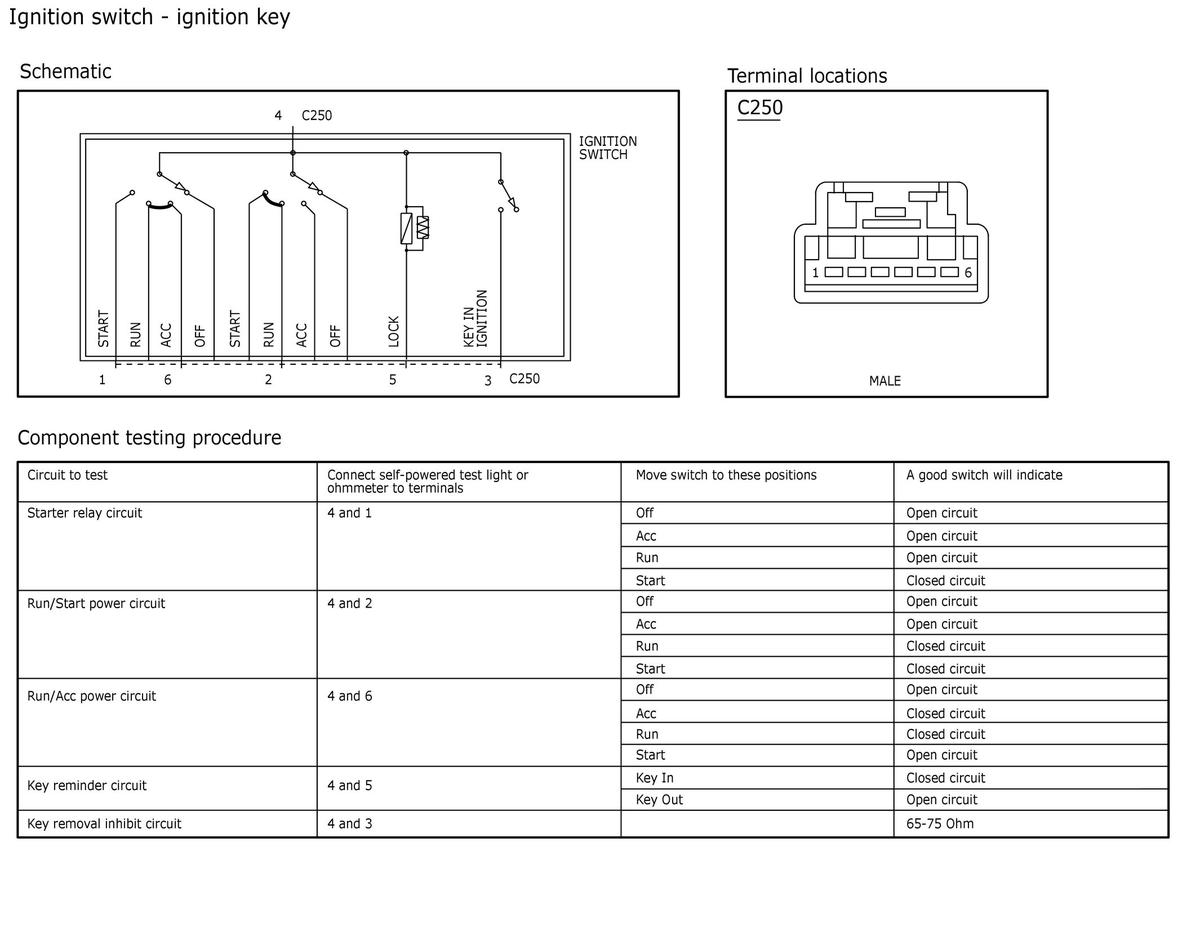

Fig 1: Ignition Switch - Ignition Key Component Testing

GFDWR194128

Courtesy of FORD MOTOR COMPANY
