OEM Electrical Wiring Diagram Introduction: Introduction

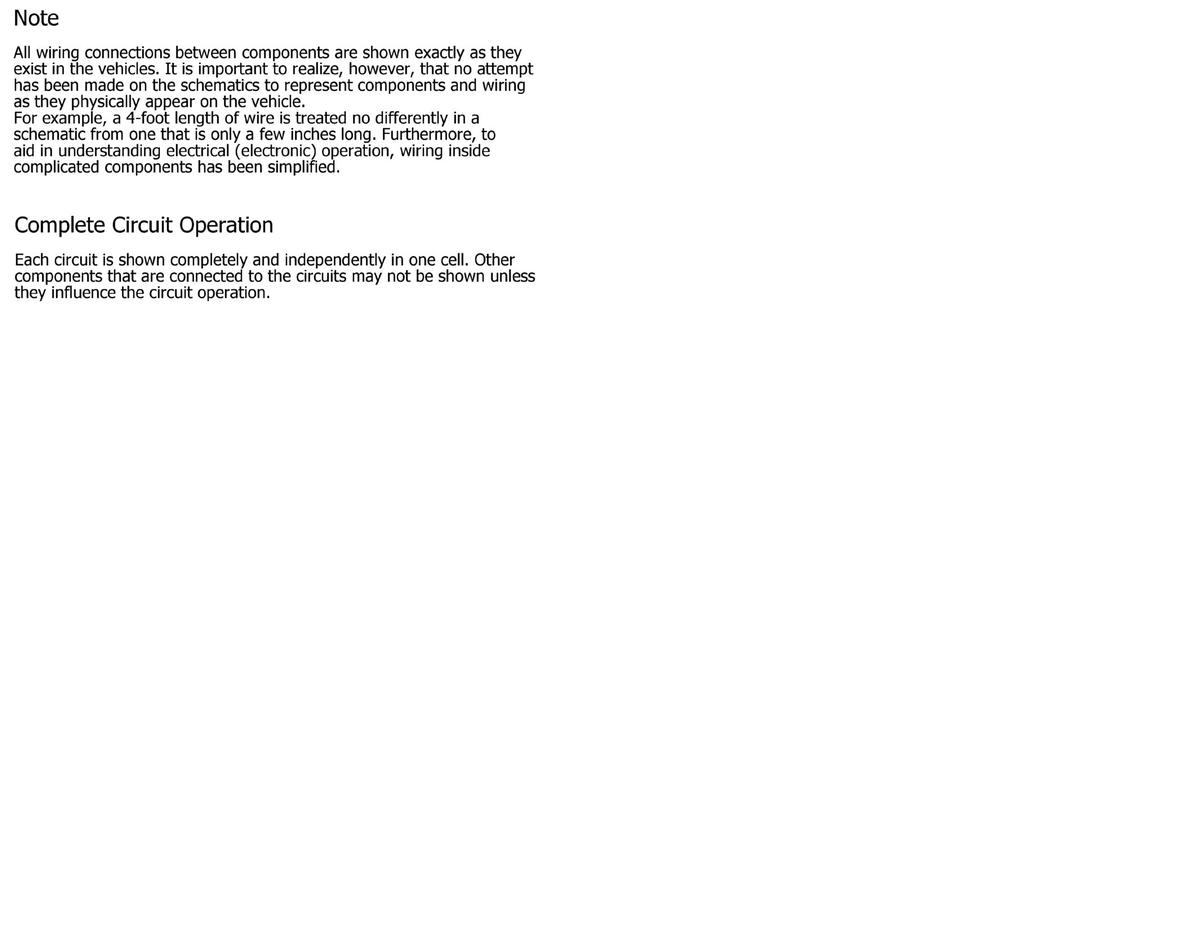

GFDWR168612Courtesy of FORD MOTOR COMPANY

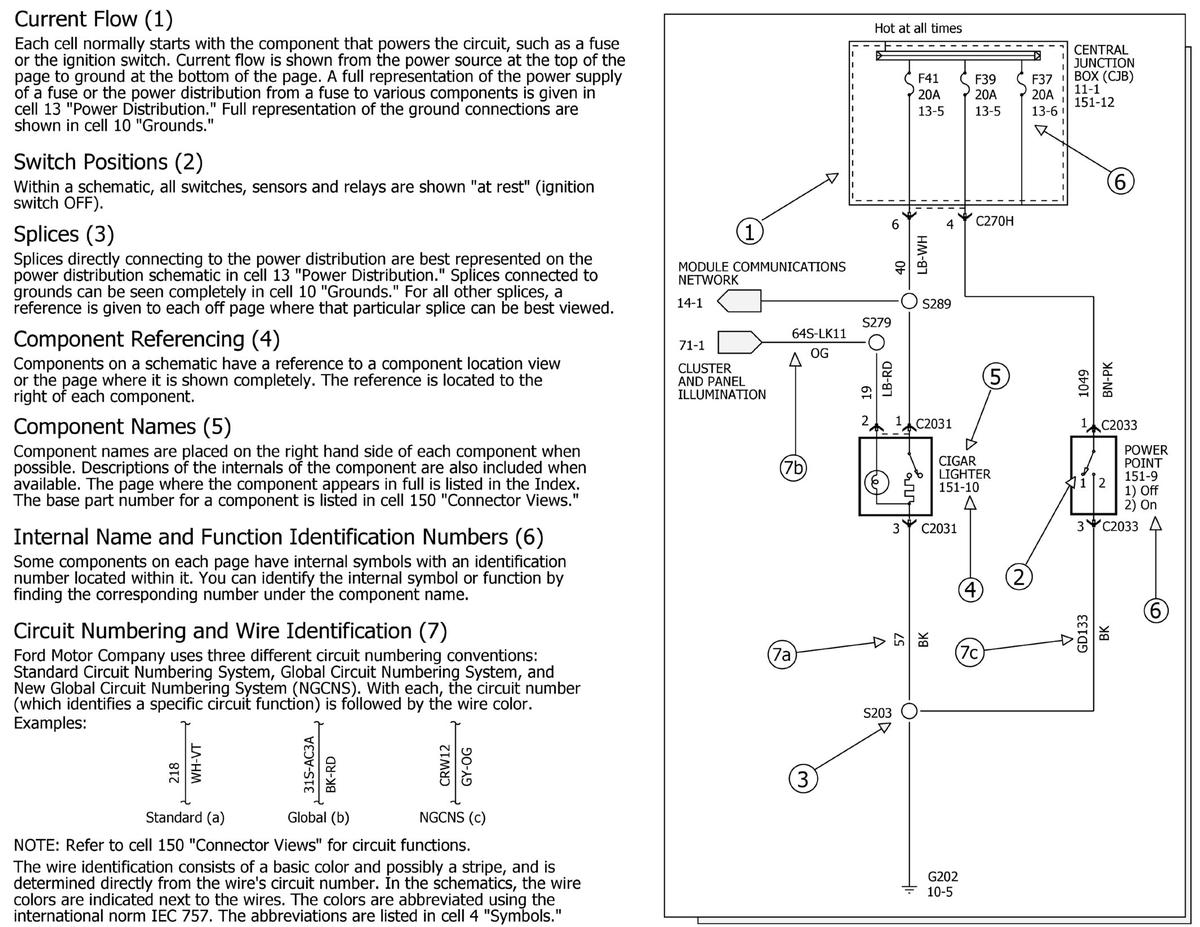

GFDWR168613Courtesy of FORD MOTOR COMPANY

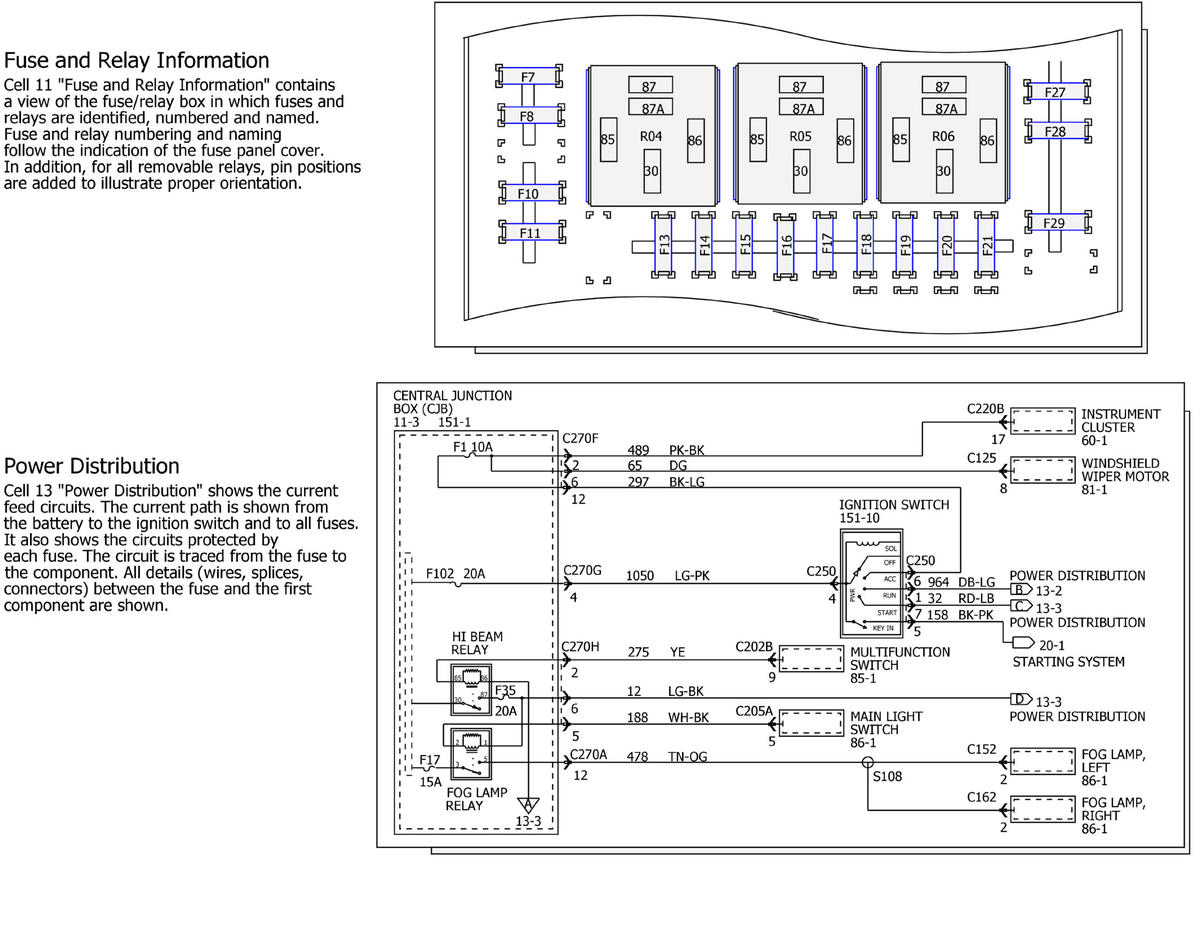

GFDWR168614Courtesy of FORD MOTOR COMPANY

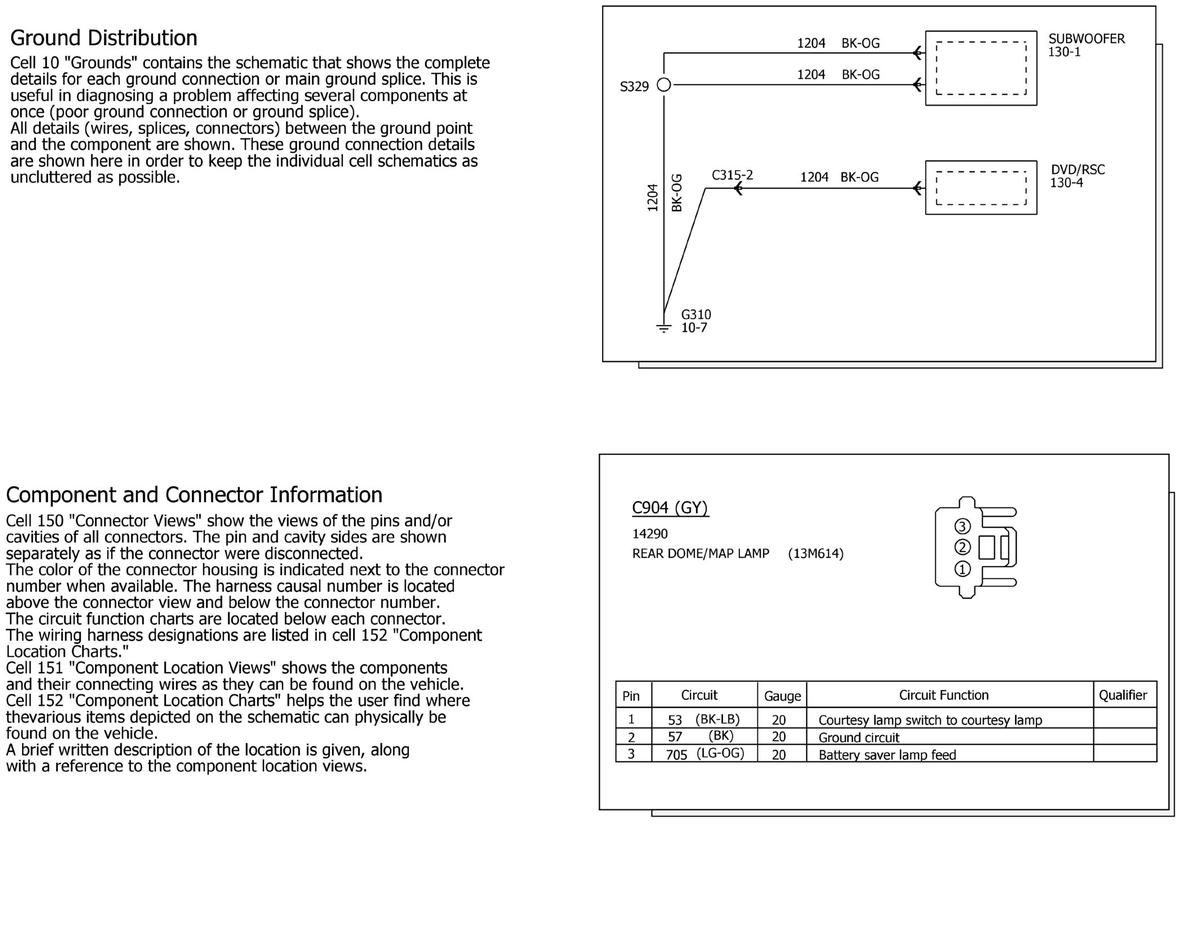

GFDWR168615Courtesy of FORD MOTOR COMPANY

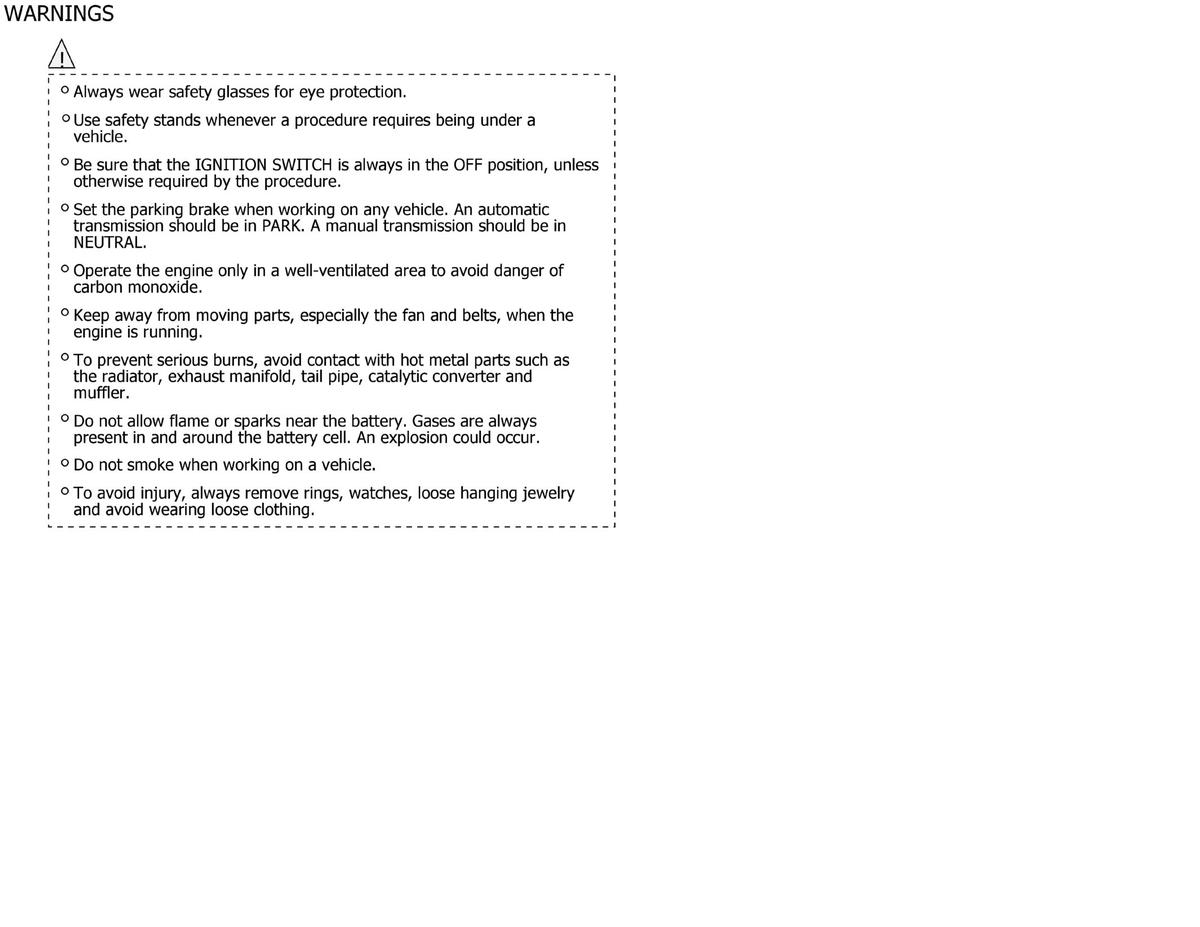

GFDWR168616Courtesy of FORD MOTOR COMPANY
