Engine Mount LH: Installation

WARNING: This page is about a different variant/trim than selected.

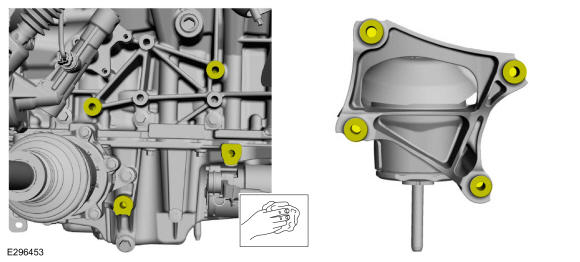

  1. Clean the LH engine mount-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.
    GFD657356Courtesy of FORD MOTOR COMPANY
  2. Install the LH engine mount and the new bolts.

    Torque: 46 lb.ft (63 Nm)

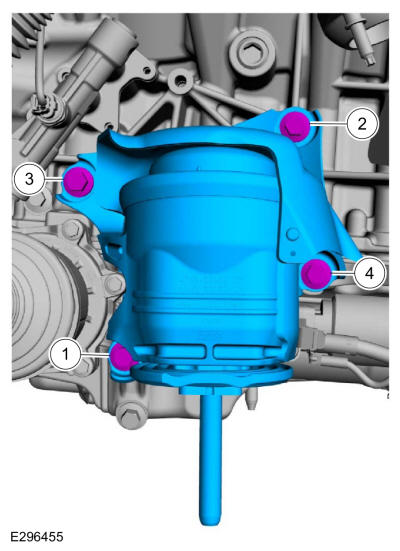

    Fig 1: LH Engine Mount Tightening Sequence
    GFD657357Courtesy of FORD MOTOR COMPANY

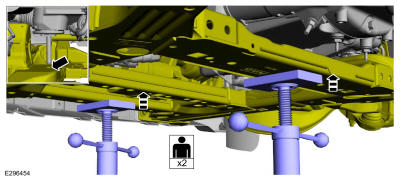

  3. NOTE: Make sure that the LH and RH engine mount studs are in the subframe when raised.

    With the aid of an assistant, raise the front and rear jack stand evenly.

    GFD657358Courtesy of FORD MOTOR COMPANY

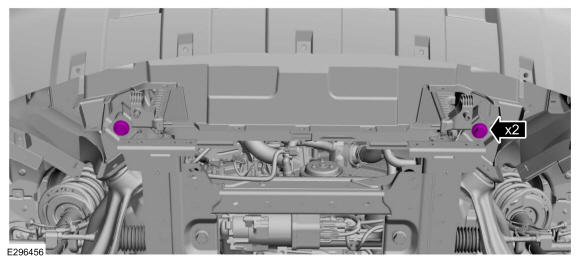

  4. Install the new front subframe bolts finger tight.
    GFD657359Courtesy of FORD MOTOR COMPANY

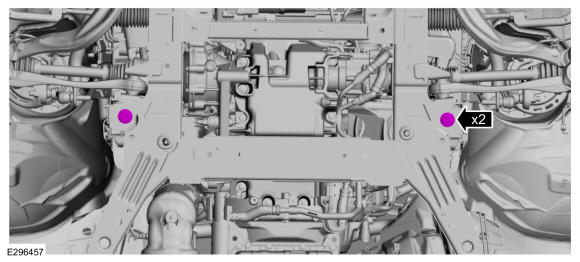

  5. Install the new middle subframe bolts finger tight.
    GFD657360Courtesy of FORD MOTOR COMPANY

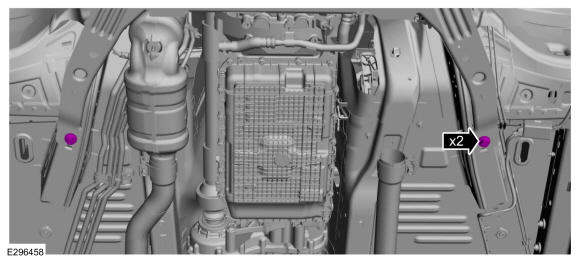

  6. Install the new rear subframe bolts finger tight.
    GFD657361Courtesy of FORD MOTOR COMPANY
  7. Tighten the front subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    GFD657359Courtesy of FORD MOTOR COMPANY
  8. Tighten the middle subframe bolts.

    Torque: 195 lb.ft (265 Nm)

    GFD657360Courtesy of FORD MOTOR COMPANY
  9. Tighten the rear subframe bolts.

    Torque: 52 lb.ft (70 Nm)

    GFD657361Courtesy of FORD MOTOR COMPANY

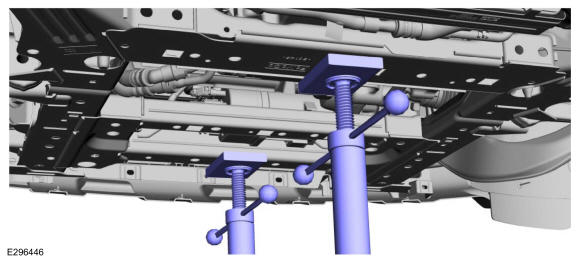

  10. Remove adjustable jack stands.
    GFD657350Courtesy of FORD MOTOR COMPANY
  11. Position the LH underbody shield and install the bolt.

    Torque: 22 lb.in (2.5 Nm)

    GFD657347Courtesy of FORD MOTOR COMPANY
  12. Position the RH underbody shield and install the bolt.

    Torque: 22 lb.in (2.5 Nm)

    GFD657346Courtesy of FORD MOTOR COMPANY

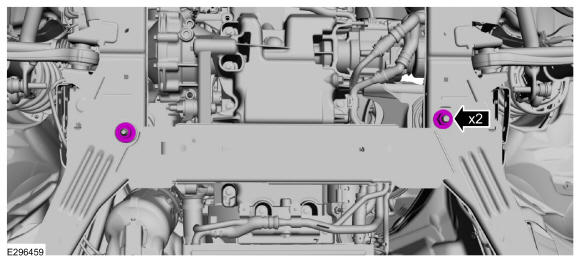

  13. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    Install the new LH and RH engine mount nuts.

    Torque: 184 lb.ft (250 Nm)

    GFD657362Courtesy of FORD MOTOR COMPANY

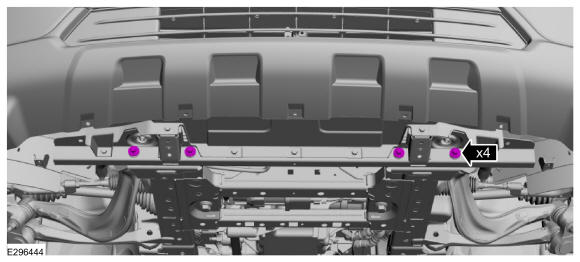

  14. Install the front radiator support bar bolts.

    Torque: 46 lb.ft (63 Nm)

    GFD657344Courtesy of FORD MOTOR COMPANY
  15. Attach the HO2S wiring harness retainers to LH subframe.
    GFD657343Courtesy of FORD MOTOR COMPANY
  16. Position the splash shield and install the pin-type retainer to the LH subframe.
    GFD657342Courtesy of FORD MOTOR COMPANY

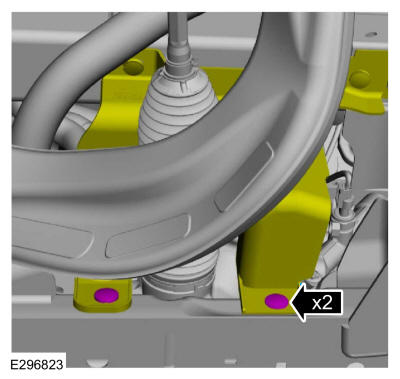

  17. Install the steering shield pin-type retainers to the LH subframe.
    GFD657341Courtesy of FORD MOTOR COMPANY

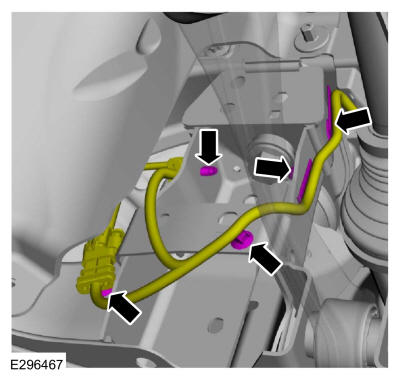

  18. Attach the HO2S wiring harness retainers to the RH subframe.
    GFD657340Courtesy of FORD MOTOR COMPANY

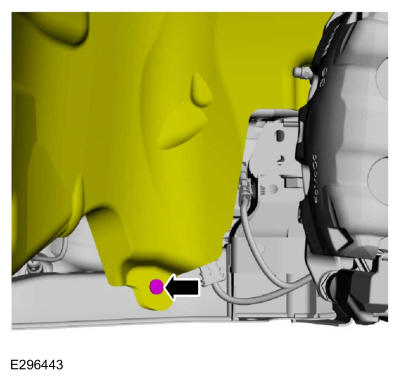

  19. Install the splash shield pin-type retainer to the RH subframe.
    GFD657339Courtesy of FORD MOTOR COMPANY
  20. Install the steering shield pin-type retainers to the RH subframe.
    GFD657338Courtesy of FORD MOTOR COMPANY
  21. Install the LH catalytic converter. Refer to: Catalytic Converter LH .
  22. Install the rear underbody shield, bolts and the pin-type retainers.

    Torque: 22 lb.in (2.5 Nm)

    GFD657272Courtesy of FORD MOTOR COMPANY
    • Install the underbody shield and the bolts.

      Torque: 22 lb.in (2.5 Nm)

    • Install pin-type retainer.

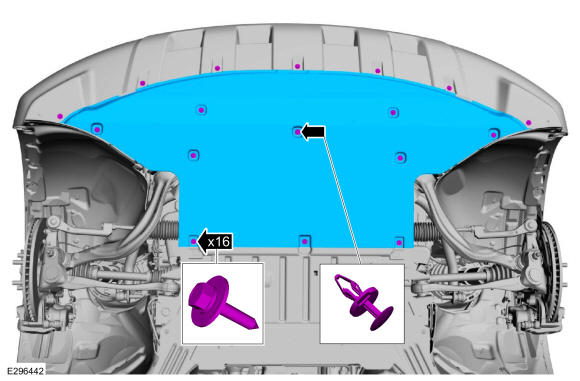

    GFD657337Courtesy of FORD MOTOR COMPANY
  23. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the RH sway bar link and install the new nut.

    Torque: 129 lb.ft (175 Nm)

    GFD657363Courtesy of FORD MOTOR COMPANY
  24. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.

    Position the LH sway bar link and install the new nut.

    Torque: 129 lb.ft (175 Nm)

    GFD657364Courtesy of FORD MOTOR COMPANY
  25. Install the LH and RH front wheels and tires. Refer to: Wheel and Tire .

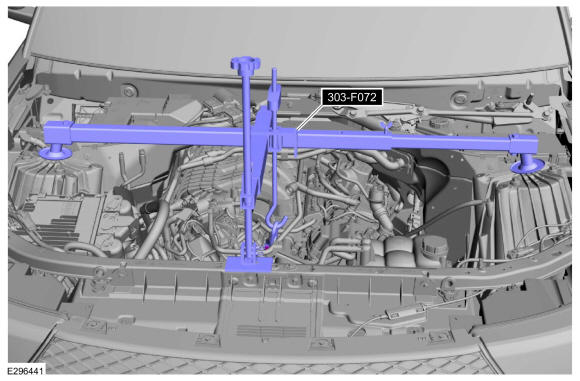

  26. Remove Special Service Tool: 303-F072 Support Bar, Engine.
    GFD657334Courtesy of FORD MOTOR COMPANY

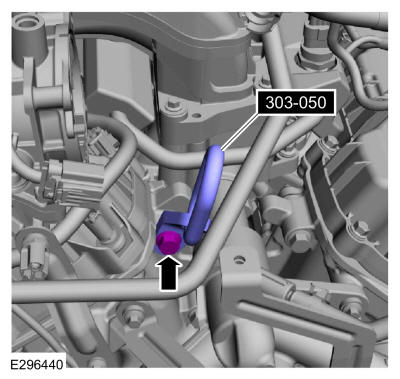

  27. Remove the special tool and install the engine front cover bolt. Remove Special Service Tool: 303-050 (T70P-6000) Lifting Bracket, Engine.

    Torque: Stage 1: 177 lb.in (20 Nm) | Stage 2: 45°

    GFD657333Courtesy of FORD MOTOR COMPANY
  28. Remove the radiator support cable ties or mechanics wire.
    GFD657332Courtesy of FORD MOTOR COMPANY
  29. Install the upper radiator panel and the retainers.
    GFD657331Courtesy of FORD MOTOR COMPANY
  30. Install the new steering shaft bolt.

    Torque: 22 lb.ft (30 Nm)

    GFD657365Courtesy of FORD MOTOR COMPANY
  31. Install the following items:

    1. Install the cowl panel. Refer to: Cowl Panel .
    2. Install the air cleaner. Refer to: Air Cleaner .
    3. Install the throttle body. Refer to: Throttle Body .

  32. Install the suspension support bar and the bolts.

    Torque: 22 lb.ft (30 Nm)

    GFD657329Courtesy of FORD MOTOR COMPANY
  33. Remove the holding device.
    GFD657328Courtesy of FORD MOTOR COMPANY
  34. Start and check the exhaust system for leaks.
