Liftgate Release Switch: Removal

WARNING: This page is about a different car, the 2022 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the reversing lamp. Refer to: Reversing Lamp .

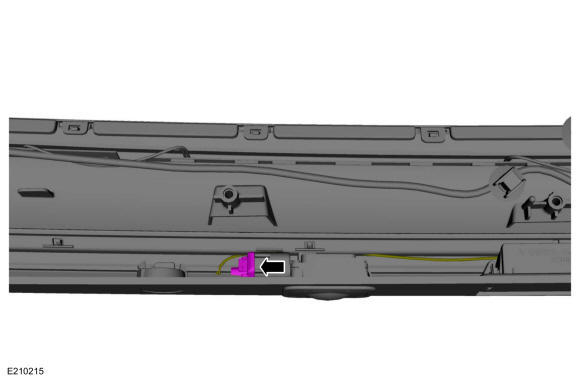

  2. Disconnect the liftgate release switch electrical connector.
    GFD622391Courtesy of FORD MOTOR COMPANY

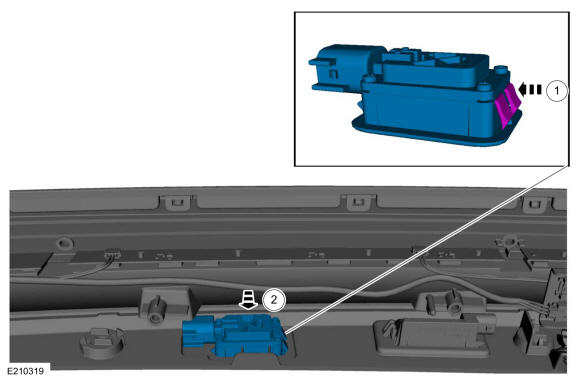

  3. Remove the liftgate release switch.

    1. Press the retaining tabs on the liftgate release switch.
    2. Remove the liftgate release switch.

GFD622392Courtesy of FORD MOTOR COMPANY
