Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

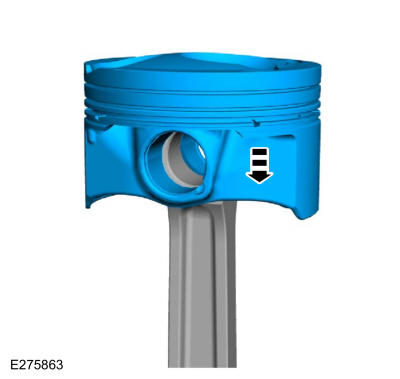

  1. NOTE: Align the piston-to-connecting rod orientation marks made during disassembly.

    Install the piston to the connecting rod.

    GFD672945Courtesy of FORD MOTOR COMPANY

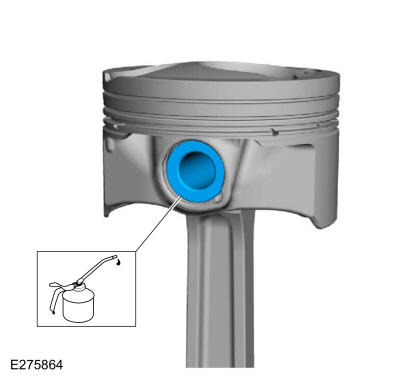

  2. Lubricate with clean engine oil and install the piston pin.
    GFD672946Courtesy of FORD MOTOR COMPANY

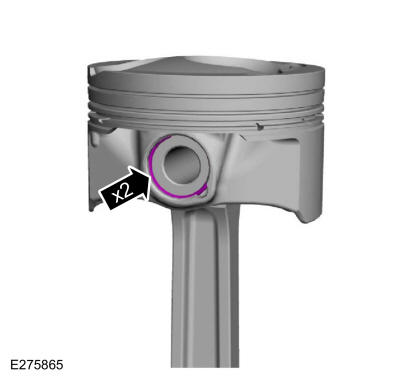

  3. Install the piston pin retainers.
    GFD672947Courtesy of FORD MOTOR COMPANY

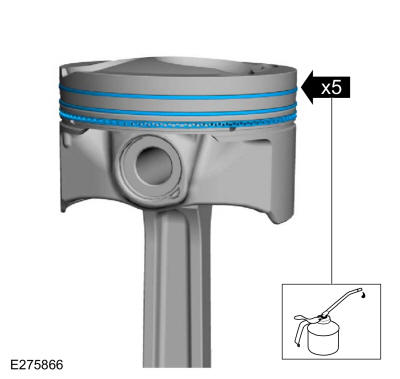

  4. Lubricate with clean engine oil and install the piston rings.
    GFD672948Courtesy of FORD MOTOR COMPANY

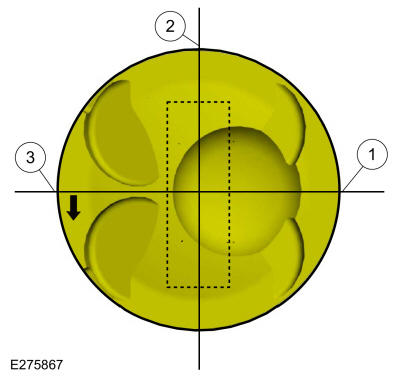

  5. NOTE: Align the piston rings on the piston.
    NOTE: Arrow indicates front of engine.

    1. Upper oil control segment ring gap location.
    2. Oil control spacer gap location.
    3. Lower oil control segment ring gap location.

GFD672949Courtesy of FORD MOTOR COMPANY
