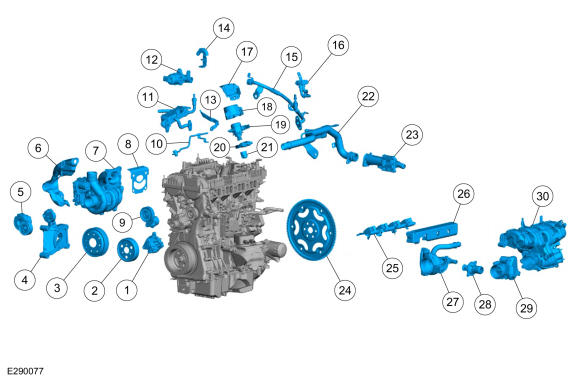

Exploded View Of Engine -- External Components
WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8501 | Coolant pump |
| 2 | 8509 | Coolant pump pulley |
| 3 | 8A617 | Coolant fan pulley |
| 4 | 8D611 | Accessory drive belt tensioner bracket |
| 5 | 6A228 | Accessory drive belt tensioner |
| 6 | 9G479 | Turbocharger heat shield |
| 7 | 9G438 | Turbocharger |
| 8 | 9448 | Turbocharger gasket |
| 9 | 6A228 | Accessory drive belt tensioner |
| 10 | 8B535 | Coolant outlet tube |
| 11 | 9F464 | Exhaust gas recirculation (EGR) cooler |
| 12 | 9D475 | EGR valve |
| 13 | 9F465 | EGR cooler bracket |
| 14 | 9D484 | EGR valve bracket |
| 15 | 9E469 | EGR inlet tube |
| 16 | 9J433 | EGR transducer |
| 17 | 9A397 | High-pressure fuel pump crash bracket |
| 18 | 9C374 | High-pressure fuel pump cover |
| 19 | 9D376 | High-pressure fuel pump |
| 20 | 9178 | High-pressure fuel pump mounting plate |
| 21 | 9C587 | High-pressure fuel pump tappet |
| 22 | 8594 | Coolant tube |
| 23 | 8K556 | Coolant outlet |
| 24 | 6375 | Flexplate |
| 25 | 9F797 | Fuel rail |
| 26 | 9U550 | Fuel rail shield |
| 27 | 8C501 | Coolant pump adapter |
| 28 | 8575 | Thermostat assembly |
| 29 | 9E926 | Throttle body |
| 30 | 9424 | Intake manifold |
