Steering Wheel Multifunction Switch: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering wheel. Refer to: Steering Wheel .

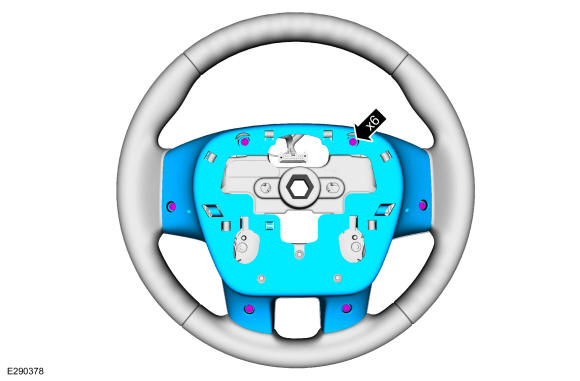

  2. Remove the retainers and the steering wheel back cover.
    GFD672419Courtesy of FORD MOTOR COMPANY

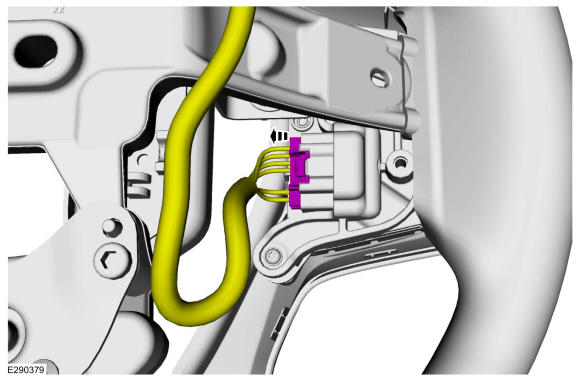

  3. On both sides. Disconnect the electrical connector.
    GFD672420Courtesy of FORD MOTOR COMPANY

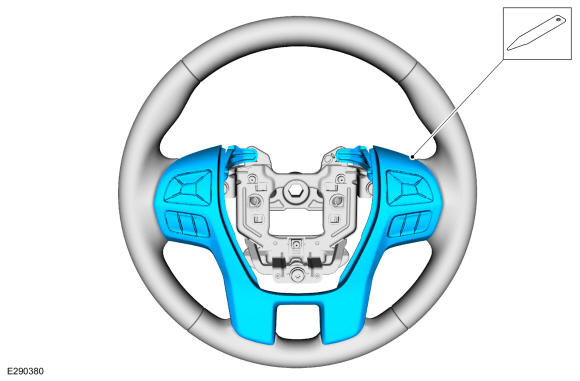

  4. Remove the steering wheel bezel.
    GFD672421Courtesy of FORD MOTOR COMPANY

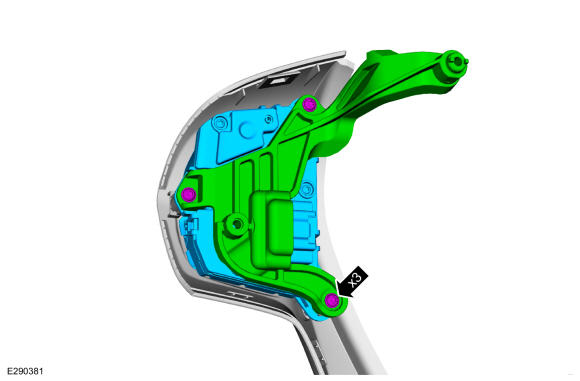

  5. On both sides. Remove the retainers and remove the steering wheel multifunction switch.
GFD672422Courtesy of FORD MOTOR COMPANY
