Ignition Switch: Removal

WARNING: This page is about a different car, the 2022 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

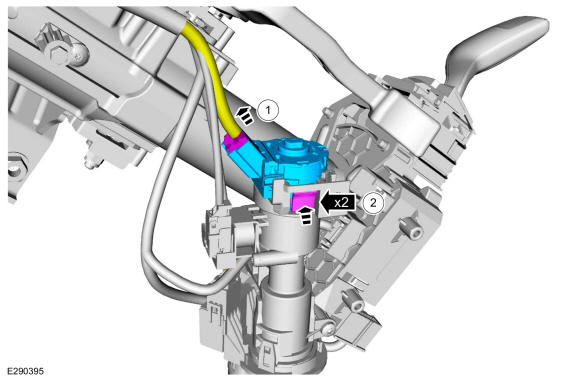

  2. Remover the ignition switch.

    1. Disconnect the electrical connector.
    2. Release the tabs and remove the ignition switch.

GFD672409Courtesy of FORD MOTOR COMPANY
