Audio System/Navigation - Sync

Fig 1: Audio System/Navigation - SYNC Wiring Diagram (1 Of 30)

GFDWR168668

Courtesy of FORD MOTOR COMPANY

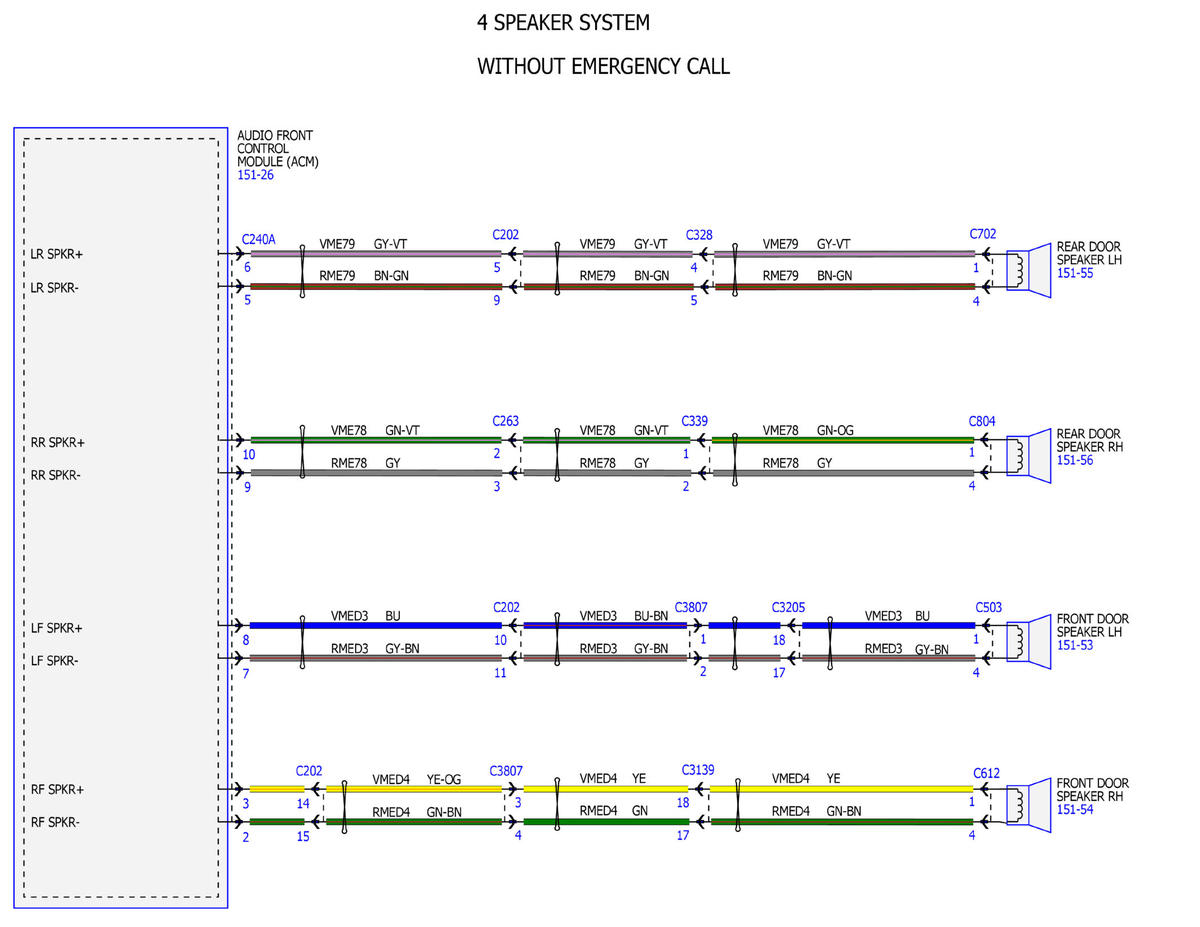

Fig 2: Audio System/Navigation - SYNC Wiring Diagram (2 Of 30)

GFDWR168679

Courtesy of FORD MOTOR COMPANY

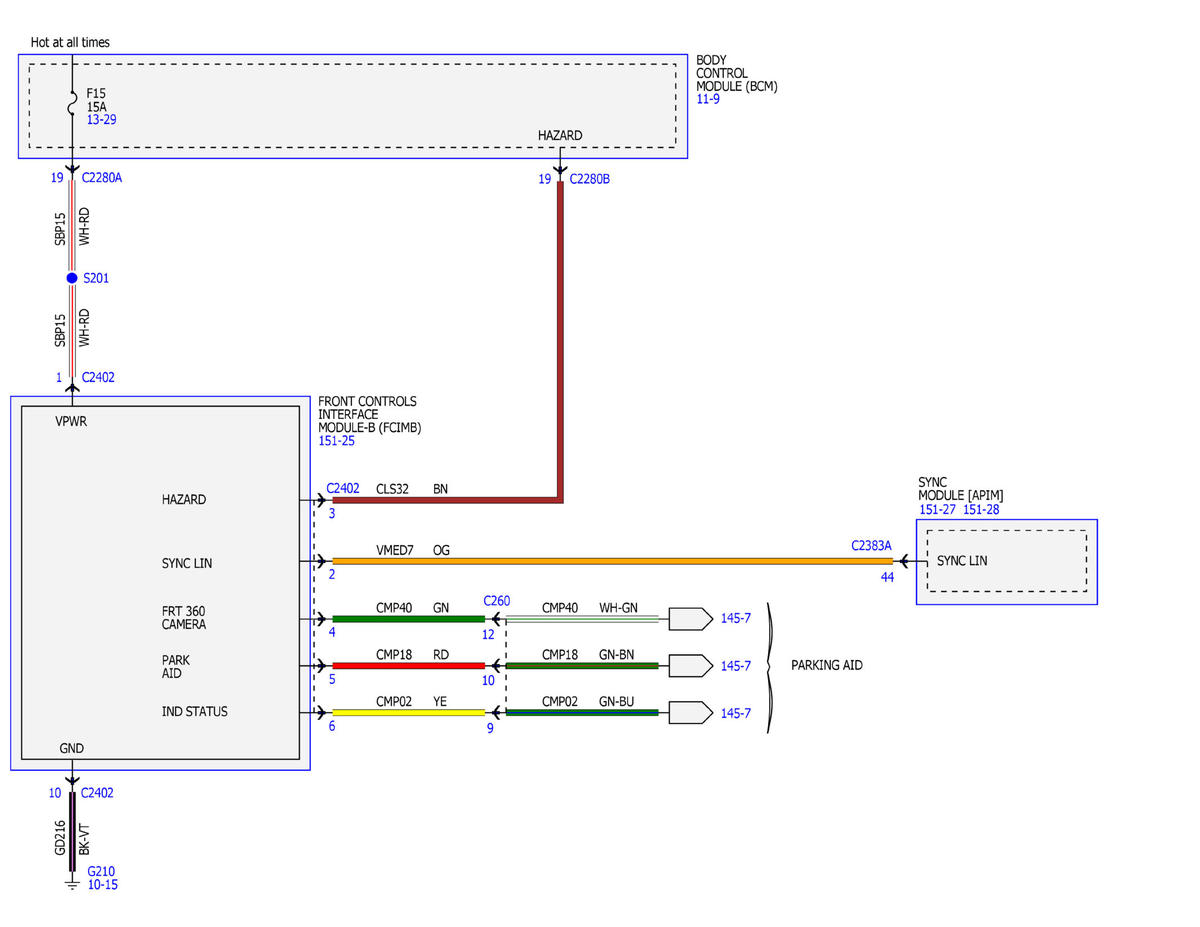

Fig 3: Audio System/Navigation - SYNC Wiring Diagram (3 Of 30)

GFDWR168690

Courtesy of FORD MOTOR COMPANY

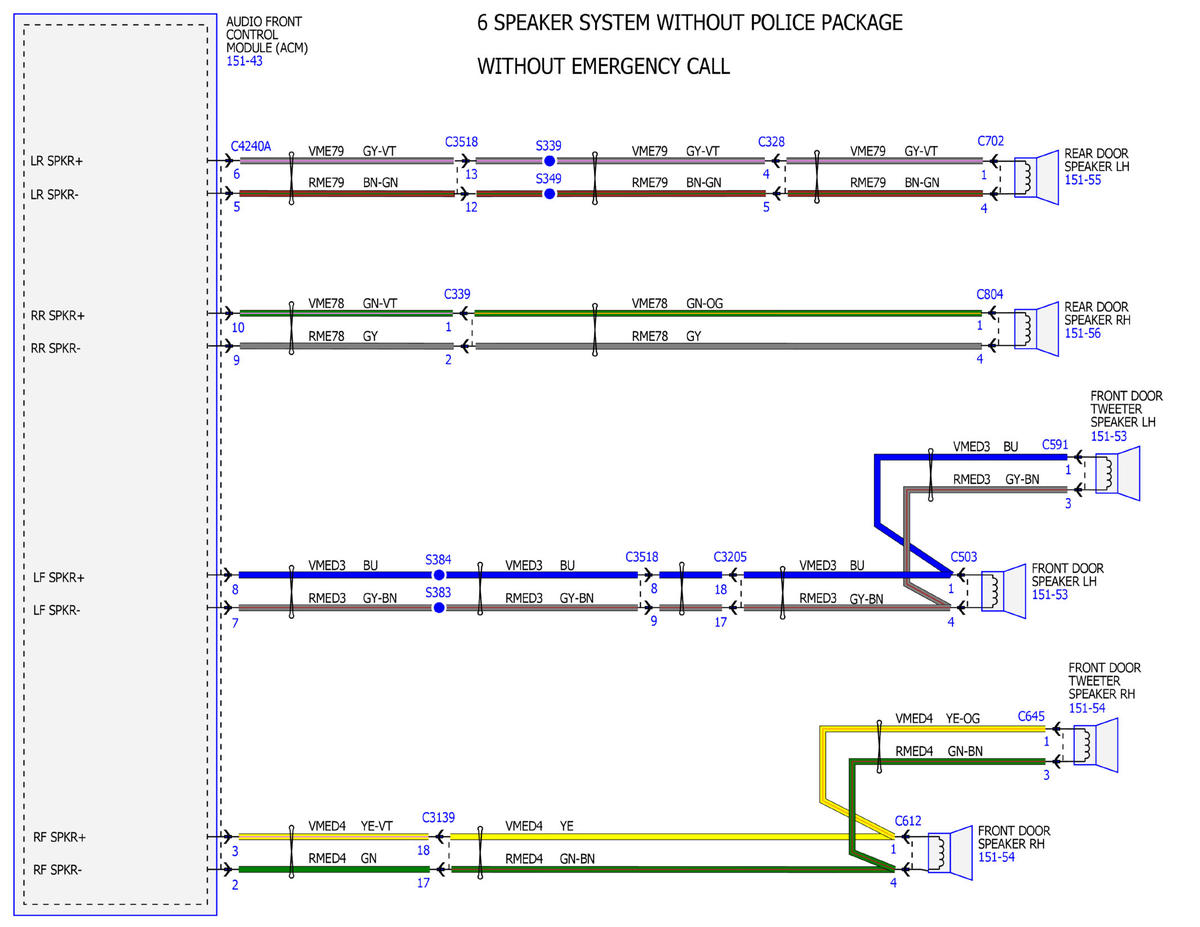

Fig 4: Audio System/Navigation - SYNC Wiring Diagram (4 Of 30)

GFDWR168692

Courtesy of FORD MOTOR COMPANY

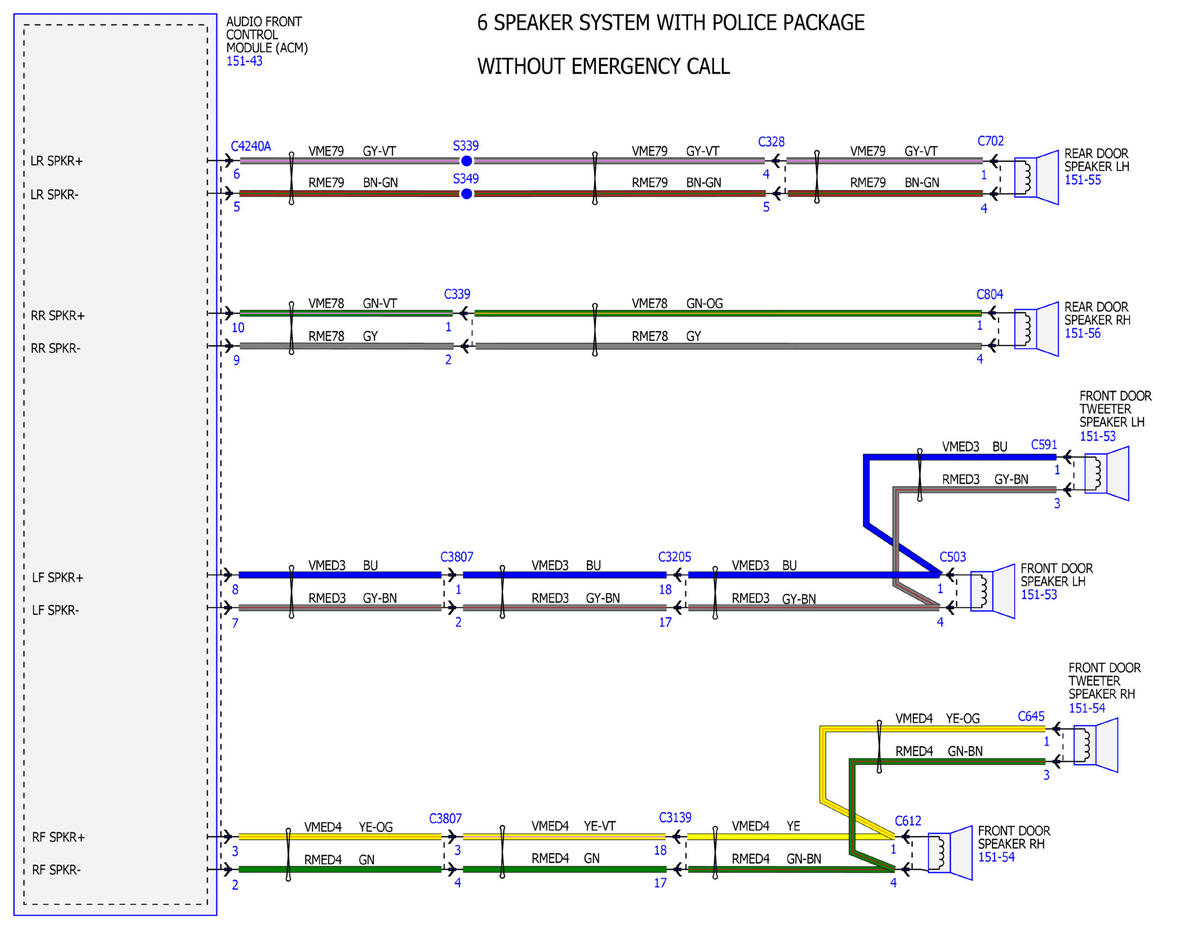

Fig 5: Audio System/Navigation - SYNC Wiring Diagram (5 Of 30)

GFDWR168693

Courtesy of FORD MOTOR COMPANY

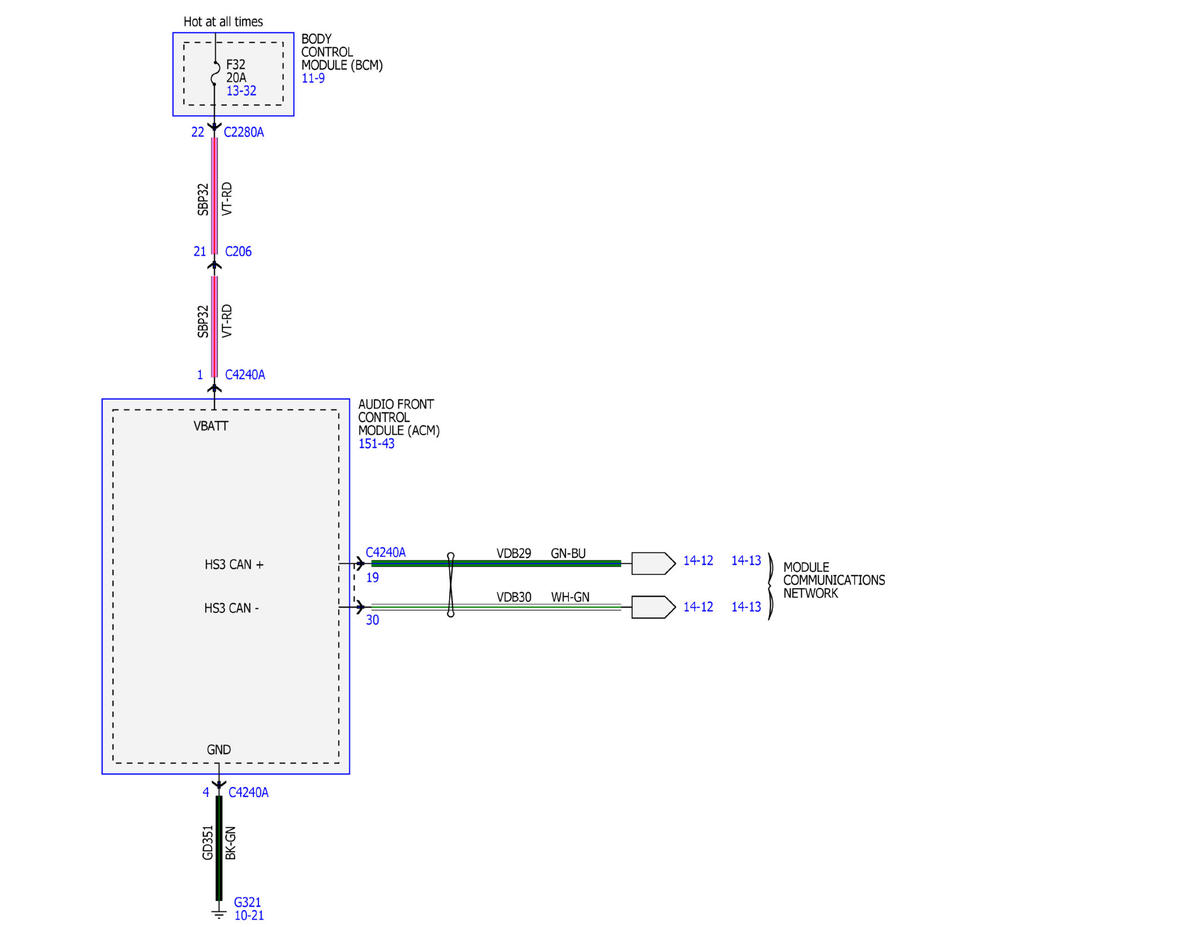

Fig 6: Audio System/Navigation - SYNC Wiring Diagram (6 Of 30)

GFDWR168694

Courtesy of FORD MOTOR COMPANY

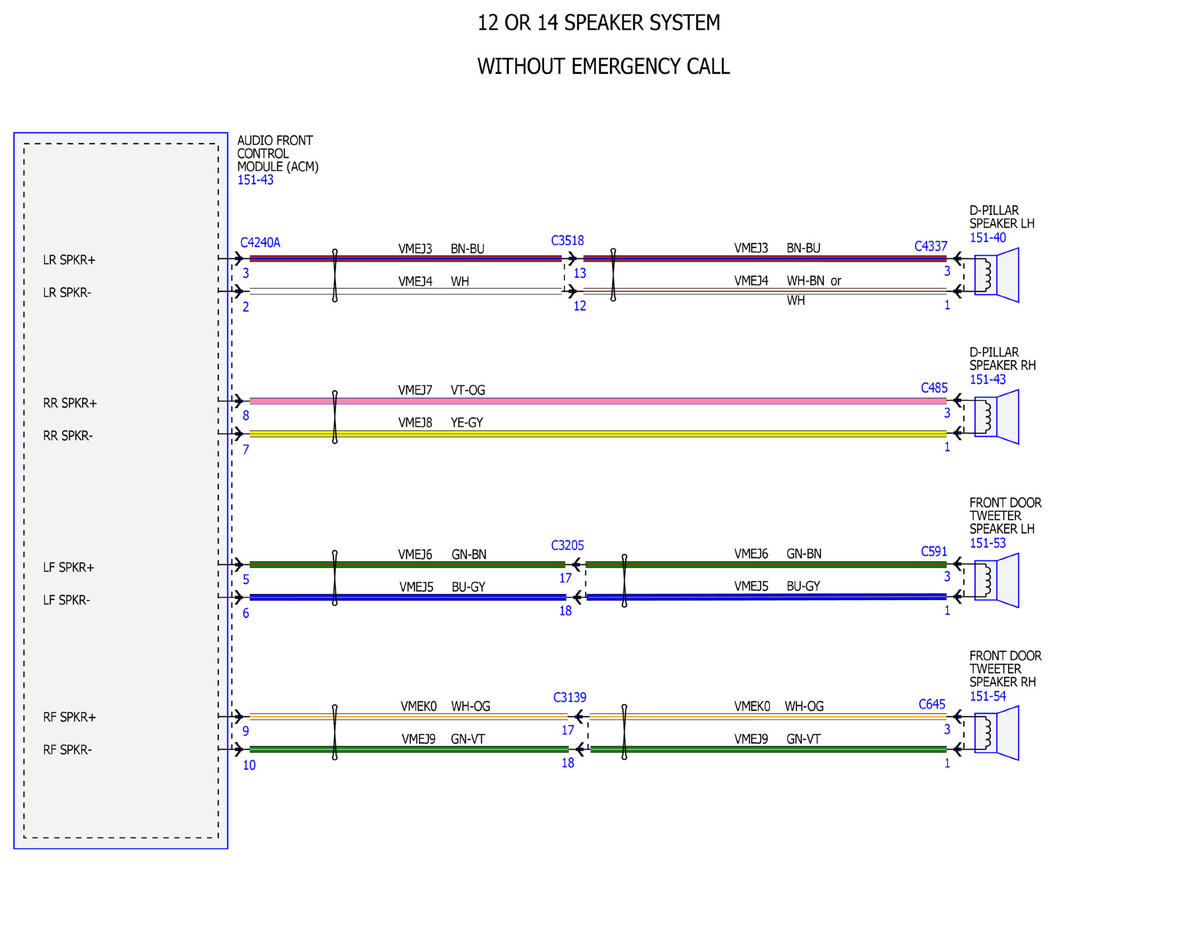

Fig 7: Audio System/Navigation - SYNC Wiring Diagram (7 Of 30)

GFDWR168695

Courtesy of FORD MOTOR COMPANY

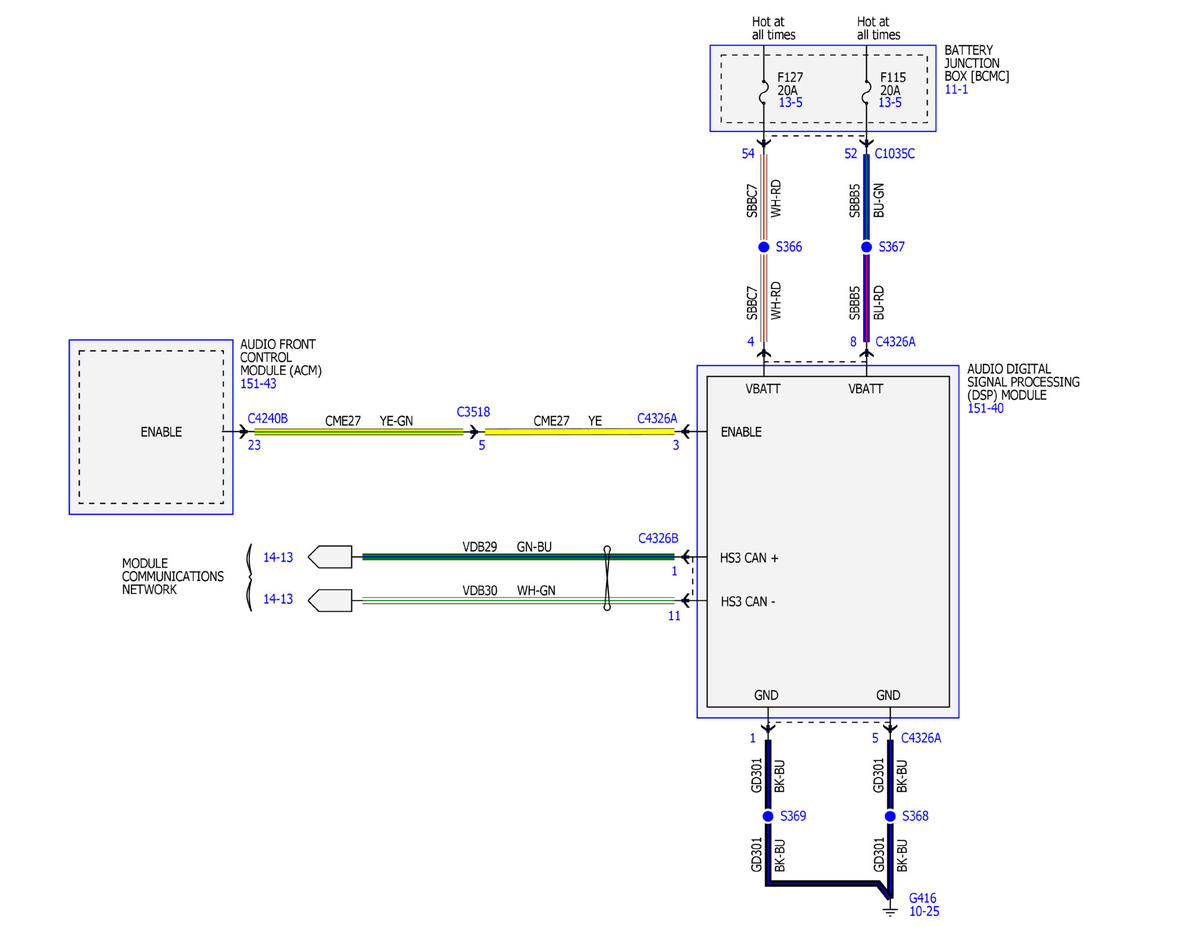

Fig 8: Audio System/Navigation - SYNC Wiring Diagram (8 Of 30)

GFDWR168696

Courtesy of FORD MOTOR COMPANY

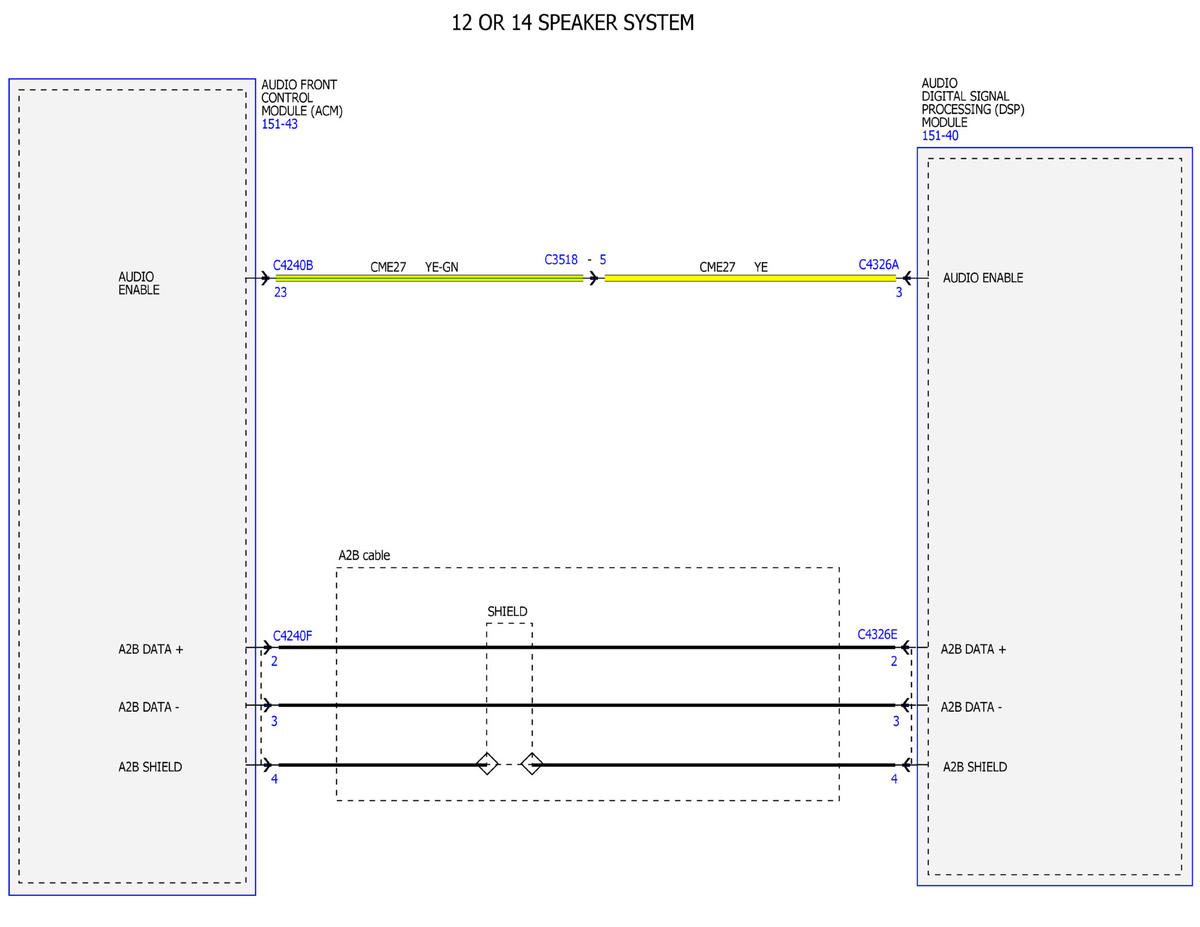

Fig 9: Audio System/Navigation - SYNC Wiring Diagram (9 Of 30)

GFDWR168697

Courtesy of FORD MOTOR COMPANY

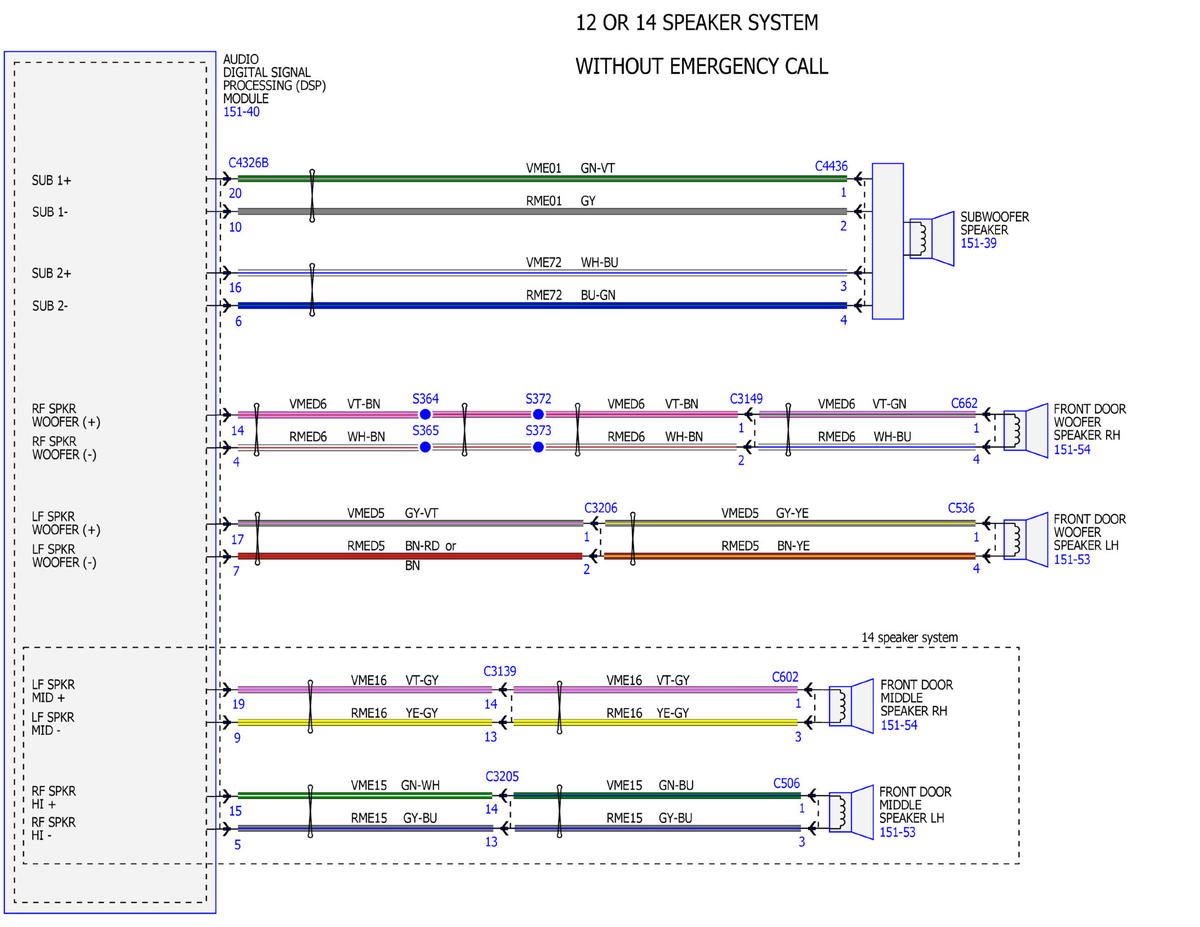

Fig 10: Audio System/Navigation - SYNC Wiring Diagram (10 Of 30)

GFDWR168669

Courtesy of FORD MOTOR COMPANY

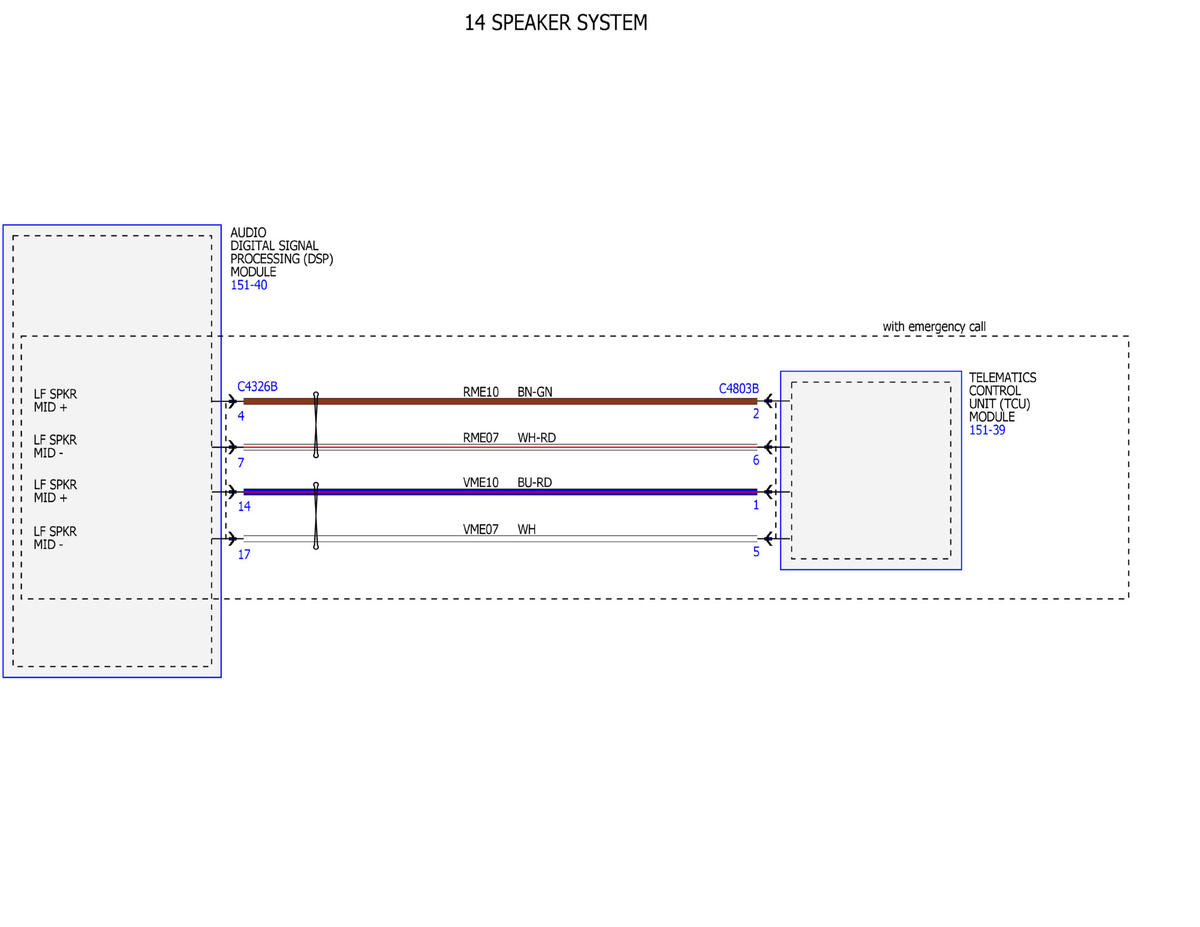

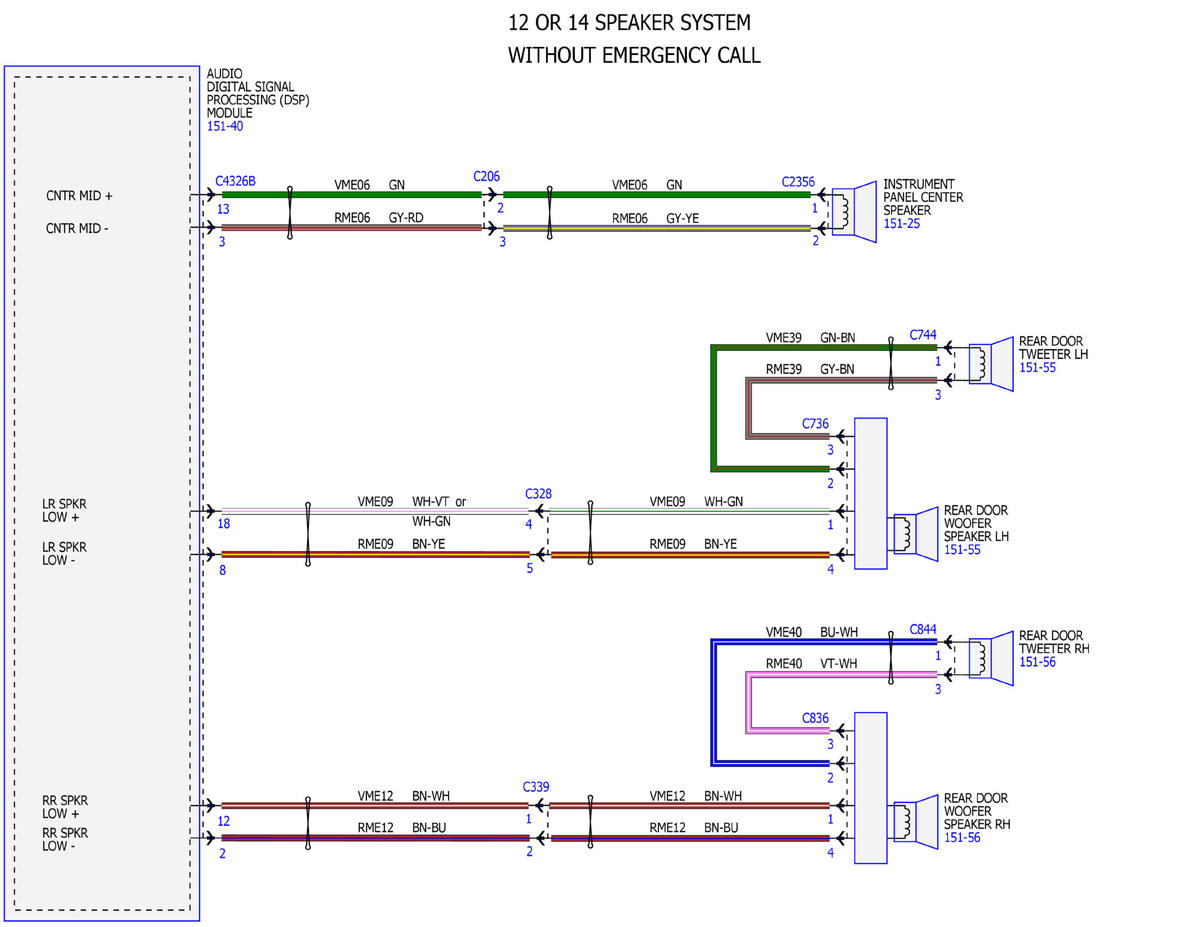

Fig 11: Audio System/Navigation - SYNC Wiring Diagram (11 Of 30)

GFDWR168670

Courtesy of FORD MOTOR COMPANY

Fig 12: Audio System/Navigation - SYNC Wiring Diagram (12 Of 30)

GFDWR168671

Courtesy of FORD MOTOR COMPANY

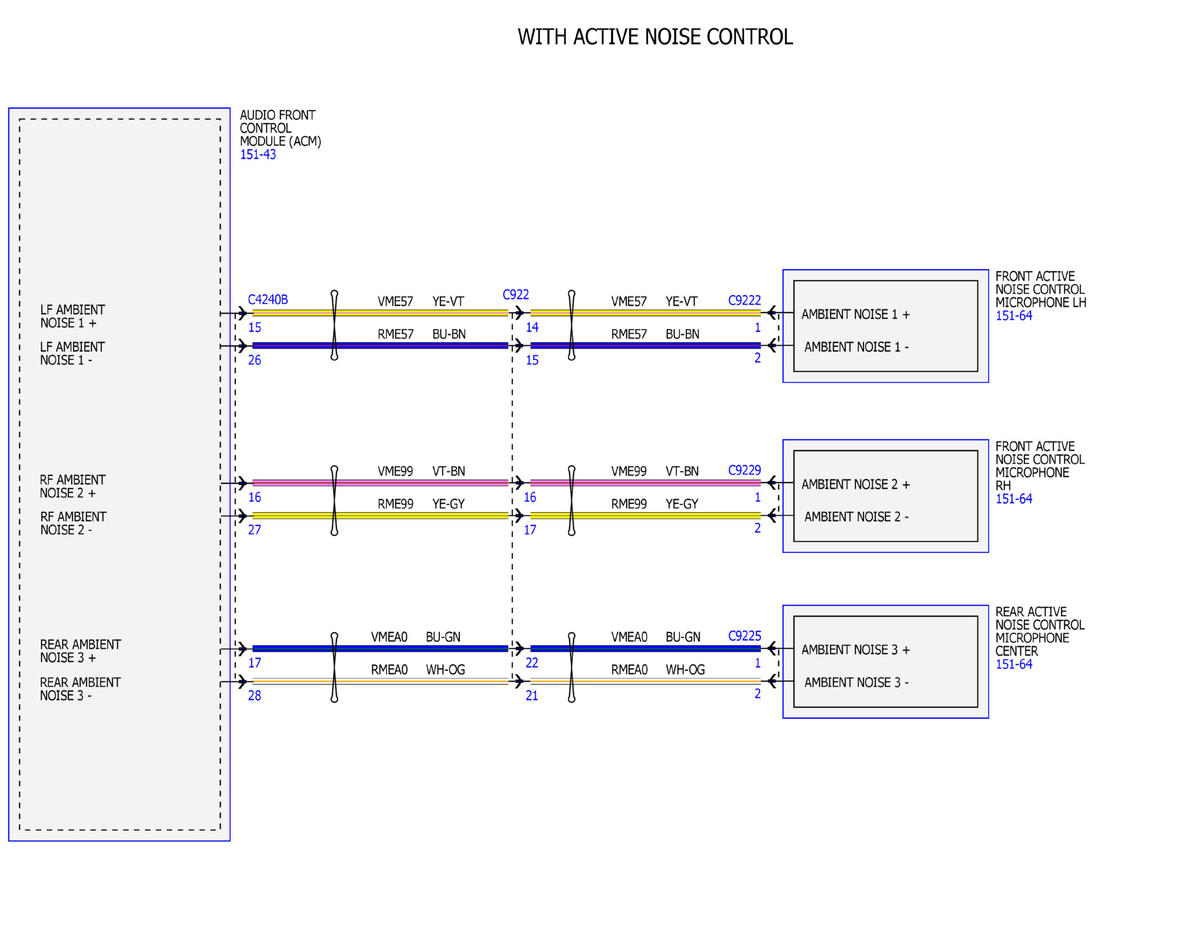

Fig 13: Audio System/Navigation - SYNC Wiring Diagram (13 Of 30)

GFDWR168672

Courtesy of FORD MOTOR COMPANY

Fig 14: Audio System/Navigation - SYNC Wiring Diagram (14 Of 30)

GFDWR168673

Courtesy of FORD MOTOR COMPANY

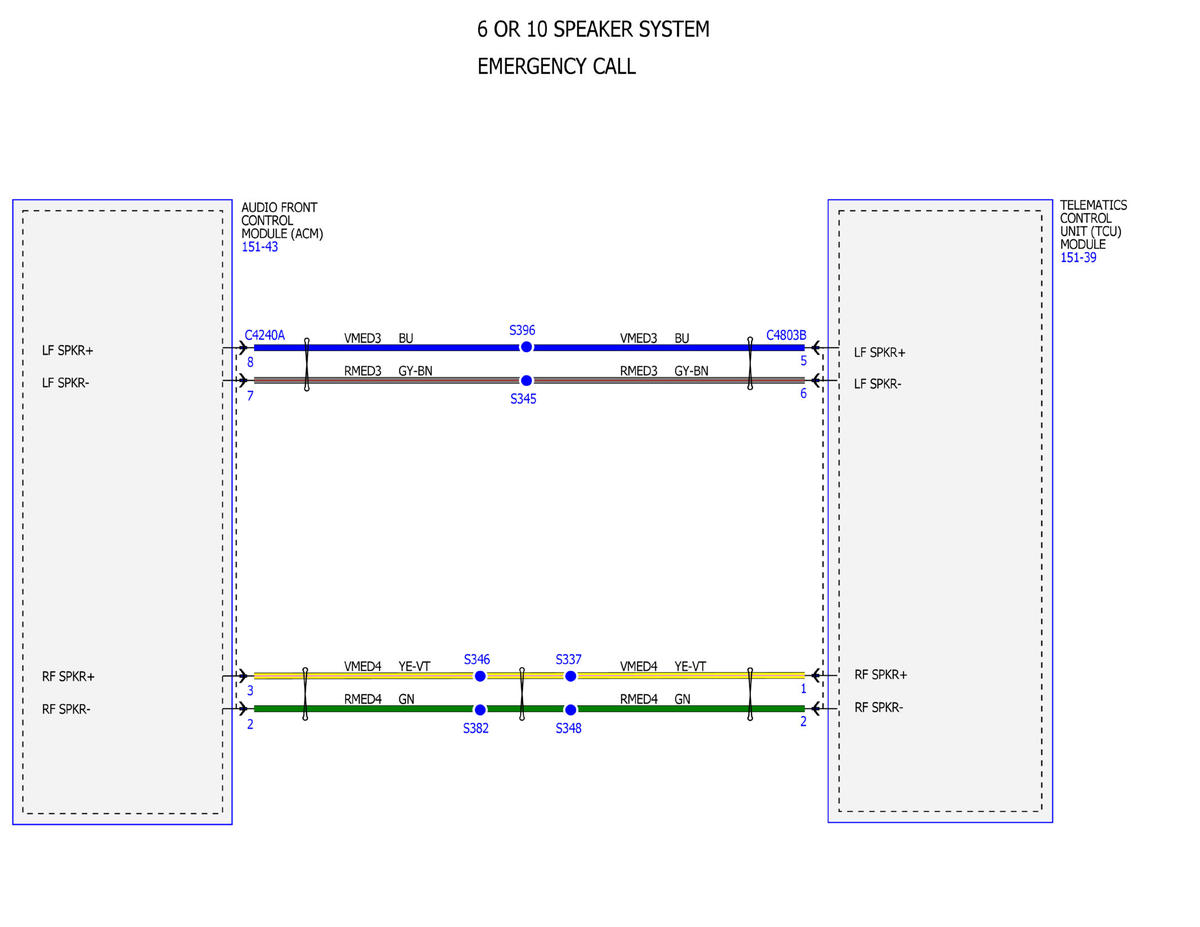

Fig 15: Audio System/Navigation - SYNC Wiring Diagram (15 Of 30)

GFDWR168674

Courtesy of FORD MOTOR COMPANY

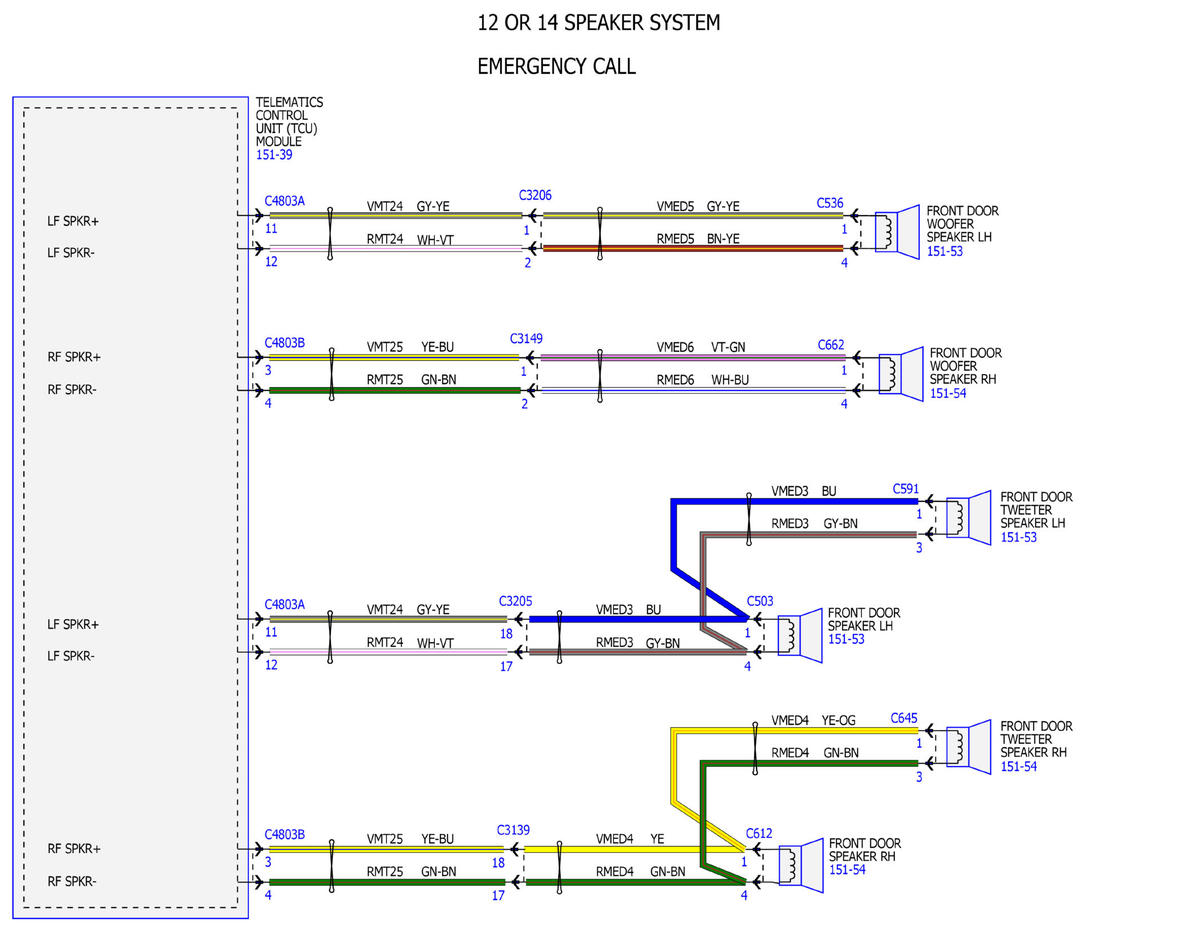

Fig 16: Audio System/Navigation - SYNC Wiring Diagram (16 Of 30)

GFDWR168675

Courtesy of FORD MOTOR COMPANY

Fig 17: Audio System/Navigation - SYNC Wiring Diagram (17 Of 30)

GFDWR168676

Courtesy of FORD MOTOR COMPANY

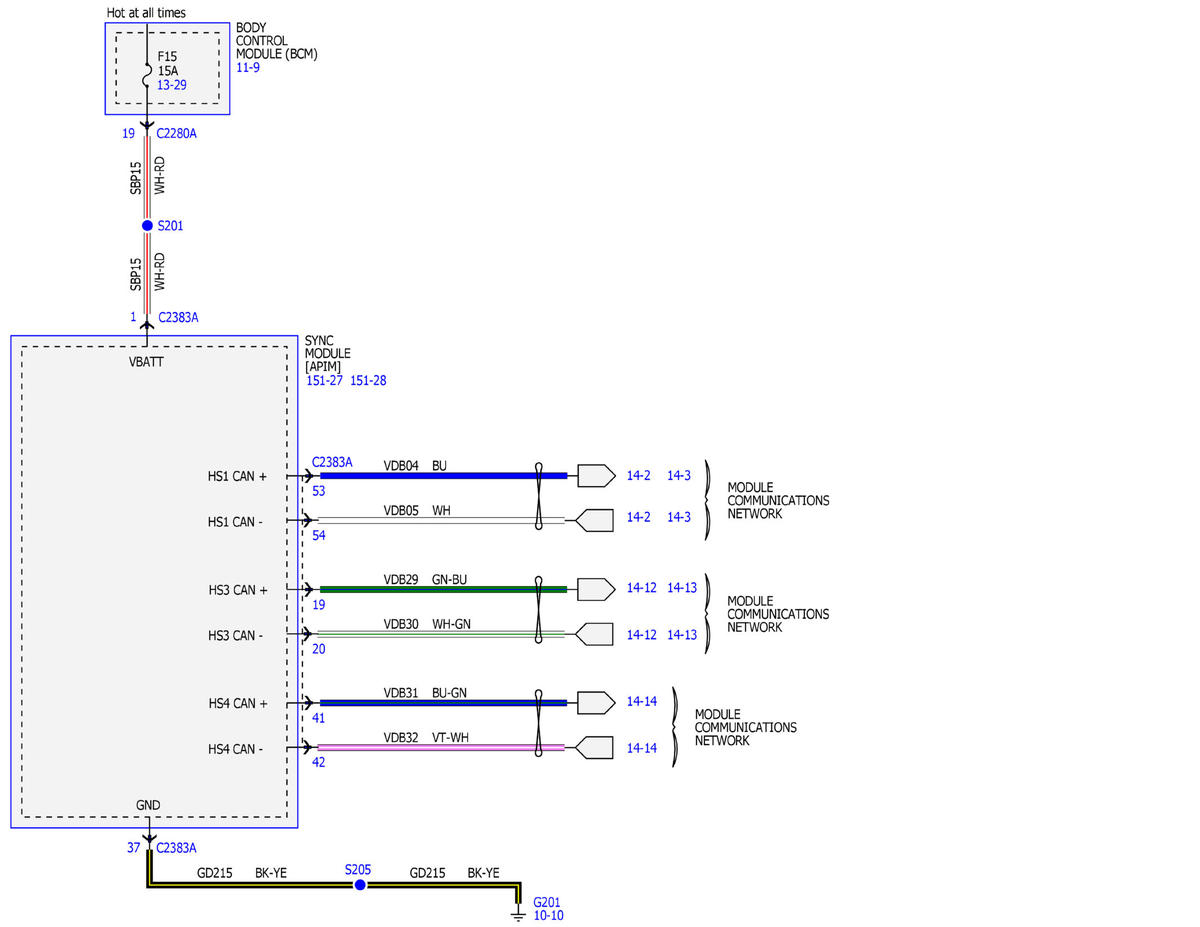

Fig 18: Audio System/Navigation - SYNC Wiring Diagram (18 Of 30)

GFDWR168677

Courtesy of FORD MOTOR COMPANY

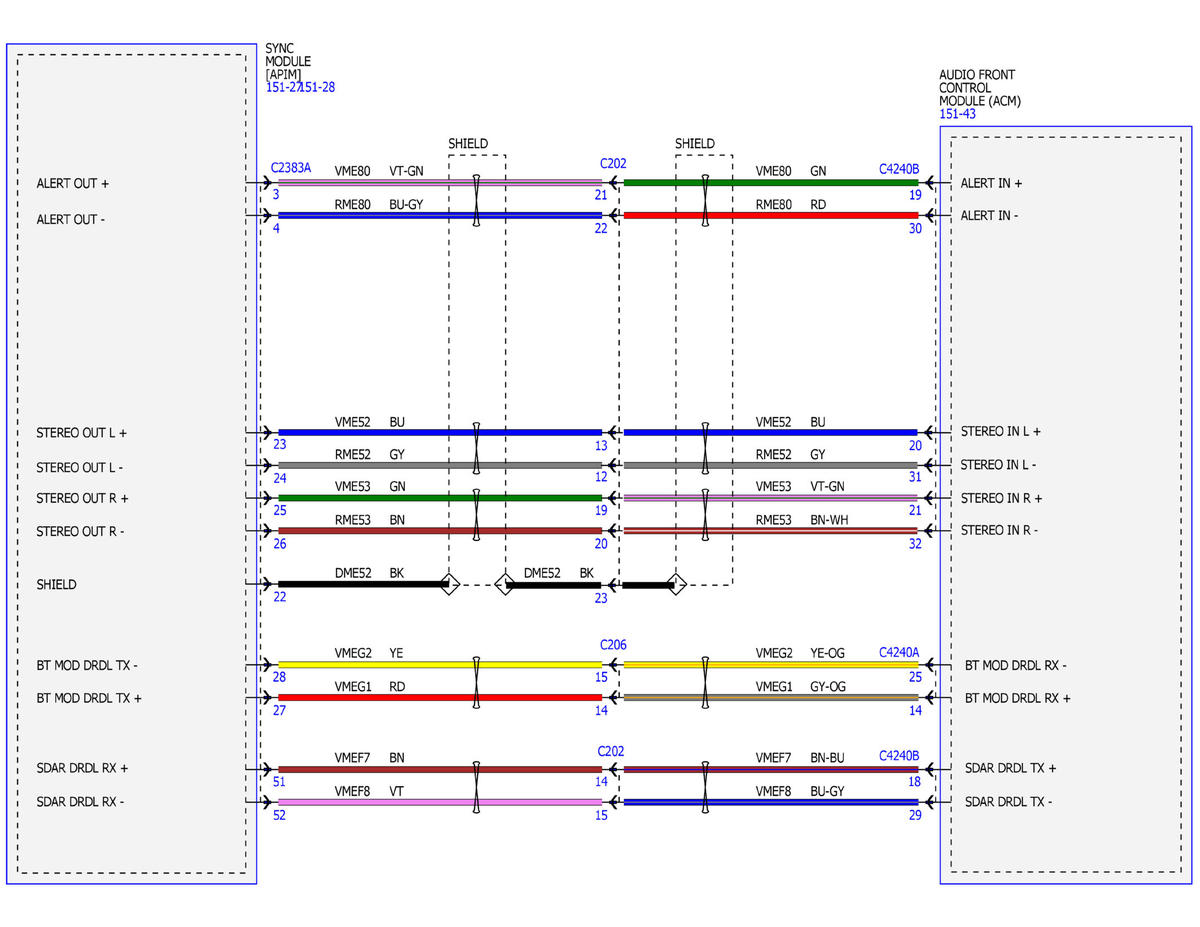

Fig 19: Audio System/Navigation - SYNC Wiring Diagram (19 Of 30)

GFDWR168678

Courtesy of FORD MOTOR COMPANY

Fig 20: Audio System/Navigation - SYNC Wiring Diagram (20 Of 30)

GFDWR168680

Courtesy of FORD MOTOR COMPANY

Fig 21: Audio System/Navigation - SYNC Wiring Diagram (21 Of 30)

GFDWR168681

Courtesy of FORD MOTOR COMPANY

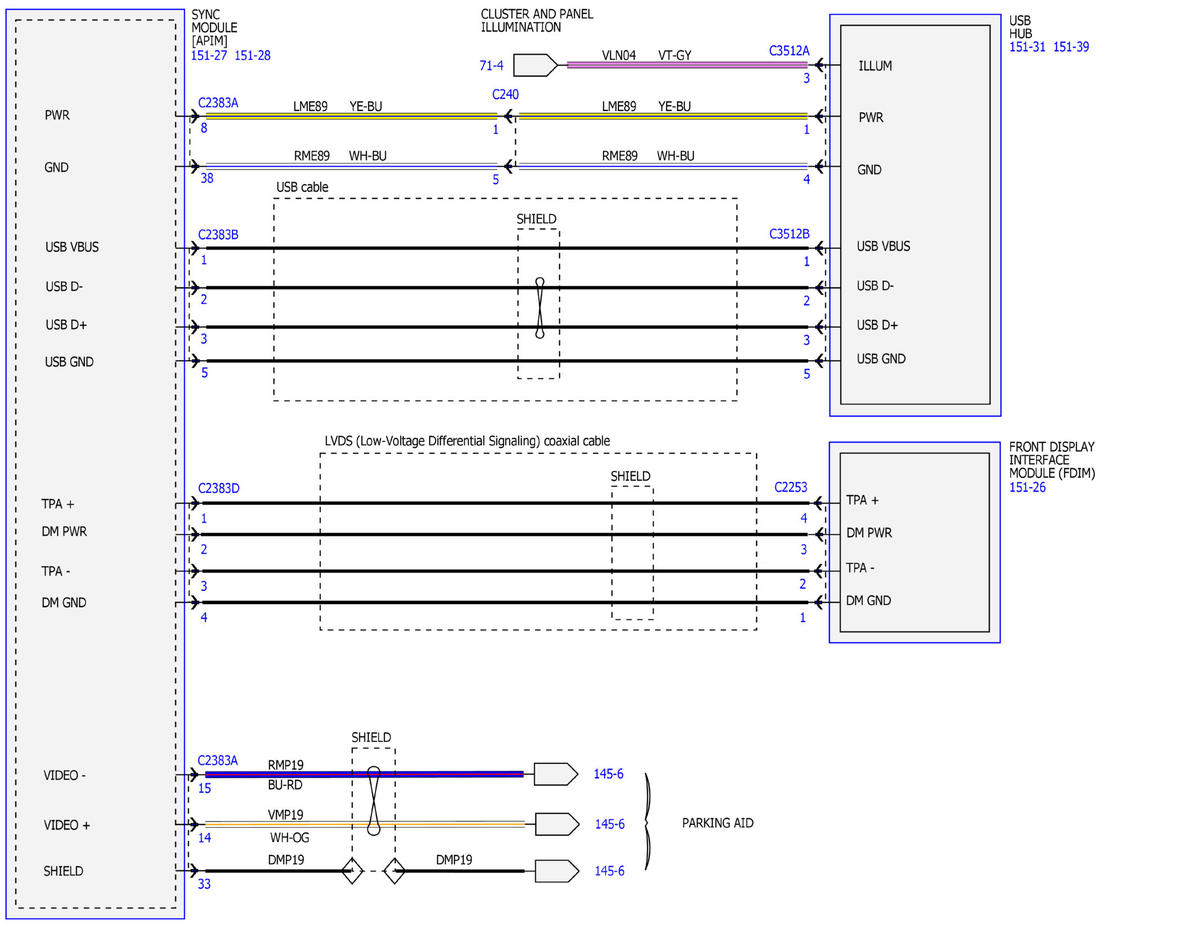

Fig 22: Audio System/Navigation - SYNC Wiring Diagram (22 Of 30)

GFDWR168682

Courtesy of FORD MOTOR COMPANY

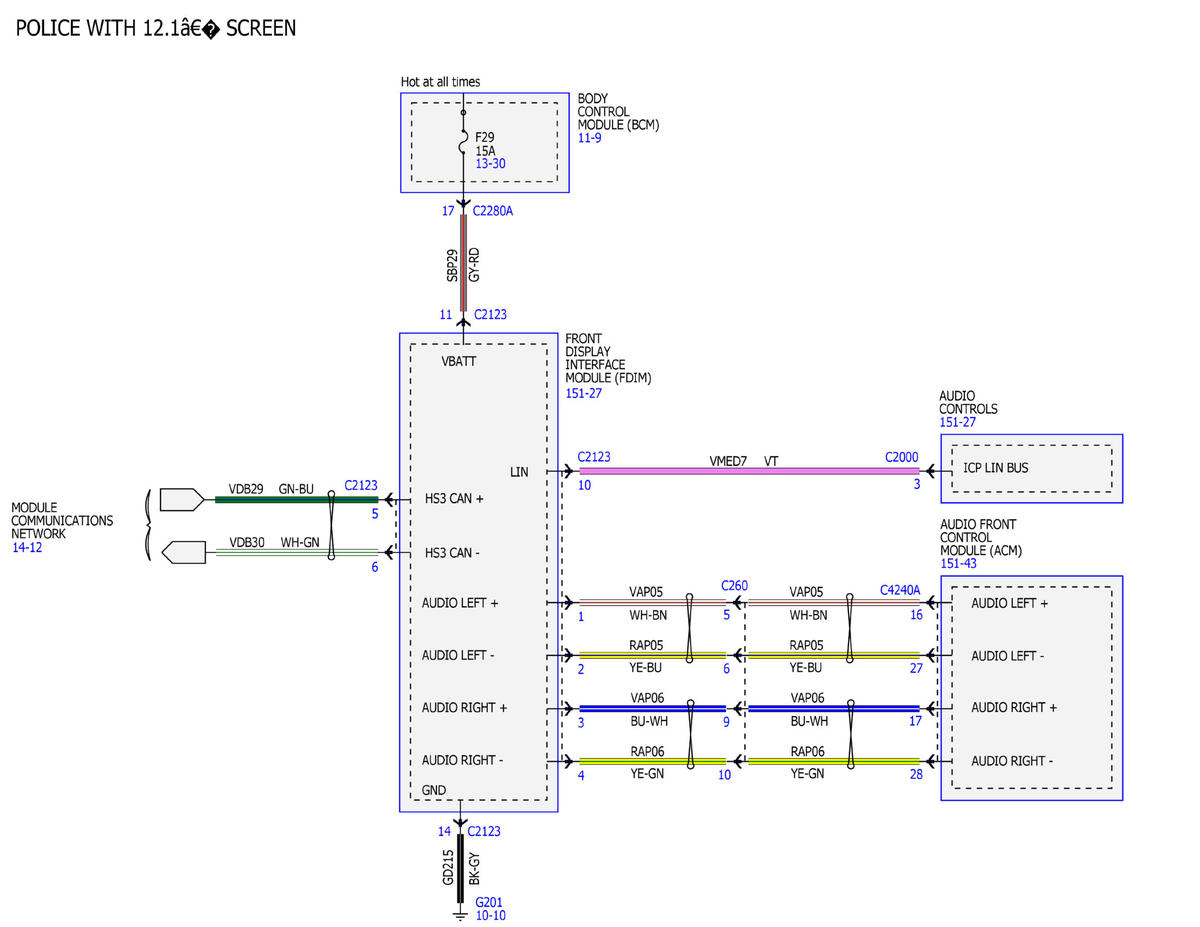

Fig 23: Audio System/Navigation - SYNC Wiring Diagram (23 Of 30)

GFDWR168683

Courtesy of FORD MOTOR COMPANY

Fig 24: Audio System/Navigation - SYNC Wiring Diagram (24 Of 30)

GFDWR168684

Courtesy of FORD MOTOR COMPANY

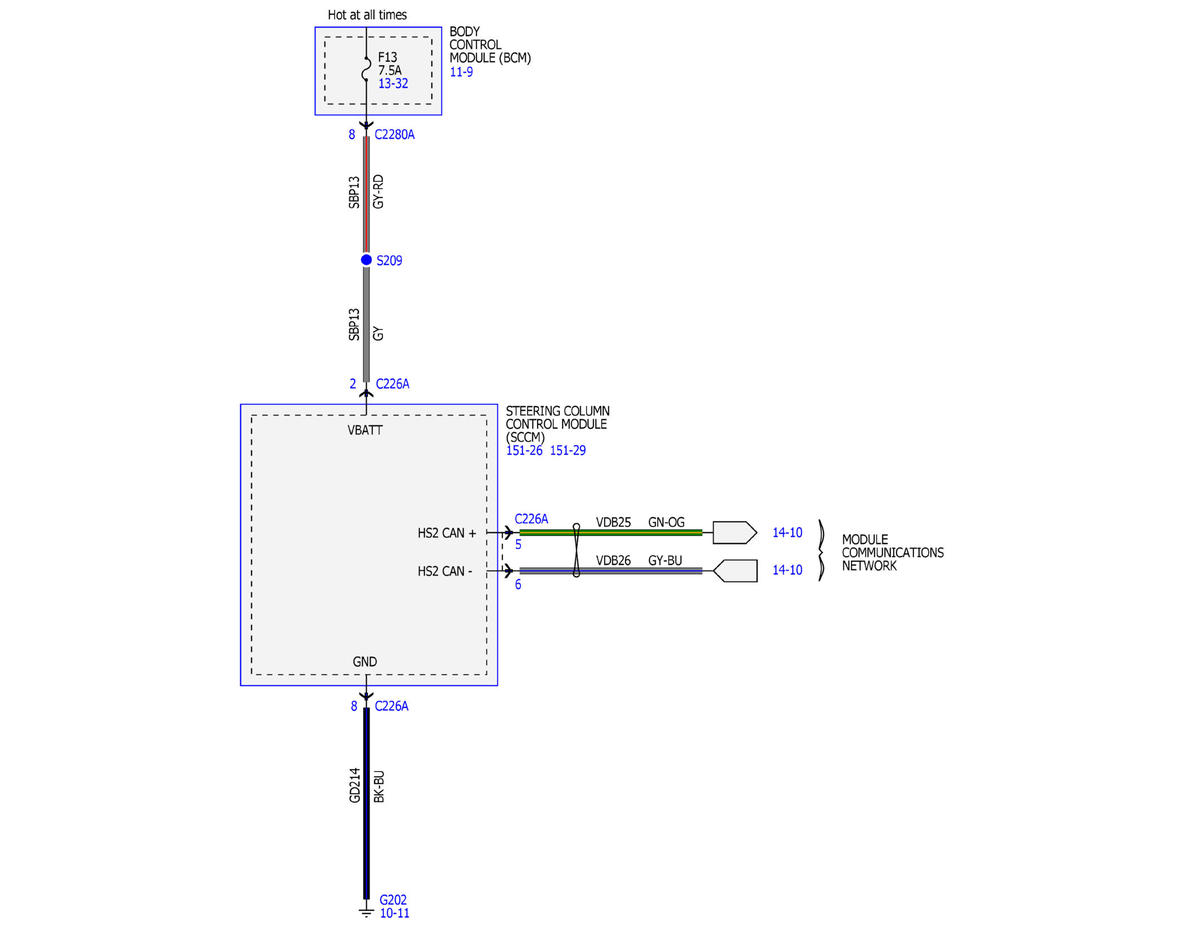

Fig 25: Audio System/Navigation - SYNC Wiring Diagram (25 Of 30)

GFDWR168685

Courtesy of FORD MOTOR COMPANY

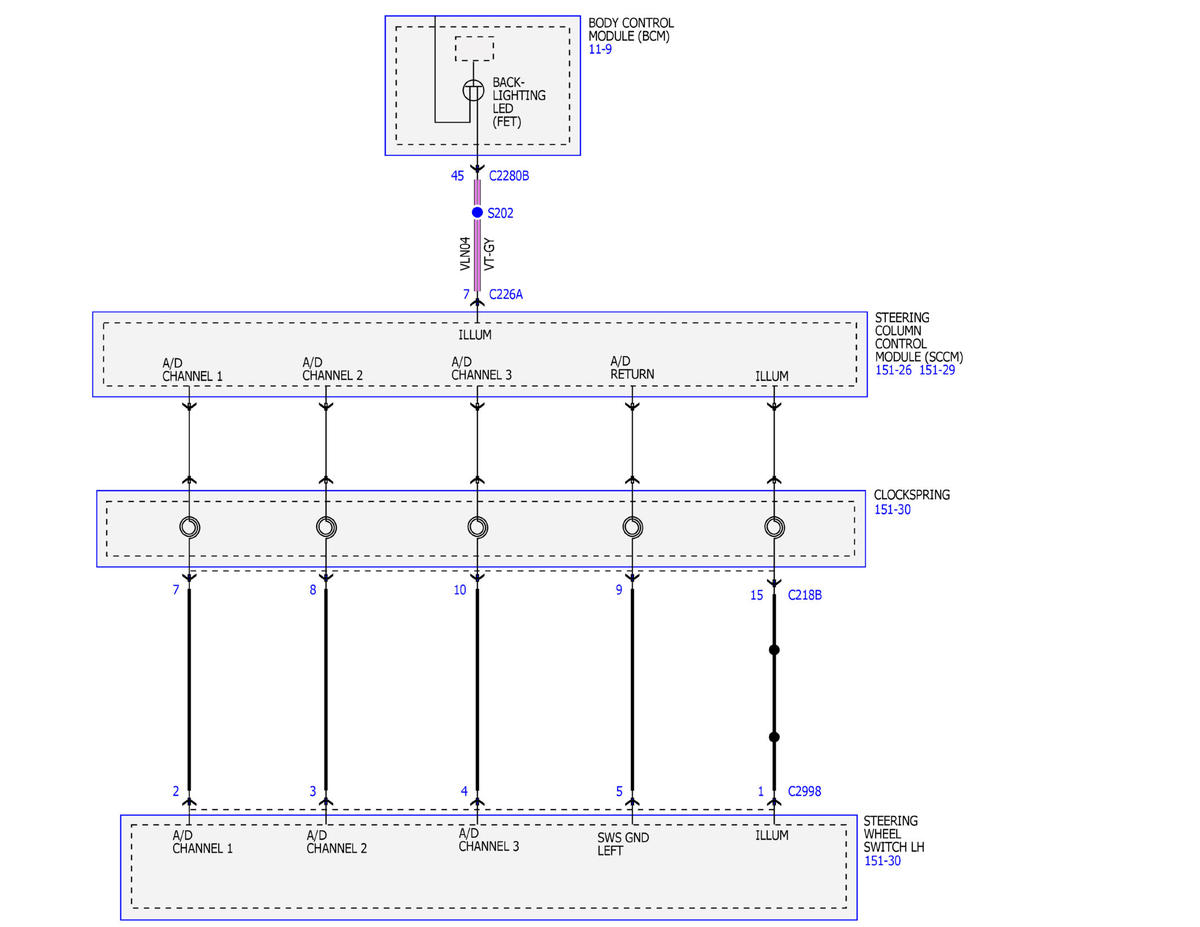

Fig 26: Audio System/Navigation - SYNC Wiring Diagram (26 Of 30)

GFDWR168686

Courtesy of FORD MOTOR COMPANY

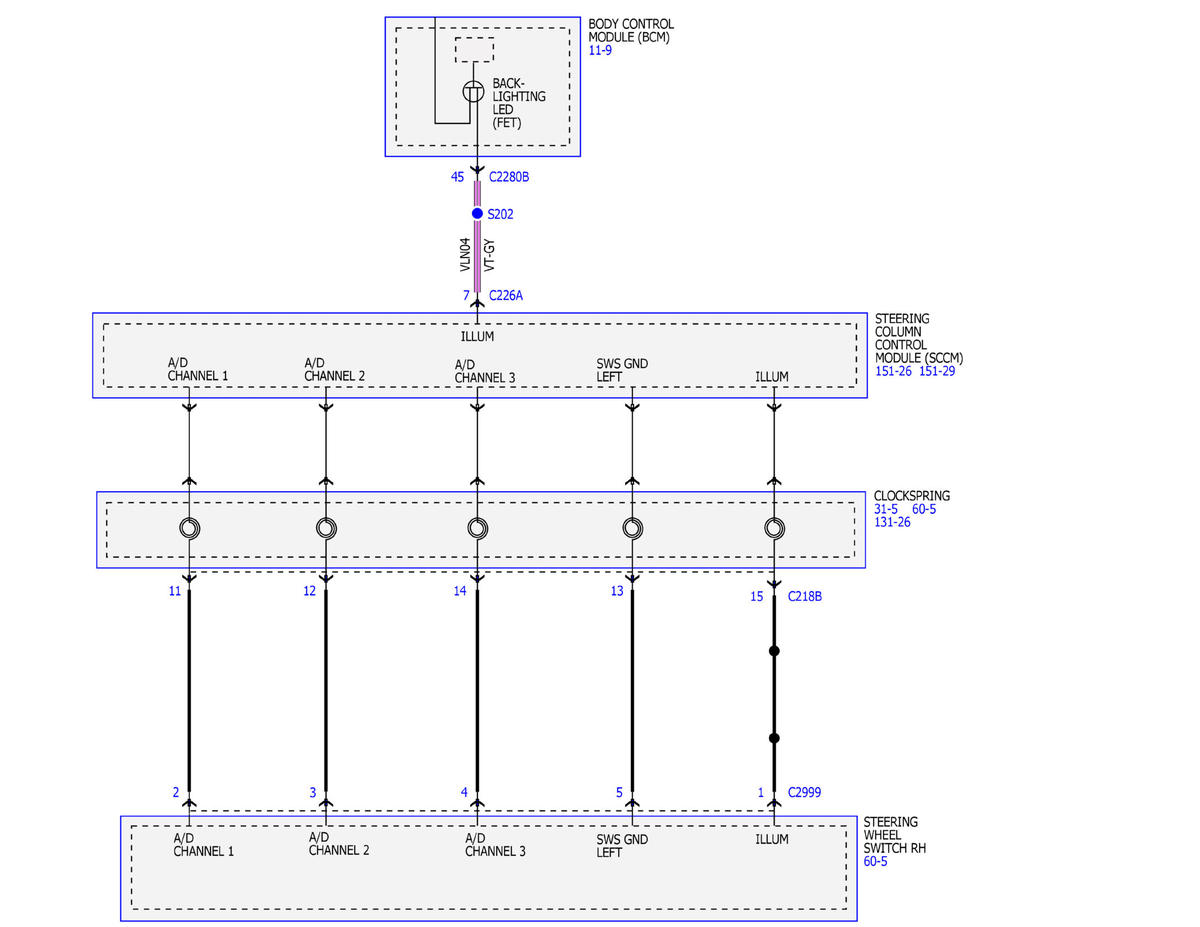

Fig 27: Audio System/Navigation - SYNC Wiring Diagram (27 Of 30)

GFDWR168687

Courtesy of FORD MOTOR COMPANY

Fig 28: Audio System/Navigation - SYNC Wiring Diagram (28 Of 30)

GFDWR168688

Courtesy of FORD MOTOR COMPANY

Fig 29: Audio System/Navigation - SYNC Wiring Diagram (29 Of 30)

GFDWR168689

Courtesy of FORD MOTOR COMPANY

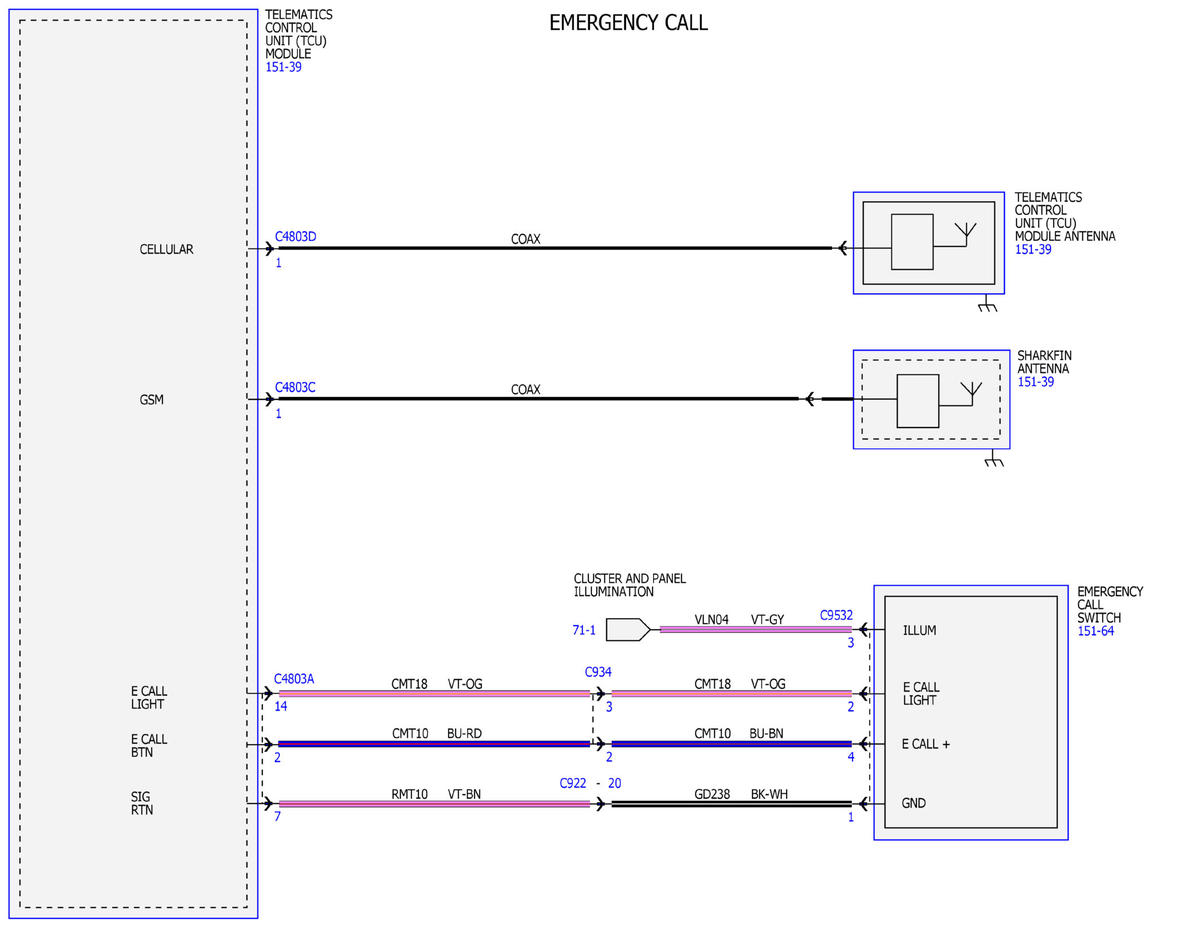

Fig 30: Audio System/Navigation - SYNC Wiring Diagram (30 Of 30)

GFDWR168691

Courtesy of FORD MOTOR COMPANY
