Instrument Panel: Removal

All vehicles

1. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding 3.3L Duratec-V6 - Hybrid (BP) . Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding 3.3L Duratec-V6 . Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding 3.0L EcoBoost . Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding 2.3L EcoBoost .
2. Evacuate the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .

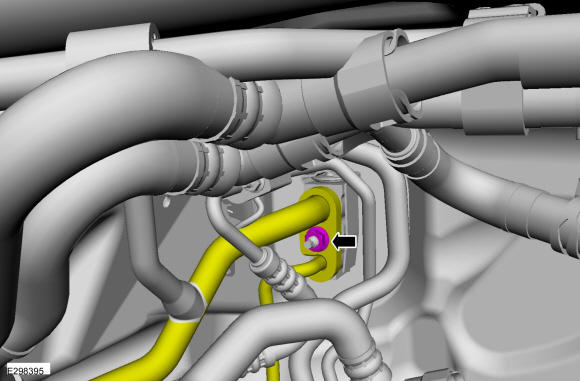

3. Remove the nut from the thermostatic expansion valve manifold and tube assembly.

   Torque: 155 lb.in (17.5 Nm)

   Courtesy of FORD MOTOR COMPANY

4. Remove the wiper linkage assembly. Refer to: Wiper Linkage Assembly .

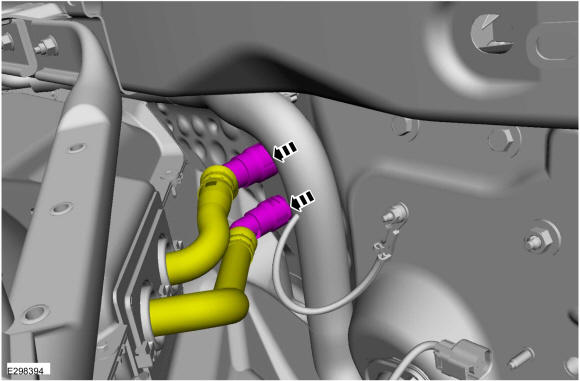

5. NOTE: Plug the heater core tubes.

   Disconnect the heater hoses.

   Courtesy of FORD MOTOR COMPANY

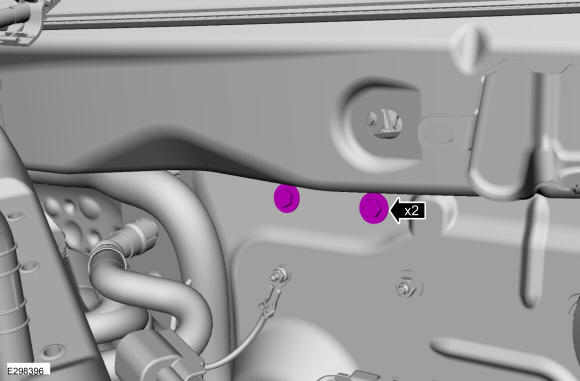

6. Remove the LH cowl to in-vehicle cross beam bolts.

   Torque: 18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

7. Remove the RH cowl to in-vehicle cross beam bolt.

   Torque: 26 lb.ft (35 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Remove the floor console. Refer to: Floor Console  .
9. Remove the A-Pillar trim panel. Refer to: A-Pillar Trim Panel .

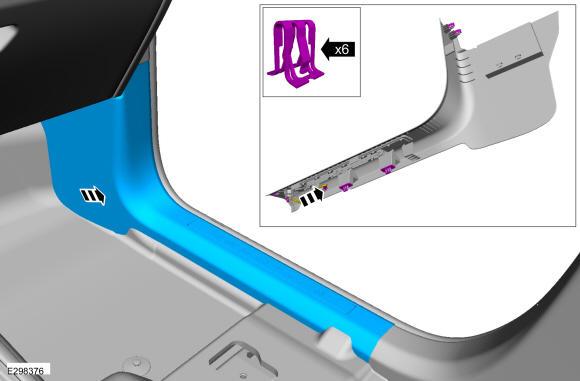

10. Release the clips and remove the RH scuff plate.
    • Disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

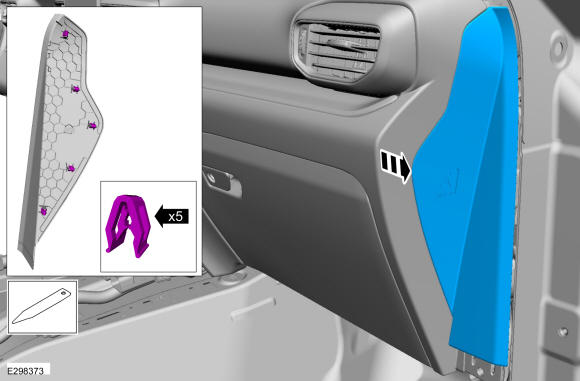

11. Release the clips and remove the RH instrument panel end cap. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

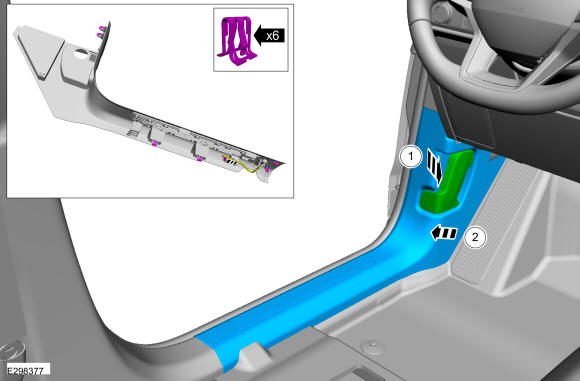

12. Remove the LH scuff plate.
    1. Remove the hood latch release handle. Refer to: Hood Latch Release Handle .
    2. Release the clips and remove the LH scuff plate.

    Courtesy of FORD MOTOR COMPANY

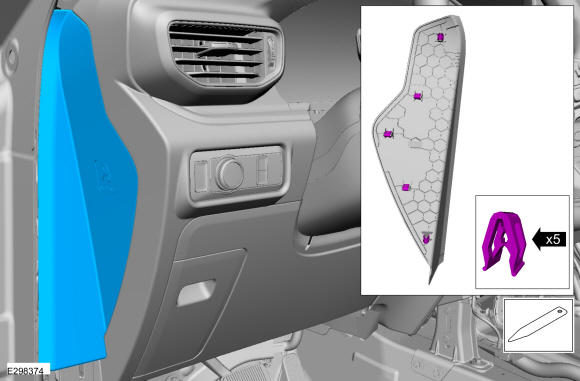

13. Release the clips and remove the LH instrument panel end cap. Use the General Equipment: Interior Trim Remover

    Courtesy of FORD MOTOR COMPANY

    Police vehicles

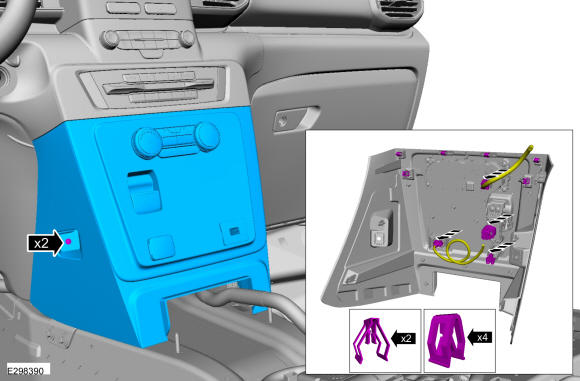

14. Remove the bolts, release the clips and remove instrument panel lower trim panel.
    • Disconnect the electrical connectors.

      Torque: 28 lb.in (3.2 Nm)

    Courtesy of FORD MOTOR COMPANY

    All vehicles

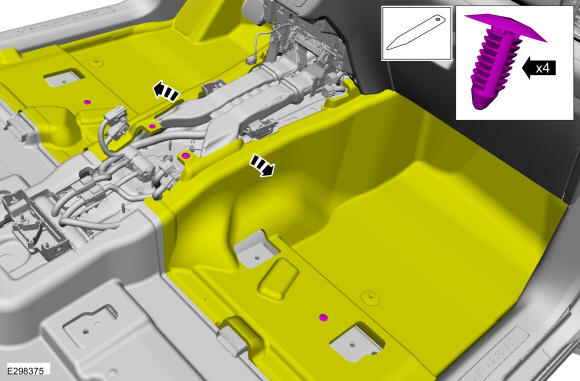

15. Remove the push pins and position the floor carpet aside.

    Courtesy of FORD MOTOR COMPANY

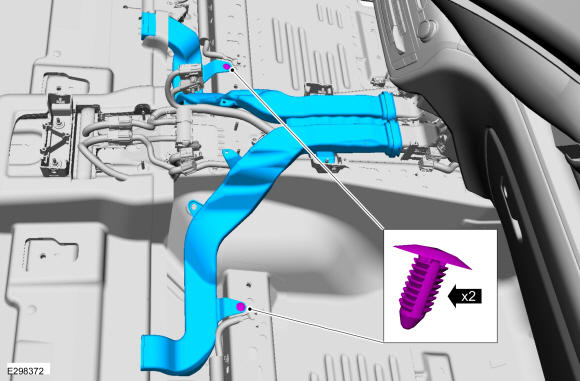

16. Remove the push pins and the HVAC duct.

    Courtesy of FORD MOTOR COMPANY

17. Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

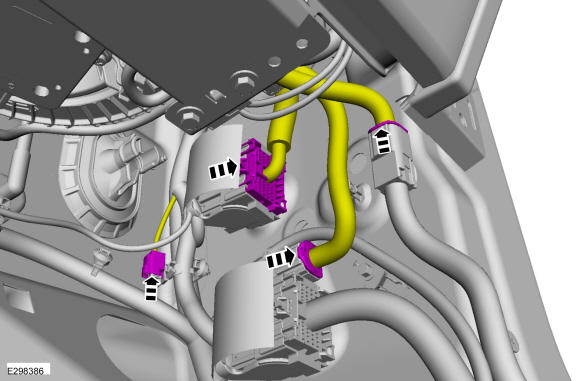

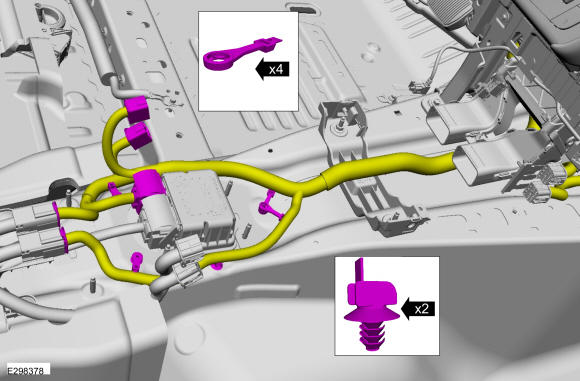

18. Disconnect the electrical connectors, release the harness retainers and position aside the electrical harness.

    Courtesy of FORD MOTOR COMPANY

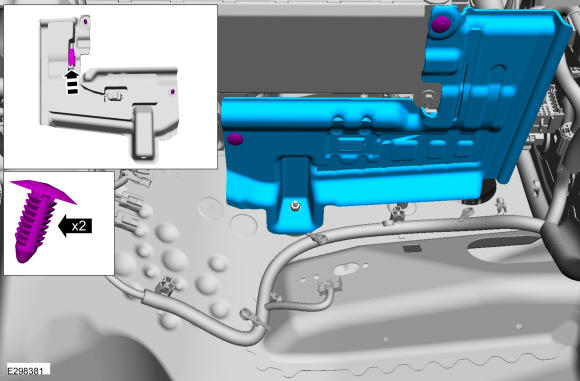

19. Release the push pin and remove the drivers side insulation panel.
    • Remove the bolts.

      Torque: 28 lb.in (3.2 Nm)

    • Remove the nut.

      Torque: 22 lb.in (2.5 Nm)

    • Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

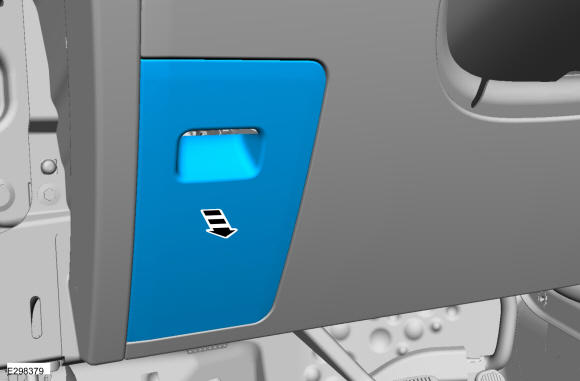

20. Remove the access cover.

    Courtesy of FORD MOTOR COMPANY

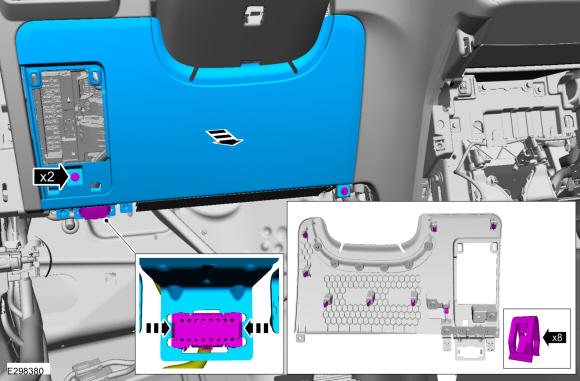

21. Remove the bolts, release the clips and remove the lower steering column trim panel.
    • Release the tabs and position aside the electrical connector and harness.

      Torque: 17 lb.in (1.9 Nm)

    Courtesy of FORD MOTOR COMPANY

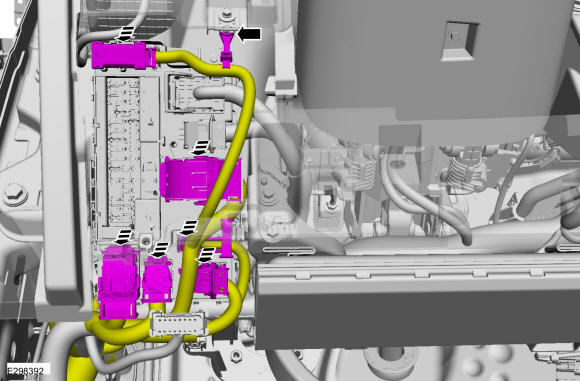

22. Disconnect the electrical connectors, detach the harness retainers and position aside the electrical harness.

    Courtesy of FORD MOTOR COMPANY

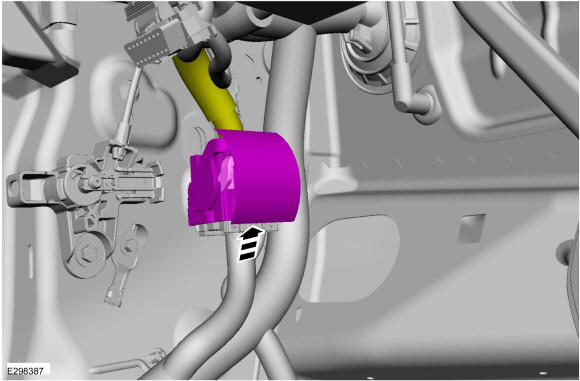

23. Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

    Police vehicles

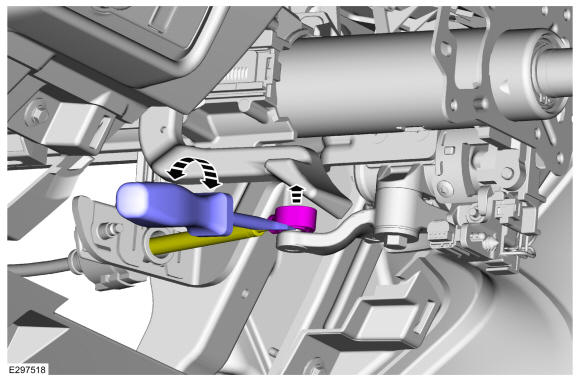

24. NOTE: Do not pull or pry on the selector lever cable or the selector lever cable end may be damaged. Use a screwdriver and turn the screwdriver as shown to pry the cable end off the post as close to the post as possible.

    Using a screwdriver, pry the selector lever cable end from the selector lever mechanism. Use the General Equipment: Flat Headed Screw Driver

    Courtesy of FORD MOTOR COMPANY

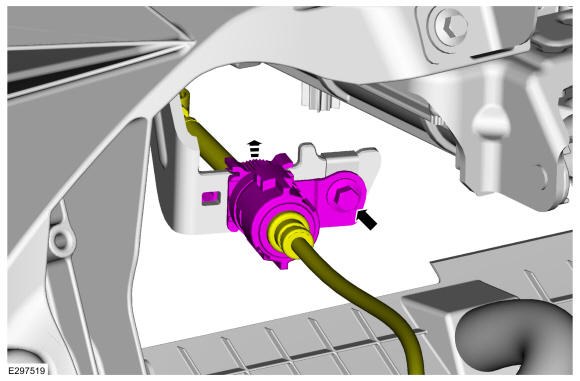

25. Remove the selector lever cable mount retainer and remove the selector lever cable from the bracket.

    Courtesy of FORD MOTOR COMPANY

    All vehicles

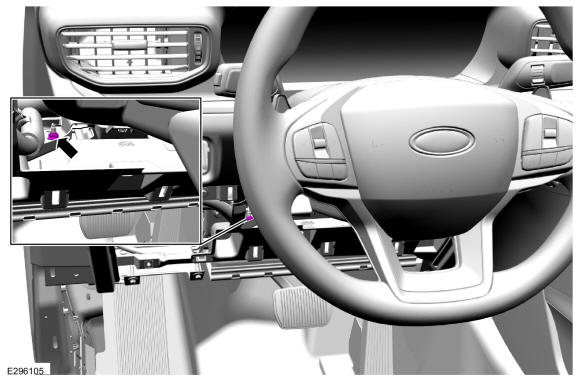

26. Remove the driver knee airbag upper nut.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

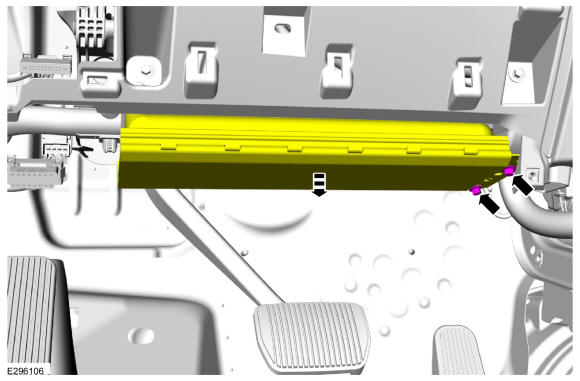

27. Remove the bolts and position the driver knee airbag out from the instrument panel.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

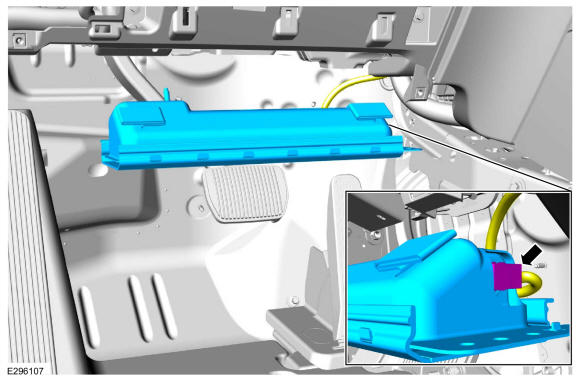

28. Disconnect the electrical connector and remove the driver knee airbag.

    Courtesy of FORD MOTOR COMPANY

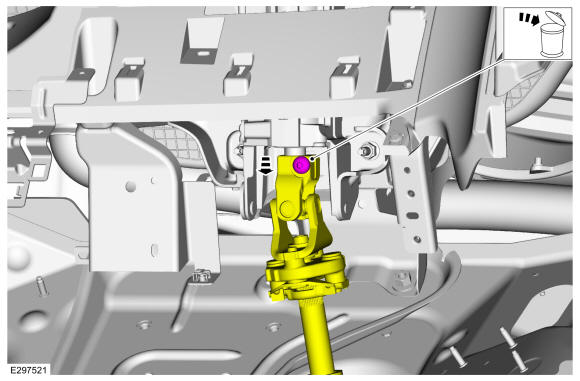

29. WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

    Remove and discard the steering column shaft bolt and separate the steering column shaft from the steering column.

    Torque: Nm

    Courtesy of FORD MOTOR COMPANY

30. Release the push pins and remove the RH insulation panel.
    • Disconnect the electrical connector.

    Courtesy of FORD MOTOR COMPANY

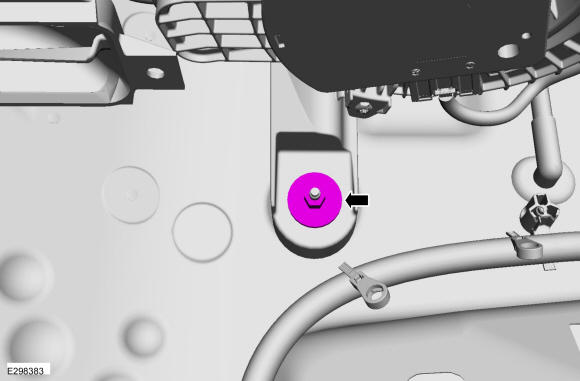

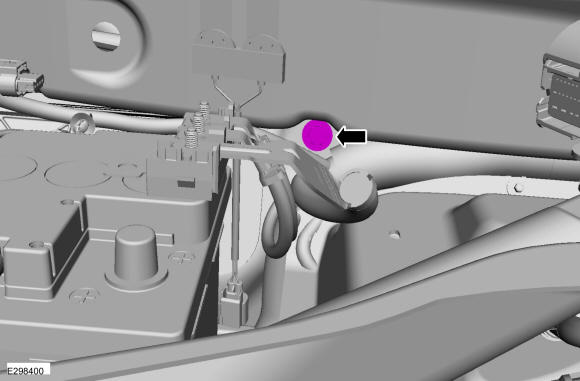

31. Remove the nut at the HVAC case.

    Torque: 62 lb.in (7 Nm)

    Courtesy of FORD MOTOR COMPANY

32. Disconnect the electrical connectors.

    Courtesy of FORD MOTOR COMPANY

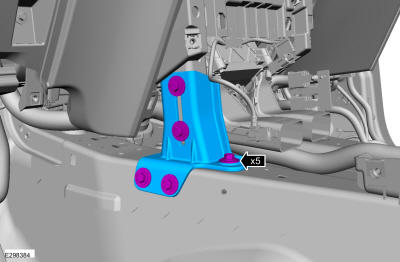

33. Remove the bolts and the instrument panel center support bracket.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

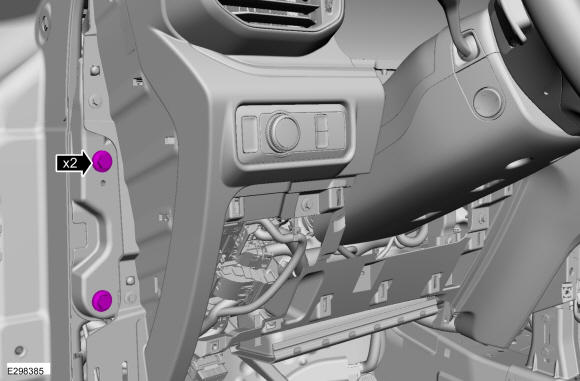

34. NOTE: Leave one bolt finger tight to hold the instrument panel in place prior to the final step.

    Remove the LH instrument panel to a-pillar bolts.

    Torque: 26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

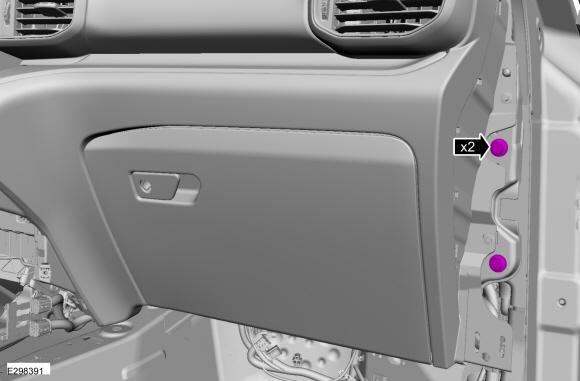

35. NOTE: Leave one bolt finger tight to hold the instrument panel in place prior to the final step.

    Remove the RH instrument panel to a-pillar bolts.

    Courtesy of FORD MOTOR COMPANY

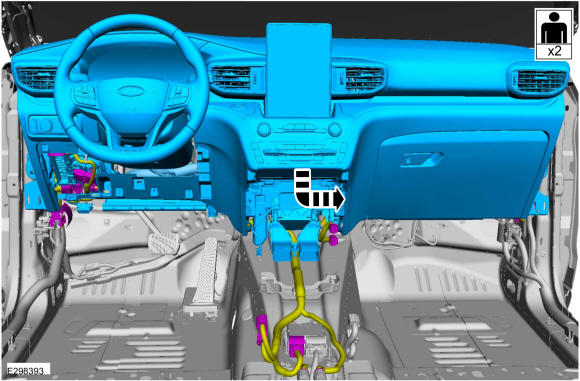

36. NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.
    NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

    Remove the instrument panel through the RH door opening.

Courtesy of FORD MOTOR COMPANY
