Gear Shift Module (GSM) - Vehicles With: Column Shift: Removal

1. Place the vehicle in stay in neutral mode. Refer to: Stay in Neutral - No Start .
2. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

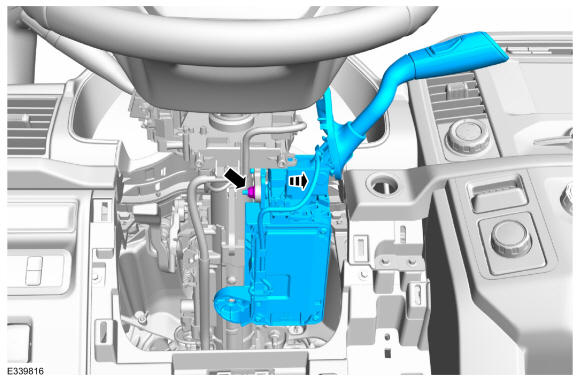

3. Disconnect the GSM electrical connector.

   Courtesy of FORD MOTOR COMPANY

4. Remove the upper GSM bolts.

   Courtesy of FORD MOTOR COMPANY

5. Remove the lower GSM bolt.

   Courtesy of FORD MOTOR COMPANY

6. Remove the nut and the GSM.

Courtesy of FORD MOTOR COMPANY
