Cruise Control
Cruise Control

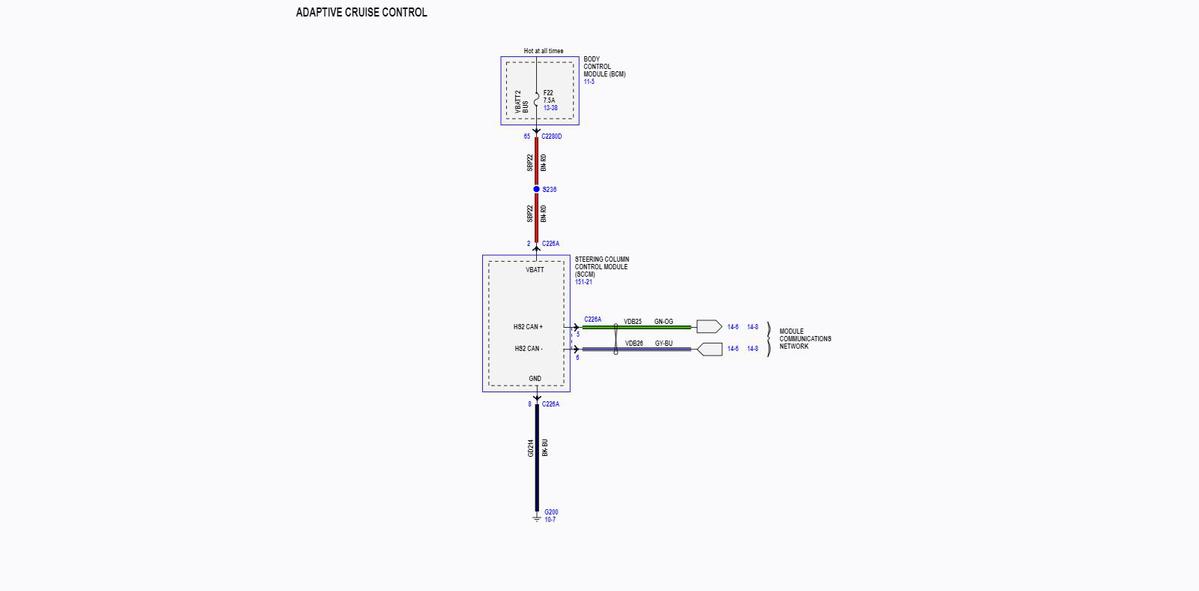

Fig 1: Cruise Control Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR COMPANY

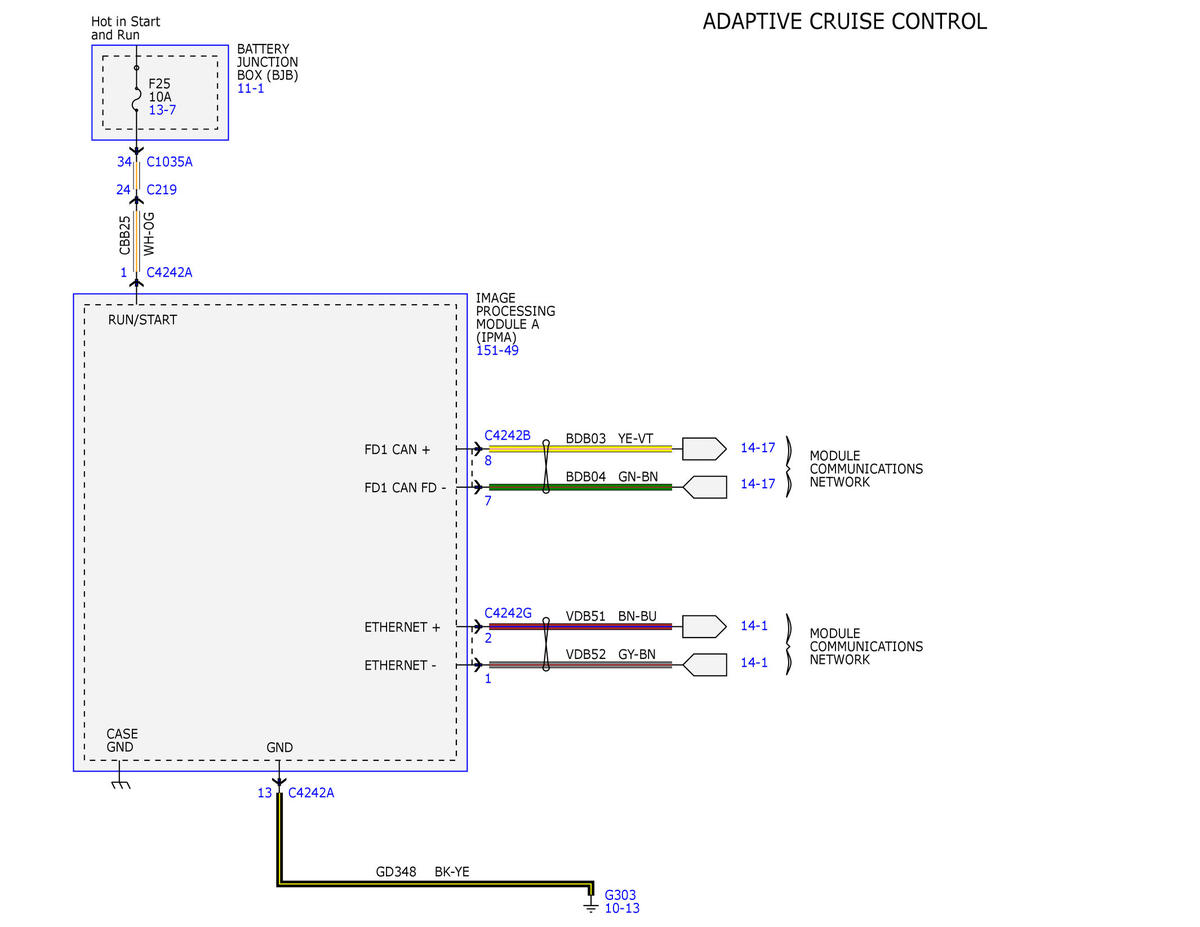

Fig 2: Cruise Control Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR COMPANY

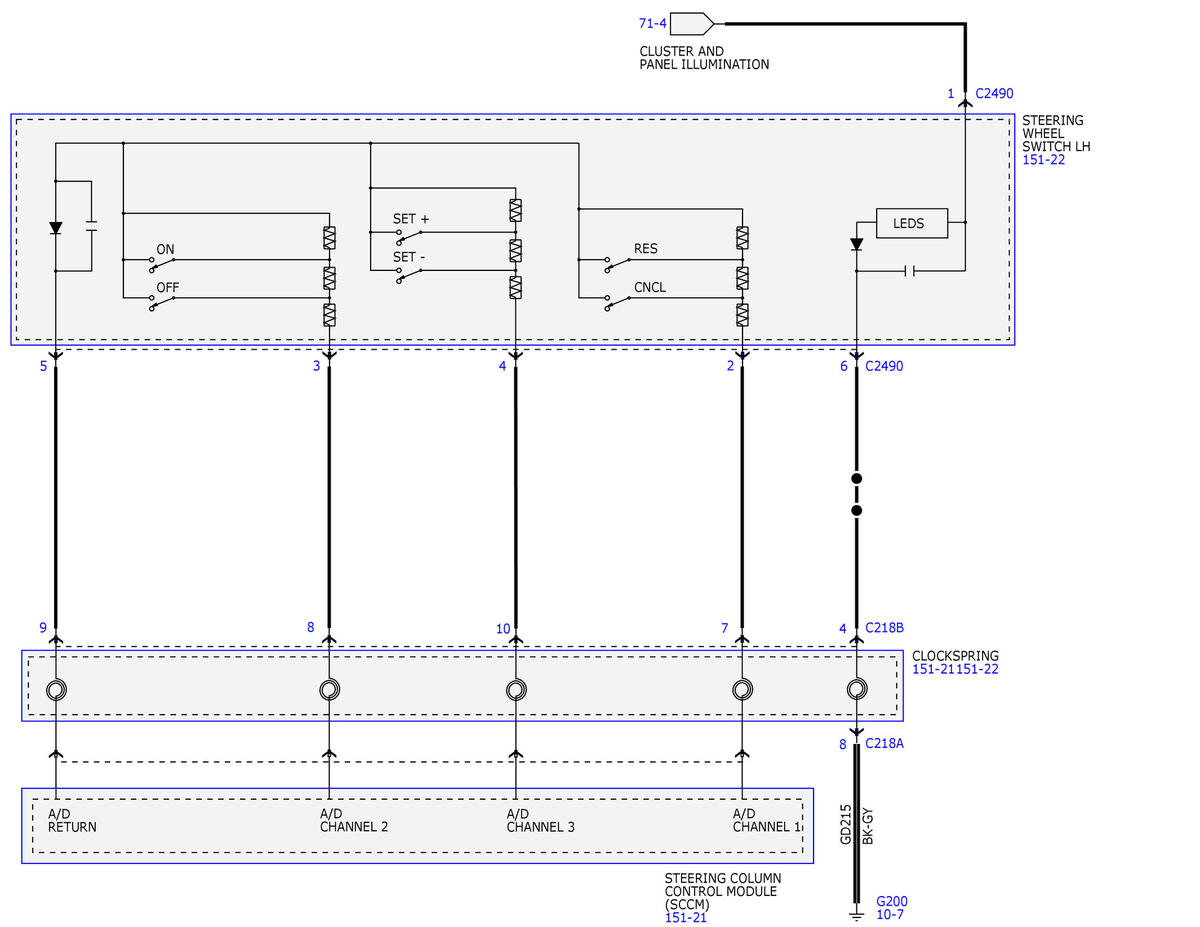

Fig 3: Cruise Control Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR COMPANY
Fig 4: Cruise Control Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR COMPANY
Fig 5: Cruise Control Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR COMPANY
Fig 6: Cruise Control Wiring Diagram (6 Of 6)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
