OEM Electrical Wiring Diagram Introduction: Introduction

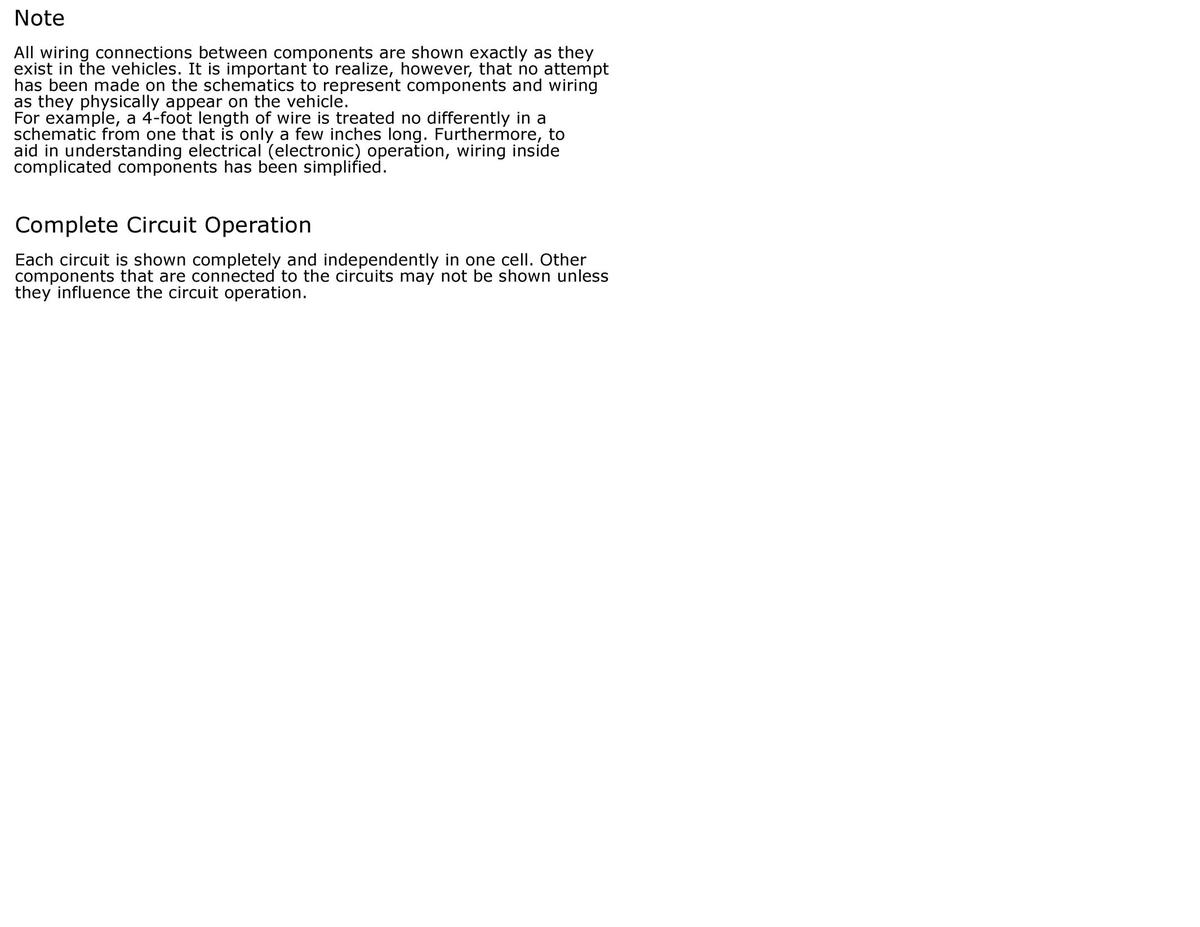

GFDWR197807Courtesy of FORD MOTOR COMPANY

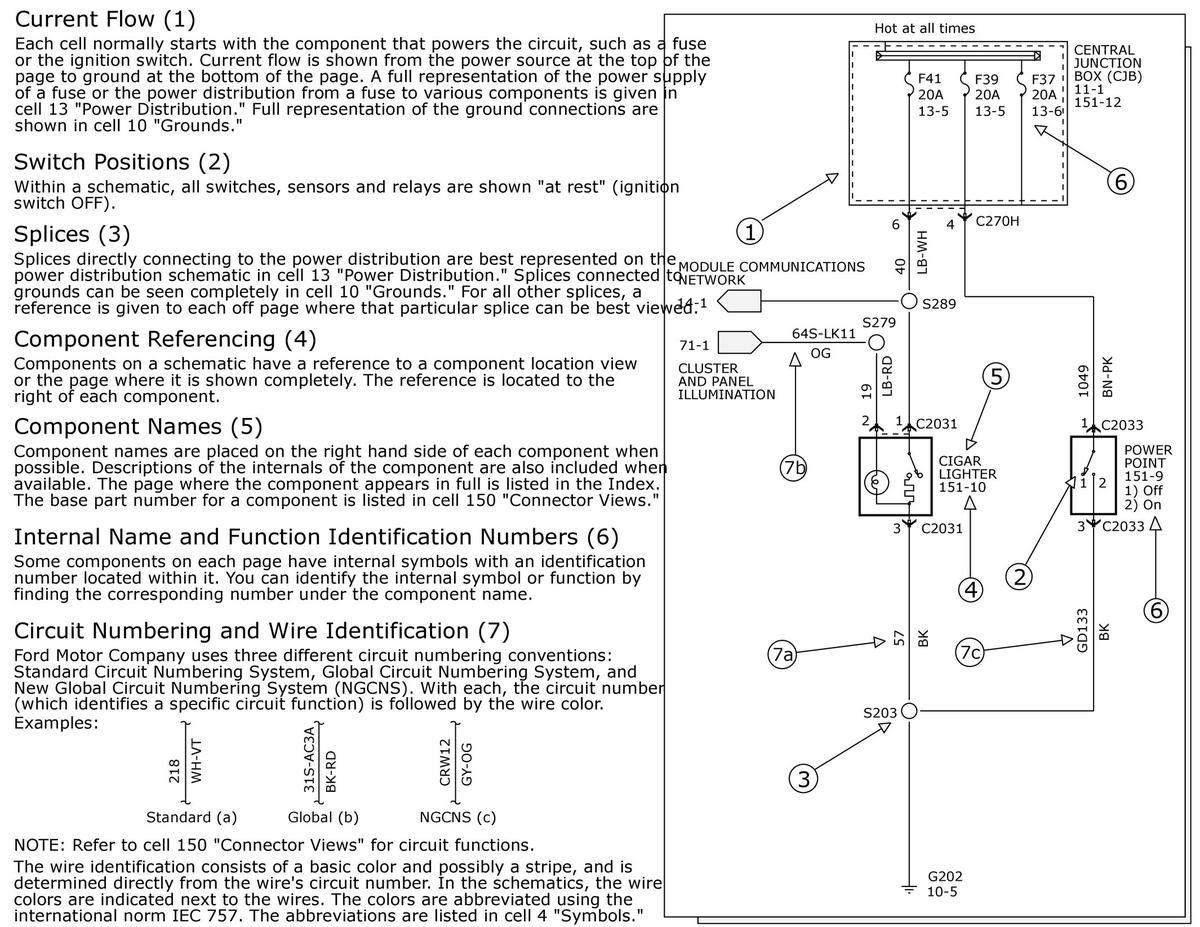

GFDWR197808Courtesy of FORD MOTOR COMPANY

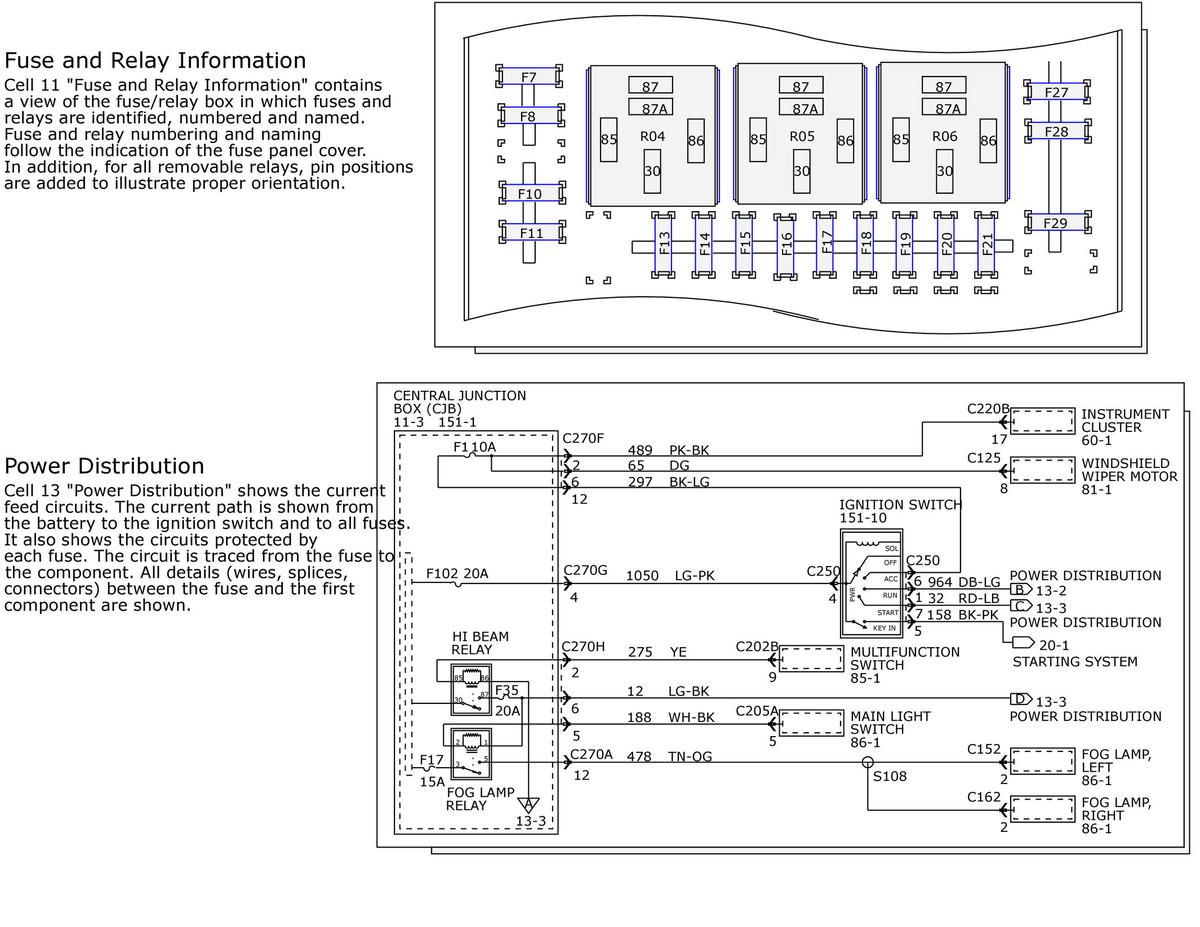

GFDWR197809Courtesy of FORD MOTOR COMPANY

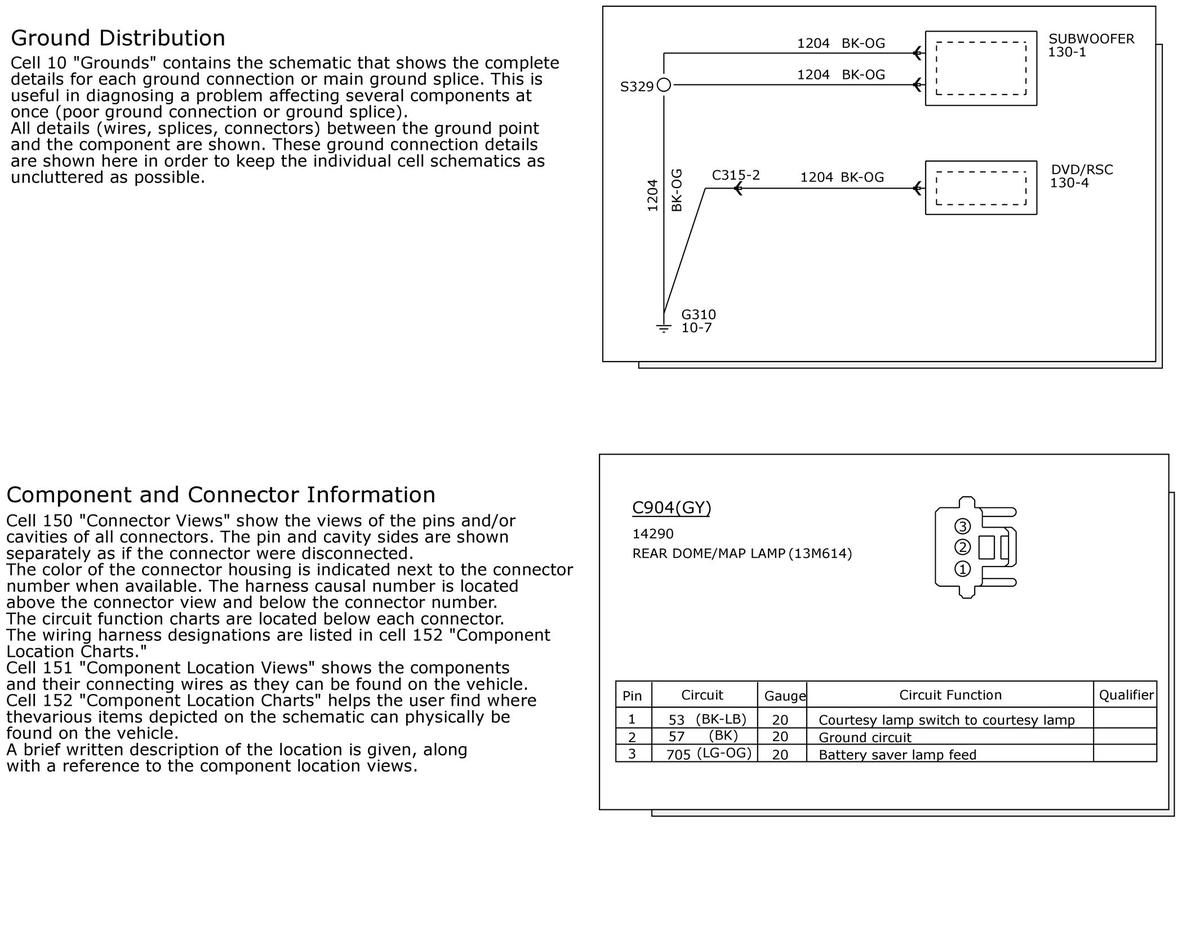

GFDWR197810Courtesy of FORD MOTOR COMPANY

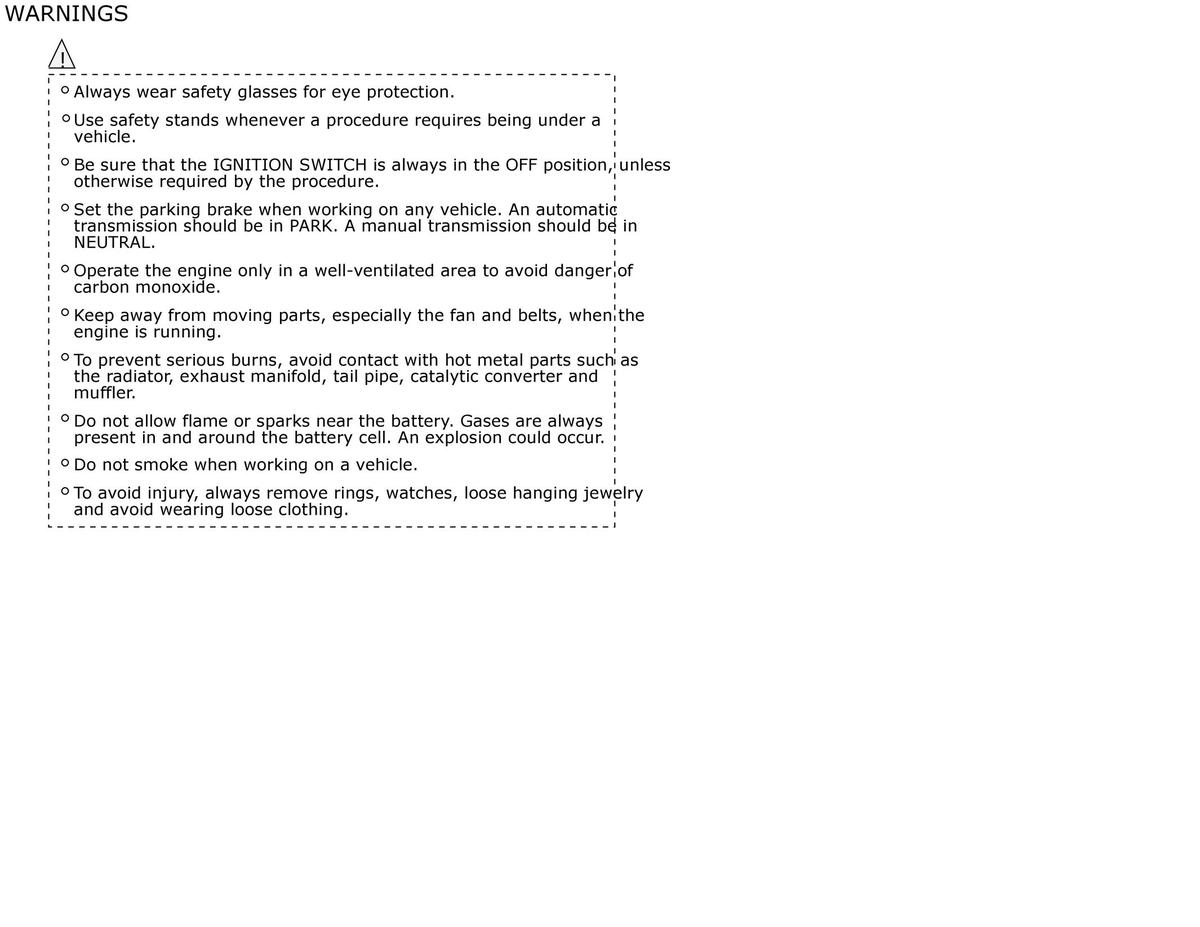

GFDWR197811Courtesy of FORD MOTOR COMPANY
