Cruise Control Module (CCM): Removal
WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the front bumper cover. Refer to: Front Bumper Cover .

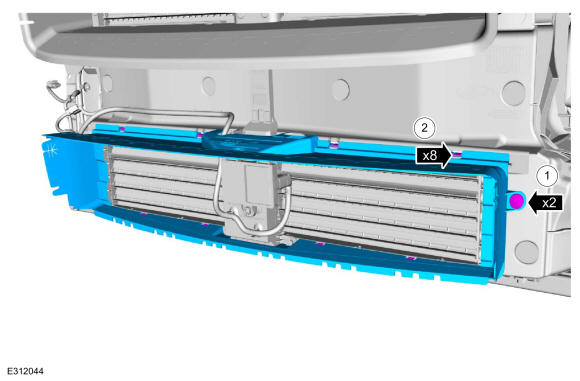

- Remove the air deflector.
- Remove the pushpins.
- Release the tabs and remove the air deflector.

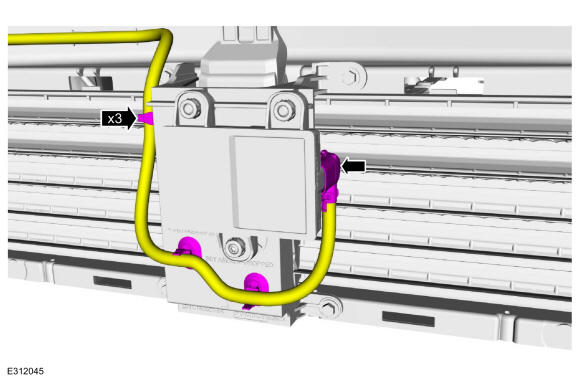

- Detach the wire harness retainers and disconnect the wiring connector.
-
NOTE: Follow the unique instructions or graphics for this step in the installation.

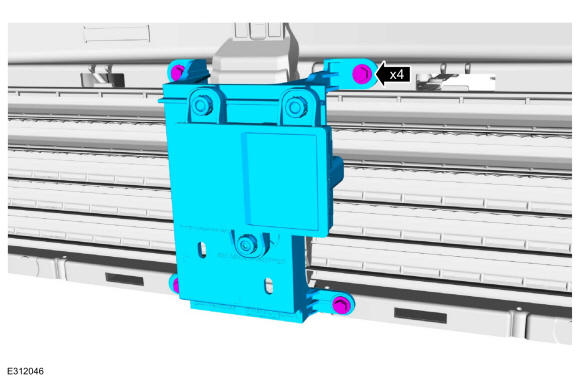

Remove the screws and the CCM and bracket.
