Liftgate Trim Panel: Installation

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

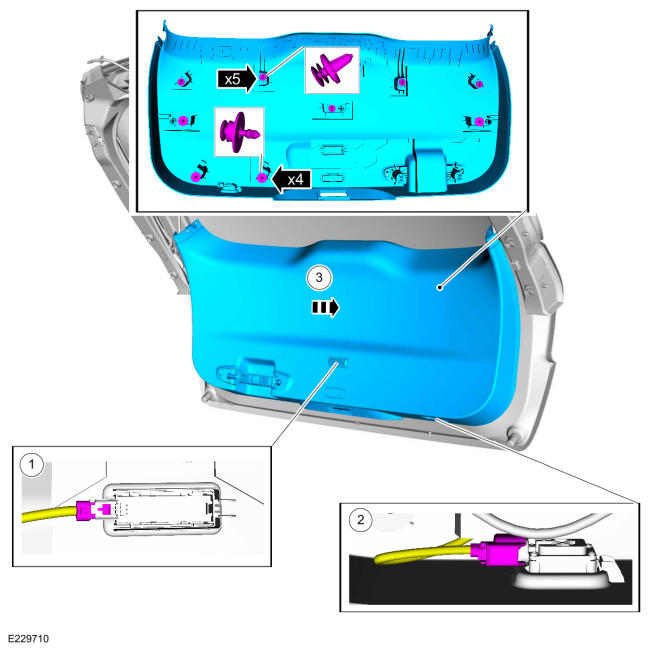

  1. Install the liftgate lower trim panel.

    1. If equipped. Connect the rear closure interior lamp electrical connector.
    2. If equipped. Connect the power liftgate switch electrical connector.
    3. Install the lower trim panel.

    GFD621927Courtesy of FORD MOTOR COMPANY

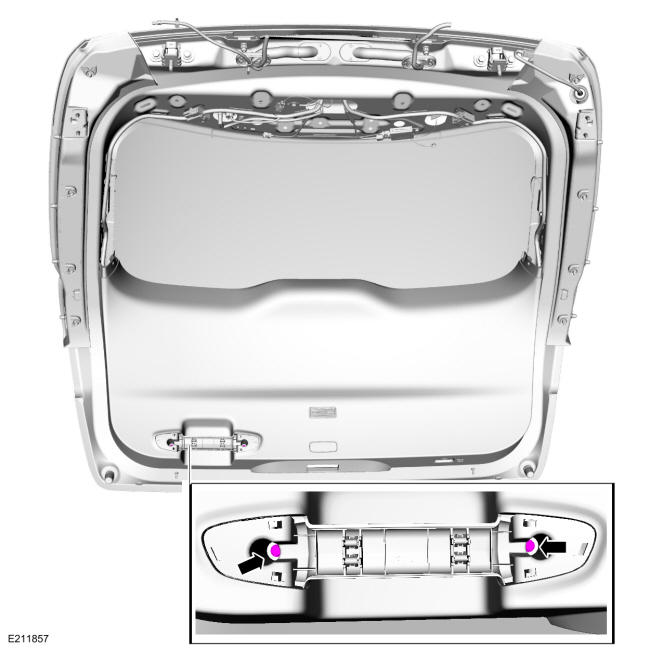

  2. Install the liftgate grab handle screws.
    GFD621924Courtesy of FORD MOTOR COMPANY

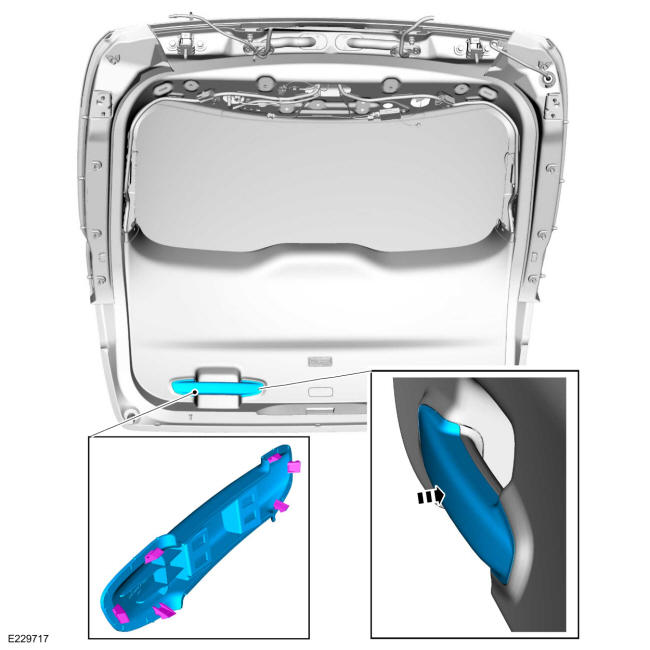

  3. Install the liftgate grab handle cover.
    GFD621928Courtesy of FORD MOTOR COMPANY

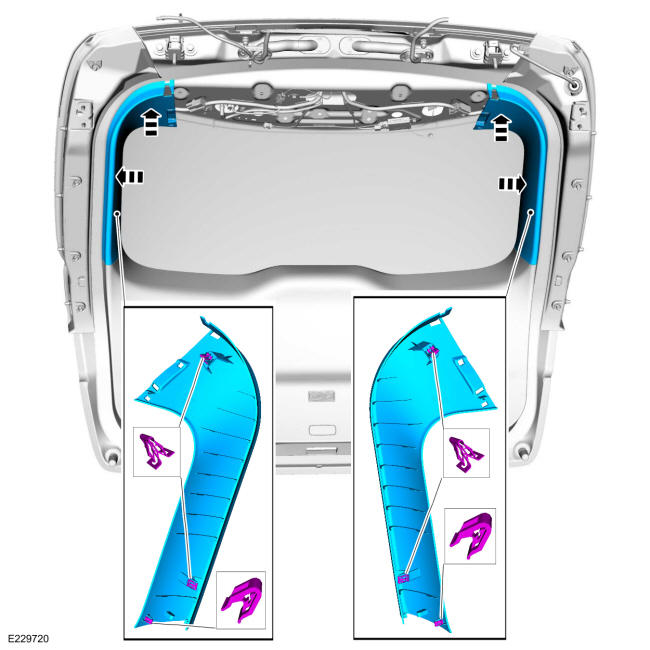

  4. Install the RH and LH liftgate upper side trim panels.
    GFD621929Courtesy of FORD MOTOR COMPANY

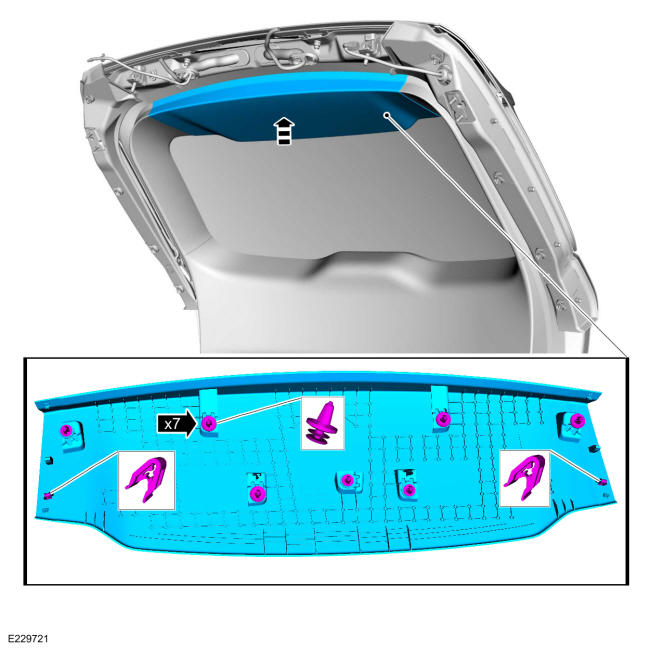

  5. Install the liftgate upper center trim panel.
GFD621930Courtesy of FORD MOTOR COMPANY
