Vehicle Dynamics Control Module (VDM): Removal

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: Removal steps in this procedure may contain installation details.

Vehicles equipped with subwoofer

Remove the subwoofer and amplifier unit. Refer to: Subwoofer and Amplifier Unit .
Vehicles without subwoofer
Remove the RH loadspace trim panel. Refer to: Loadspace Trim Panel .
All vehicles
NOTE: The VDM is mounted to the RH side of the luggage compartment behind the loadspace trim panel.

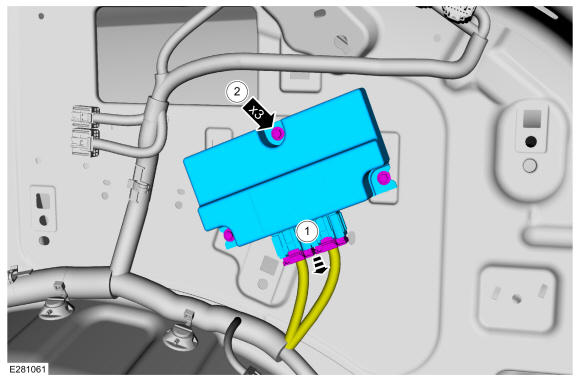

1. Disconnect the VDM electrical connectors.
2. Remove the VDM retainers and the VDM.
  Torque: 13 lb.in (1.5 Nm)
