Steering Column Control Switch: Removal

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .

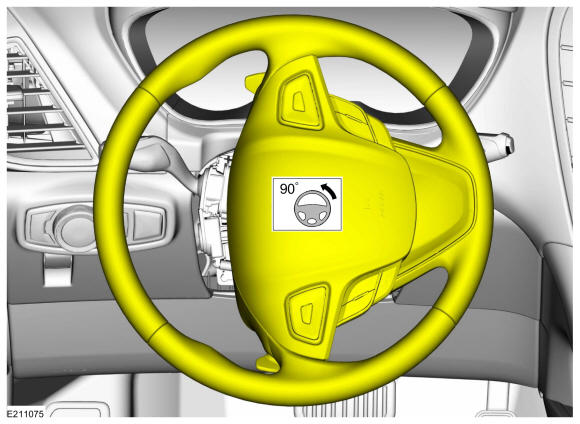

  2. Turn the steering wheel 90 degrees left.
    GFD617873Courtesy of FORD MOTOR COMPANY

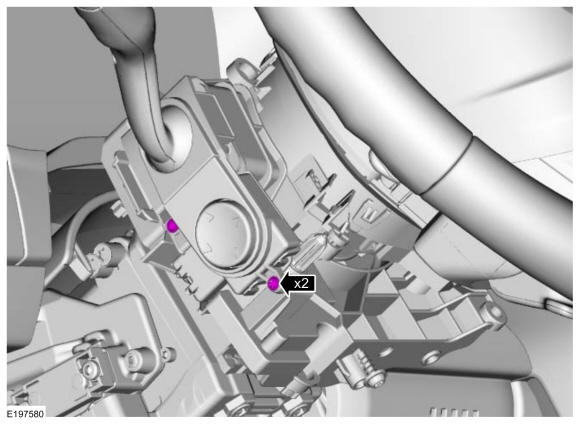

  3. Remove the screws.
    GFD617874Courtesy of FORD MOTOR COMPANY

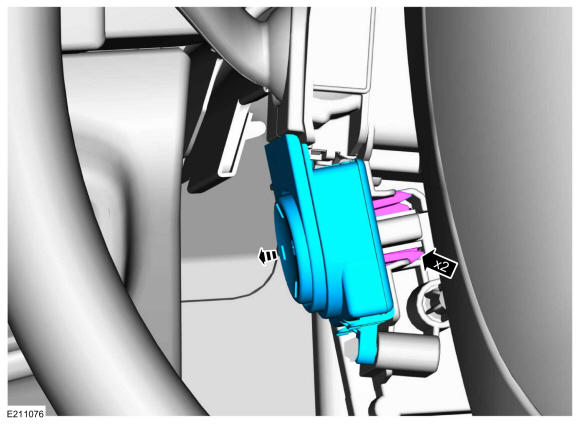

  4. Squeeze the tabs and remove the steering column control switch.
GFD617875Courtesy of FORD MOTOR COMPANY
