Fuse And Relay Location

WARNING: This page is about a different car, the 2023 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

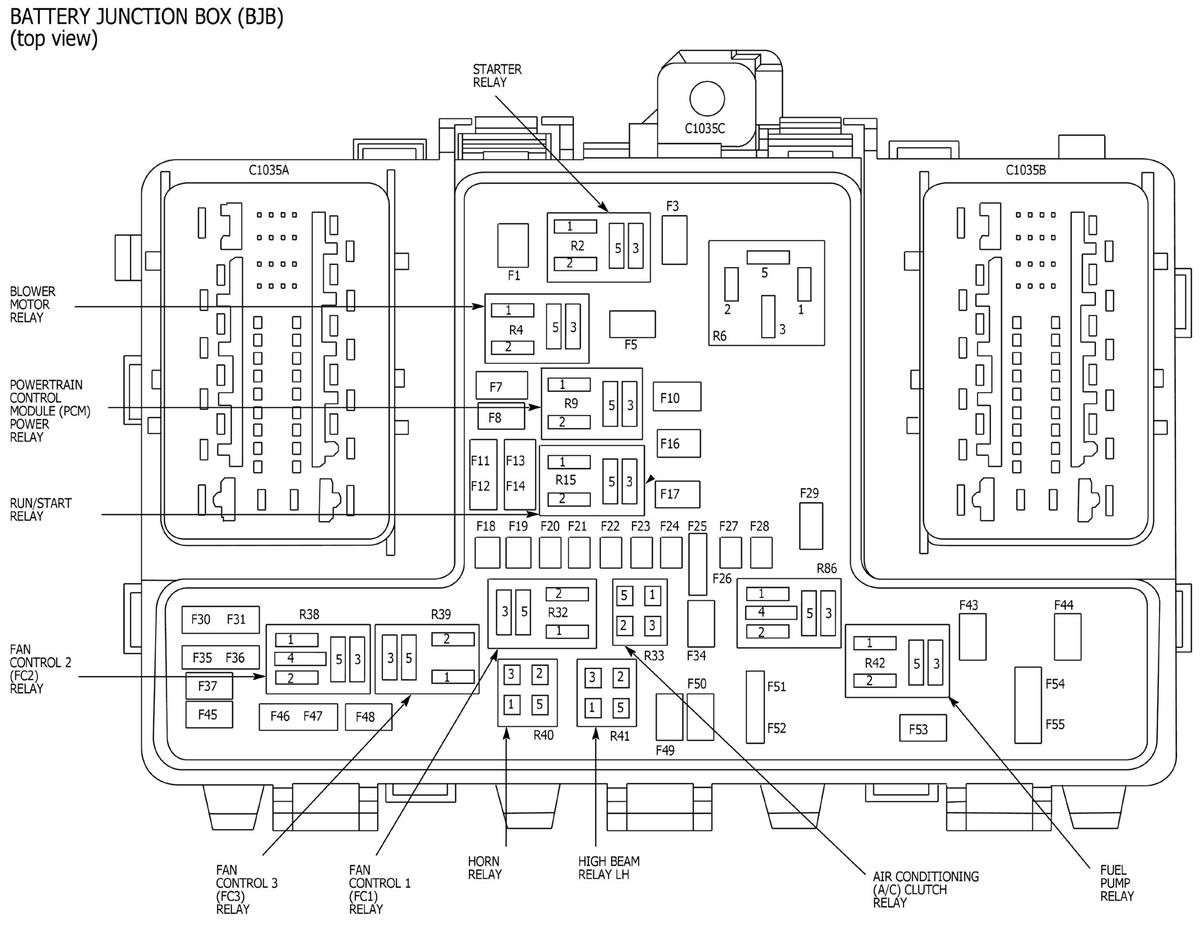

Fig 1: Battery Junction Box (BJB) (Top View) Components Location

Courtesy of FORD MOTOR COMPANY

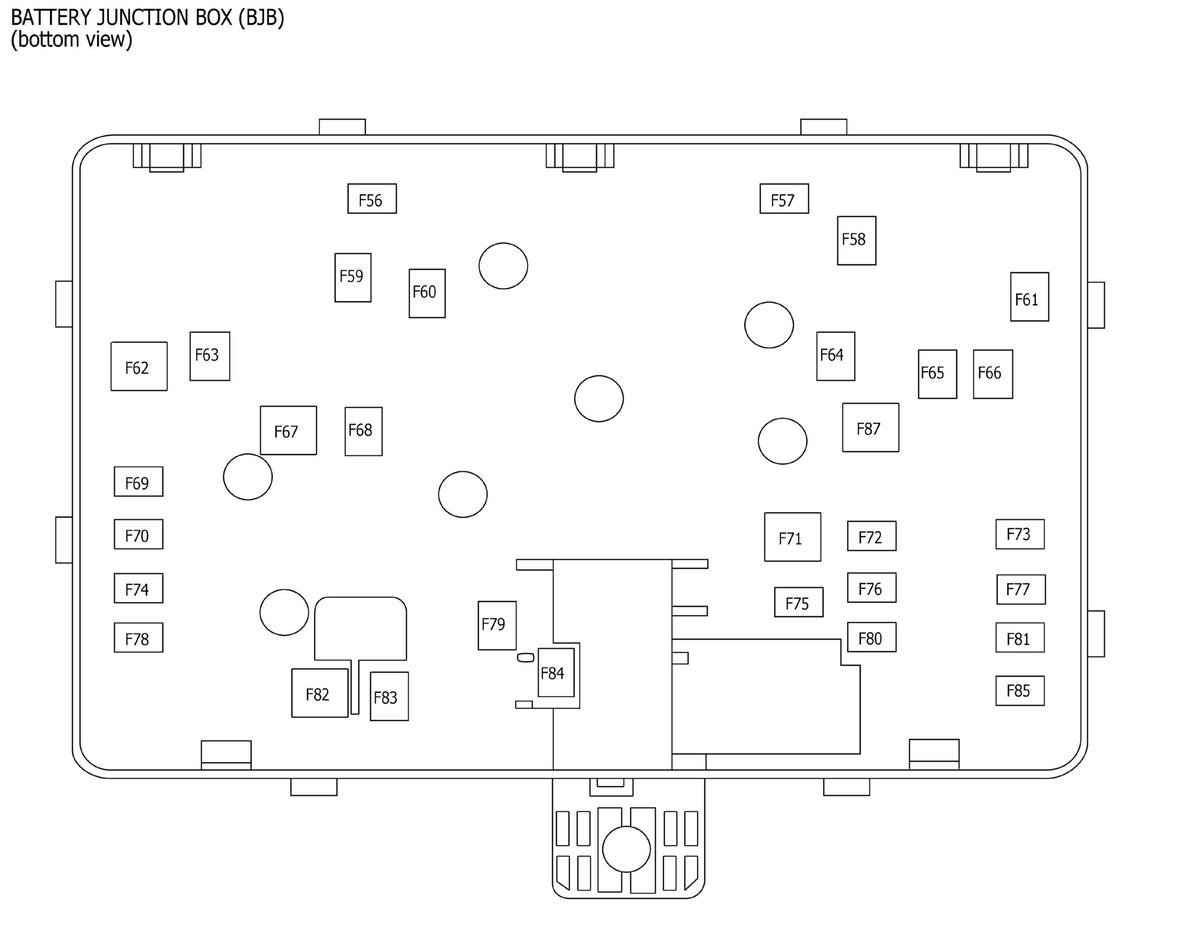

Fig 2: Battery Junction Box (BJB) (Bottom View) Components Location

Courtesy of FORD MOTOR COMPANY

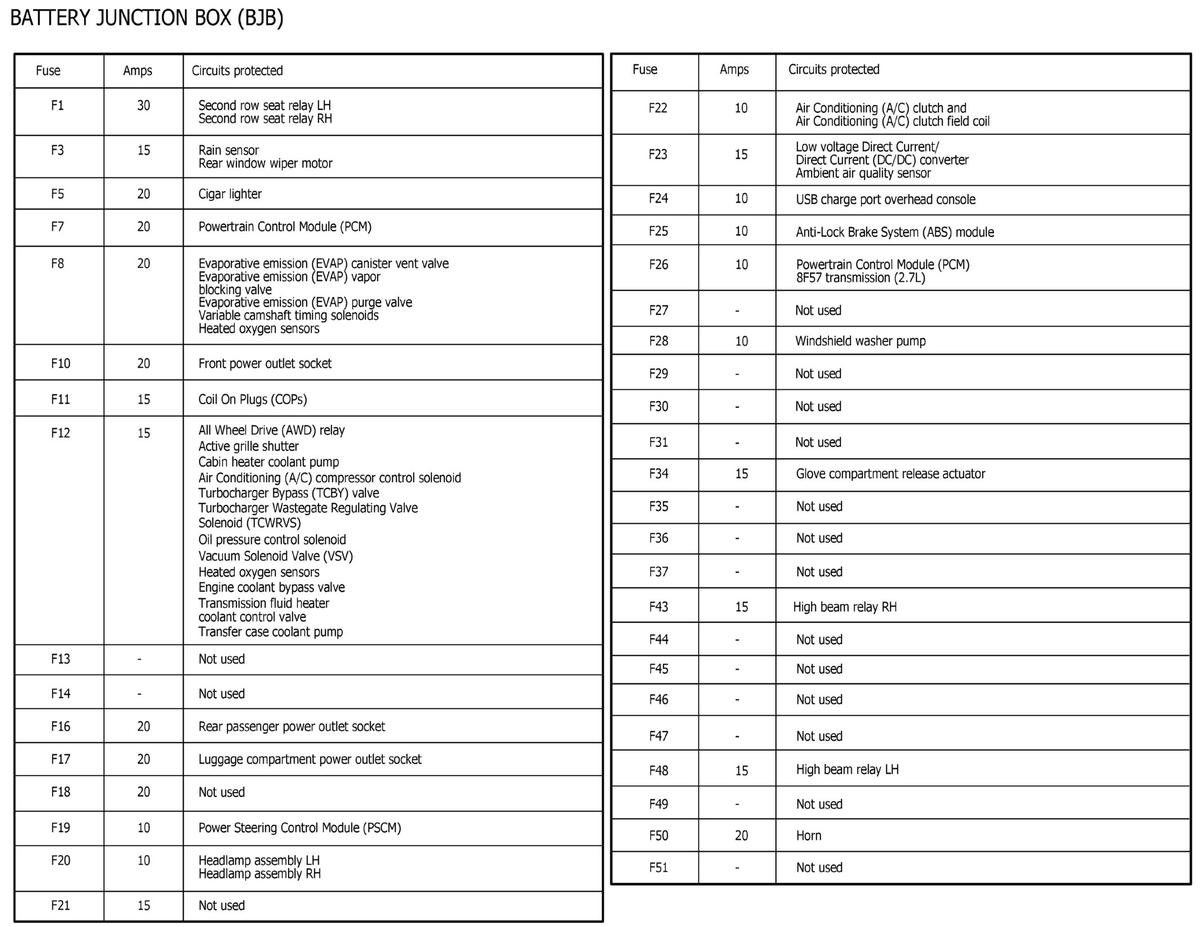

Fig 3: Battery Junction Box (BJB) Components Location Legend (F1 -F51)

Courtesy of FORD MOTOR COMPANY

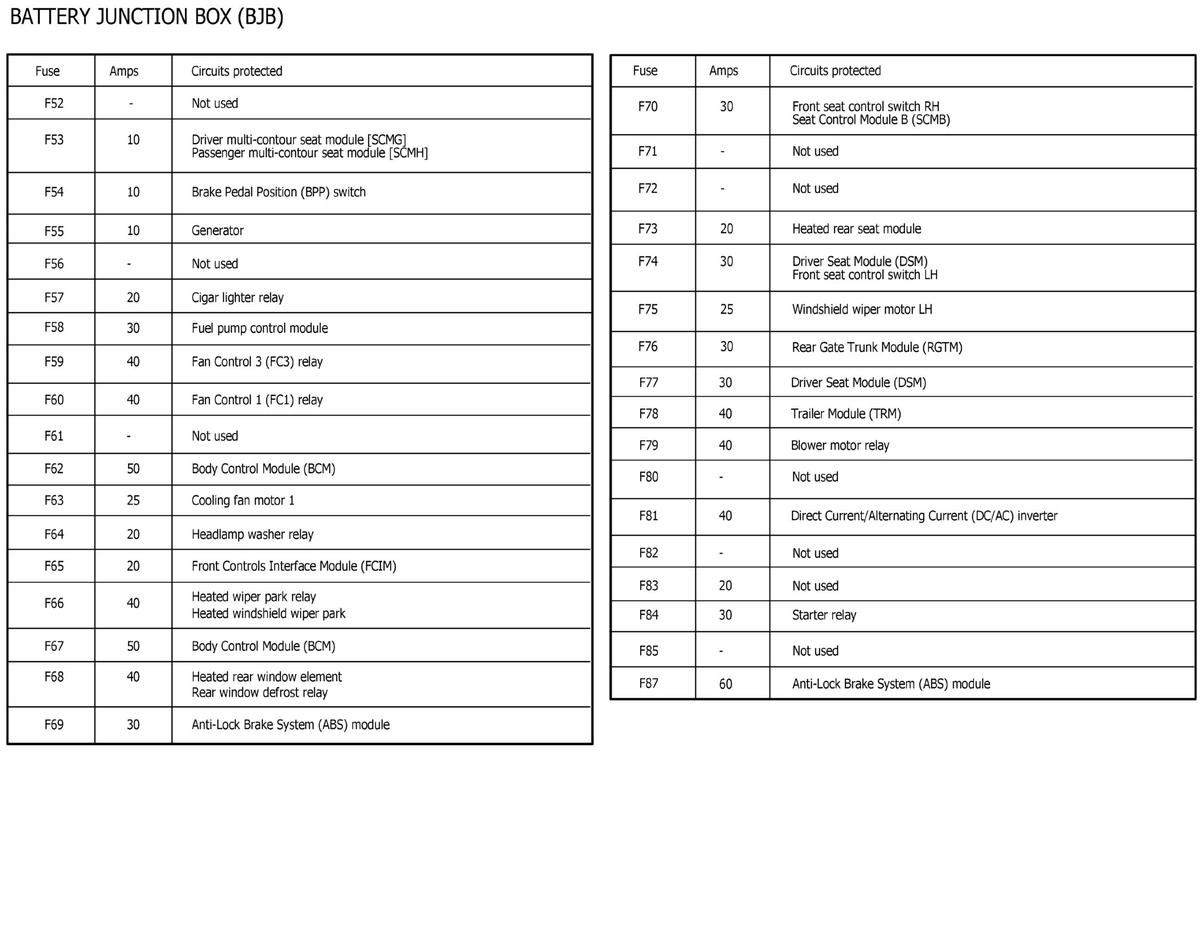

Fig 4: Battery Junction Box (BJB) Components Location Legend (F52 -F87)

Courtesy of FORD MOTOR COMPANY

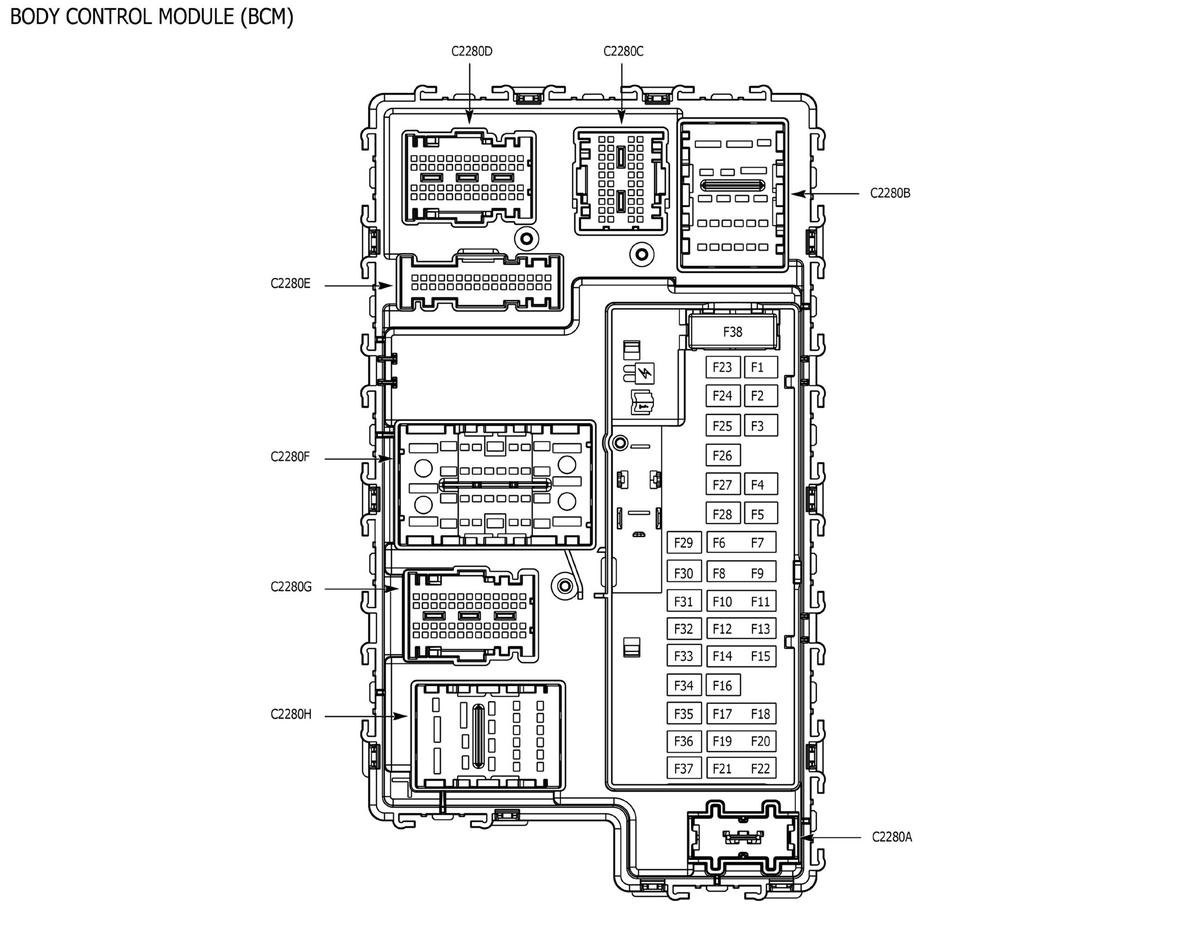

Fig 5: Body Control Module (BCM) Components Location

Courtesy of FORD MOTOR COMPANY

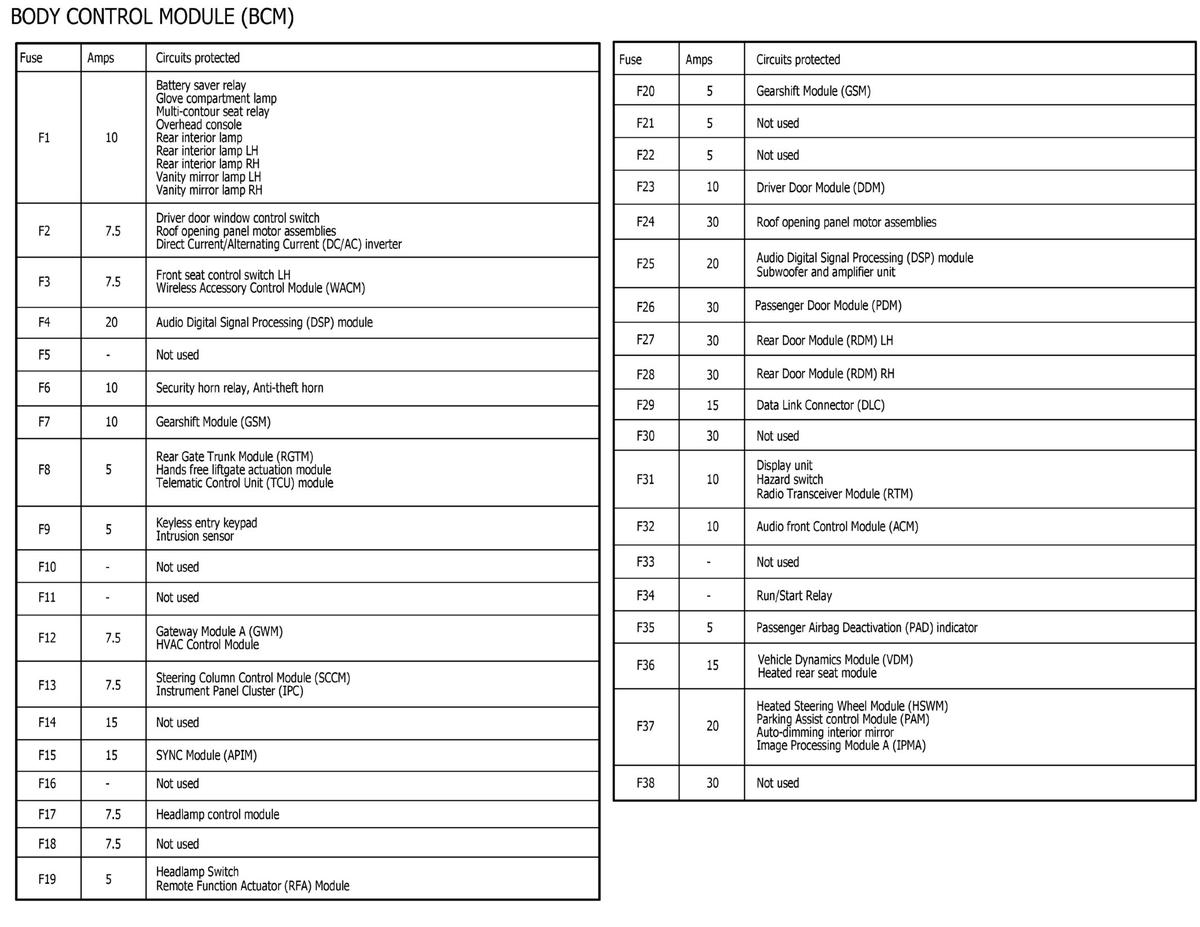

Fig 6: Body Control Module (BCM) Components Location Legend (F1 - F38)

Courtesy of FORD MOTOR COMPANY

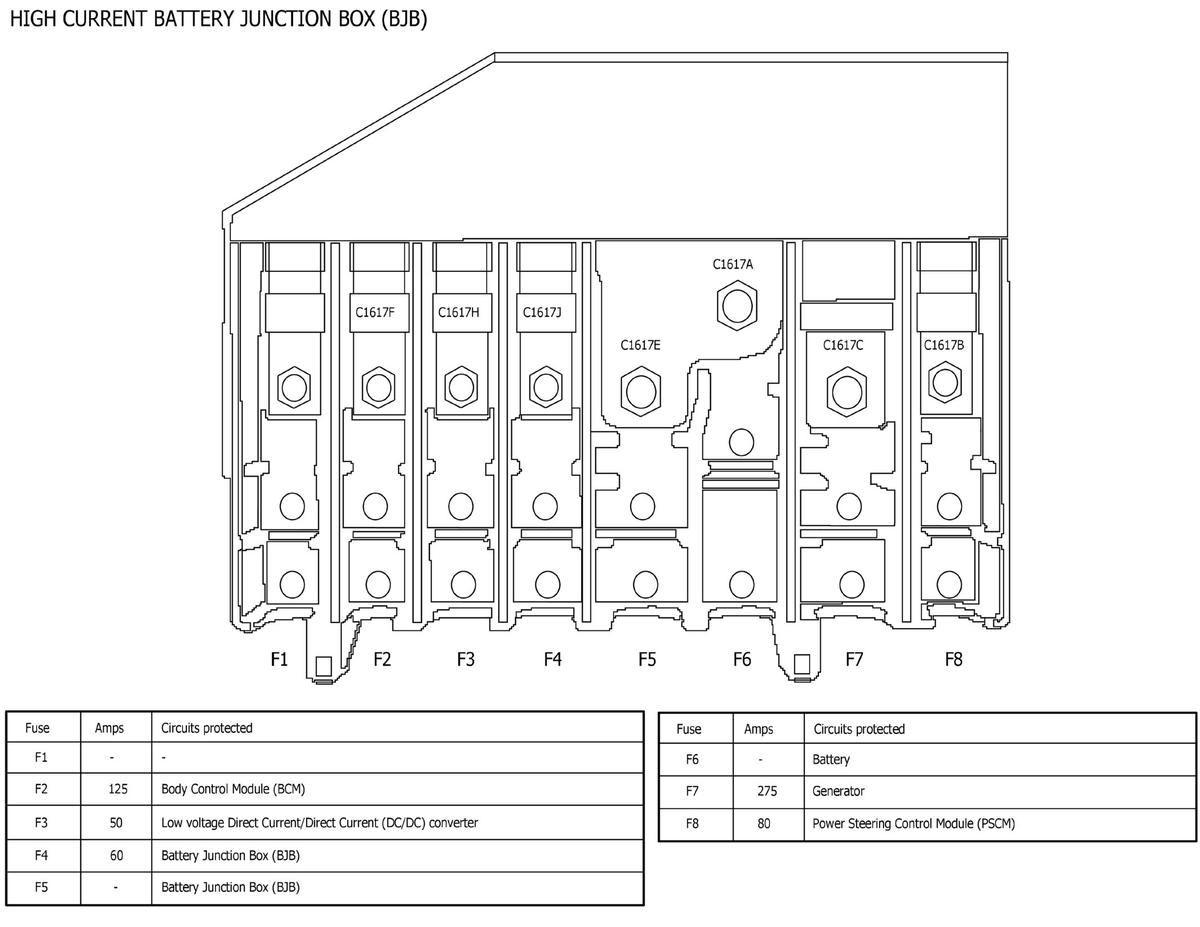

Fig 7: High Current Battery Junction Box (BJB) Components Location & Legend (F1 - F8)

Courtesy of FORD MOTOR COMPANY
